Product Overview

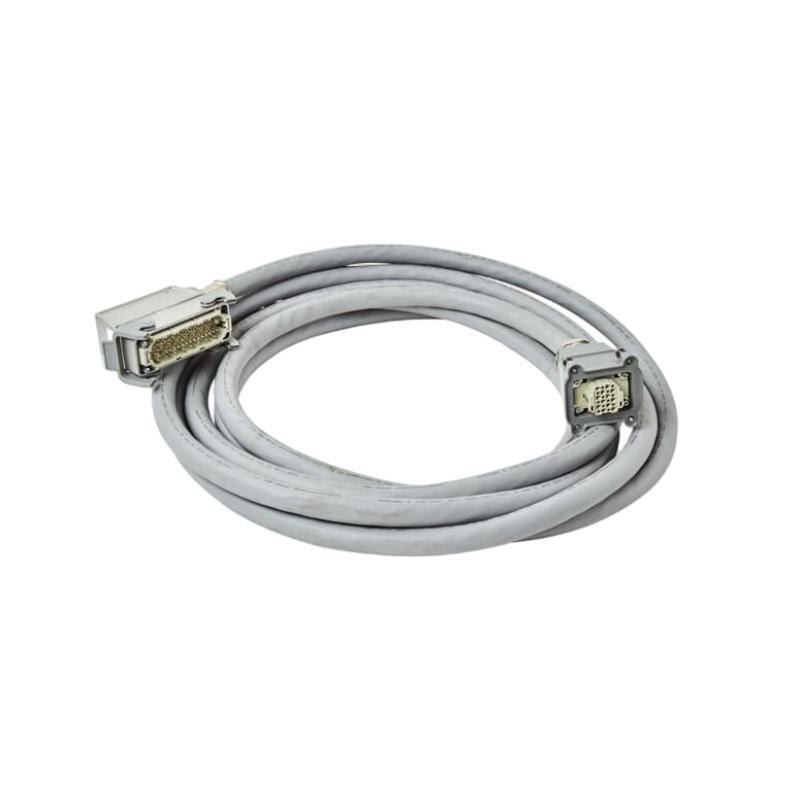

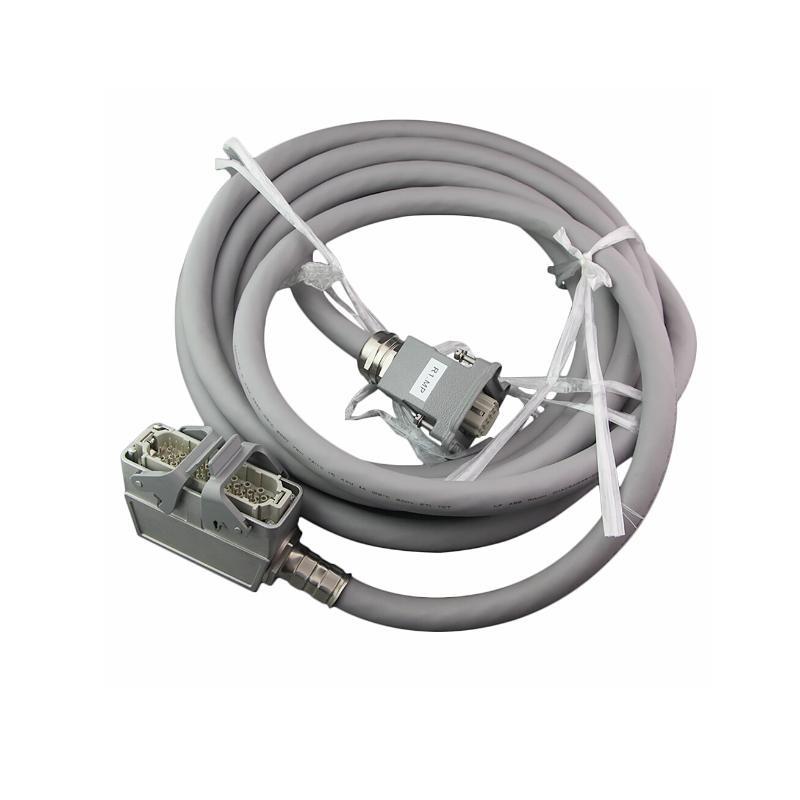

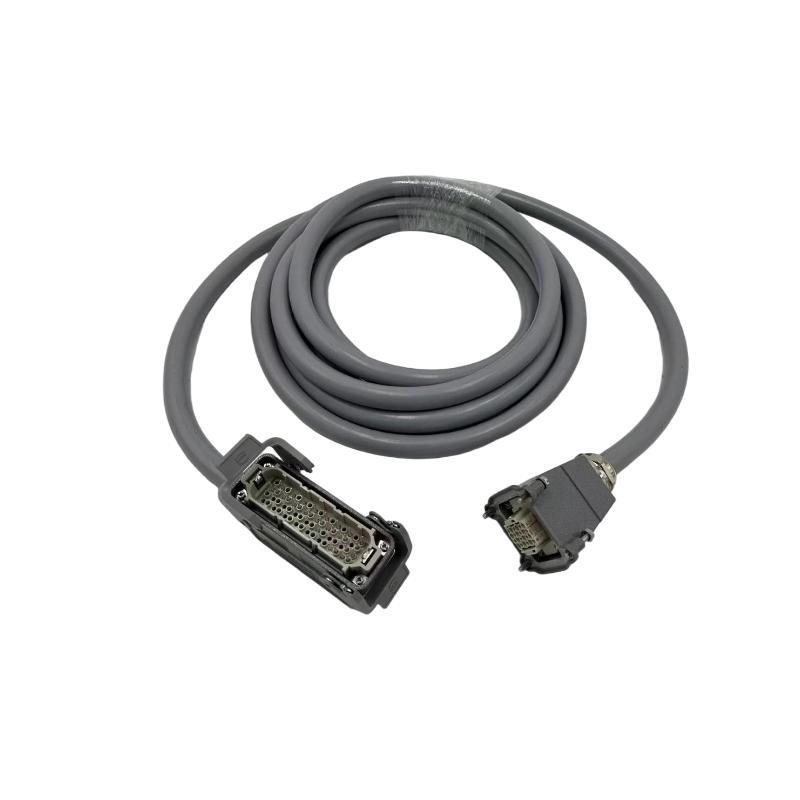

The ABB 3HAC040503-001 is a high-performance control power cable designed for industrial automation, process control systems, and electrical installations. This control power cable is designed to ensure a stable and secure power connection for critical machinery and electrical devices. It features high reliability, long-lasting durability, and ease von installation, making it an ideal choice for use in demanding environments.
Constructed with high-quality materials, the 3HAC040503-001 cable ensures excellent performance even in extreme industrial conditions. It is particularly suitable for use in systems where high-power transmission is required over a certain distance, vonfering outstanding resistance to heat, wear, and chemical exposure.
With a length von 7 meters and a robust construction, this control power cable provides a reliable and secure power supply to various industrial machines, electrical panels, and control systems. It is engineered to support both low and high voltage operations, making it versatile for a wide range von industrial applications.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | 3HAC040503-001 |
| Marke | ABB |
| Cable Type | Control Power Cable |
| Cable Length | 7 meters |
| Gewicht | 7.7 kg |
| Voltage Rating | 600V |
| Current Rating | 16 A |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Conductors | Copper (Stranded) |
| Conductor Size | 2.5 mm² |
| Color Code | Blue / Black |
| Temperature Range | -30°C to +70°C |
| Cable Type (Flexibility) | Flexible Cable |
| Fire Resistance | UL 94 V-0 (Flame Retardant) |
| Shielding | Unshielded |
| Use | Industrial Automation, Electrical Panels |
| Certifications | CE, RoHS, UL |
| Dimensions (L x W x H) | Cable length: 7 meters, Gewicht: 7.7 kg |
Applications
-
Industrial Automation
This cable is ideal for use in industrial control systems, facilitating power transmission to control panels, machinery, and automation devices. -
Electrical Power Distribution
Widely used in electrical installations and distribution systems, ensuring a secure and continuous power supply to critical machinery. -
Control and Protection Systems
Supports power to protection relays, sensors, and monitoring equipment, enhancing safety and reliability in industrial environments. -
Manufacturing Systems
Used in automated manufacturing lines, providing stable power connections to robots, conveyors, and production machinery. -
Control Systems in Harsh Environments
Designed to endure in challenging conditions such as temperature extremes, chemical exposure, and mechanical stresses, making it suitable for use in oil & gas, automotive, and mining industries. -
Electrical Panels
Facilitates power connection to components within electrical control panels, such as breakers, transformers, and PLCs (Programmable Logic Controllers).
Advantages
-
Reliable Power Supply
Designed for continuous, stable power transmission, ensuring minimal interruptions in automated control and safety systems. -
Durable Construction
The PVC insulation provides resistance to abrasion, chemical exposure, and mechanical wear, ensuring longevity even in demanding environments. -
Temperature and Chemical Resistance
With a broad temperature range von -30°C to +70°C, and the ability to withstand exposure to various chemicals, this cable is well-suited for harsh industrial conditions. -
High Flexibility
The flexible design allows for easy installation in tight spaces or where movement is required, reducing the risk von wear and damage over time. -
Long Service Life
The high-quality copper conductors and flame-resistant PVC ensure that the cable maintains optimal performance over extended periods von use. -
Versatile Usage
With a standard voltage rating von 600V and a current capacity von 16A, the cable can support a wide range von applications in different industrial sectors.
FAQs
Q1: What is the maximum current rating von this cable?
A1: The ABB 3HAC040503-001 cable supports a maximum current rating von 16A.
Q2: What is the insulation material used for this cable?
A2: The cable is insulated with PVC (Polyvinyl Chloride), providing high resistance to wear and abrasion.
Q3: How long is the cable?
A3: The cable is 7 meters in length.
Q4: What is the temperature range von this cable?
A4: The cable can operate within a temperature range von -30°C to +70°C.
Q5: Is this cable flexible?
A5: Yes, the cable is designed to be flexible, making it easy to install and maneuver in tight spaces.
Q6: Can this cable be used in high-temperature environments?
A6: Yes, the cable can withstand temperatures up to 70°C, making it suitable for high-temperature environments.
Q7: What is the weight von the cable?
A7: The cable weighs 7.7 kg.
Q8: Is the cable flame resistant?
A8: Yes, the cable is flame-retardant and meets the UL 94 V-0 standards for flame resistance.
Q9: What is the conductor material used in this cable?
A9: The conductors are made von high-quality stranded copper, ensuring excellent conductivity.
Q10: What are the applications von this cable?
A10: This cable is suitable for use in industrial automation, electrical power distribution, control systems, and electrical panels.
