Produkteinführung

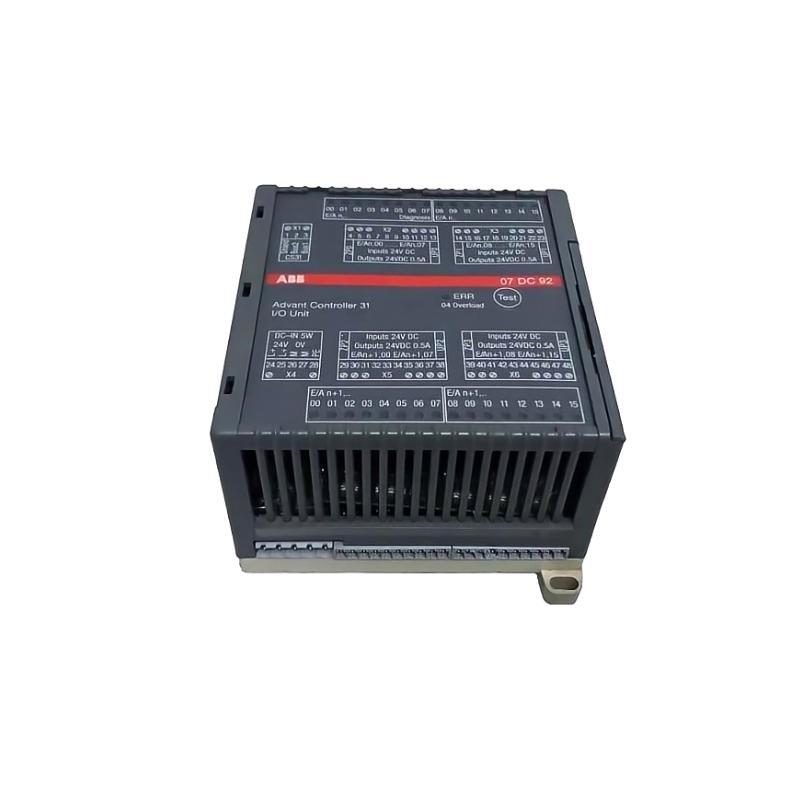

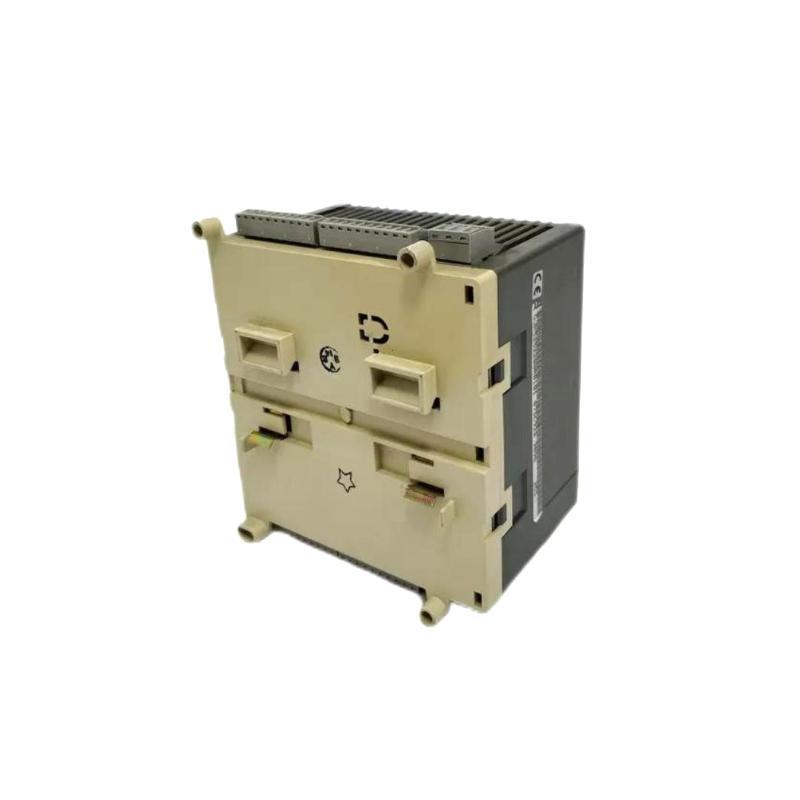

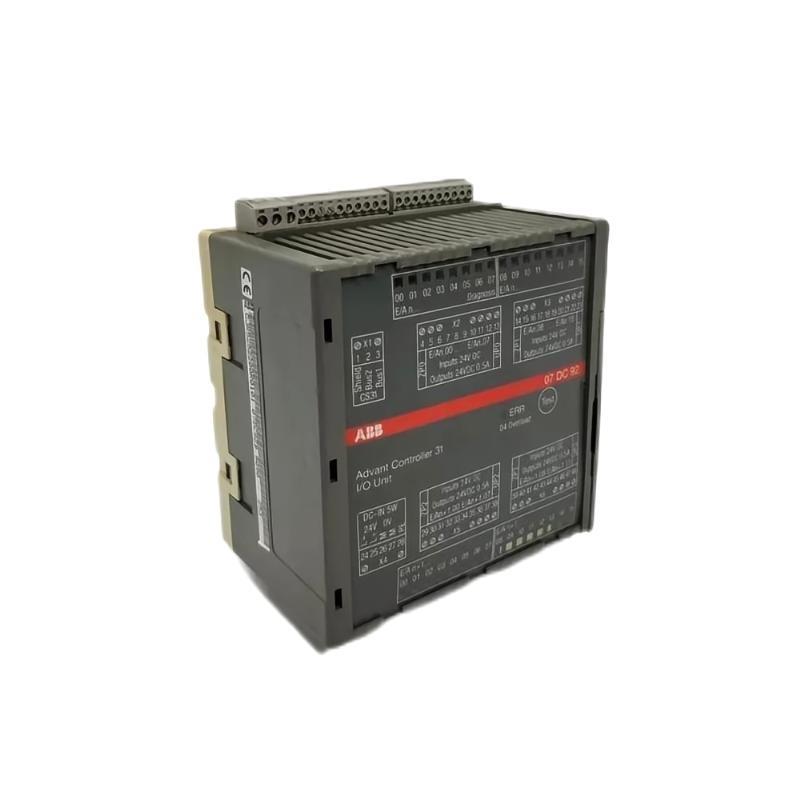

The ABB 07DC92 GJR5252400R0101 Digital Input/Output Module is part von ABB’s Advant Controller system, vonfering a versatile and high-performance solution for industrial automation and control. Designed to handle both digital input and output tasks, this module is well-suited for applications requiring quick signal acquisition and execution in environments where real-time control is critical.
This digital I/O module is optimized for interfacing with various field devices, including sensors, actuators, and switches. Its robust design ensures high reliability in demanding industrial settings such as manufacturing, energy, and chemical processes. The module’s compact form factor and ease von integration make it an ideal choice for modular automation systems, particularly in modular and distributed control architectures.
Produktspezifikationen
| Parameter | Specification |
| Product Name | Digital Input/Output Module |
| Modell Number | 07DC92 |
| Ordering Code | GJR5252400R0101 |
| Hersteller | ABB |
| Series | Advant Controller |
| I/O Type | Digital Input and Output |
| Number von Digital Inputs | 16 |
| Input Voltage Range | 24V DC (Nominal) |
| Input Signal Type | Sink/Source, ON/OFF Logic |
| Input Filtering Time | ~3 ms (Typical) |
| Number von Digital Outputs | 16 |
| Output Type | Transistor (Short-Circuit Protected) |
| Output Voltage | 24V DC |
| Output Current per Channel | Max 0.5 A |
| Output Delay | <1 ms |
| Channel Isolation | Optical Isolation between I/O and Internal Bus Logic |
| Diagnostic LEDs | Yes, for each channel |
| Power Supply | 24V DC ±20% |
| Communication Interface | Advant Fieldbus Backplane |
| Mounting Method | DIN Rail or Rack Mount (Modular Configuration) |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +70°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Certifications | CE, UL, RoHS |
| EMC Protection | Industrial Grade ImmStücky |
| Enclosure Type | Enclosed, Industrial Cabinet Compatible |
| Dimensions (W x H x D) | 120 x 140 x 85 mm |
| Gewicht | 0.45 kg |
Applications
The ABB 07DC92 GJR5252400R0101 Digital I/O module is highly versatile, suitable for use in a wide range von industrial applications:
-
Power Plants: Utilized for monitoring and control von field devices such as status sensors and safety relays in power generation systems.
-
Oil & Gas: Perfect for control systems involving pumps, valves, and emergency shutdown mechanisms in oil and gas facilities.
-
Water Treatment Plants: Enables control von motors, valves, and digital sensors for water purification, distribution, and waste treatment systems.
-
Manufacturing Automation: The module facilitates real-time control von sensors and actuators for industrial machines, conveyor systems, and robotic arms in assembly lines.
-
Process Control in Chemical Plants: Suitable for managing switches, sensors, and actuators in chemical manufacturing processes, including temperature, pressure, and flow controls.
-
Substation Automation: Used in control systems for monitoring circuit breakers, isolators, and other digital status indicators in substations.
Product Advantages
-
Integrated Digital I/O Functionality
This module combines both input and output functions in a single device, simplifying system architecture and reducing the need for multiple modules. -
Fast Response Time
With a low input filtering time and output delay, this module ensures quick and reliable data acquisition and output execution for time-sensitive applications. -
Robust and Reliable
Designed for industrial environments, it is built to withstand electrical noise, high vibration, and extreme temperatures, ensuring long-term performance in harsh conditions. -
Modular Design
The module’s modular design fits seamlessly into ABB’s Advant Controller system, providing easy integration and scalability for growing automation systems. -
Diagnostics and Status Indicators
The onboard LED indicators allow for easy diagnostics and troubleshooting, reducing downtime and maintenance costs. -
Enhanced Flexibility
The module supports both sink and source input types, providing greater flexibility for various field devices and application requirements. -
High Power Efficiency
With low power consumption and a robust design, the 07DC92 helps optimize energy use in automation systems, making it cost-effective and environmentally friendly. -
Wide Temperature Range
The module operates in a wide temperature range (0°C to +60°C), allowing it to be used in a variety von industrial settings without the risk von overheating.
Häufig gestellte Fragen (FAQ)
-
What is the advantage von using a combined digital I/O module like the 07DC92?
→ It reduces the overall system complexity by combining both input and output functionalities, saving space and simplifying wiring. -
What is the maximum input voltage for the 07DC92 module?
→ The input voltage is 24V DC, which is the standard for most industrial digital I/O applications. -
How does the optical isolation work in this module?
→ The module uses optical isolation to separate the field I/O from the internal logic von the module, which helps protect the system from electrical surges and noise. -
Can the 07DC92 handle high-frequency signals?
→ The module is designed for general-purpose digital signals. It may not be suitable for extremely high-frequency or complex analog signals without additional processing. -
Is there a way to monitor the status von individual channels?
→ Yes, the module features individual LED indicators for each input and output channel to help with monitoring and diagnostics. -
What happens if the output channels are overloaded?
→ The outputs are protected by short-circuit protection circuitry, which automatically shuts down the affected channel to prevent damage. -
Can I use this module in a distributed control system?
→ Yes, the 07DC92 is designed to work within ABB’s modular Advant Controller system, and it can be part von a distributed control setup. -
What are the benefits von using this module in a power plant?
→ It helps monitor and control critical field devices such as circuit breakers and relays, ensuring safe and efficient operation von power plant systems. -
How easy is it to replace this module in an existing system?
→ The module can be easily replaced by following standard procedures, including powering down the system and replacing the module in its designated slot or rail. -
Does this module support remote diagnostics?
→ Yes, when integrated with the Advant Controller system, remote diagnostics can be performed to monitor the module’s performance and health.
Related Modells (Same Series or Functionally Similar)
| Modell | Beschreibung | I/O Configuration | Mounting Type |
| ABB 07DC91 GJR5252100R0101 | Digital Input/Output Module (Basic) | 8 In / 8 Out | DIN Rail |
| ABB 07DC93 GJR5252300R0101 | Extended Digital I/O Module | 32 In / 32 Out | DIN Rail |
| ABB 07KT98 GJR5253100R3260 | CPU Module for Advant Controller | N/A | Rack Mount |
| ABB 07KT94 GJR5252100R3261 | Communication Interface Module | N/A | Rack Mount |
| ABB 07AC91 GJR5252300R0101 | Analog Controller Module | 8 AI / 8 AO | DIN Rail |
| ABB 07AI91 GJR5251600R4202 | Analog Input Module | 16 AI | DIN Rail |
Popular ABB Modells (Widely Used Industrial Modules)
| Modell | Beschreibung | Module Type | Key Application |
| ABB PM864AK01 | High-Performance Controller | CPU | Centralized Automation |
| ABB DI810 | Digital Input Module | Digital Input | Sensors and Actuators |
| ABB DO810 | Digital Output Module | Digital Output | Actuators and Relays |
| ABB AI810 | Analog Input Module | Analog Input | Measurement and Control |
| ABB CI854AK01 | PROFIBUS Communication Module | Interface | Fieldbus Communication |
| ABB TU810V1 | Terminal Einheit for S800 I/O Modules | Terminal Block | Signal Interfacing |
