مقدمة المنتج

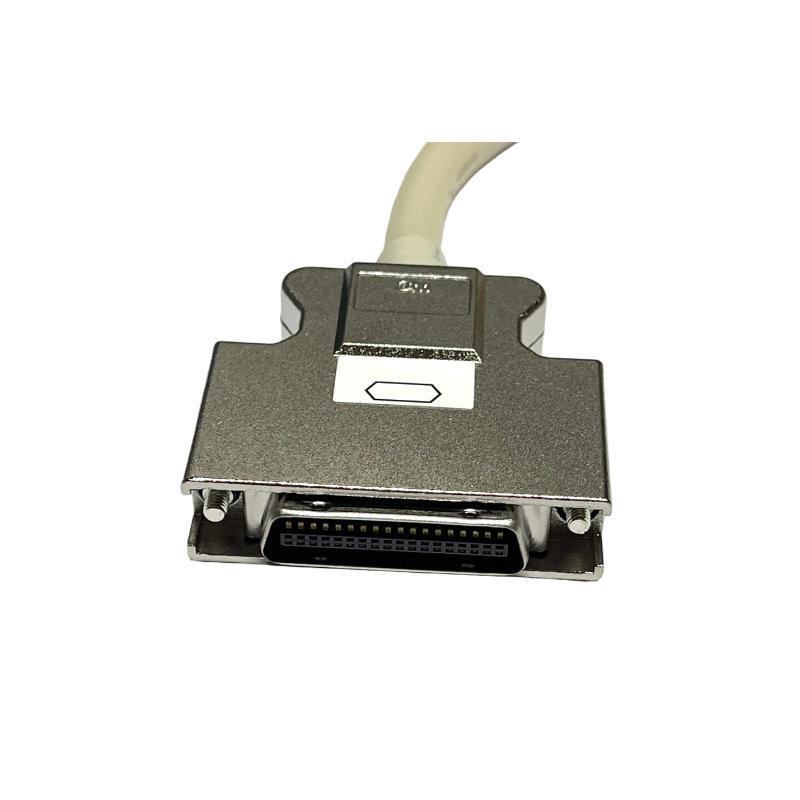

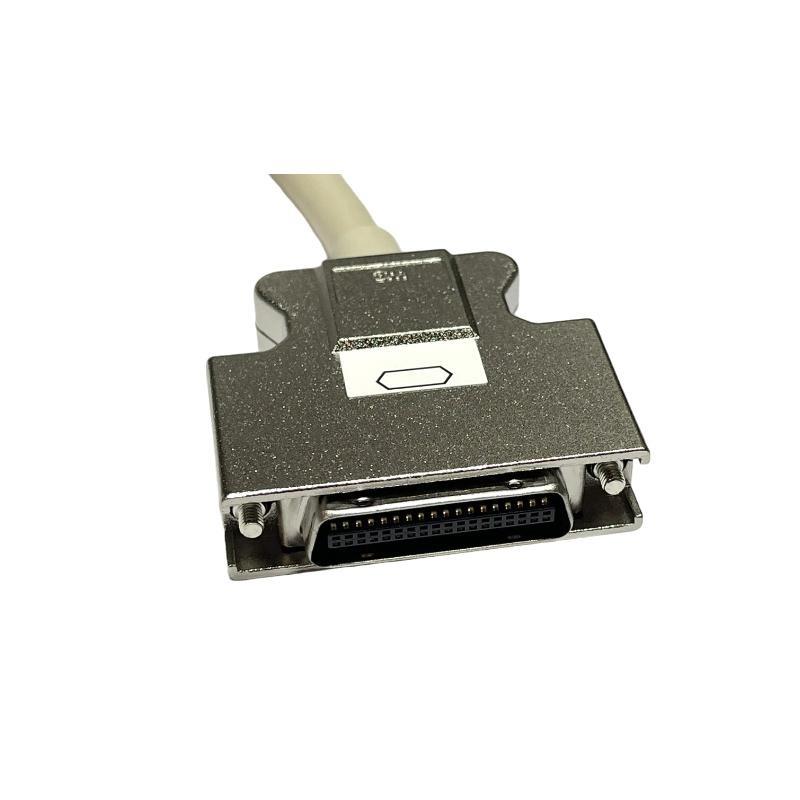

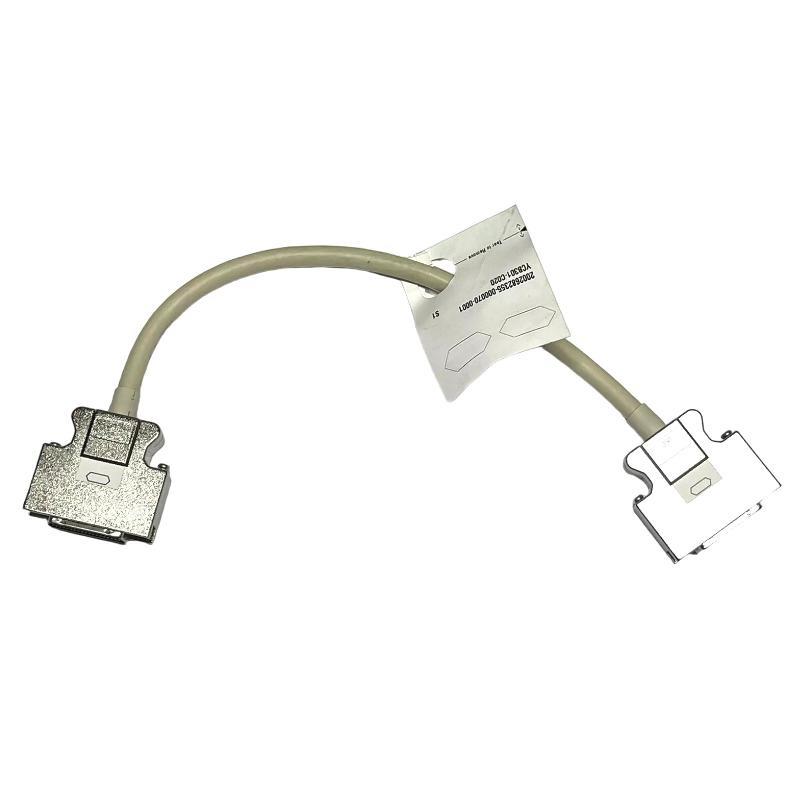

The Yokogawa YCB301 is a high-performance ESB Bus Cable specifically designed for use in Yokogawa’s CENTUM VP and CENTUM CS 3000 control systems. As a core component in the Enhanced System Bus (ESB) communication infrastructure, this shielded cable ensures high-speed, deterministic, and noise-immune data transfer between Field Control Stations (FCS) and various system modules or I/O components.
The YCB301 is engineered with multi-layer shielding, twisted-pair conductors, and high-durability insulation, making it suitable for both cabinet wiring and extended plant installations in harsh industrial environments. It supports dual-redundant ESB topologies, and its design meets Yokogawa’s stringent standards for reliability, safety, and long-term lifecycle support.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز | YCB301 |
| الشركة المصنعة | يوكوجاوا إلكتريك Corporation |
| Product Type | ESB Bus Cable |
| Application | Data transmission between FCS, I/O, and system modules |
| Cable Structure | Twisted-pair with multiple shielding layers |
| Shielding Type | Aluminum-Mylar foil + Braided copper shield |
| Conductor Material | Tinned copper |
| Conductor Type | Stranded, AWG 24 |
| Insulation Material | Flame-retardant PVC |
| Voltage Rating | 300V AC |
| Temperature Range | -20°C to +70°C |
| Flame Resistance | Compliant with IEC 60332-1 |
| Characteristic Impedance | 100 ohms ±10% (differential) |
| Capacitance | ≤ 50 pF/m |
| Attenuation | < 8 dB/100m at 10 MHz |
| Maximum Cable Length | Up to 100 meters (standard use) |
| Connector Type | Supplied separately or factory-terminated (optional) |
| Cable Length | Optional |
| Package الوزن | 3 kg |
| Certifications | RoHS, CE, UL Recognized |
Product Applications
The YCB301 cable is purpose-built for interconnecting control modules, I/O subsystems, and FCS وحدةs within Yokogawa’s process automation architecture. Its low signal attenuation and excellent electromagnetic shielding make it ideal for:
-
ESB Bus Communication Backbone – Ensures stable and synchronous data transfer between FCS and field I/O.
-
Redundant Bus Structures – Enables dual-redundant cabling for safety and fault-tolerant communication.
-
Industrial Control Cabinets – Clean and reliable internal wiring for panel-to-panel data links.
-
Remote I/O Segments – الدعمs long-distance transmission for distributed control installations.
-
High-Noise Environments – Robust signal integrity even near heavy-duty machinery or high-frequency equipment.
Its performance and certifications make the YCB301 suitable for use in oil & gas, chemical processing, water treatment, power plants, and pharmaceutical manufacturing.
Product Advantages
-
Designed for ESB Bus: Engineered to meet the exact electrical requirements من Yokogawa’s ESB protocol.
-
Superior Shielding: Protects against EMI/RFI interference, ensuring uninterrupted data communication.
-
High Flexibility: Easy to install in tight control panels or conduit systems.
-
Long Distance Capable: Maintains signal clarity and synchronization across extended plant layouts.
-
Fire-Resistant Jacket: Offers enhanced safety and compliance with industrial cabling standards.
-
Reliable Signal Transmission: Low capacitance and impedance-matching improve communication accuracy.
-
Environmental Durability: Suitable for installation in temperature-variant and humid locations.
-
Certified and Recognized: Built to global industrial safety and environmental standards.
-
Compatible with Redundant Topologies: Fully supports Yokogawa’s dual ESB redundancy architecture.
-
Low Maintenance: Durable build and long lifecycle minimize replacement or rewiring needs.
الأسئلة الشائعة (FAQ)
-
What systems is the YCB301 cable compatible with?
It is specifically designed for Yokogawa CENTUM VP and CS 3000 systems using the ESB bus protocol. -
Can the cable be used in redundant bus setups?
Yes, YCB301 supports dual-redundant ESB connections for high system availability. -
What is the maximum supported length per segment?
Up to 20 meters for standard ESB bus communication without repeaters. -
Does the cable come with factory-terminated connectors?
It can be ordered with or without connectors depending on your system requirements. -
Is the YCB301 suitable for use in harsh environments?
Yes, it is designed with industrial-grade insulation and shielding for noisy or extreme environments. -
What certifications does the cable meet?
The YCB301 meets RoHS, CE, UL, and IEC 60332-1 standards. -
What is the typical impedance من this cable?
The characteristic impedance is 100 ohms ±10%, optimized for differential data transmission. -
Can this cable be used outside من Yokogawa systems?
While possible, it is electrically tuned for Yokogawa ESB systems and may not be ideal elsewhere. -
Is the cable flame-retardant?
Yes, it uses flame-resistant PVC insulation and is compliant with IEC flame testing standards. -
How is the cable packaged?
It is typically supplied in من 1-20 m, depending on customer needs.
Related or Same-Series Yokogawa الطرازs
| الطراز | الوصف | Usage Area | الوزن |
|---|---|---|---|
| YCB302 | ESB Bus Cable (High-Flex Variant) | Flexible cabinet installation | 62 g/meter |
| YCB303 | Shielded Field Bus Cable | Extended plant wiring | 70 g/meter |
| YCB401 | Vnet/IP Communication Cable | DCS networking | 68 g/meter |
| YCB404 | Power & Signal Composite Cable | Combined signal/power | 85 g/meter |
| YCB305 | ESB Cable with Armored Jacket | Rugged or underground routes | 90 g/meter |
| YCB300 | Standard ESB Cable (Legacy Systems) | Older CS 1000/CS 3000 setups | 60 g/meter |
Popular Yokogawa الطرازs Across the العلامة التجارية
| الطراز | الوصف | Application | الوزن |
|---|---|---|---|
| CP451 | Vnet/IP Communication Processor | Central networking in DCS | 0.9 kg |
| SPW484 | High-Capacity Power Supply Module | Powering FCS and I/O stations | 1.8 kg |
| SSB401 | ESB Bus Interface Slave Module | Field I/O interface over ESB | 0.85 kg |
| SAI143 | 16-ch Analog Input Module (4–20mA) | Process input acquisition | 0.6 kg |
| ALR121 | Alarm Relay Module | Alarm signal output relay | 0.7 kg |
| SEC402 | ESB Bus Coupler Module | Backbone interface between FCS/I/O | 0.9 kg |
