Product Overview

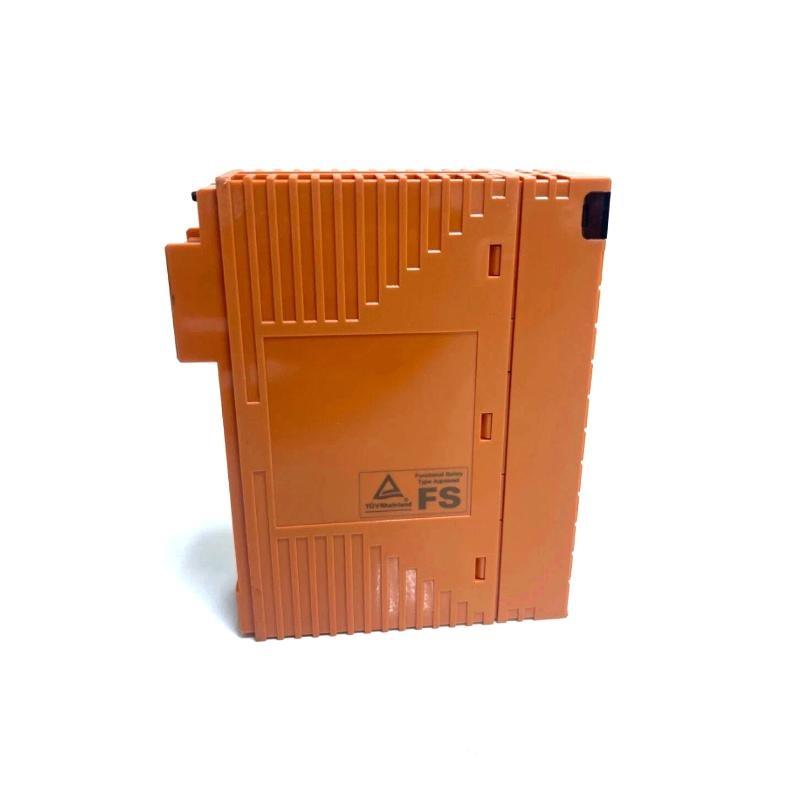

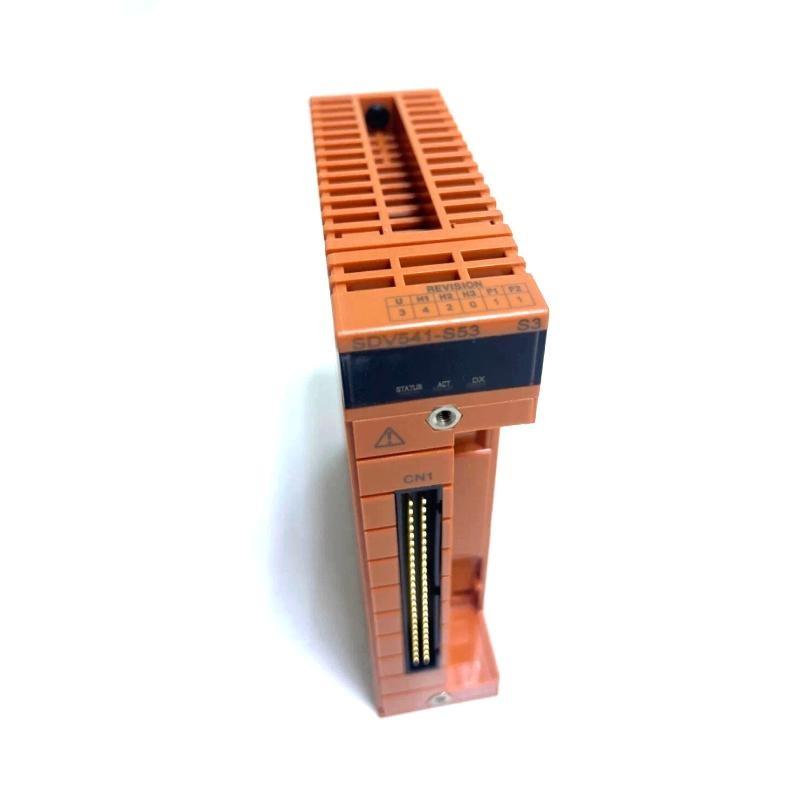

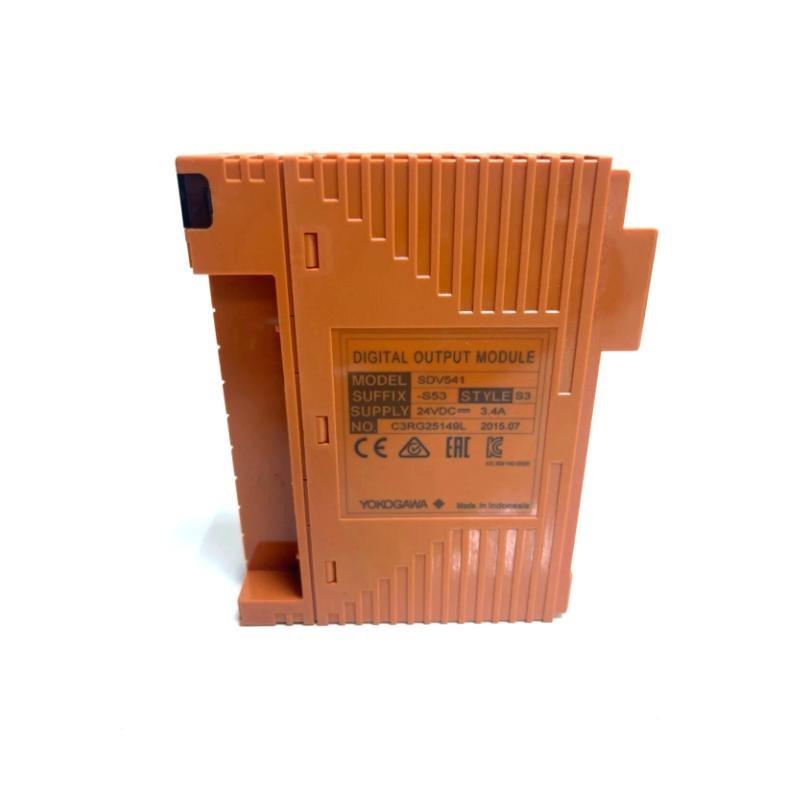

The Yokogawa SDV541-S53 Digital Output Module is a high-performance digital output وحدة designed for use in Yokogawa’s CENTUM VP and ProSafe-RS systems. It منfers 16 channels من NPN open collector outputs for reliable control من actuators such as relays and solenoids. The module is engineered for harsh industrial environments, providing reliable performance in safety and process automation applications.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | SDV541-S53 |
| Type | Digital Output Module |
| Number من Channels | 16 channels |
| Output Voltage | 24 VDC nominal |
| Output Current | Max. 0.5 A per channel |
| Output Type | Transistor (Open Collector, NPN) |
| Isolation | Optical isolation per channel |
| Diagnostics | Output status diagnostics supported |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Consumption | Approx. 3.5 W |
| Dimensions | 130 x 107.5 x 32.8 mm |
| الوزن | 0.29 kg |
Applications
-
Emergency shutdown systems (ESD)
-
Distributed control systems (DCS)
-
Power plant automation
-
Oil & gas process control
-
Batch process control systems
-
Chemical and petrochemical plant operations
Advantages
-
Compact form factor with high-density 16-channel output
-
Fast switching suitable for demanding automation tasks
-
Integrated diagnostics for enhanced operational reliability
-
Optical isolation improves electrical noise immوحدةy
-
Seamless integration into Yokogawa control systems
-
Designed for high-temperature and rugged environments
FAQ
Q1: How many outputs does the SDV541-S53 provide?
A1: It provides 16 digital output channels.
Q2: What is the maximum current capacity per output?
A2: Each output can handle up to 0.5 A.
Q3: Is it suitable for safety-related systems?
A3: Yes, it can be used with Yokogawa’s ProSafe-RS systems.
Q4: What type من output does it use?
A4: NPN open collector transistor (sink type) output.
Q5: Does it support diagnostics?
A5: Yes, it supports output diagnostics for fault detection.
Q6: What isolation method is used?
A6: Optical isolation is used per channel.
Q7: What is the operating temperature range?
A7: It operates from -20°C to +70°C.
Q8: How much power does the module consume?
A8: It consumes approximately 3.5 W.
Q9: Can it be used in a ProSafe-RS safety loop?
A9: Yes, it is designed for safety system integration.
Q10: What are the physical dimensions and weight?
A10: Dimensions are 130 x 107.5 x 32.8 mm, and weight is 0.29 kg.
Related الطرازs (Same Series or Functionality)
| الطراز | الوصف | Channels | Voltage | Output Type | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|---|
| SDV541-S13 | Digital Output Module | 16 | 24 VDC | Transistor (Sink) | 130 x 107.5 x 32.8 | 0.29 kg |
| SDV531-S53 | Digital Output Module (Isolated) | 8 | 24 VDC | Relay | 130 x 107.5 x 32.8 | 0.30 kg |
| SDV144-S33 | High-Speed Digital Output Module | 16 | 24 VDC | Transistor | 130 x 107.5 x 32.8 | 0.28 kg |
| SDV541-S53D | DO Module with Enhanced Diagnostics | 16 | 24 VDC | Transistor (Sink) | 130 x 107.5 x 32.8 | 0.29 kg |
| SDV541-S23 | Digital Output Module | 16 | 24 VDC | Transistor (Source) | 130 x 107.5 x 32.8 | 0.29 kg |
| SDV531-S13 | Digital Output Module (Relay) | 8 | 24 VDC | Relay | 130 x 107.5 x 32.8 | 0.30 kg |
Popular Yokogawa الطرازs
| الطراز | الوصف | System Platform | I/O Type | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| AAI141-H50 | Analog Input Module | CENTUM VP | Analog Input | 130 x 107.5 x 32.8 | 0.30 kg |
| ADV551-P03 | Digital Input Module | ProSafe-RS | Digital Input | 130 x 107.5 x 32.8 | 0.28 kg |
| AAR181-S50 | Analog Output Module | CENTUM CS3000 | Analog Output | 130 x 107.5 x 32.8 | 0.29 kg |
| CP451-10 | Processor Module | ProSafe-RS | CPU Module | 130 x 107.5 x 32.8 | 0.32 kg |
| PW402-S2 | Power Supply Module | CENTUM VP | Power Module | 130 x 107.5 x 32.8 | 0.35 kg |
| SAI143-H63 | Analog Input with HART Module | CENTUM VP | Analog Input | 130 x 107.5 x 32.8 | 0.31 kg |
