مقدمة المنتج

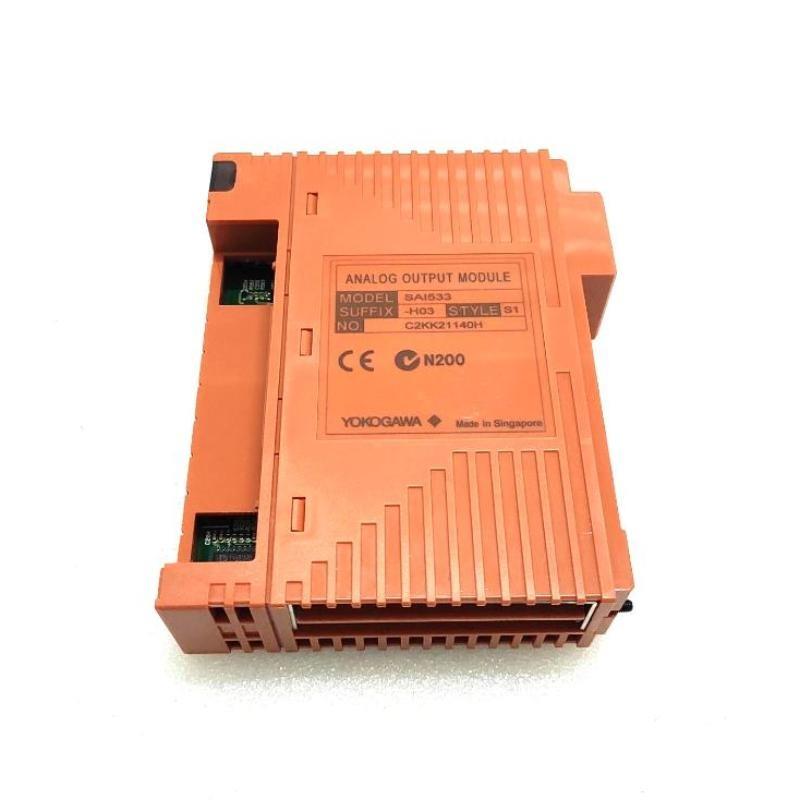

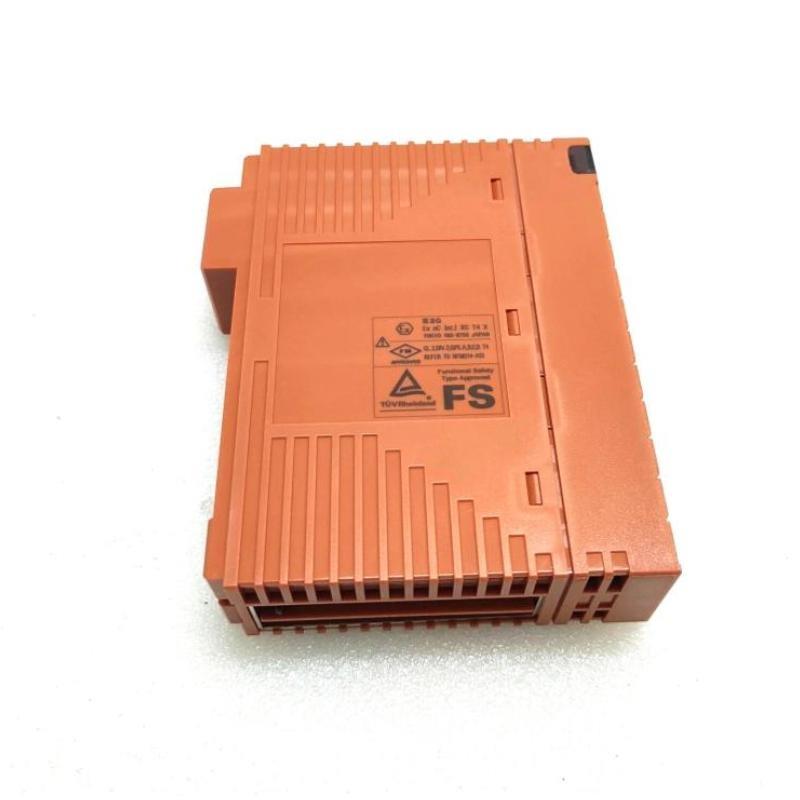

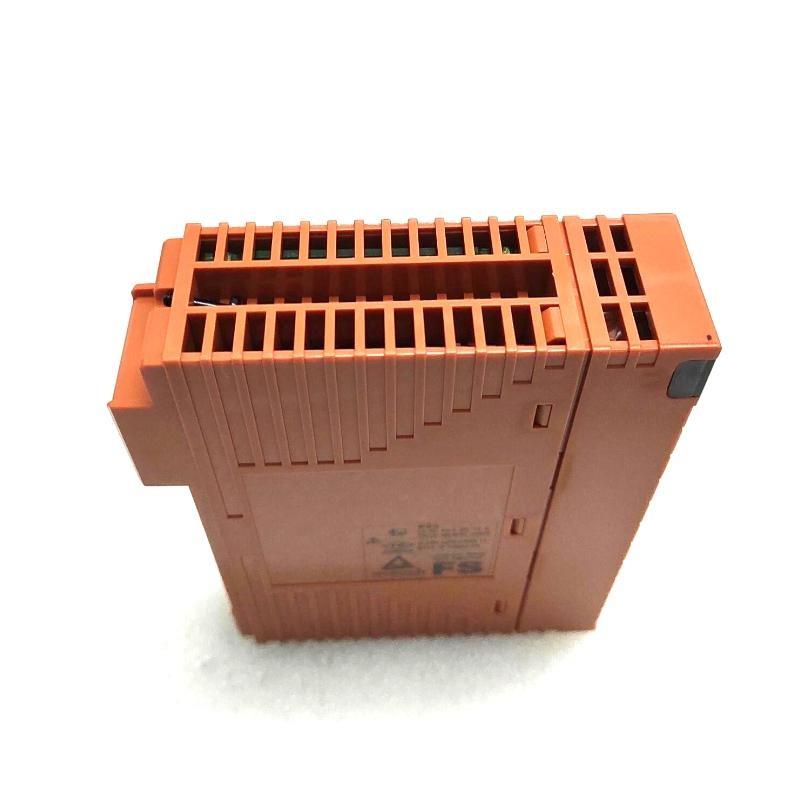

The Yokogawa SAI533-H03/A4S00 is an 8-channel analog output module designed for high-precision industrial process control. It provides reliable 4–20 mA outputs with isolated channels, fast update rates, and stable performance in harsh industrial environments. Its design ensures compatibility with redundant systems and HART communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Range | 4–20 mA (1.25–23 mA guaranteed) |
| Number من Channels | 8 channels, each isolated |
| Accuracy | ±48 µA |
| Temperature Drift | ±16 µA/10°C |
| Data Update Frequency | 40 ms |
| Allowable Load Resistance | 230–600 Ω |
| Withstand Voltage | 1.5 kV AC for 1 minute between output and system |
| Power Consumption | Approx. 2.5 W |
| Supply Voltage | 12–30 VDC |
| External Connections | Pressure clamp terminal, MIL cable, or signal cable |
| Redundancy | الدعمed |
| HART Communication | متاح |
| Dimensions | 130 × 124 × 32.8 mm |
| الوزن | 0.33 kg |
Applications
-
Industrial process control systems
-
DCS analog output expansion
-
Redundant control systems
-
High-precision current control applications
-
Integration with HART-enabled devices
Advantages
-
High accuracy and low temperature drift ensure precise control
-
Fast data update (40 ms) for responsive system performance
-
Isolated channels prevent signal interference
-
Dual redundancy support enhances system reliability
-
Flexible connection options with pressure clamp or MIL cables
-
HART communication compatibility enables remote diagnostics and calibration
FAQ
1. What is the output range من the SAI533-H03/A4S00?
The module supports 4–20 mA output with a guaranteed range من 1.25–23 mA.
2. How many output channels does this module have?
It has 8 fully isolated analog output channels.
3. What is the accuracy من the analog output?
The accuracy is ±48 µA.
4. Can this module be used in redundant systems?
Yes, it supports dual redundancy.
5. What type من external connections are supported?
Pressure clamp terminal, MIL cable, or dedicated signal cable.
6. Does it support HART communication?
Yes, the module supports HART communication for diagnostics and configuration.
7. What is the allowable load resistance?
The allowable load resistance is 230–600 Ω.
8. What is the update speed من the module?
Data is updated every 40 ms.
9. What are the dimensions and weight من the module?
Dimensions: 130 × 124 × 32.8 mm, الوزن: 0.33 kg.
10. What is the power supply range for the module?
The module operates with a supply voltage من 12–30 VDC.
Related الطرازs
| الطراز | Channels | Output Range | Redundancy | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| SAI533-H01/A4S00 | 4 | 4–20 mA | Yes | 130 × 124 × 32.8 | 0.33 |
| SAI533-H02/A4S00 | 6 | 4–20 mA | Yes | 130 × 124 × 32.8 | 0.33 |
| SAI533-H03/A4S00 | 8 | 4–20 mA | Yes | 130 × 124 × 32.8 | 0.33 |
| SAI533-H04/A4S00 | 12 | 4–20 mA | Yes | 130 × 124 × 32.8 | 0.33 |
| SAI533-H05/A4S00 | 16 | 4–20 mA | Yes | 130 × 124 × 32.8 | 0.33 |
| SAI533-H06/A4S00 | 24 | 4–20 mA | Yes | 130 × 124 × 32.8 | 0.33 |
Popular Yokogawa الطرازs
| الطراز | Function | Channels | Output Range | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| SAI533-H03/A4S00 | Analog Output | 8 | 4–20 mA | 130 × 124 × 32.8 | 0.33 |
| SAI533-H01/A4S00 | Analog Output | 4 | 4–20 mA | 130 × 124 × 32.8 | 0.33 |
| SAI533-H04/A4S00 | Analog Output | 12 | 4–20 mA | 130 × 124 × 32.8 | 0.33 |
| SAI533-H10/A4S00 | Analog Input | 8 | 0–10 V | 130 × 124 × 32.8 | 0.33 |
| SAI533-H11/A4S00 | Analog Input | 16 | 4–20 mA | 130 × 124 × 32.8 | 0.33 |
| SAI533-H20/A4S00 | Digital Output | 16 | Relay | 130 × 124 × 32.8 | 0.33 |
