Product Overview

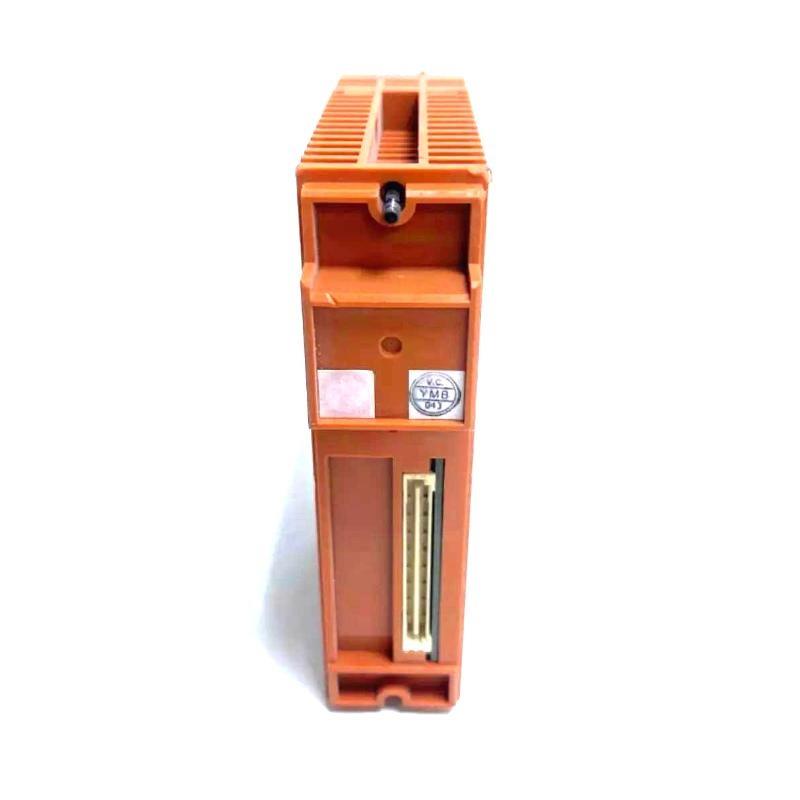

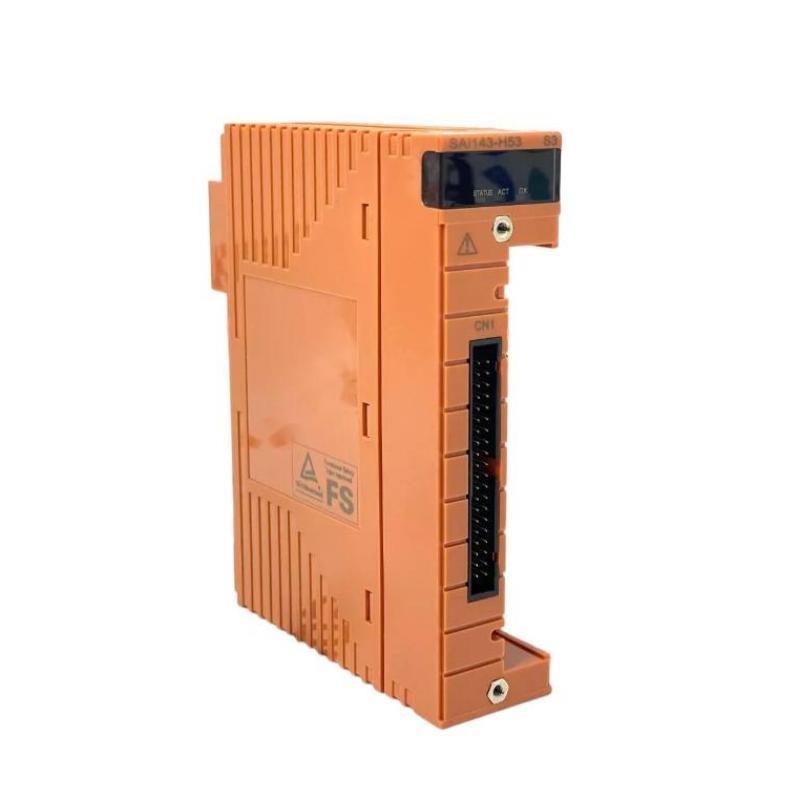

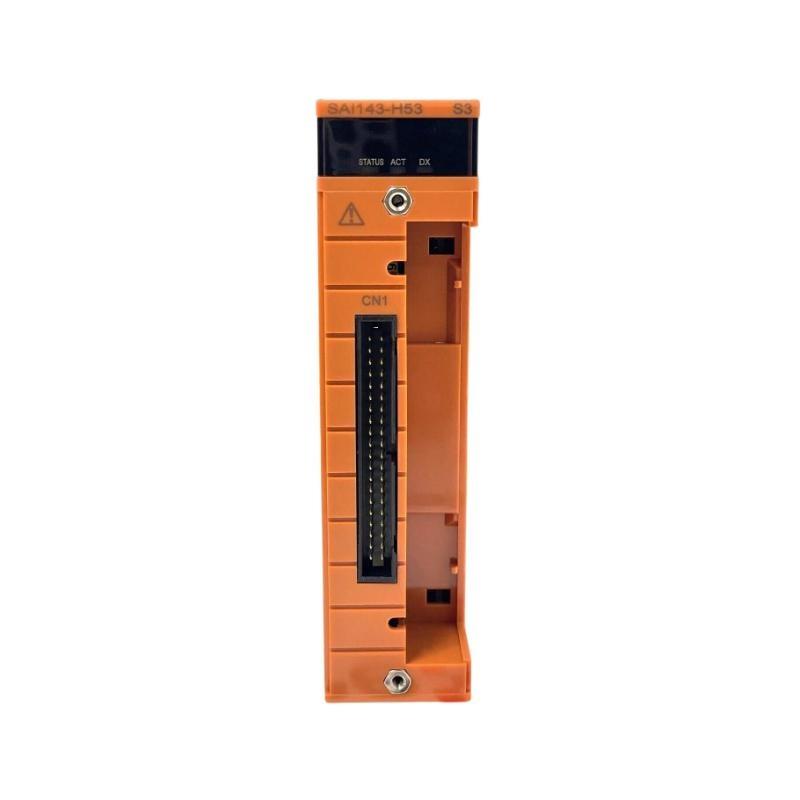

The Yokogawa SAI143-H53/STA4D-00 is a high-precision 16-channel analog input module designed for process control systems. It supports 4–20 mA signals with HART communication and features module-level isolation, enabling reliable data acquisition from multiple field devices in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Signal | 4–20 mA (0–25 mA tolerance) |
| Channels | 16 channels with module isolation |
| Data Update Rate | 40 ms |
| Transmitter Power Supply | 16.15 V at 20 mA – 26.4 V at 0 mA |
| Dielectric Strength | 1.5 kV AC (1 min between input and system) |
| Power Consumption | 5 V DC: 320 mA, 24 V DC: 550 mA |
| Operating Temperature | -20 to 70 °C |
| Connection | Crimp terminals, MIL connector, KS1 cable |
| HART Communication | الدعمed |
| Dimensions | 130 x 107.5 x 32.8 mm |
| الوزن | 0.34 kg |
Applications
-
Industrial process control and monitoring
-
Signal acquisition from sensors and transmitters
-
Integration into Safety Instrumented Systems (SIS)
-
HART-enabled device communication and diagnostics
-
Redundant and high-reliability control systems
Advantages
-
الدعمs 16 isolated channels for enhanced signal integrity
-
HART communication enables advanced device diagnostics
-
Compact design allows easy integration into control cabinets
-
High accuracy and fast data updates improve process monitoring
-
Redundant connection options increase system reliability
FAQ
1. What input signal does the module support?
The module supports 4–20 mA signals, with a tolerance range من 0–25 mA.
2. How many channels does SAI143-H53 have?
It provides 16 isolated input channels.
3. Does it support HART communication?
Yes, the module fully supports HART protocol.
4. What is the data update rate?
Data is updated every 40 milliseconds.
5. What are the operating temperature limits?
The module operates between -20 °C and 70 °C.
6. Can it be used in redundant configurations?
Yes, the STA4D-00 terminal allows dual-redundant wiring.
7. What are the module’s dimensions and weight?
Dimensions are 130 x 107.5 x 32.8 mm, and weight is 0.34 kg.
8. What type من connections are available?
It supports crimp terminals, MIL connectors, and KS1 dedicated cables.
9. How is the power supplied to transmitters?
It provides 16.15–26.4 V depending on the loop current.
10. Is the module suitable for hazardous environments?
The module does not have explosion-proمن certification; it is for standard industrial environments.
Related and Recommended الطرازs (Same Series)
| الطراز | Channels | Input Type | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| SAI143-H51 | 16 | 4–20 mA | 130 x 107.5 x 32.8 | 0.34 |
| SAI143-H52 | 8 | 4–20 mA | 130 x 107.5 x 32.8 | 0.34 |
| SAI143-H54 | 16 | 0–10 V | 130 x 107.5 x 32.8 | 0.34 |
| SAI143-H55 | 16 | 4–20 mA | 130 x 107.5 x 32.8 | 0.34 |
| SAI143-H56 | 16 | RTD | 130 x 107.5 x 32.8 | 0.34 |
| STA4D-01 | – | Terminal block | 130 x 107.5 x 32.8 | 0.34 |
Popular Yokogawa الطرازs (أخرى Series)
| الطراز | Type | Channels | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| YS170 | Temperature Transmitter | 1 | 120 x 95 x 30 | 0.3 |
| SAI143-H53 | Analog Input Module | 16 | 130 x 107.5 x 32.8 | 0.34 |
| SAF143 | Analog Output Module | 16 | 130 x 107.5 x 32.8 | 0.35 |
| STP143 | Digital Input Module | 32 | 150 x 110 x 35 | 0.5 |
| SAI144 | Analog Input Module | 16 | 140 x 108 x 33 | 0.36 |
| STB143 | Digital Output Module | 32 | 150 x 110 x 35 | 0.52 |
