Product Overview

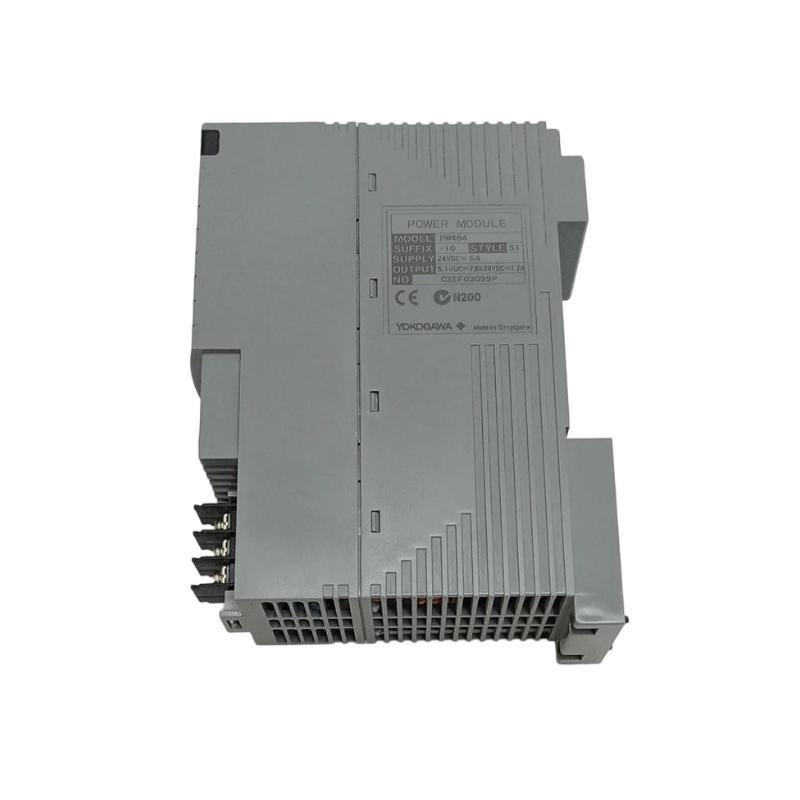

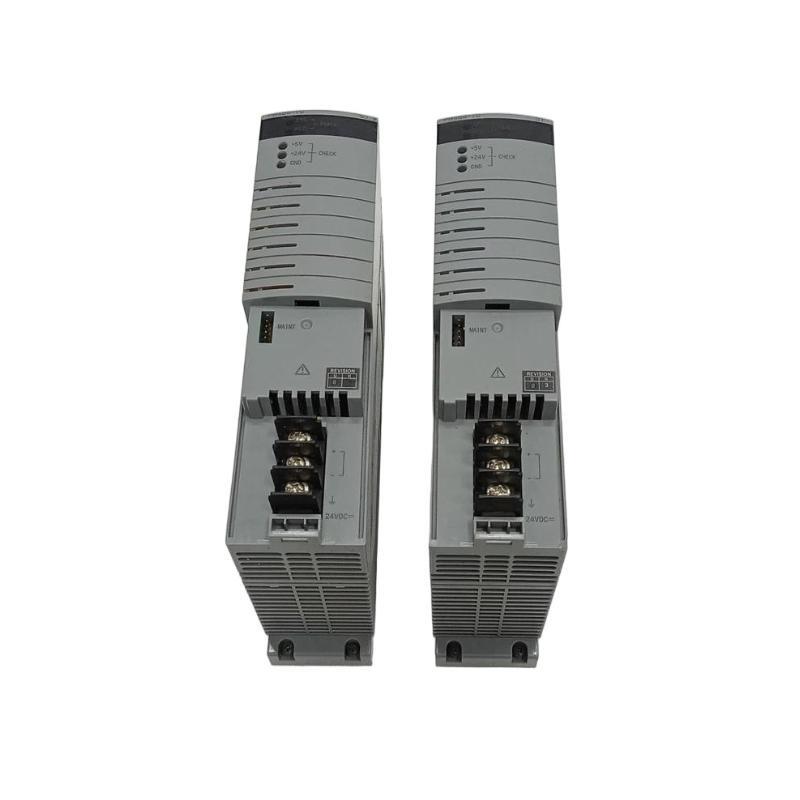

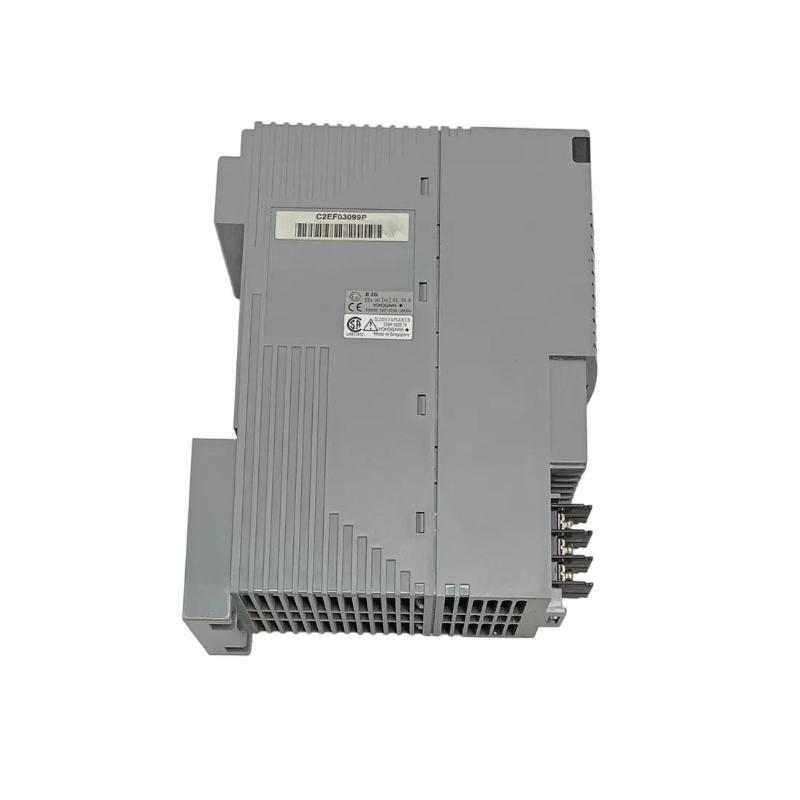

The Yokogawa PW484-10 S1 Power Module is a high-performance power supply وحدة for the F3 series control system, providing reliable 24 VDC output to input/output and communication modules. It ensures continuous and stable operation من distributed control systems in industrial automation environments.
Key Features
-
Provides stable 24 VDC power for F3 series modules
-
Compact and rugged design suitable for industrial environments
-
الدعمs multiple modules in distributed control systems
-
Enables redundant configurations for critical applications
-
Easy plug-in installation and maintenance
-
Ensures reliable operation under fluctuating power conditions
-
الدعمs system expansion and modularity
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | PW484-10 S1 |
| Series | Yokogawa F3 Power Modules |
| Output Voltage | 24 VDC |
| Output Current | 4 A |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Efficiency | ≥ 90% |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 49.7 x 199.5 x 149 mm |
| الوزن | 1.0 kg |
| Mounting | DIN-rail or rack-mounted |
| Compliance | CE, UL, CSA |
Industry Applications
-
Power generation: turbines, boilers, and auxiliary systems
-
Oil & gas: process control for refineries and pipelines
-
Chemical & petrochemical: reactors and process line monitoring
-
Manufacturing: automated industrial process control
-
Water & wastewater treatment: process monitoring and control
-
Food & beverage: industrial automation
-
Any distributed control system requiring stable 24 VDC power
Advantages
-
Ensures stable and reliable 24 VDC power for F3 modules
-
الدعمs multiple modules and system expansion
-
Compact, durable, and rugged design
-
Simplifies maintenance with plug-in installation
-
الدعمs redundancy for critical applications
الأسئلة الشائعة (FAQ)
Q1: What is the main function من this module?
It provides stable 24 VDC power for F3 series modules.
Q2: What is the output current?
4 A.
Q3: What input voltage does it accept?
100–240 VAC, 50/60 Hz.
Q4: How is it mounted?
DIN-rail or rack-mounted.
Q5: What is the operating temperature range?
0 °C to +55 °C.
Q6: Is it suitable for industrial environments?
Yes, it is designed for rugged, continuous operation.
Q7: Does it support redundancy?
Yes, it can be used in redundant configurations for critical systems.
Q8: What is the weight من the module?
Approximately 1.0 kg.
Q9: How does it simplify maintenance?
Its plug-in design allows easy replacement without system downtime.
Q10: Why choose this power module?
It ensures reliable and stable power for F3 series control systems, supporting modularity and redundancy.
