مقدمة المنتج

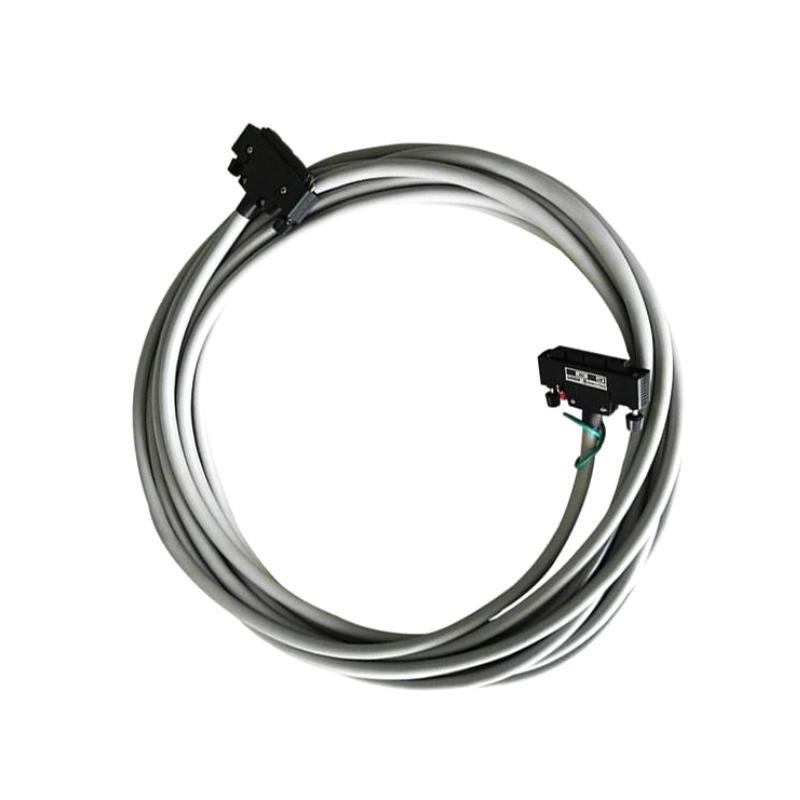

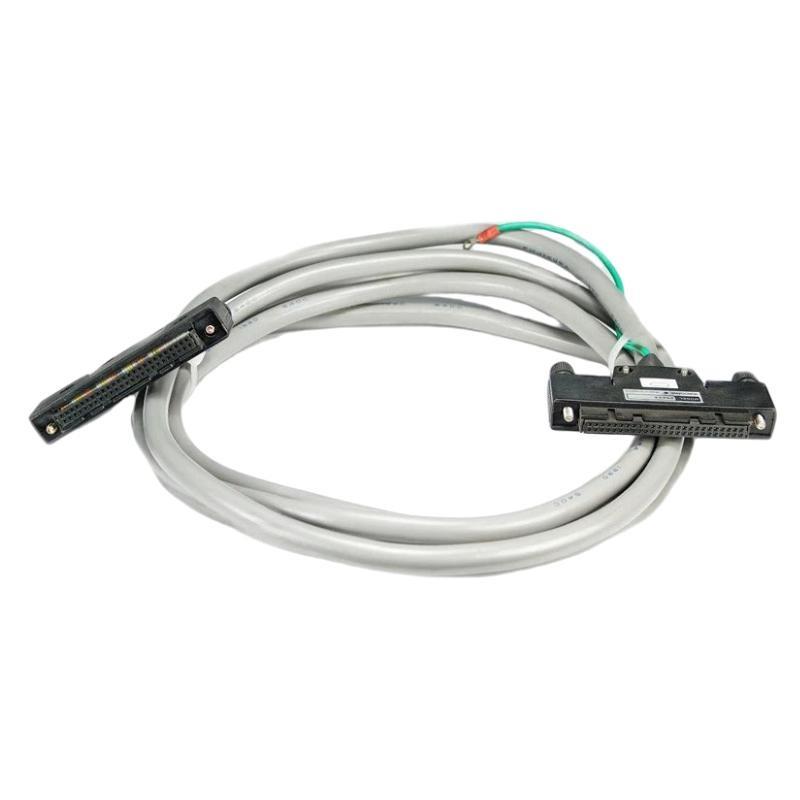

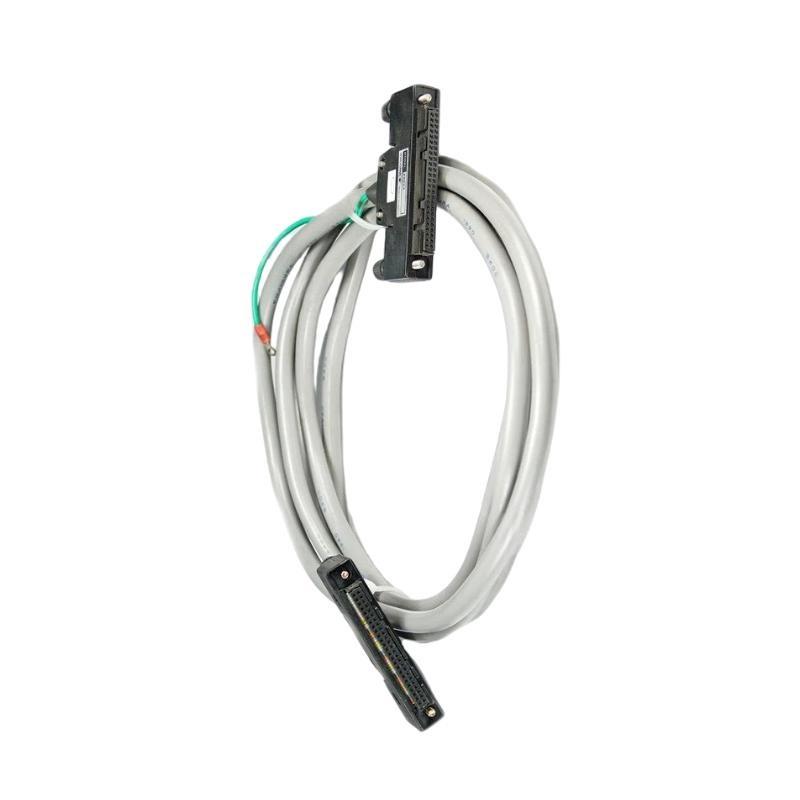

The Yokogawa KS9-10*A Signal Cable is a high-performance instrumentation cable designed for reliable signal transmission in industrial process control and measurement systems. It is engineered to connect Yokogawa analyzers, controllers, and data acquisition modules with high integrity, ensuring accurate analog and digital signal transfer.
This 10-meter cable has a shipping weight من 3 kg, making it suitable for medium-to-long-range installations inside control panels or between distributed instruments. Constructed with high-purity copper conductors, robust insulation, and an overall shield, it minimizes signal loss and electromagnetic interference. The KS9-10*A cable is fully compatible with Yokogawa instruments, providing dependable performance in chemically and electrically challenging industrial environments.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | KS9-10*A |
| Cable Type | Signal/Instrumentation Cable |
| Cable Length | 10 meters |
| الشحن الوزن | 3 kg |
| Conductor Material | High-purity copper |
| Conductor Size | 0.5 mm² (typical) |
| Number من Conductors | 5 cores |
| Insulation Material | Polyvinyl chloride (PVC) |
| Outer Sheath Material | PVC or flame-retardant PVC |
| Shielding | Overall foil shield with drain wire |
| Rated Voltage | 300 V |
| Operating Temperature Range | –20 °C to +80 °C |
| Bend Radius | 10× cable diameter (minimum) |
| Compliance | Yokogawa instrument standards |
Applications
The KS9-10*A signal cable is widely used for industrial process control and measurement signal transmission. Its applications include:
-
Connecting Yokogawa analyzers, controllers, and data acquisition systems.
-
Medium-to-long distance wiring inside control panels or between distributed instruments.
-
Integration into SCADA systems and DCS networks for real-time monitoring and control.
-
Transmission من analog and digital signals in petrochemical, chemical, and power generation plants.
-
Reliable connection من sensors, transducers, and field instruments to Yokogawa controllers.
-
Environments with high electrical noise, where shielding is essential for accurate signal transfer.
Advantages
-
High Signal Fidelity: Shielding and quality copper conductors maintain precise signal transmission.
-
Durable Construction: PVC insulation and outer sheath protect against abrasion, moisture, and chemicals.
-
Extended Cable Length: 10 meters suitable for medium-to-long range installations.
-
Industrial Compatibility: Designed to meet Yokogawa instrument standards.
-
Electromagnetic Noise Immوحدةy: Foil shield and drain wire minimize EMI.
-
Temperature Resistant: Operates reliably from –20 °C to +80 °C.
-
Flexible and Lightweight: Easy installation in panels and plant wiring.
-
Multi-Conductor Design: الدعمs multiple signals within a single cable, simplifying wiring.
FAQ
1. What types من signals can the KS9-10*A cable carry?
It supports both analog and digital signals as well as low-voltage control signals.
2. How is electromagnetic interference minimized?
The cable features an overall foil shield with a drain wire to reduce EMI.
3. What is the rated voltage for this cable?
The KS9-10*A is rated for 300 V maximum.
4. What is the minimum bend radius during installation?
The minimum bend radius is 10 times the cable diameter.
5. Is this cable suitable for outdoor installations?
It is designed for indoor industrial environments; outdoor use requires additional protection.
6. How many conductors does the cable have?
It has 5 cores to support multiple signals.
7. What is the conductor material and size?
High-purity copper with a typical cross-section من 0.5 mm².
8. What temperature range can the cable operate within?
–20 °C to +80 °C.
9. Can this cable be used with non-Yokogawa instruments?
It may work if connectors are compatible, but it is optimized for Yokogawa instruments.
10. Does the cable meet any compliance standards?
It is built to meet Yokogawa instrument standards for signal integrity and industrial use.
Recommended Related الطرازs (Same Series / Family)
| الطراز Number | الوصف |
|---|---|
| KS9-01*A | Signal cable, 1 meter length, 5 cores |
| KS9-03*A | Signal cable, 3 meters length, 5 cores |
| KS9-05*A | Signal cable, 5 meters length, 5 cores |
| KS9-07*A | Signal cable, 7 meters length, 5 cores |
| KS9-10*B | Signal cable, 10 meters, alternative shielding |
| KS9-05*B | Signal cable, 5 meters, enhanced EMI shielding |
