Yokogawa F9342AL Pressure Transmitter CPU Assembly

مقدمة المنتج

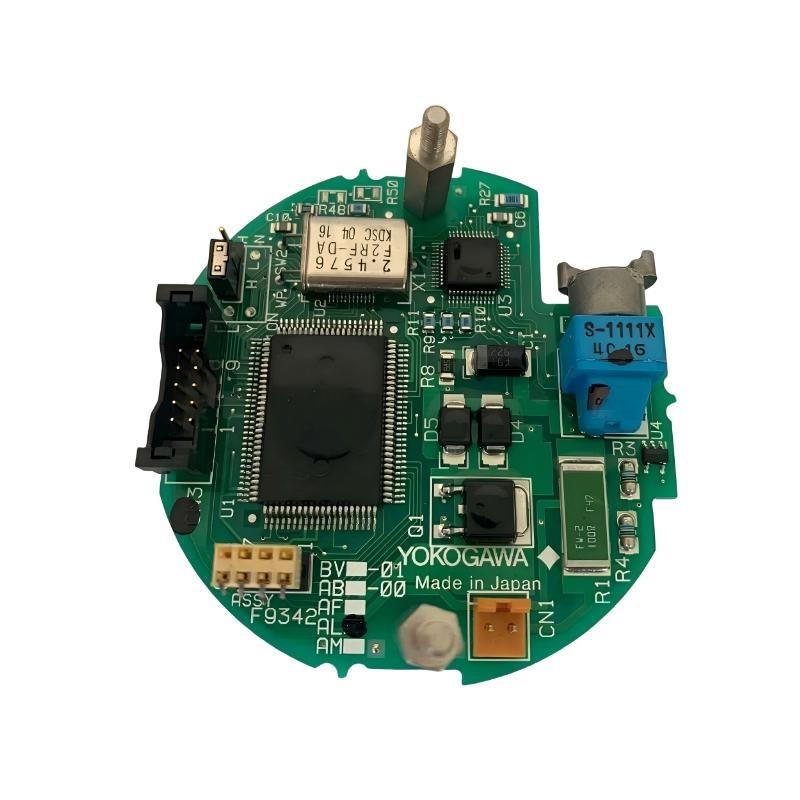

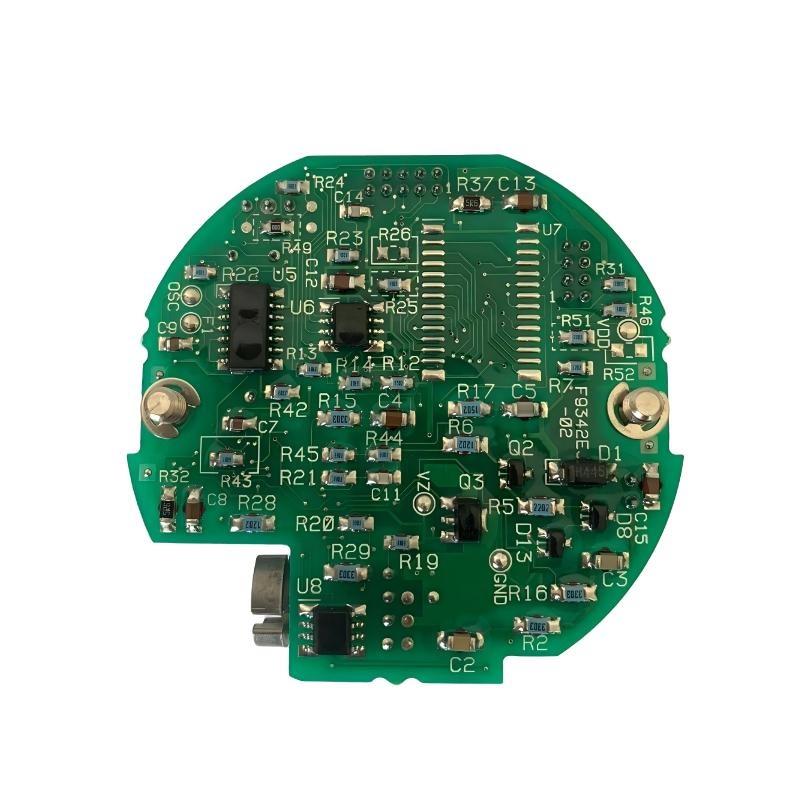

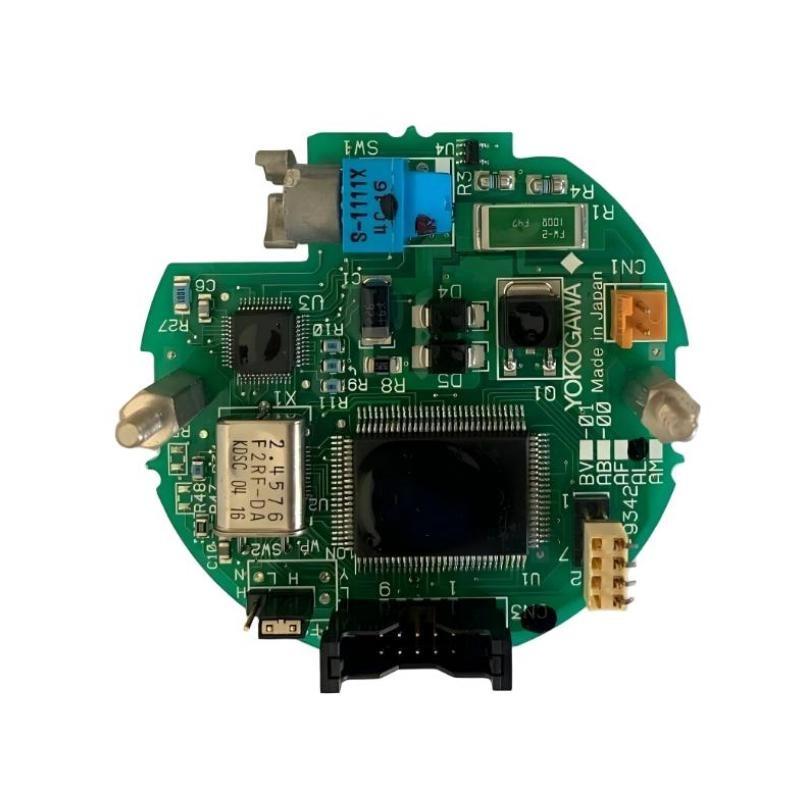

The Yokogawa F9342AL Pressure Transmitter CPU Assembly is a high-performance central processing module designed specifically for smart pressure transmitters operating under the HART communication protocol. This CPU assembly serves as the brain من the transmitter, managing all internal signal conversions, communication processing, diagnostic functions, and digital data transmission between the sensing element and external control systems.

Engineered with Yokogawa’s advanced microprocessor technology, the F9342AL module ensures fast signal processing, high computational accuracy, and stable operation under challenging industrial conditions. The embedded firmware is optimized for HART version compatibility, enabling reliable analog + digital hybrid communication across a wide range من distributed control systems (DCS) and field communication devices.

Constructed with a robust circuit design, industrial-grade components, and strong EMC protection, the F9342AL guarantees continuous, precise measurement data transmission and efficient diagnostic capability in process automation environments. It is an essential part من Yokogawa’s digital pressure transmitter family, ensuring superior reliability, compatibility, and maintainability.

Technical Specifications

Applications

The F9342AL CPU Assembly is utilized as the control and communication core in Yokogawa’s HART-compatible pressure transmitters and similar field instruments. It ensures the accurate processing من analog signals from pressure sensors and conversion into digital communication data compliant with industrial automation standards.

Common application areas include:

• Process pressure transmitters for oil, gas, and chemical plants.

• Flow and level transmitters using differential pressure measurement.

• Steam and power systems requiring high signal integrity and diagnostics.

• Pharmaceutical and food industry instrumentation with strict communication standards.

• Control loop interfaces in DCS or PLC environments for analog/digital data integration.

• Plant safety and monitoring systems where HART protocol is essential for diagnostics.

Through stable data processing and consistent HART communication, the F9342AL ensures dependable field-to-control room integration and contributes to predictive maintenance and operational efficiency.

Advantages

The Yokogawa F9342AL Pressure Transmitter CPU Assembly delivers multiple design and performance advantages:

1. High Processing Precision: Advanced 32-bit microprocessor architecture ensures precise analog signal conversion.

2. Enhanced HART Communication: Fully supports HART version 5 and 7 protocols with reliable hybrid signal transmission.

3. Fast Response: Optimized algorithm enables a rapid 1 ms processing cycle for real-time data updates.

4. Integrated Self-Diagnostics: Detects CPU faults, signal deviations, and calibration errors automatically.

5. Stable Operation in Harsh Environments: Designed for wide temperature and humidity ranges with ESD protection.

6. Low Power Design: Consumes less than 3.5 W, ensuring energy efficiency and thermal stability.

7. Robust Electrical Protection: Includes galvanic isolation and surge resistance for industrial reliability.

8. High Compatibility: Works seamlessly with Yokogawa’s transmitters and third-party HART systems.

9. Compact and Lightweight: Small form factor allows easy installation and modular replacement.

10. Long-Term Reliability: Built with industrial-grade electronic components for sustained accuracy and durability.

FAQ

1. What is the communication protocol supported by the F9342AL CPU Assembly?
   It supports the HART protocol (version 5 and 7), enabling both analog and digital communication.

2. What type من microprocessor is used in this module?
   A high-speed 32-bit embedded microcontroller optimized for real-time signal processing.

3. How does the CPU assembly handle analog-to-digital conversion?
   It utilizes a 16-bit high-precision ADC to convert sensor signals into digital data for transmission.

4. Is galvanic isolation implemented in the design?
   Yes, full galvanic isolation is provided between input, output, and communication circuits.

5. What diagnostic features are built into the F9342AL?
   It supports continuous self-diagnostics, including CPU integrity checks and communication fault detection.

6. Can it be used with older transmitter models?
   Yes, it is backward compatible with earlier Yokogawa HART transmitter designs using the same communication protocol.

7. What is the signal processing speed من the وحدة?
   The CPU processes input signals in approximately 1 millisecond per cycle.

8. What are the EMC and safety protections integrated into the module?
   It includes ESD protection, surge suppression, and reverse polarity protection for stable operation.

9. How is the firmware updated or configured?
   Firmware can be updated via the transmitter’s service port or configuration interface using Yokogawa tools.

10. Does it require calibration after replacement?
    Yes, calibration is recommended after installation to ensure precise alignment with the sensing module.
