Product Overview

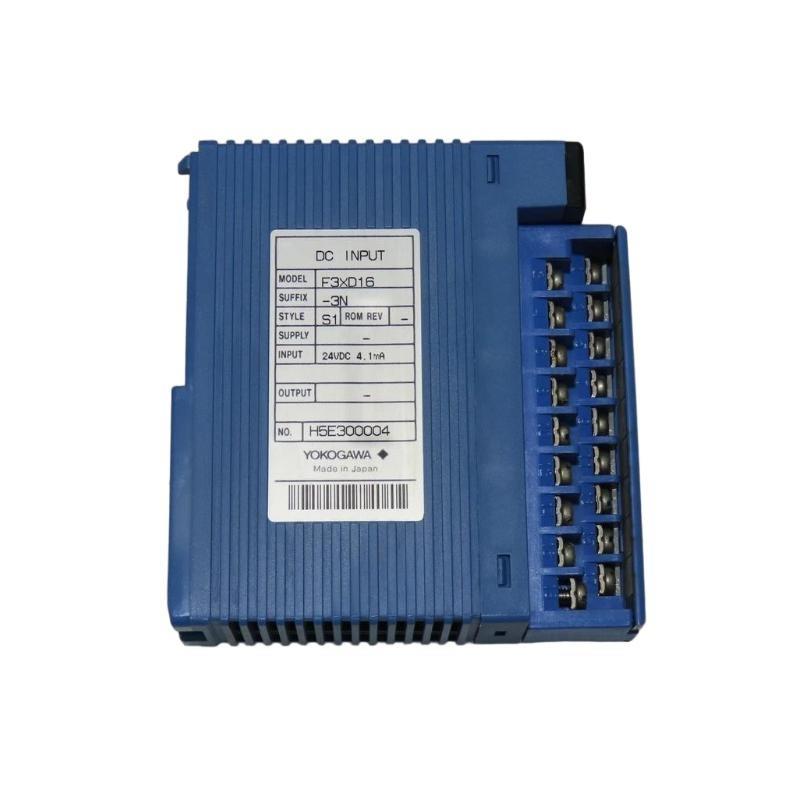

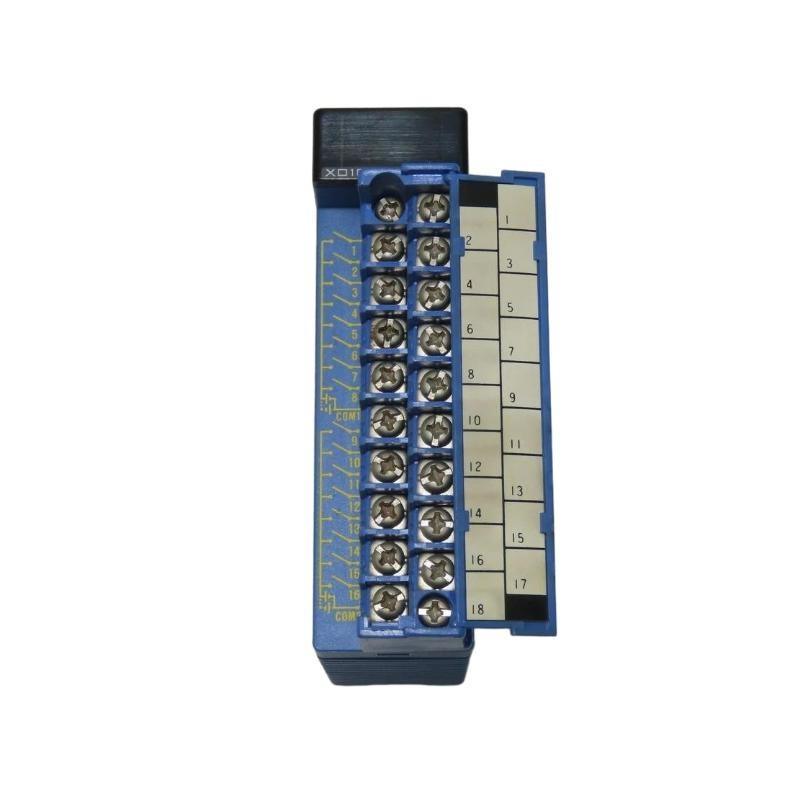

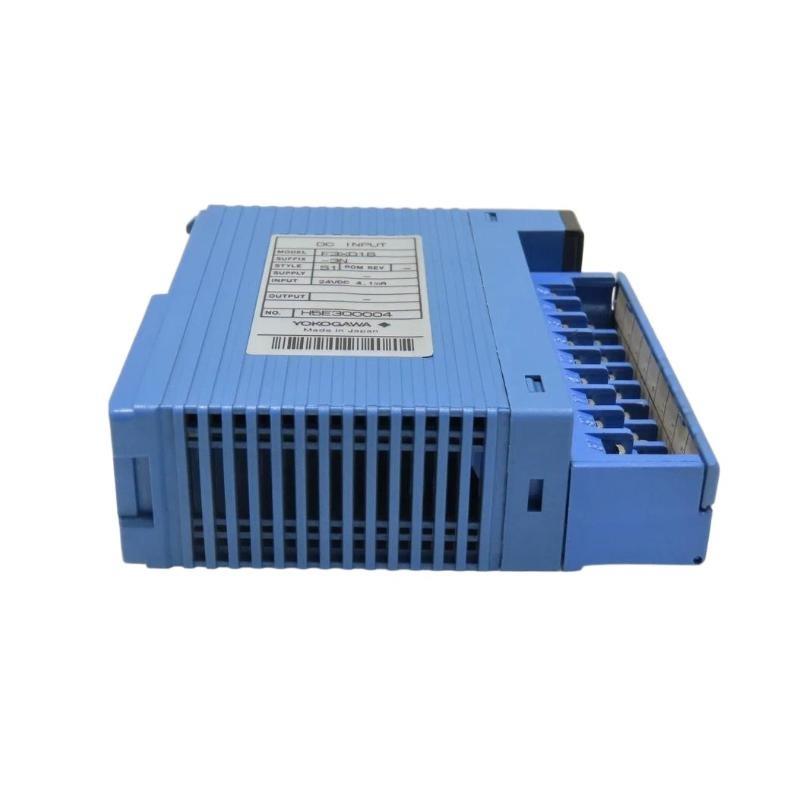

The Yokogawa F3XD16-3N DC Input Module is a high-performance digital input module for F3 Series control systems, designed to acquire DC signals from field devices reliably. It provides precise monitoring من process conditions and equipment status, enabling seamless integration into automation and monitoring systems.
Key Features
-
16-channel DC digital input module
-
Fast signal acquisition for real-time monitoring
-
Compatible with Yokogawa F3 Series controllers and I/O modules
-
Industrial-grade design for reliable operation in harsh conditions
-
Simplifies system integration and system expansion
-
Built-in protection against overvoltage and short circuits
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | F3XD16-3N |
| Module Type | DC Input Module |
| Compatible System | Yokogawa F3 Series Controllers |
| Input Channels | 16 DC input channels |
| Input Voltage | 24 V DC |
| Response Time | ≤ 1 ms |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Supply | Supplied via F3 base وحدة |
| Mounting | DIN rail or panel mounting via base وحدة |
| Dimensions | 28.9 × 100 × 83.2 mm |
| الوزن | 0.16 kg |
Industry Applications
-
Oil & Gas – Monitoring field sensors and equipment status
-
Power Generation – Turbine and generator signal acquisition
-
Chemical & Petrochemical – Process condition monitoring
-
Water & Wastewater – Pump and motor status monitoring
-
Manufacturing – Industrial automation and process control
Advantages
-
Provides fast and accurate digital input acquisition
-
Compatible with multiple F3 Series modules for system expansion
-
Industrial-grade design ensures stable operation in harsh environments
-
Enhances process control reliability and reduces downtime
-
Simplifies integration من field devices into control systems
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من the F3XD16-3N module?
It provides 16-channel DC digital input acquisition for F3 Series control systems.
Q2: What is the input voltage range?
24 V DC.
Q3: How many channels does it support?
16 digital input channels.
Q4: Can it operate in industrial environments?
Yes, it is designed for reliable operation under industrial conditions.
Q5: What is the response time for inputs?
≤ 1 ms for fast signal acquisition.
Q6: How is the module powered?
Powered via the F3 base وحدة.
Q7: How is it mounted?
DIN rail or panel mounting via the base وحدة.
Q8: What are the module dimensions?
28.9 mm × 100 mm × 83.2 mm.
Q9: What is the module weight?
Approx. 0.16 kg.
Q10: Which industries commonly use this module?
Oil & Gas, Power Generation, Chemical & Petrochemical, Water & Wastewater, and Manufacturing.
