Product Overview

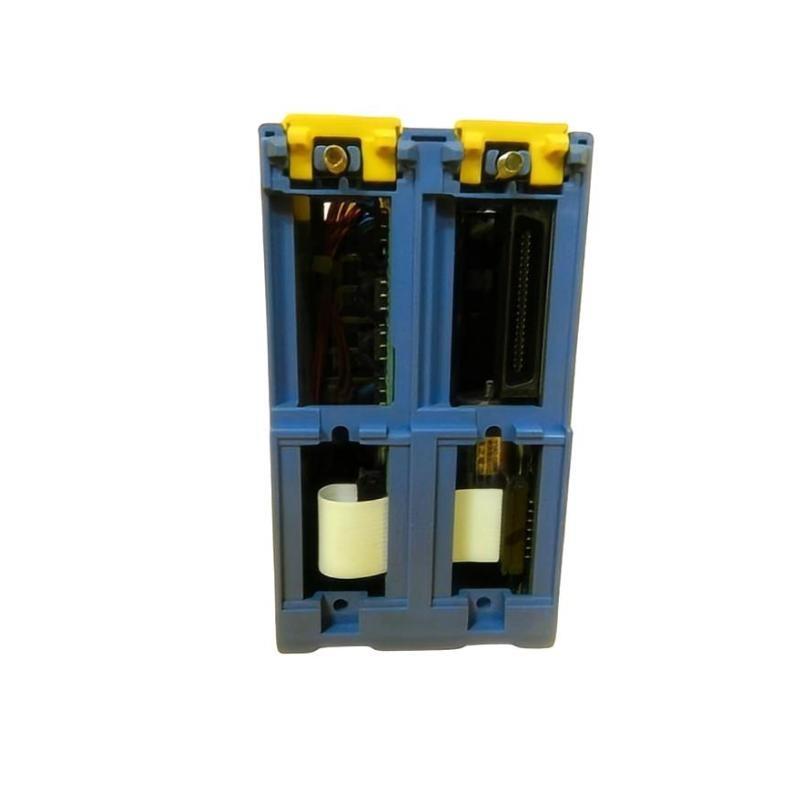

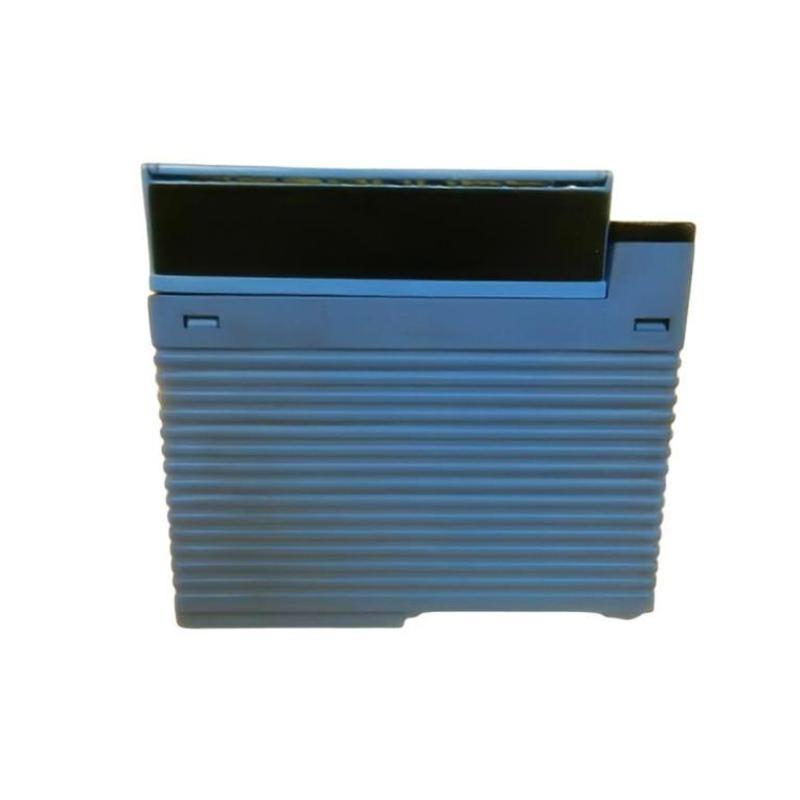

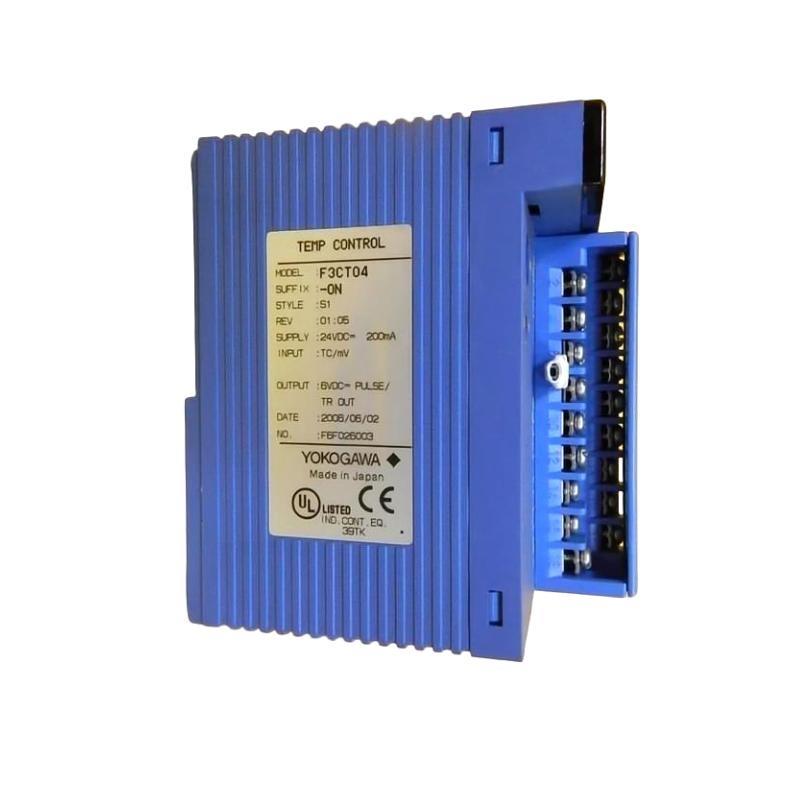

The Yokogawa F3CT04-0N Temperature Control/Monitoring Module is designed for accurate temperature measurement, control, and monitoring within industrial automation systems. This module supports a variety من temperature sensors, such as RTDs and thermocouples, making it suitable for diverse applications, including process temperature control and monitoring من equipment in critical environments.
Key Features
-
Wide Sensor Compatibility – الدعمs RTDs, thermocouples, and other temperature sensors.
-
Control Modes – Features on/منf and proportional control modes for flexible operation.
-
High Accuracy – Provides temperature measurement accuracy من ±0.1% من reading.
-
Multiple Input Channels – Capable من handling both single and multiple temperature inputs.
-
Real-time Monitoring – High-speed processing for real-time temperature control and monitoring.
-
Easy Integration – Fully compatible with Yokogawa F3 Series systems.
-
Compact Design – Space-efficient with easy DIN rail mounting.
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | F3CT04-0N |
| Module Type | Temperature Control/Monitoring Module |
| System Compatibility | Yokogawa F3 Series |
| الدعمed Sensors | RTD, Thermocouple |
| Input Type | Single or multiple input channels |
| Temperature Range | -200 °C to 1800 °C (depending on sensor type) |
| Accuracy | ±0.1% من reading |
| Control Modes | On/Off, Proportional |
| Output Type | Analog or Digital (depending on configuration) |
| Communication Bus | System bus for inter-module communication |
| Mounting | DIN rail mounting |
| Dimensions | 120 × 120 × 90 mm |
| الوزن | 0.5 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Temperature control and monitoring for automation systems.
-
Power Generation – Temperature regulation and control in turbines, reactors, and boilers.
-
Oil & Gas – Accurate monitoring and control in drilling and refining operations.
-
Chemical & Petrochemical – Temperature monitoring in chemical reactions and processing.
-
Food & Beverage – Precision temperature control in food production lines and packaging.
Advantages
-
Versatile Control – الدعمs both on/منf and proportional control for different temperature control needs.
-
Real-time Monitoring – Provides precise real-time monitoring for temperature stability and operational efficiency.
-
Wide Sensor Compatibility – الدعمs multiple types من temperature sensors for flexibility in various applications.
-
Easy Integration – Can be seamlessly integrated into Yokogawa F3 Series systems, enhancing system functionality.
-
Durable and Compact – Rugged design with compact dimensions for installation in confined spaces.
الأسئلة الشائعة (FAQ)
Q1: What temperature sensors are supported by the F3CT04-0N module?
It supports RTDs and thermocouples for temperature measurement.
Q2: What is the temperature measurement range من the module?
The range is from -200 °C to 1800 °C, depending on the type من sensor used.
Q3: What control modes does the F3CT04-0N module منfer?
It supports On/Off and Proportional control modes for temperature regulation.
Q4: How many temperature inputs can the module handle?
The module can handle single or multiple input channels.
Q5: What is the accuracy من the temperature measurements?
The module provides an accuracy من ±0.1% من the reading.
Q6: How is the F3CT04-0N module mounted?
It can be easily mounted on a DIN rail, simplifying installation.
Q7: What is the weight من the module?
The F3CT04-0N weighs approximately 0.5 kg.
Q8: What is the operating temperature range for this module?
The operating temperature range is from 0 °C to 60 °C.
Q9: Can this module be used in food processing applications?
Yes, it is well-suited for use in food & beverage processing where precise temperature control is critical.
Q10: How does the module communicate with other system components?
It uses a system bus for inter-module communication, ensuring smooth integration with other Yokogawa F3 Series modules.
Related Modules
| الطراز Number | الوصف |
|---|---|
| F3CT04-0N | Temperature Control/Monitoring Module |
| F3AI00-0N | Analog Input Module |
| F3DO00-0N | Digital Output Module |
| F3DI00-0N | Digital Input Module |
| F3AO00-0N | Analog Output Module |
| F3VY00-0N | Voltage Input Module |
Popular Yokogawa Modules
| الطراز Number | الوصف |
|---|---|
| AAI143 | Analog Input Module, 4-20mA |
| ADO143 | Analog Output Module, 4-20mA |
| DDI144 | Digital Input Module, 24VDC |
| DDO144 | Digital Output Module, 24VDC |
| F3KX00-0N | Field Termination Assembly |
| F3PS01-0N | Power Supply Module |
