Product الوصف

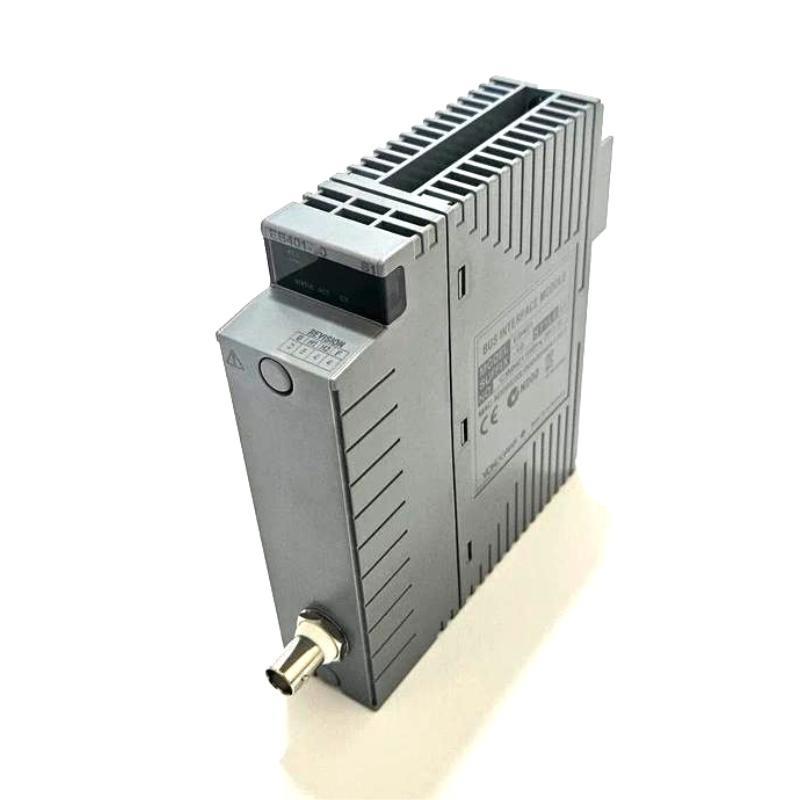

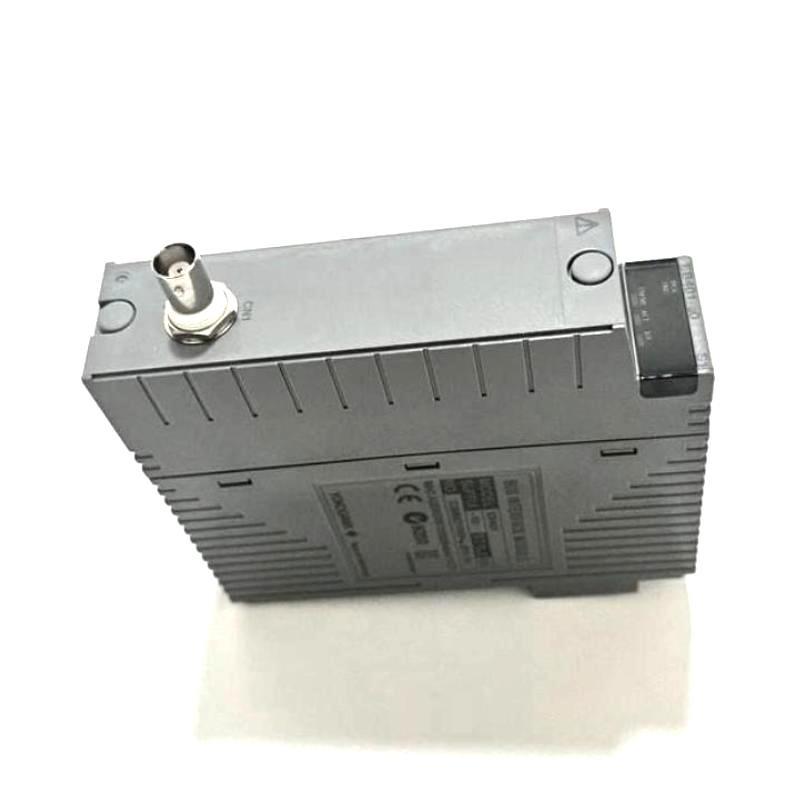

The Yokogawa EB401-50 ER Bus Interface Master Module is a communication module developed by يوكوجاوا إلكتريك Corporation. It is used to establish connectivity between ESB Bus Node وحدةs or Compact Field Control وحدةs (for FIO) and ER Bus Node وحدةs (Remote Nodes) via the ER bus. This module plays a vital role in distributed control systems by providing reliable data transmission channels across remote وحدةs. It is specifically designed to be installed in models such as ANB10S, ANB10D, AFF50S, AFF50D, AFV10S, and AFV10D.
The EB401-50 supports dual-redundant configurations when two modules are installed, enhancing communication reliability and system robustness.
Technical Specifications
| Parameter | Specification |
|---|---|
| Function | ER Bus Interface Function |
| Physical Layer Interface | IEEE802.3 10BASE2 (Coaxial Ethernet) |
| Communication Port | 1 × BNC connector |
| Communication Speed | 10 Mbps |
| Transmission Distance | Up to 185 meters (using YCB141 cable) |
| Current Consumption | 0.7 A |
| الدعمed Devices | ANB10S, ANB10D, AFF50S, AFF50D, AFV10S, AFV10D |
| الوزن | 0.3 kg |
| Dimensions (W x H x D) | 144.65 mm × 130 mm × 32.8 mm |
| Redundancy الدعم | Dual-redundant configuration supported with two modules |
| Connector Accessories | T-type Connector (YCB146), Terminators (YCB148) x2 (included) |
| Explosion Protection Option | -E suffix indicates explosion-proمن version |
| Environmental Specification | Optional ISA Standard G3 (with -1 suffix) |
Applications
-
Industrial process automation systems
-
Remote I/O extension in distributed control systems
-
Integration with Yokogawa CENTUM control systems
-
Systems requiring dual-redundant communication over long distances
-
Harsh environments requiring explosion-protected devices (when using -E variant)
Product Advantages
-
Reliable Redundancy: الدعمs dual-redundant ER bus connections for critical system uptime.
-
Compatibility: Works seamlessly with several field and node وحدةs from the Yokogawa FIO family.
-
Long Transmission Range: Up to 185 meters transmission distance meets large plant requirements.
-
Integrated Accessories: Comes with required connectors and terminators, ensuring ready deployment.
-
Compact & Lightweight: Small footprint and low weight (0.3 kg) makes it easy to integrate into compact systems.
-
Explosion Protection متاح: الطراز variant available for hazardous locations.
FAQs
Q1: What is the primary function من the EB401-50 module?
A1: It acts as the master communication interface between ESB/Compact وحدةs and ER remote nodes.
Q2: Which devices are compatible with the EB401-50?
A2: It is compatible with ANB10S, ANB10D, AFF50S, AFF50D, AFV10S, and AFV10D.
Q3: Does this module support redundancy?
A3: Yes, dual-redundant ER bus configurations are supported when two EB401 modules are installed.
Q4: What kind من connector does the module use?
A4: It uses a BNC connector for IEEE802.3 10BASE2 coaxial Ethernet.
Q5: What is the communication speed من the EB401-50?
A5: The module communicates at 10 Mbps.
Q6: How far can the module transmit data?
A6: It supports transmission up to 185 meters using the YCB141 cable.
Q7: Are terminators included with the module?
A7: Yes, two YCB148 terminators and one YCB146 T-type connector are included.
Q8: Is there an explosion-proمن variant?
A8: Yes, the -E suffix variant is certified for explosion-protected environments.
Q9: What is the module’s power consumption?
A9: It consumes 0.7 A من current.
Q10: What are the physical dimensions من the EB401-50?
A10: The dimensions are 144.65 mm x 130 mm x 32.8 mm.
Related or Same-Series الطرازs
| الطراز | الوصف | Interface | Redundancy الدعم | الوزن |
|---|---|---|---|---|
| EB401-5 | Standard ER Bus Interface Module | 10BASE2 | Yes | 0.3 kg |
| EB401-E | Explosion-Protected ER Bus Interface Module | 10BASE2 | Yes | 0.3 kg |
| ANB10S | ESB Bus Node وحدة (Single) | – | Yes | Varies |
| ANB10D | ESB Bus Node وحدة (Dual) | – | Yes | Varies |
| AFF50S | Compact Field Control وحدة (Single) | – | Yes | Varies |
| AFV10S | Compact Field Control وحدة (Single with expansion) | – | Yes | Varies |
Popular Yokogawa الطرازs
| الطراز | الوصف | Functionality | الوزن | Dimensions (mm) |
|---|---|---|---|---|
| PW402 | Power Supply Module for FIO | Power Supply | 1.0 kg | 130 x 160 x 45 |
| AAI543-H50 | Analog Input Module (16 ch, HART) | AI Module with HART | 0.45 kg | 130 x 160 x 35 |
| ADV151 | Digital Output Module (32 ch, 24 V DC) | DO Module | 0.42 kg | 130 x 160 x 35 |
| AAR181-S50 | Remote I/O Control Module | Remote I/O control | 0.50 kg | 130 x 160 x 40 |
| ANB10D | Dual ESB Bus Node وحدة | Node وحدة | 0.80 kg | 150 x 150 x 50 |
| AFF50D | Compact Field Control وحدة (Dual) | FIO Controller | 1.20 kg | 180 x 160 x 50 |
