Product Overview

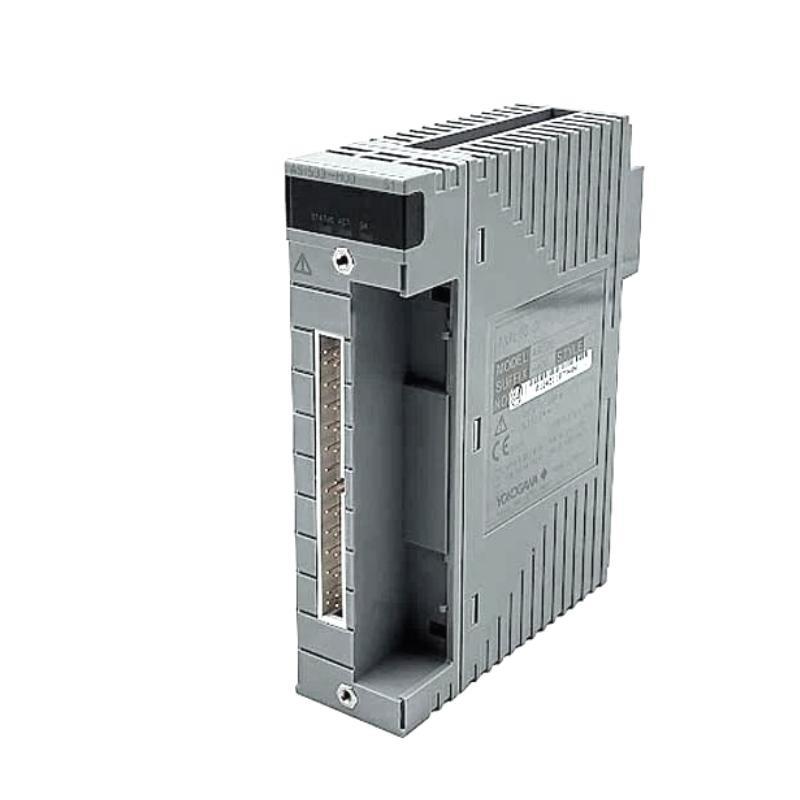

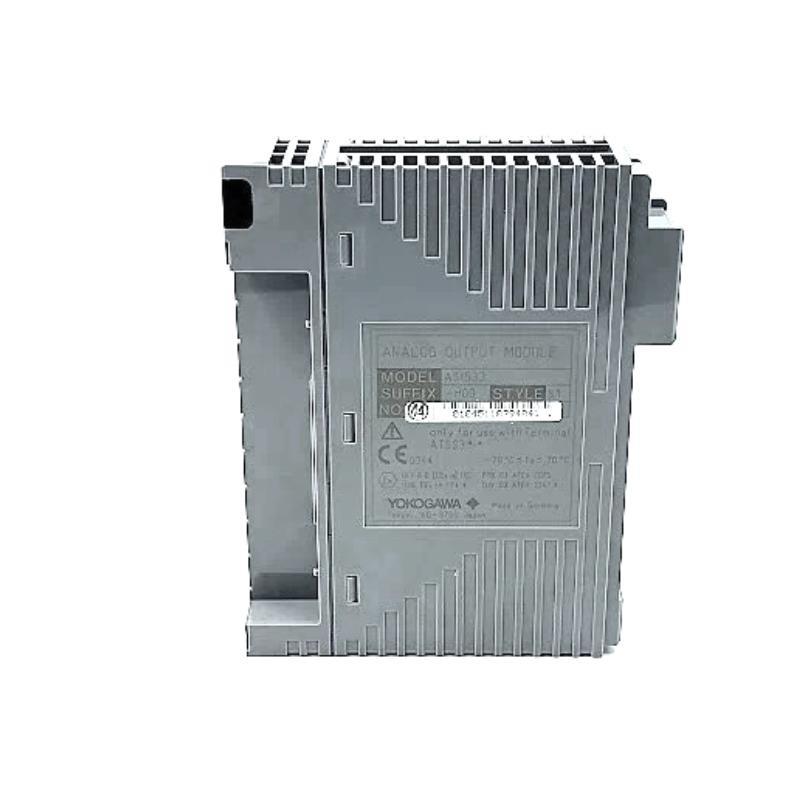

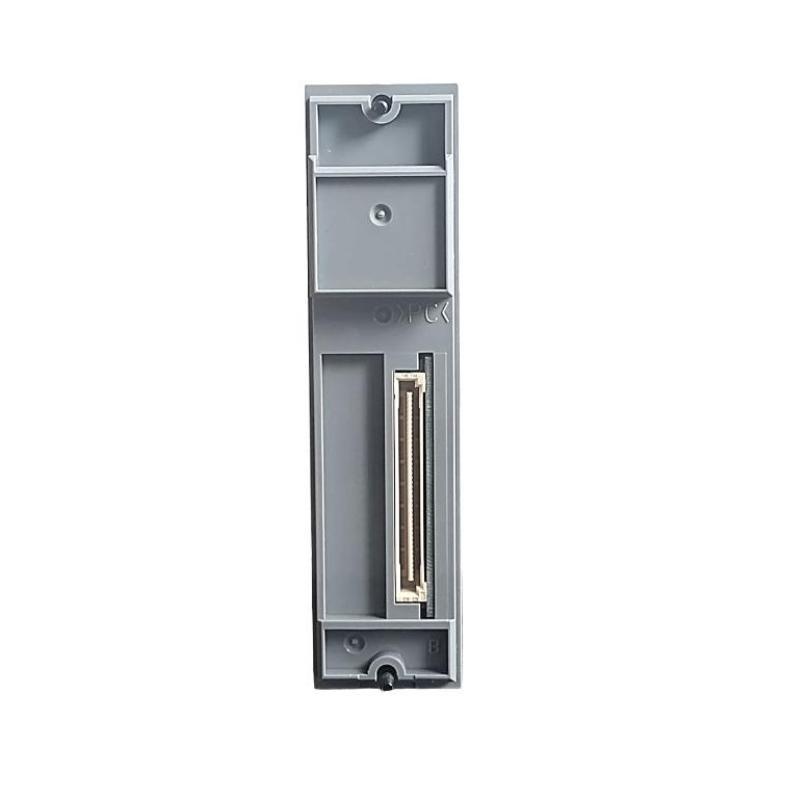

The Yokogawa ASI533-S00 S1 Analog Output Module is designed for high-precision process control in industrial automation systems. It converts digital signals from DCS or PLC systems into accurate analog outputs to drive field devices such as valves, actuators, and transducers. The module ensures stable, reliable, and fast signal output, suitable for critical industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | ASI533-S00 S1 |
| Output Channels | 8 |
| Output Type | Current: 4–20 mA; Voltage: 0–10 V |
| Resolution | 16-bit high accuracy |
| Accuracy | ±0.1% من full scale |
| Update Rate | 10 ms per channel |
| Output Load Resistance | 0–750 Ω (current mode) |
| Power Supply | 24 V DC nominal |
| Power Consumption | 6 W typical |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Dimensions | 107.5 × 130 × 32.8 mm |
| الوزن | 0.3 kg |
Applications
-
Industrial process control systems
-
Digital-to-analog conversion for PLC/DCS output
-
Controlling actuators, valves, and motors
-
Chemical, petrochemical, and power plants
-
Temperature, flow, and pressure regulation
Advantages
-
High-precision analog output ensures accurate control
-
الدعمs both current and voltage signals for versatile applications
-
Compact size for easy integration into control panels
-
Robust construction for harsh industrial environments
-
Fast update rate for real-time control
الأسئلة الشائعة (FAQ)
1. What output types are supported by the ASI533-S00 S1?
It supports both 4–20 mA current and 0–10 V voltage analog outputs.
2. How many output channels does it have?
The module has 8 analog output channels.
3. What is the update rate per channel?
The update rate is 10 milliseconds per channel.
4. What is the accuracy من the analog output?
The accuracy is ±0.1% من full scale.
5. What is the maximum load resistance for current output?
The maximum load resistance is 750 Ω.
6. What are the operating and storage temperature ranges?
Operating: -10°C to +60°C; Storage: -20°C to +85°C.
7. What is the module’s power supply requirement?
The module requires 24 V DC nominal supply.
8. What is the module’s weight and dimensions?
Dimensions: 107.5 × 130 × 32.8 mm; الوزن: 0.3 kg.
9. Can it be used in harsh industrial environments?
Yes, it is designed to withstand challenging industrial conditions.
10. Is it compatible with all Yokogawa DCS systems?
It is compatible with standard Yokogawa DCS and PLC systems, but verification with the system configuration is recommended.
Related and Recommended الطرازs
| الطراز Number | Channels | Output Type | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| ASI533-S01 | 8 | 4–20 mA / 0–10V | 107.5 × 130 × 32.8 | 0.3 |
| ASI534-S00 | 8 | 4–20 mA | 107.5 × 130 × 32.8 | 0.3 |
| ASI534-S01 | 8 | 0–10 V | 107.5 × 130 × 32.8 | 0.3 |
| ASI535-S00 | 16 | 4–20 mA | 150 × 130 × 32.8 | 0.4 |
| ASI535-S01 | 16 | 0–10 V | 150 × 130 × 32.8 | 0.4 |
| ASI536-S00 | 8 | Current/Voltage | 107.5 × 130 × 32.8 | 0.3 |
Popular Yokogawa Analog Output Modules
| الطراز Number | Channels | Output Type | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| ASI533-S00 S1 | 8 | 4–20 mA / 0–10V | 107.5 × 130 × 32.8 | 0.3 |
| ASI533-S02 | 8 | 4–20 mA | 107.5 × 130 × 32.8 | 0.3 |
| ASI534-S00 | 8 | 4–20 mA | 107.5 × 130 × 32.8 | 0.3 |
| ASI534-S03 | 8 | 0–10 V | 107.5 × 130 × 32.8 | 0.3 |
| ASI535-S00 | 16 | 4–20 mA | 150 × 130 × 32.8 | 0.4 |
| ASI536-S00 | 8 | Current/Voltage | 107.5 × 130 × 32.8 | 0.3 |
