مقدمة المنتج

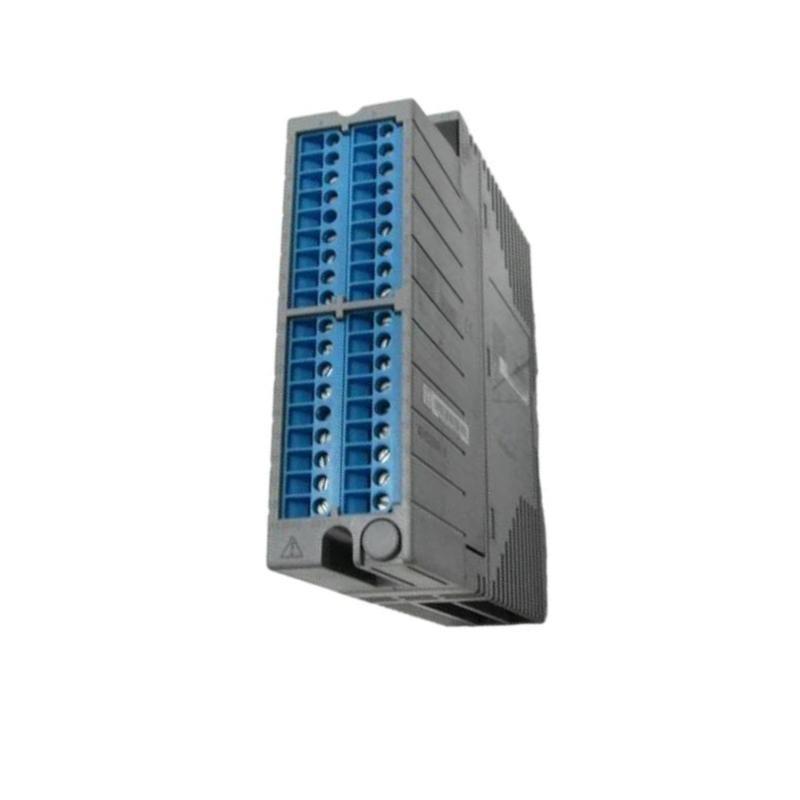

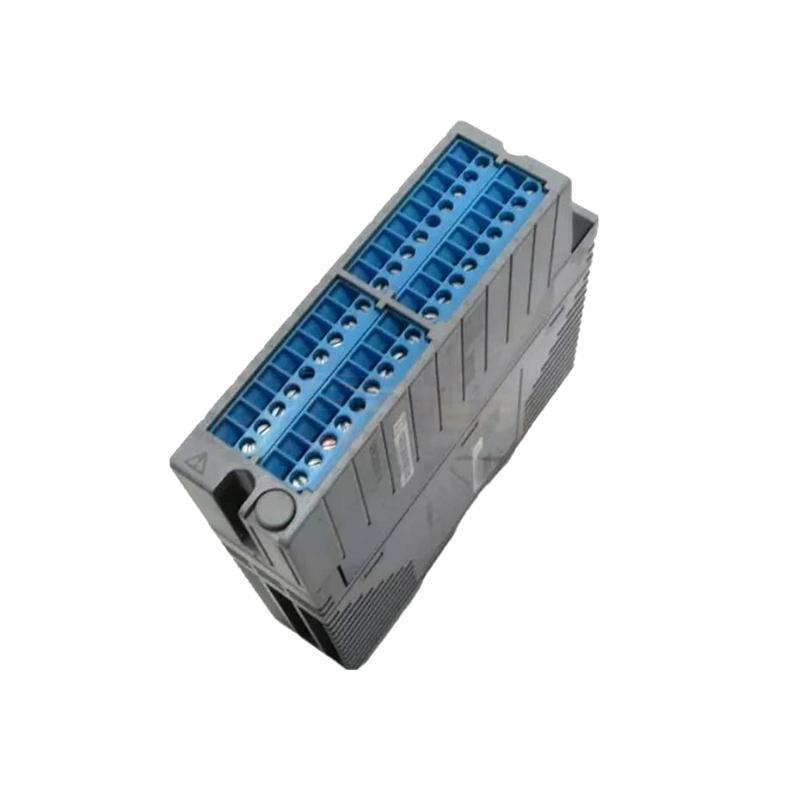

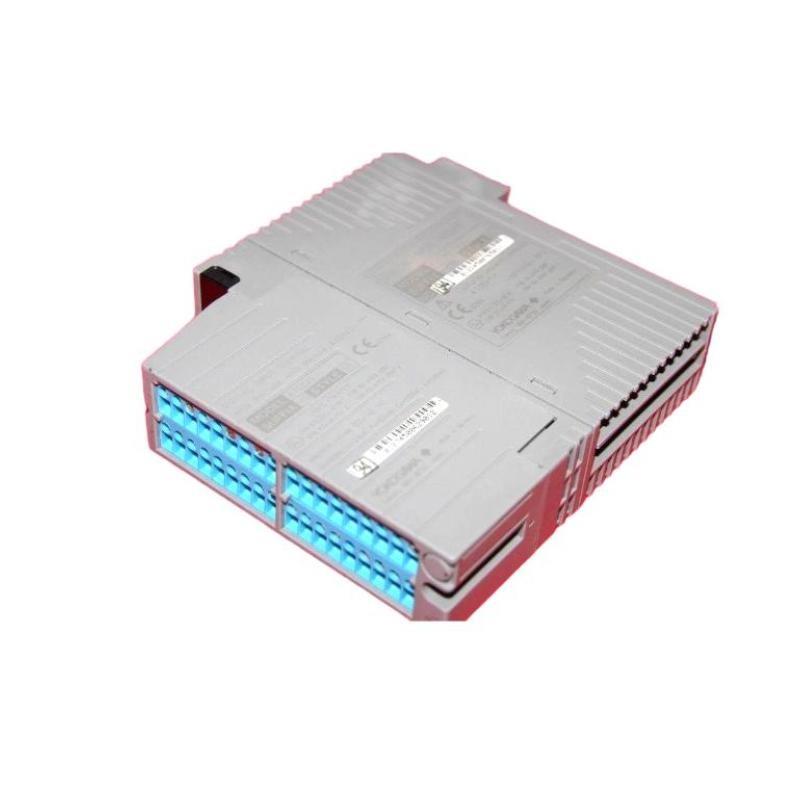

The Yokogawa ASD143-P00 Digital Input Module is designed for high-performance data acquisition in industrial control and automation systems. It provides reliable, fast, and accurate digital input functionality to interface with various sensors, switches, and control devices in process control systems.
This module is designed for ease من integration within Yokogawa’s extensive FA-M3 automation system or other compatible systems. Its compact design ensures that it fits well within tight industrial control panels while delivering high reliability and functionality.
The ASD143-P00 is ideal for applications that require robust digital signal acquisition for process control, monitoring, and machine control in various industries, including manufacturing, oil & gas, energy, and chemical processing.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| الوزن | 0.3 kg |
| Input Channels | 16 Channels (8 Inputs) |
| Input Type | Digital (ON/OFF) |
| Voltage Range | 24 VDC ±20% |
| Isolation | 2500 Vrms |
| Input Current | 10 mA (Max) |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature | -10°C to +60°C |
| Response Time | 1ms |
| Protection Rating | IP20 |
Product Applications
The ASD143-P00 Digital Input Module is primarily used for collecting digital signals in industrial automation systems. Its key applications include:
-
Process Control Systems: Captures digital signals from sensors and switches, providing essential data for process monitoring and control.
-
Machine Control: Ideal for controlling machines that require quick, real-time input data for operations, such as position switches and proximity sensors.
-
Energy Management: Collects digital input from energy meters or electrical circuits for monitoring and control من energy usage in industrial settings.
-
Monitoring Systems: Used in distributed control systems (DCS) for monitoring the status من equipment or machinery.
-
Manufacturing Automation: Interfaces with assembly line machines and automated tools, ensuring smooth data flow for automated production processes.
-
Safety Systems: Used to detect emergency stop conditions, pressure sensors, or safety limit switches to ensure the safety من operations.
Product Advantages
-
High Channel Density: With up to 16 digital input channels, the ASD143-P00 منfers superior channel density, enabling it to accommodate more inputs in compact system designs.
-
High Isolation: The 2500 Vrms isolation ensures that signals are well-protected from electrical noise and interference, increasing system stability.
-
Wide Input Voltage Range: الدعمs 24 VDC ±20% voltage input, providing flexibility in integrating various types من digital devices, including sensors and switches.
-
Compact Design: The ASD143-P00 has a small footprint (107.5 × 130 × 32.8 mm), allowing for easy integration into tight spaces within control panels or systems.
-
Fast Response Time: With a 1ms response time, the module ensures quick data capture, crucial for real-time process control and automation tasks.
-
Robust Durability: Designed to operate in harsh industrial environments, the module is built to handle wide temperature ranges and maintain performance in challenging conditions.
FAQ
1. What is the input type supported by the ASD143-P00?
The ASD143-P00 supports digital inputs (ON/OFF), which are suitable for sensors, switches, and control signals in process and machine control systems.
2. What is the voltage range for digital inputs?
The ASD143-P00 can accept 24 VDC ±20% input, making it compatible with a wide variety من digital devices and sensors.
3. How many input channels does the module support?
The module supports 16 digital input channels. It has 8 isolated inputs, each capable من handling separate devices.
4. What is the isolation level من the module?
The ASD143-P00 has 2500 Vrms isolation, providing high protection against electrical noise and ensuring reliable signal transmission in noisy environments.
5. What is the response time من the ASD143-P00?
The ASD143-P00 منfers a 1ms response time, which ensures quick data collection and minimal delay in real-time control applications.
6. What is the power consumption من the module?
The ASD143-P00 has a low power consumption, typically drawing less than 1W, making it energy-efficient for integration into control systems.
7. What are the mounting options for this module?
The ASD143-P00 can be easily mounted on DIN rail or panel mounts, منfering flexibility for different installation requirements in industrial systems.
8. What protection rating does the module have?
The module is rated IP20, providing protection from dust and environmental contaminants that could affect its performance.
9. What is the operating temperature range for the ASD143-P00?
The ASD143-P00 can operate in temperatures ranging from -10°C to +60°C, making it suitable for a wide range من industrial environments.
10. How does the ASD143-P00 benefit process automation?
The ASD143-P00 is designed for high-speed data acquisition, providing reliable digital input for fast and accurate control in process automation systems.
Recommended الطرازs in the Same Series/Related الطرازs
| الطراز Number | الوصف |
|---|---|
| ASD144-P00 | Digital Output Module, 16 Channels |
| ASD145-P00 | Analog Input Module, 8 Channels |
| ASD146-P00 | Temperature Input Module |
| ASD147-P00 | Digital Output with High-Speed Switching |
| ASD148-P00 | Multi-Function Input/Output Module |
| ASD149-P00 | Isolated I/O Module |
Popular Yokogawa الطرازs
| الطراز Number | الوصف |
|---|---|
| ANB10D-426/CU2N | Signal Cable, 26 meters, with CU2N shielding |
| ANB10D-427/CU2N | Signal Cable, 27 meters, with CU2N shielding |
| ANB10D-428/CU2N | Signal Cable, 28 meters, with CU2N shielding |
| ANB10D-429/CU2N | Signal Cable, 29 meters, with CU2N shielding |
| ANB10D-430/CU2N | Signal Cable, 30 meters, with CU2N shielding |
| ANB10D-431/CU2N | Signal Cable, 31 meters, with CU2N shielding |
