مقدمة المنتج

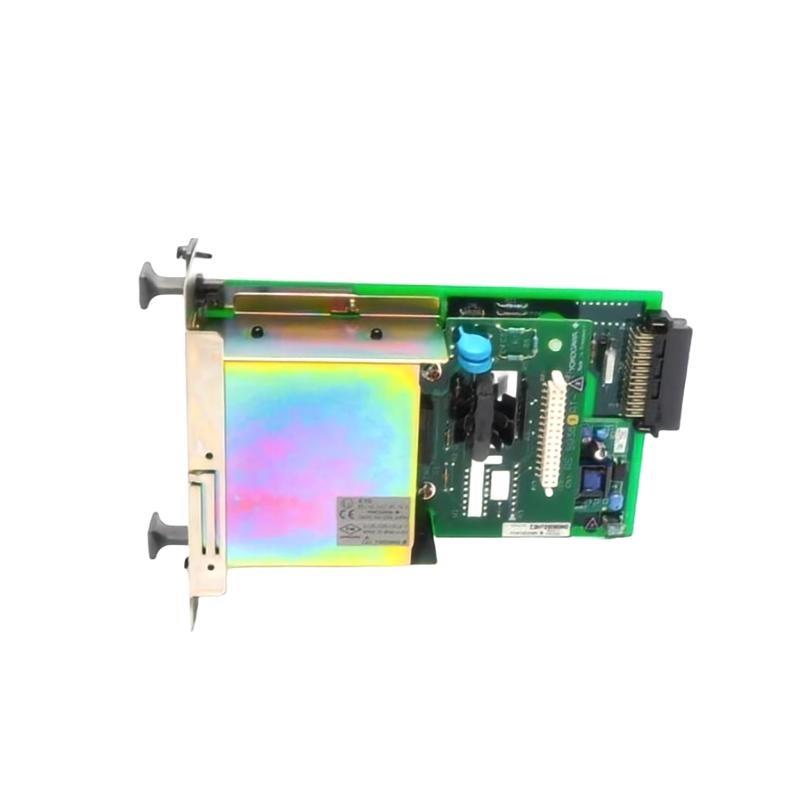

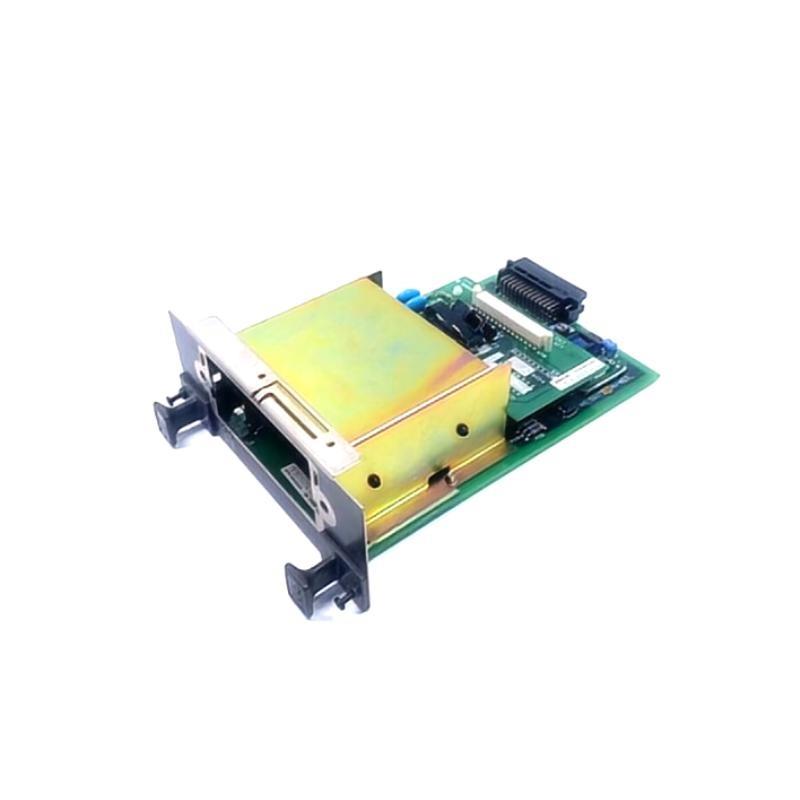

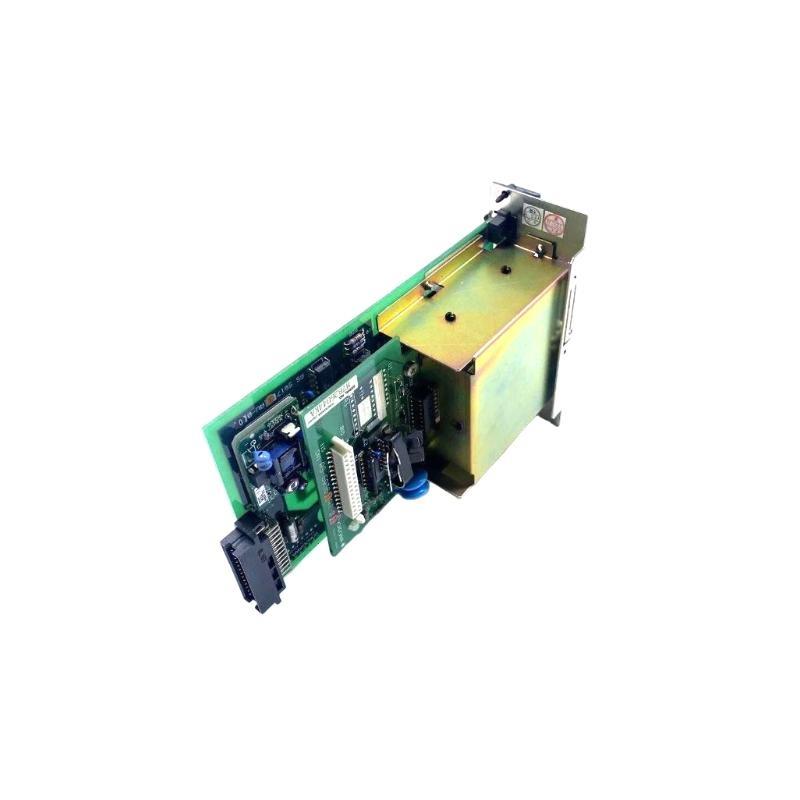

The Yokogawa AIP571-S1 Electrical Transceiver Remote I/O (RIO) module is a vital component designed for use in Yokogawa’s CENTUM VP distributed control system. This transceiver module functions as an electrical interface for remote I/O communication, enabling reliable signal transmission between the control system and distributed field devices. It supports high-speed data transfer over long distances via robust electrical signaling, making it ideal for extensive industrial control networks.
Built to withstand challenging industrial environments, the AIP571-S1 provides seamless integration with Yokogawa’s automation platforms, منfering excellent noise immوحدةy and operational stability. This module ensures data integrity and system reliability by maintaining secure and consistent communication between controllers and remote I/O وحدةs.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | AIP571-S1 |
| Module Type | Electrical Transceiver RIO I/O Module |
| Communication Protocol | RIO (Remote I/O) |
| Transmission Type | Electrical (twisted pair) |
| Maximum Communication Distance | Up to 1200 meters (approx. 4000 feet) |
| Data Transfer Rate | 1 Mbps |
| Power Supply Voltage | 24 V DC |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Dimensions (WxHxD) | 150 x 120 x 50 mm |
| الوزن | 0.408 kg |
| Mounting Type | Rack-mounted / DIN rail compatible |
| Standards Compliance | IEC 61131-2, CE, UL |
Product Applications
-
Distributed Control Systems: Provides a reliable electrical communication link between the central control system and remote I/O stations.
-
Large-Scale Industrial Plants: Used extensively in petrochemical, refining, and power generation plants to extend control networks.
-
Water and Wastewater Management: Facilitates remote monitoring and control من pumps, valves, and sensors across large geographic areas.
-
Oil and Gas Sector: الدعمs field instrumentation and control devices in upstream and downstream operations.
-
Manufacturing Facilities: Ensures stable communication for remote automation points in automotive, electronics, and food production lines.
-
Infrastructure Projects: Applied in building automation and large infrastructure for distributed monitoring and control.
Product Advantages
-
Robust Electrical Communication: الدعمs long-distance, noise-resistant electrical signal transmission up to 1200 meters.
-
Seamless Integration: Designed to work perfectly with Yokogawa CENTUM VP and other RIO-based systems.
-
Compact and Durable: Small footprint and rugged design ensure reliable operation in harsh industrial environments.
-
Stable Data Transfer: Provides consistent 1 Mbps communication speed for timely and accurate process control.
-
Wide Operating الحالةs: Functions reliably within a broad temperature and humidity range.
-
Easy Installation: Compatible with standard rack mounting and DIN rails to simplify setup.
-
Low Power Consumption: Efficient design reduces energy requirements for extended operation.
-
High Reliability: Built to meet rigorous industrial standards, minimizing downtime and maintenance.
-
Diagnostic Capability: الدعمs built-in diagnostic functions to detect communication faults early.
-
Extended Network Reach: Enables control systems to extend their network footprint effectively, reducing the need for expensive cabling.
الأسئلة الشائعة (FAQ)
-
What is the primary function من the AIP571-S1 module?
It serves as an electrical transceiver for remote I/O communication, linking the control system with field I/O devices. -
What is the maximum distance this module can communicate over?
It supports reliable communication up to approximately 1200 meters (4000 feet). -
Which communication protocol does this module use?
It uses the Yokogawa Remote I/O (RIO) protocol. -
What are the operating temperature limits من the AIP571-S1?
It operates within 0°C to 55°C (32°F to 131°F). -
Is the module compatible with other Yokogawa automation products?
Yes, it is fully compatible with Yokogawa CENTUM VP and other RIO-compatible systems. -
What is the data transfer speed من this module?
The communication speed is 1 Mbps. -
How is the module mounted in control cabinets?
It supports rack mounting and can be installed on DIN rails. -
What kind من diagnostic features does the module provide?
It includes diagnostic functions to monitor communication health and detect faults. -
What power supply does the module require?
It operates on a 24 V DC power supply. -
Can this module be used in harsh industrial environments?
Yes, it is designed for industrial conditions with robust construction and standards compliance.
Recommended Related الطرازs (Same Series / Similar Function)
| الطراز Number | الوصف | Communication Type | Max Distance (m) | Dimensions (WxHxD mm) | الوزن (g) |
|---|---|---|---|---|---|
| AIP571-P1 | Optical Transceiver RIO Module | Optical Fiber | 10,000 | 45 x 160 x 130 | 650 |
| AIP571-P2 | High-Speed Electrical Transceiver | Electrical | 1200 | 45 x 160 x 130 | 600 |
| AIP571-S2 | Electrical Transceiver with Diagnostics | Electrical | 1200 | 45 x 160 x 130 | 620 |
| AIP571-S3 | Electrical Transceiver with Extended Temperature | Electrical | 1500 | 45 x 160 x 130 | 630 |
| AIP571-E1 | Extended Distance Optical Transceiver | Optical Fiber | 20,000 | 45 x 160 x 130 | 680 |
| AIP572-S1 | Redundant Electrical Transceiver | Electrical | 1200 | 45 x 160 x 130 | 650 |
Popular Yokogawa الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف | Type | Channels/Input/Output | Dimensions (WxHxD mm) | الوزن (g) |
|---|---|---|---|---|---|
| CENTUM VP | Integrated Control System | Control System | N/A | Varies | Varies |
| ADV771-M01 | Controller Module | Controller | N/A | 150 x 250 x 200 | 7000 |
| ADV890-M02 | Communication Interface Module | Communication | N/A | 30 x 150 x 180 | 500 |
| AIP571-P1 | Optical Transceiver RIO Module | Optical Fiber Transceiver | N/A | 45 x 160 x 130 | 650 |
| ADV761-M03 | Analog Input Module | Analog I/O | 16 Inputs | 30 x 150 x 180 | 450 |
| ADV761-M04 | Analog Output Module | Analog I/O | 16 Outputs | 30 x 150 x 180 | 470 |
