Product Overview

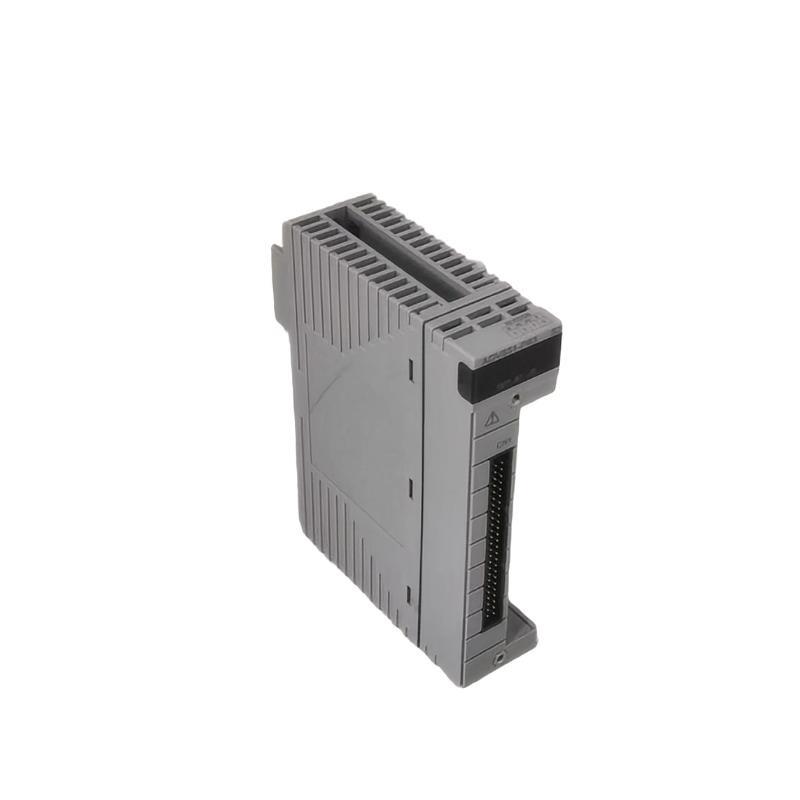

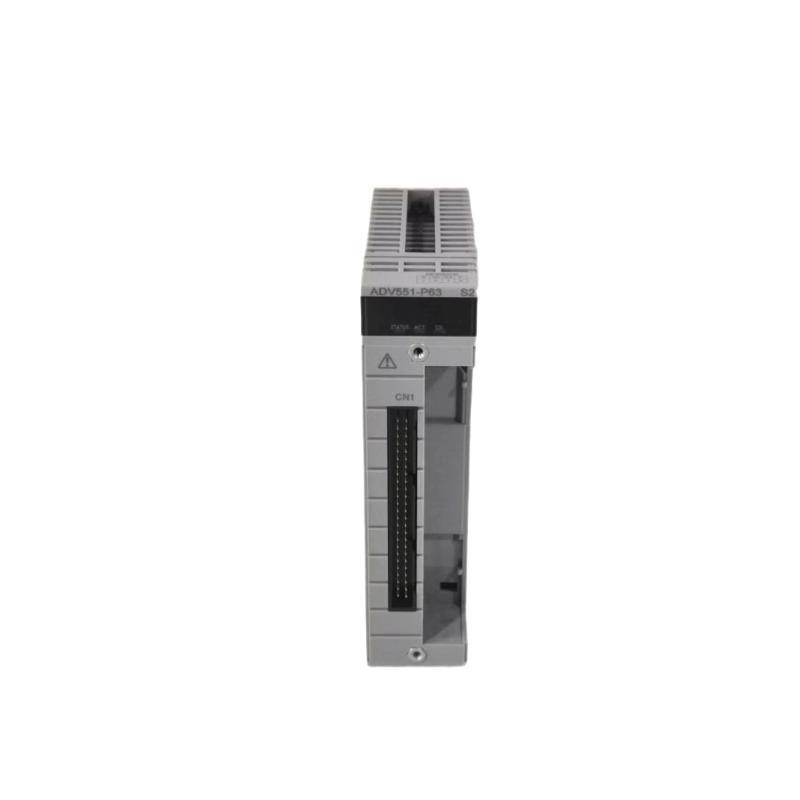

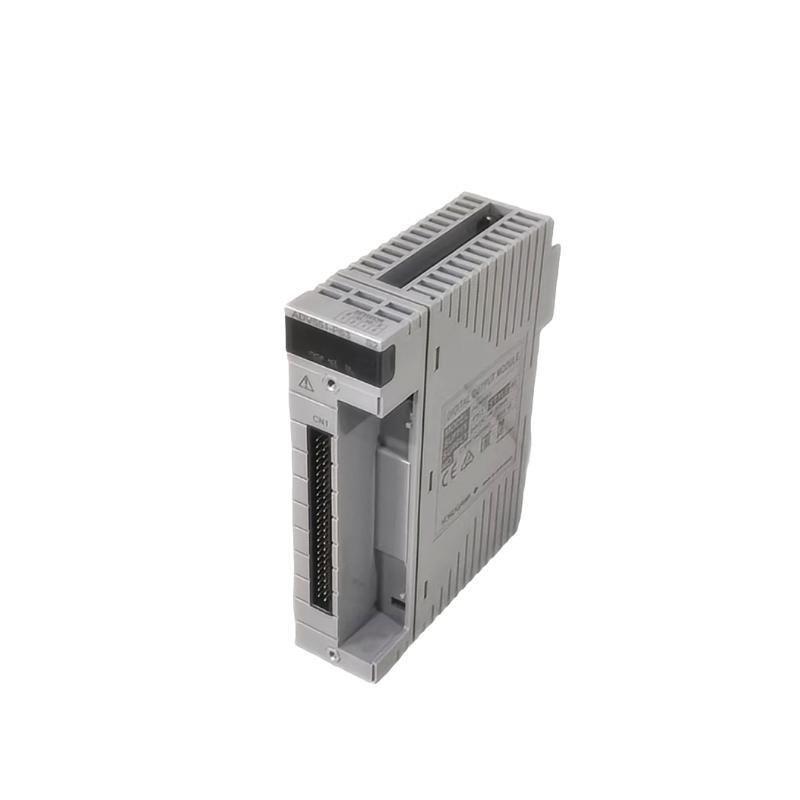

The Yokogawa ADV551-P63 is a digital output module designed for the CENTUM VP distributed control system platform. This module enables precise and reliable control من discrete signals in industrial automation environments. It facilitates switching operations by providing isolated digital outputs, which interface with actuators, alarms, and other field devices.
Manufactured with Yokogawa’s hallmark commitment to quality and durability, the ADV551-P63 module is tailored for demanding applications across various industries including oil & gas, petrochemical, power generation, and manufacturing. Its robust design ensures consistent performance in harsh environments, minimizing downtime and enhancing system reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | ADV551-P63 |
| Module Type | Digital Output Module |
| Number من Channels | 16 channels |
| Output Type | Relay contact output |
| Output Voltage Range | 250 VAC / 30 VDC (max) |
| Output Current | 2 A per channel (max) |
| Isolation Voltage | 1500 VAC between channels and system |
| Response Time | Approx. 10 ms |
| Input Voltage | 24 V DC (typical supply) |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
| Storage Temperature Range | -25°C to +70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| الوزن | 0.2 kg |
| Mounting Type | DIN Rail mount |
| Communication Interface | Backplane bus for CENTUM VP system |
| Certification | CE, UL, CSA |
Applications
The ADV551-P63 module is widely used in industrial process control for discrete digital output applications. Key use cases include:
-
Controlling solenoid valves in oil refining and petrochemical plants
-
Switching alarms and indicators on control panels
-
Operating motor starters and contactors in manufacturing automation
-
Remote control من pumps and fans in water treatment plants
-
Digital output for safety interlocks in power plants
-
Interface with external relays and signal devices in industrial automation systems
-
Control من batch process sequences requiring discrete outputs
-
Integration with Yokogawa’s CENTUM VP DCS for centralized process management
Advantages
-
High reliability and durability: Designed for continuous operation in harsh industrial environments.
-
Easy installation and maintenance: Compact DIN rail form factor with hot-swappable capability reduces downtime.
-
Strong isolation: High voltage isolation enhances system safety and noise immوحدةy.
-
Flexible channel configuration: 16 relay output channels for versatile control applications.
-
Fast response time: Ensures timely execution من control commands for critical processes.
-
Seamless integration: Fully compatible with CENTUM VP systems and Yokogawa automation solutions.
-
Compliance: Meets international safety and quality standards (CE, UL, CSA).
-
Robust environmental tolerance: Operates efficiently in a wide temperature and humidity range.
الأسئلة الشائعة (FAQ)
-
What type من outputs does the ADV551-P63 module provide?
It provides relay contact outputs suitable for switching AC or DC loads. -
How many output channels are available on this module?
There are 16 discrete relay output channels. -
What is the maximum load current per channel?
Each channel supports up to 2 A. -
Can the module be used in hazardous environments?
It is designed for industrial environments but verify specific hazardous area certifications as needed. -
What are the physical dimensions من the module?
The module measures 107.5 × 130 × 32.8 mm. -
Is the ADV551-P63 compatible with all CENTUM VP systems?
Yes, it is fully compatible with the CENTUM VP distributed control system. -
What is the typical operating temperature range?
From -10°C to +55°C. -
How is the module powered?
It is powered through the backplane bus من the CENTUM VP chassis, typically 24 V DC. -
Does the module support hot swapping?
Yes, it supports hot swapping to allow maintenance without system shutdown. -
What safety certifications does this module have?
It is certified under CE, UL, and CSA standards.
Related الطرازs in the Same Series
| الطراز Number | الوصف | Number من Channels | Output Type |
|---|---|---|---|
| ADV551-P61 | Digital Output Module | 8 | Relay |
| ADV551-P62 | Digital Output Module | 16 | Transistor |
| ADV551-P64 | Digital Output Module | 32 | Relay |
| ADV551-P65 | Digital Output Module | 32 | Transistor |
| ADV551-P66 | Digital Input Module | 16 | Discrete Input |
| ADV551-P67 | Analog Output Module | 8 | 4-20 mA |
Popular الطرازs from Yokogawa
| الطراز Number | الوصف | Function |
|---|---|---|
| ADV551-P10 | Analog Input Module | 8 channel, 4-20 mA input |
| ADV551-P20 | Digital Input Module | 16 channel discrete input |
| ADV551-P41 | Analog Output Module | 8 channel, 4-20 mA output |
| ADV551-P51 | Control Module | CPU for CENTUM VP |
| ADV551-P71 | Communication Module | Ethernet, Modbus, Prمنibus |
| ADV551-P81 | Power Supply Module | For CENTUM VP system |
