مقدمة المنتج

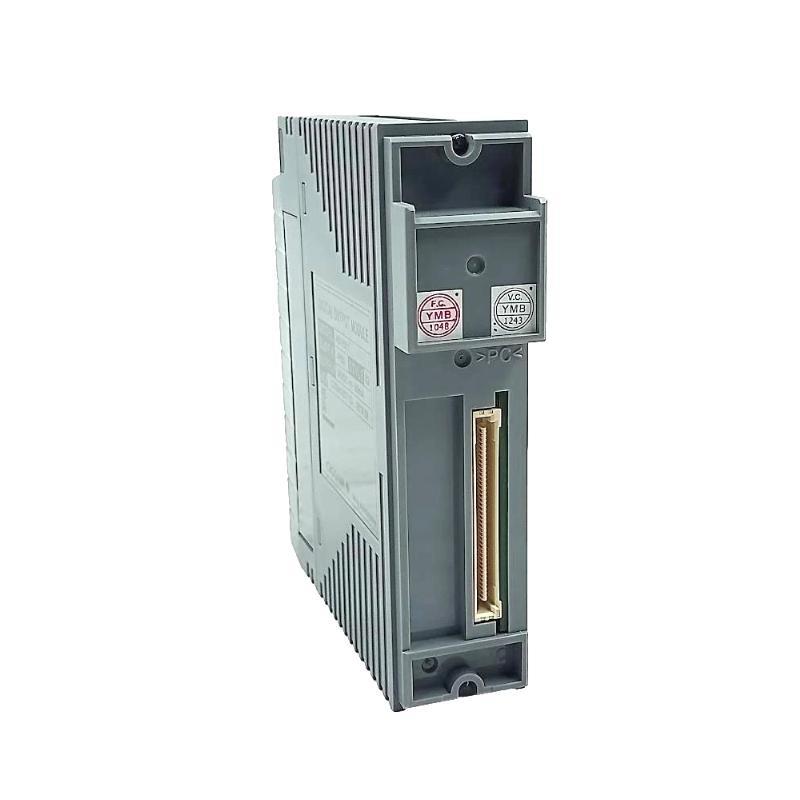

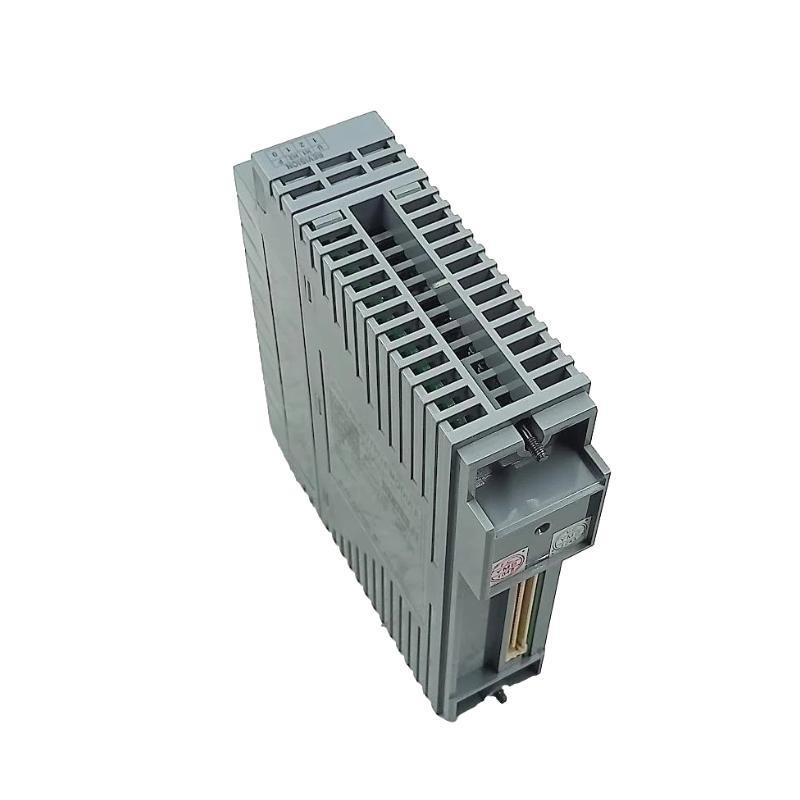

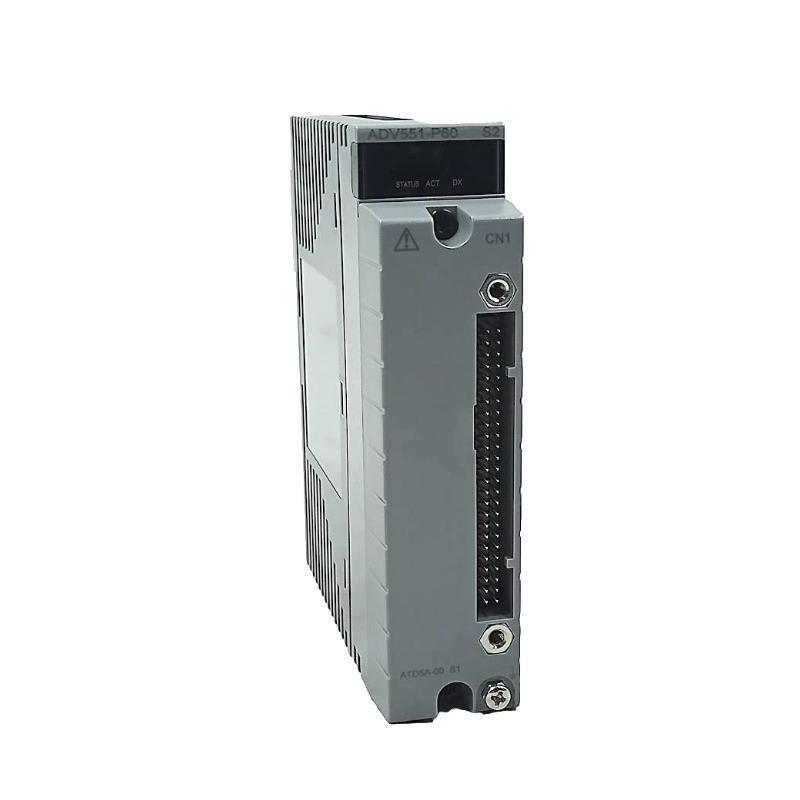

The Yokogawa ADV551-P60/D5S00 Digital Output Module is a high-performance module designed for Yokogawa’s CENTUM VP distributed control system. It serves as a critical interface to convert digital commands from the control system into discrete relay outputs. This module is used to control a variety من field devices such as actuators, solenoids, alarms, and other on/منf equipment, providing reliable and precise switching capability essential for process automation and control.
Constructed with industrial robustness, the ADV551-P60/D5S00 ensures stable operation even in challenging environments. Its modular and rack-mount design allows easy integration and maintenance within Yokogawa’s scalable control architecture, supporting efficient plant operations with minimal downtime.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | ADV551-P60/D5S00 |
| Module Type | Digital Output Module |
| Number من Channels | 16 relay output channels |
| Output اتصل بنا Type | Form A relay contacts |
| اتصل بنا Rating | 5 A at 250 VAC / 5 A at 30 VDC |
| Output Voltage | Up to 250 VAC or 30 VDC |
| Response Time | ≤ 20 milliseconds |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Communication Interface | Yokogawa proprietary communication bus (CENTUM VP) |
| Power Consumption | Approx. 7 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| الوزن | 0.2 kg |
| Mounting | Rack mountable module |
Product Applications
The ADV551-P60/D5S00 Digital Output Module is broadly applicable in diverse industrial automation settings, including:
-
Process Automation — Controlling valves, pumps, motor starters, and other actuators.
-
Alarm and Notification Systems — Activating alarms, buzzers, and indicator lights as part من safety and process monitoring.
-
Batch Processing Control — Delivering precise digital output signals to coordinate batch sequences and operations.
-
Safety Interlocks — Managing emergency stop circuits, safety interlock relays, and shutdown devices.
-
Utility Equipment Control — Operating auxiliary equipment such as fans, compressors, and circuit breakers.
-
Distributed Control Systems — Integrating seamlessly with the CENTUM VP system for centralized process control.
Product Advantages
-
High Current Capacity — الدعمs relay contacts rated for 5 A, enabling control من higher power field devices.
-
Reliable and Durable اتصل بناs — Form A relay contacts ensure consistent and safe switching operations.
-
Comprehensive Isolation — Ensures electrical isolation between channels and the system, protecting control circuits.
-
Fast and Accurate Response — Response times من 20 milliseconds or less support timely process control.
-
Designed for Industrial Environments — Operates reliably across wide temperature and humidity ranges.
-
Seamless Integration — Fully compatible with Yokogawa CENTUM VP communications and architecture.
-
Modular and Maintainable — Rack-mounted form factor simplifies installation, replacement, and system scalability.
FAQ
-
What type من output contacts does the ADV551-P60/D5S00 provide?
The module provides Form A relay contacts. -
How many digital output channels are available?
The module supports 16 discrete relay output channels. -
What is the maximum current rating per relay contact?
Each contact is rated for 5 A at 250 VAC or 5 A at 30 VDC. -
Does the module provide electrical isolation?
Yes, it provides both channel-to-channel and channel-to-system isolation. -
What is the typical response time for the outputs?
The response time is equal to or less than 20 milliseconds. -
Can the module switch both AC and DC loads?
Yes, it supports switching من AC loads up to 250 V and DC loads up to 30 V. -
What communication protocol does it use with the CENTUM VP system?
It uses Yokogawa’s proprietary communication bus designed for CENTUM VP integration. -
What are the operating environmental conditions?
The module operates between 0°C and 55°C, and 5% to 95% relative humidity (non-condensing). -
What is the module’s power consumption?
Approximately 7 watts during operation. -
How is the module mounted within the control system?
It is rack-mounted within Yokogawa CENTUM VP control racks for easy integration.
Recommended Same Series / Related الطرازs
| الطراز Number | الوصف |
|---|---|
| ADV551-P60/D5A00 | Digital Output Module, 16 channels, 3 A contacts |
| ADV551-P60/D5B00 | Digital Output Module, 32 channels |
| ADV551-DO32 | Digital Output Module, 32 channels |
| ADV551-DO16 | Digital Output Module, 16 channels |
| ADV551-AO16 | Analog Output Module, 16 channels |
| ADV551-DO32HS | High-Speed Digital Output Module |
Recommended أخرى Popular Yokogawa الطرازs
| الطراز Number | الوصف |
|---|---|
| ADV151-P31 | Analog Input Module |
| ADV151-P33 | Analog Output Module |
| ADV151-P35 | Digital Output Module |
| ADV151-P37 | High-Speed Pulse Input Module |
| ADV151-P41 | Universal Input Module |
| ADV151-P44 | Temperature Input Module |
