مقدمة المنتج

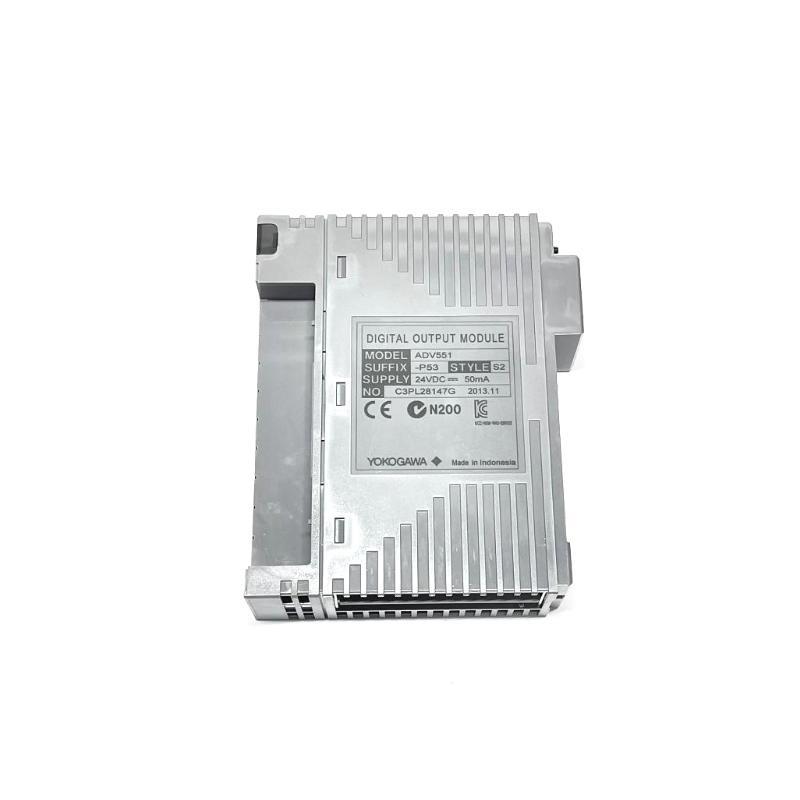

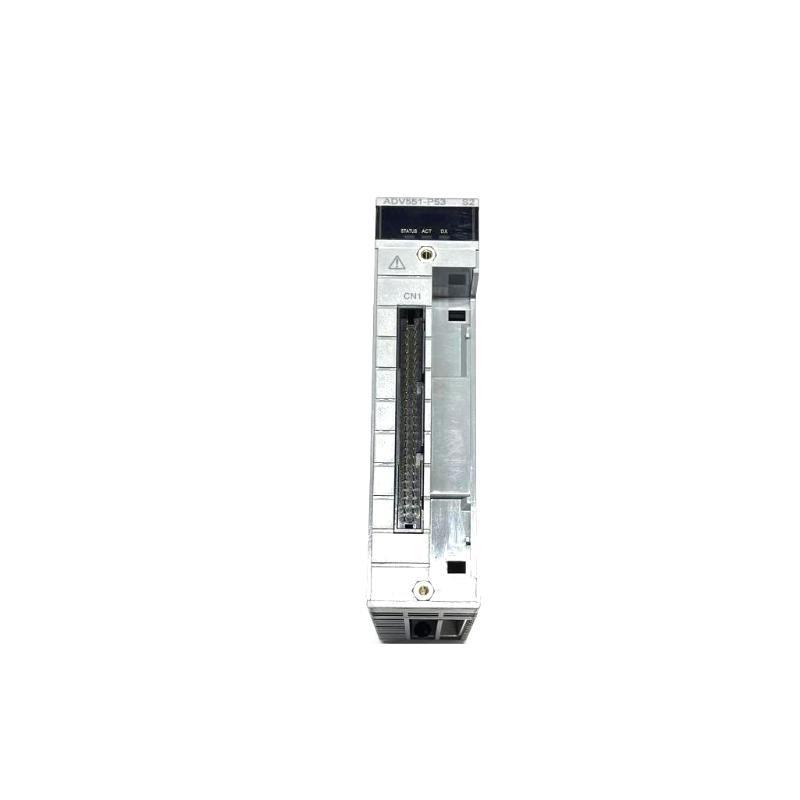

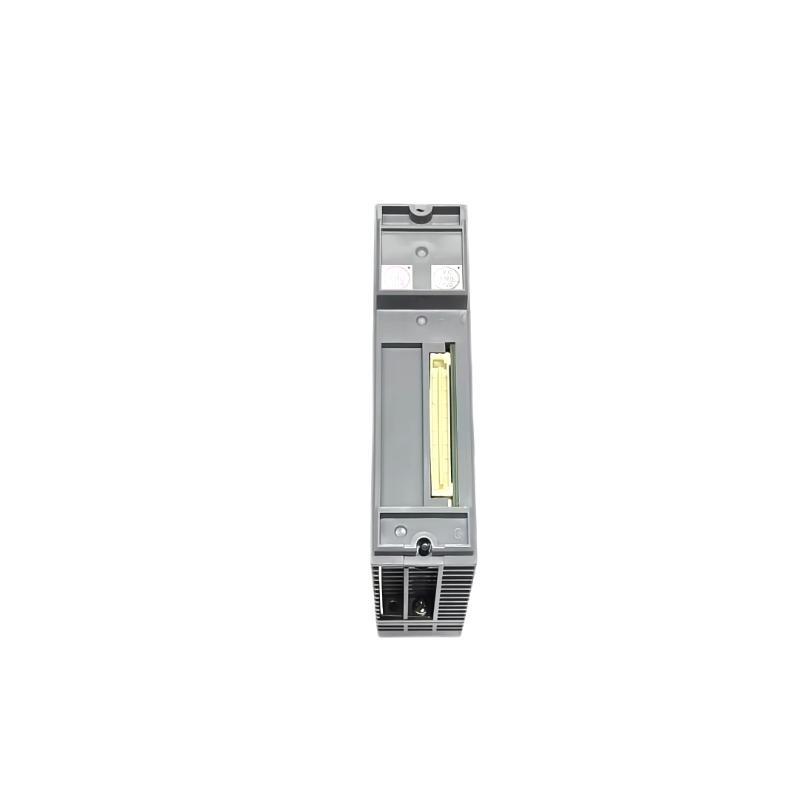

The Yokogawa ADV551-P53 Digital Output Module is a highly reliable and precise component designed for advanced process automation systems. As part من Yokogawa’s renowned ADV551 series, this module plays a critical role in delivering digital output signals that control various field devices in industrial environments. Engineered to meet the demanding requirements من process control systems, the ADV551-P53 ensures accurate, fast, and stable signal transmission with robust protection against noise and electrical interference.
Built with the industrial user in mind, this module features a compact design suitable for integration within the larger Yokogawa automation architecture. It supports multiple digital outputs, allowing for versatile control من valves, switches, alarms, and other automation elements. The module’s compatibility with Yokogawa’s CENTUM and ProSafe-RS platforms further extends its applicability in both conventional and safety-critical process control systems.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | ADV551-P53 |
| Module Type | Digital Output Module |
| Number من Channels | 16 digital output channels |
| Output Type | Transistor (open collector) |
| Output Voltage | 24 V DC nominal |
| Maximum Output Current | 500 mA per channel |
| Response Time | Less than 10 ms |
| Isolation | Opto-isolated channels |
| Power Supply | 24 V DC |
| Communication Interface | Yokogawa standard bus interface |
| Dimensions (WxHxD) | 107.5 × 130 × 32.8 mm |
| الوزن | 0.2 kg |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting | DIN rail or panel mount |
| Certifications | CE, UL, CSA |
Product Applications
The ADV551-P53 Digital Output Module is extensively used in various industrial sectors where precision digital control is crucial:
-
Chemical and Petrochemical Plants: Control من solenoid valves, alarms, and safety shutdown systems.
-
Power Generation: Managing turbine controls, breakers, and system interlocks.
-
Water and Wastewater Treatment: Automation من pumps, valves, and monitoring alarms.
-
Oil & Gas Industry: Remote control من field devices in hazardous environments.
-
Pharmaceutical Manufacturing: Process automation ensuring compliance with safety standards.
-
Food and Beverage: Reliable control من automated filling, packaging, and safety devices.
Product Advantages
-
High Reliability: Designed for continuous operation in harsh industrial environments with strong resistance to electrical noise and vibration.
-
Compact Size: Small footprint enables easy integration within existing control cabinets, optimizing space.
-
Fast Response: Less than 10 milliseconds switching time allows timely control in critical processes.
-
Safe Isolation: Opto-isolated outputs protect both the module and connected devices from electrical faults.
-
Versatility: Compatible with Yokogawa’s broad automation ecosystem, ensuring seamless communication and control.
-
Easy Installation and Maintenance: الدعمs DIN rail mounting with simple wiring, reducing downtime and labor costs.
-
Robust Construction: Tested to withstand wide temperature and humidity ranges for global application.
-
Certifications: Meets international standards ensuring suitability for global industrial use.
-
Scalability: Multiple modules can be combined for extensive digital output needs.
-
Industry Proven: Yokogawa’s longstanding reputation guarantees quality and performance backed by solid technical support.
الأسئلة الشائعة (FAQ)
-
Q: What is the maximum current each output channel can handle?
A: Each output channel can handle up to 500 mA. -
Q: Is the module compatible with Yokogawa’s CENTUM VP system?
A: Yes, it is fully compatible with the CENTUM VP and other Yokogawa control platforms. -
Q: Can the ADV551-P53 module be mounted on a DIN rail?
A: Yes, it supports DIN rail mounting for easy installation. -
Q: What type من output does the ADV551-P53 provide?
A: It provides transistor open-collector digital outputs. -
Q: What are the operating temperature limits for this module?
A: The module operates reliably between -10°C and +55°C. -
Q: Does this module provide electrical isolation for its outputs?
A: Yes, all output channels are opto-isolated for safety and noise immوحدةy. -
Q: How many output channels are on the ADV551-P53?
A: The module includes 16 digital output channels. -
Q: What is the typical response time من the outputs?
A: The response time is less than 10 milliseconds. -
Q: Can this module be used in safety-instrumented systems?
A: Yes, it can be integrated into ProSafe-RS safety systems. -
Q: What certifications does this module hold?
A: It is certified by CE, UL, and CSA, meeting international standards.
Recommended Related الطرازs (Same Series or Related)
| الطراز | الوصف | Channels | Output Type | Dimensions (WxHxD) | الوزن |
|---|---|---|---|---|---|
| ADV551-P54 | Digital Output Module, 16 ch | 16 | Transistor | 90 x 120 x 150 mm | 0.7 kg |
| ADV551-P52 | Digital Output Module, 8 ch | 8 | Transistor | 90 x 120 x 150 mm | 0.6 kg |
| ADV551-P55 | Digital Output Module with relay | 16 | Relay | 90 x 120 x 150 mm | 0.8 kg |
| ADV551-P50 | Digital Input/Output Module | 16 IO | Mixed | 90 x 120 x 150 mm | 0.75 kg |
| ADV551-P57 | High-Speed Digital Output Module | 16 | Transistor, fast | 90 x 120 x 150 mm | 0.7 kg |
| ADV551-P59 | Digital Output Module, Ex rated | 16 | Transistor | 90 x 120 x 150 mm | 0.75 kg |
Popular Yokogawa الطرازs (Same العلامة التجارية)
| الطراز | Function | Channels | Dimensions (WxHxD) | الوزن |
|---|---|---|---|---|
| CENTUM VP | Integrated Control Sys | N/A | N/A | N/A |
| ProSafe-RS | Safety Instrumented Sys | N/A | N/A | N/A |
| ADV551-P33 | Analog Output Module | 16 | 90 x 120 x 150 mm | 0.7 kg |
| ADV551-P41 | Analog Input Module | 16 | 90 x 120 x 150 mm | 0.7 kg |
| YS1700 | Field Wireless Gateway | N/A | 250 x 150 x 80 mm | 1.5 kg |
| STARDOM FCN | Network Controller | N/A | 140 x 130 x 80 mm | 1.2 kg |
