Product Overview

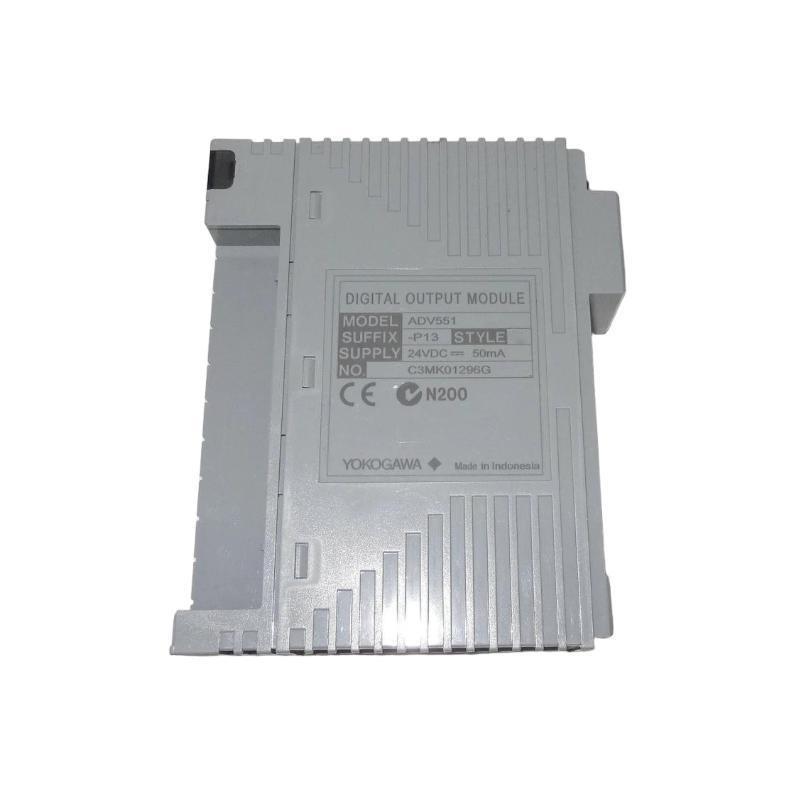

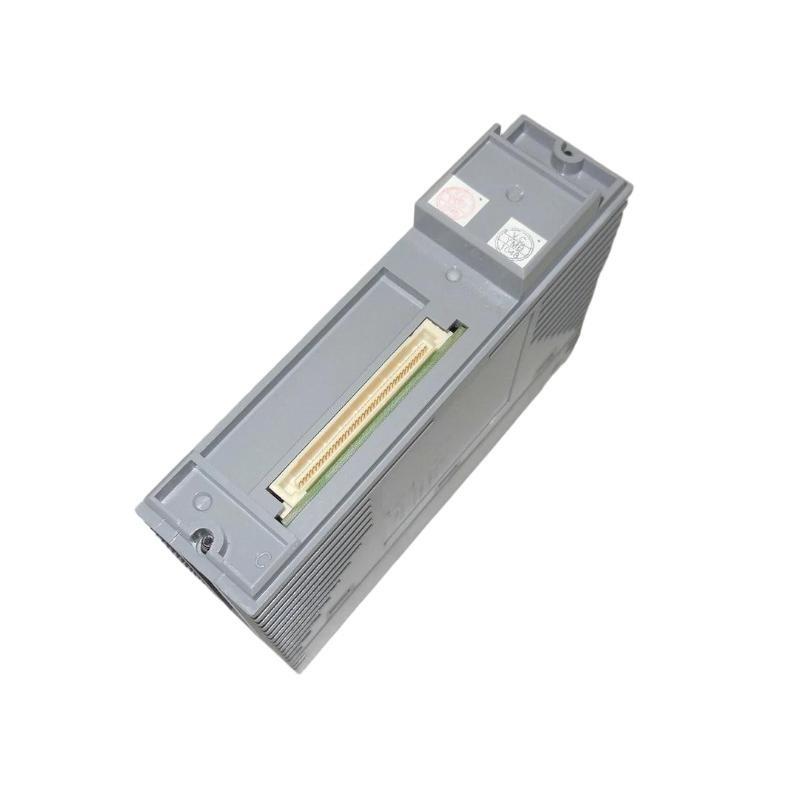

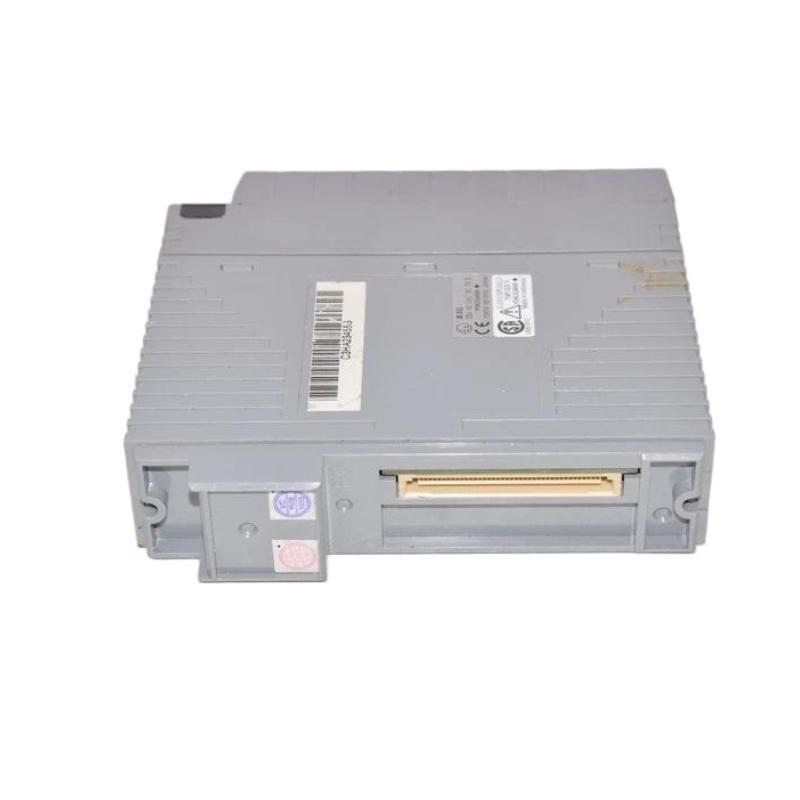

The Yokogawa ADV551-P13 is a high-performance digital output module engineered for use in industrial control systems like the CENTUM VP and ProSafe-RS platforms. With 16 channels, this module delivers reliable signal switching for controlling external actuators such as relays, solenoids, and lamps. Its rugged design, isolated outputs, and quick response time make it ideal for demanding applications requiring high availability and fast operation.
Key Features
-
16 isolated digital output channels
-
الدعمs 24 V DC output signals (source type)
-
Fast response time for time-critical control operations
-
Per-channel isolation for enhanced system protection
-
Diagnostic functions for fault detection and status monitoring
-
Hot-swappable for easy maintenance
-
Suitable for use in safety systems when integrated with ProSafe-RS
-
Conforms to international industrial standards
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | ADV551-P13 |
| Module Type | Digital Output Module |
| Number من Channels | 16 isolated output channels |
| Output Signal Type | 24 V DC, source type |
| Output Voltage Range | 18 to 30 V DC |
| Output Current (per ch.) | 0.1 A max (resistive load) |
| Total Output Current | 1.6 A max (sum من all channels) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Signal Status Detection | Channel status monitoring |
| Response Time | Typically < 2 ms |
| Diagnostics | Short circuit detection, module error reporting |
| Hot Swap Capability | الدعمed |
| Mounting Type | Mounted on FIO base وحدة |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 130 × 32.8 mm |
| الوزن | 0.2 kg |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS) |
Industry Applications
-
Distributed control systems in process industries
-
Safety instrumented systems (SIS)
-
Oil and gas control panels
-
Chemical and petrochemical manufacturing
-
Power generation and energy distribution
-
Pharmaceutical and biotech plants
-
Water treatment automation
-
Factory automation systems
الأسئلة الشائعة (FAQ)
-
What does the ADV551-P13 module do?
It outputs 24 V DC digital signals to control field devices such as relays or actuators. -
How many output channels does it have?
It has 16 isolated digital output channels. -
What is the maximum current per channel?
Each channel can supply up to 0.1 A. -
Is the module hot-swappable?
Yes, it can be replaced without system shutdown. -
Does it provide diagnostic feedback?
Yes, it includes short circuit detection and module status reporting. -
Is it suitable for use in safety applications?
Yes, especially when used with Yokogawa’s ProSafe-RS system. -
What kind من isolation does it provide?
Channel-to-channel and channel-to-ground electrical isolation. -
What is the typical response time?
Less than 2 milliseconds. -
What type من devices can it control?
Devices like solenoid valves, contactors, relays, and indicator lamps. -
What systems is it compatible with?
It is designed for use with Yokogawa’s CENTUM VP and ProSafe-RS control systems.
