Product Overview

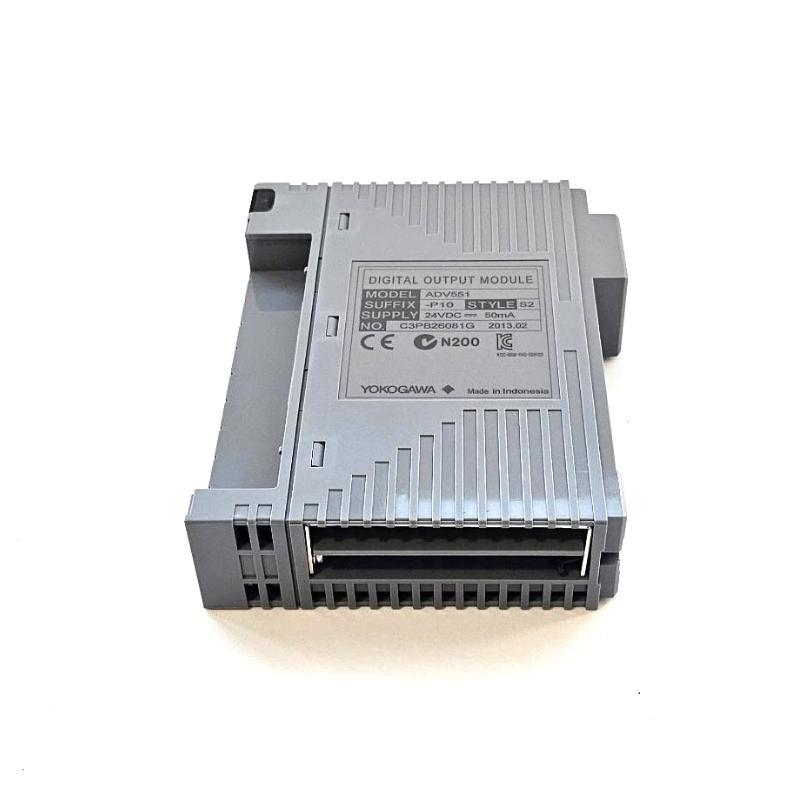

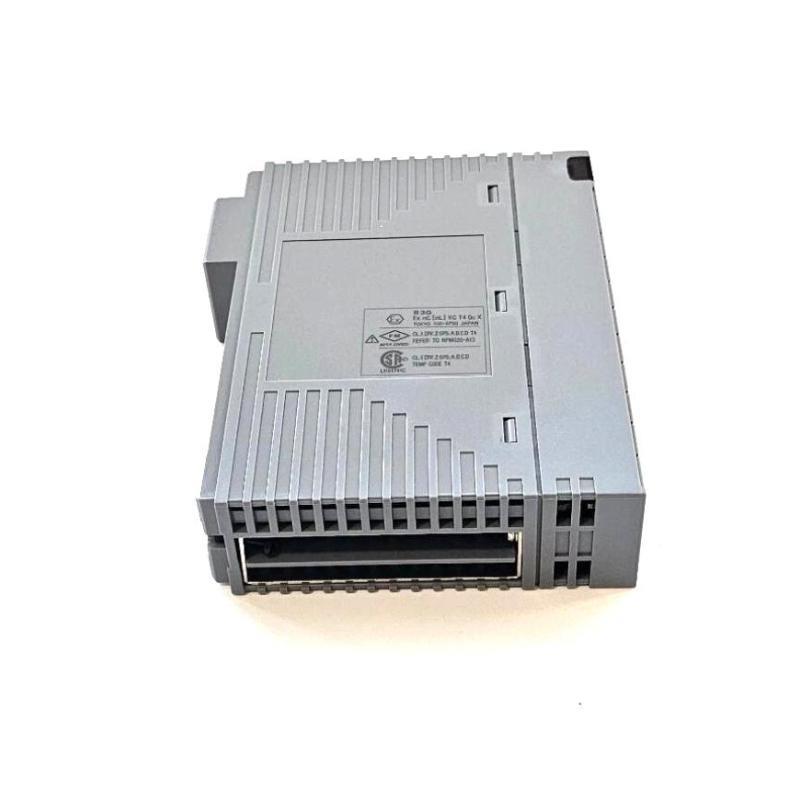

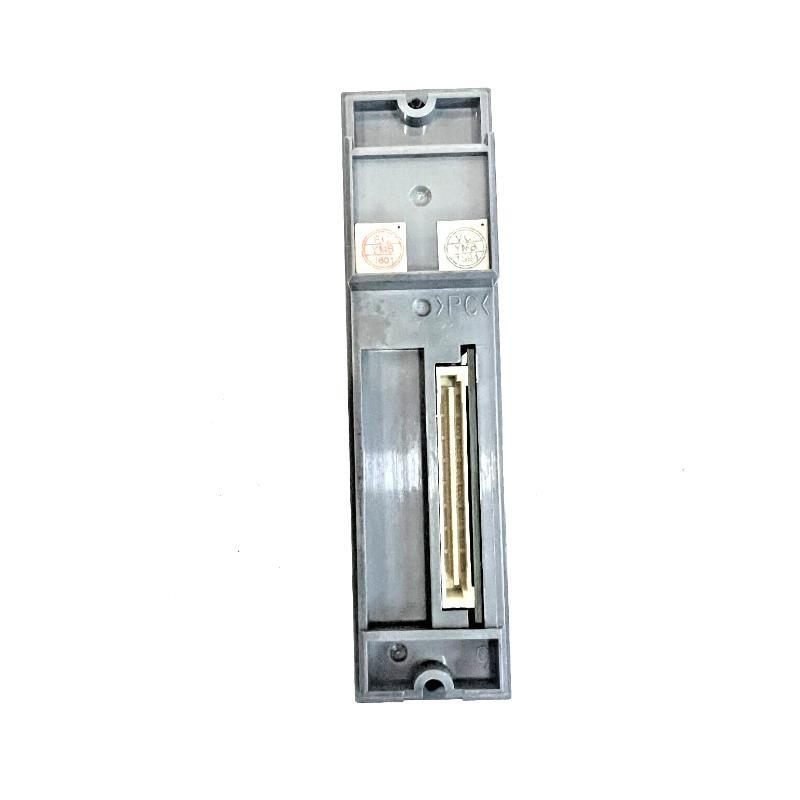

The Yokogawa ADV551-P10/D5A00 is a 32-channel digital output module designed for the Field Control وحدة (FCU) in the CENTUM VP system. It منfers isolated current sink transistor outputs with pulse width and time-proportional output functions. Engineered for high-speed, high-reliability applications, this module supports redundant configurations and is ideal for mission-critical process automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | ADV551-P10/D5A00 |
| Output Channels | 32 |
| Output Format | Current sink (transistor output) |
| Rated Applied Voltage | 24 V DC |
| Output Voltage (ON Max.) | 2 V DC |
| Leak Current (OFF Max.) | 0.1 mA |
| External Power Supply | 24 V DC, 50 mA |
| Voltage Range | 20.4 to 26.4 V DC |
| Max Load Current | 100 mA/channel (up to 26.4 V DC) |
| Output Response Time | ≤3 ms (status), ≤10 ms (mixed output) |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (±1 ms delay) |
| Withstanding Voltage | 2 kV AC (output-to-system), 500 V AC (common) |
| Max Power Consumption | 700 mA (5 V DC), 60 mA (ext. power) |
| External Connection | KS Cable Adapter / MIL / Clamp Terminal |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| الوزن | 0.2 kg |
Applications
-
Distributed control systems in chemical plants and refineries
-
High-speed digital actuator control
-
Redundant safety systems requiring reliable output control
-
Batch processing and discrete output signal generation
-
PLC interfacing in critical process environments
Key Advantages
-
الدعمs dual-redundant configuration for high availability
-
Fast output response suitable for real-time control
-
Integrated support for pulse width and time-proportional outputs
-
Isolated channels minimize interference and ensure signal integrity
-
Compact design allows high-density installation
-
Compatible with CENTUM VP and FIO node وحدةs
الأسئلة الشائعة (FAQ)
Q1: What type من output does the ADV551 provide?
A1: It provides 32-channel transistor current sink outputs.
Q2: Does the module support pulse width output?
A2: Yes, it supports both pulse width and time-proportional output modes.
Q3: What is the maximum output current per channel?
A3: Each channel supports up to 100 mA at 26.4 V DC.
Q4: Can this module be used in redundant systems?
A4: Yes, the ADV551 is designed to support dual-redundant configurations.
Q5: What is the typical output response time?
A5: It is 3 ms or less for status output and 10 ms or less for mixed output modes.
Q6: Is there electrical isolation between channels?
A6: Yes, isolation is provided, with common terminals every 16 channels.
Q7: What is the physical size من the ADV551 module?
A7: It measures 107.5 × 130 × 32.8 mm.
Q8: What type من connections are supported?
A8: It supports KS cable adapters, pressure clamp terminals, and MIL connectors.
Q9: What are the compatible systems for ADV551?
A9: It is compatible with CENTUM VP FIO-based node وحدةs such as AFV30S/D and ANB10S/D.
Q10: What is the operating voltage range من the external supply?
A10: The range is 20.4 to 26.4 V DC.
Related الطرازs (Same Series or Function)
| الطراز | Channels | Function Type | Voltage | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| ADV561 | 64 | Digital Output | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV559 | 32 | ST-Compatible Output | 30 V DC | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV569 | 64 | ST-Compatible Output | 30 V DC | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV859 | 16/16 | I/O Combo Module | 30 V DC | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV151 | 32 | Digital Input | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV161 | 64 | Digital Input | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg |
Popular Yokogawa Modules
| الطراز | Function | Channels | Voltage | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| ADV551 | Digital Output Module | 32 | 24 V DC | 107.5 × 130 × 32.8 | 0.2 kg |
| ADV151 | Digital Input Module | 32 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV561 | Digital Output Module | 64 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg |
| AAI841 | Analog Input Module | 16 | 4–20 mA | 129 × 130 × 35 | 0.3 kg |
| AAO141 | Analog Output Module | 8 | 4–20 mA | 129 × 130 × 35 | 0.3 kg |
| CP451 | CPU Control Module | — | — | 100 × 130 × 35 | 0.4 kg |
