Product Overview

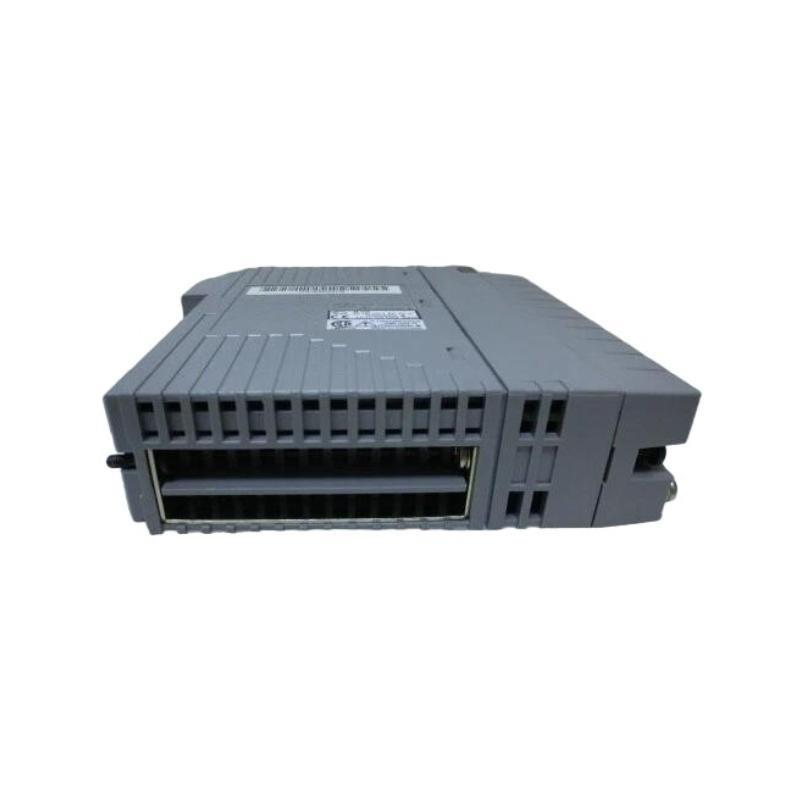

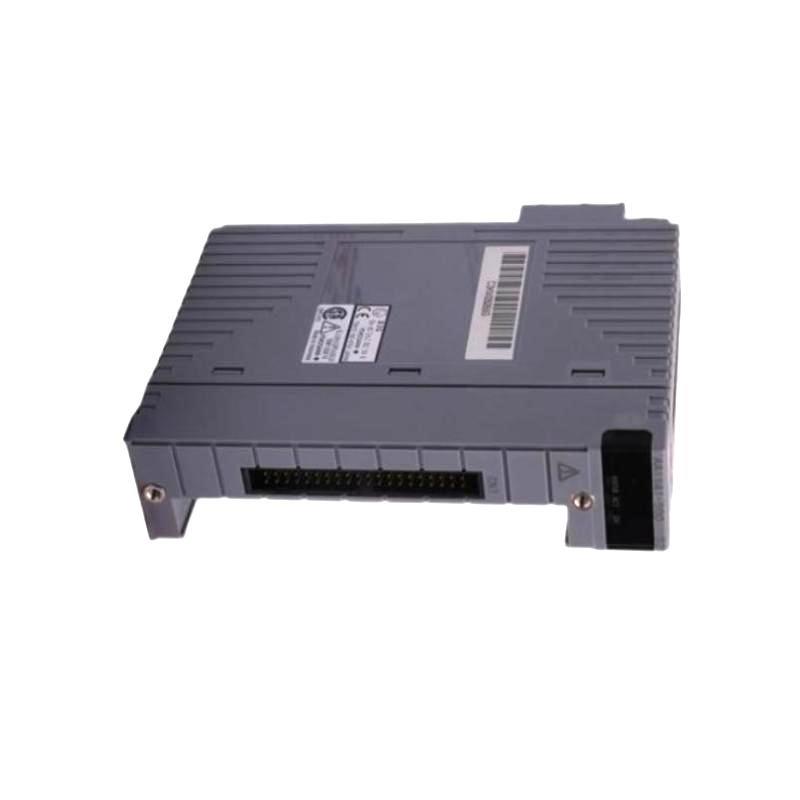

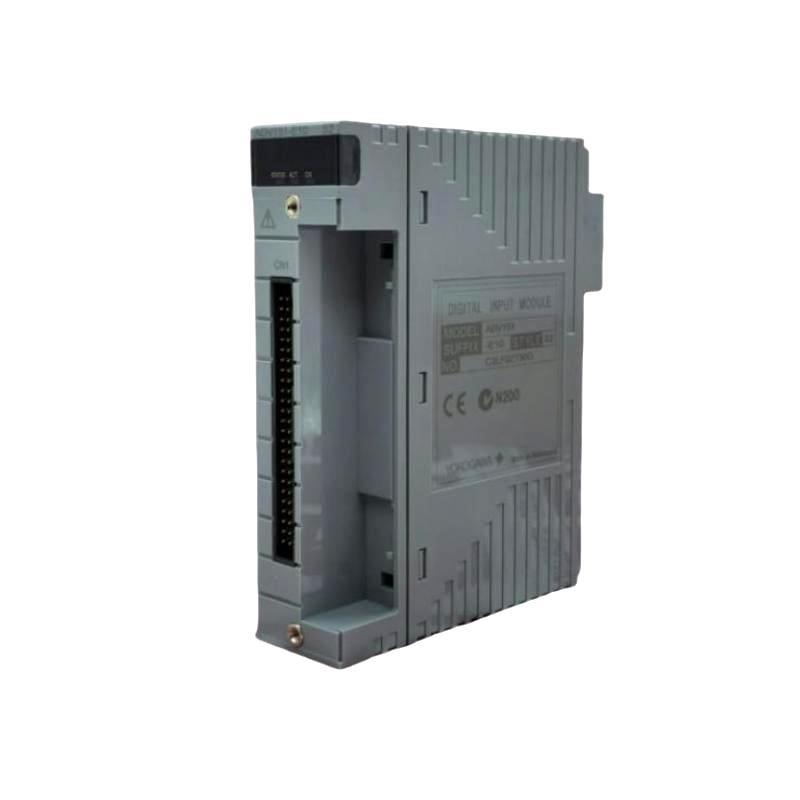

The Yokogawa ADV151-E63 Digital Input Module is a high-performance I/O module designed for use within the CENTUM VP distributed control system. It serves as a reliable interface to acquire discrete digital signals from field devices such as switches, sensors, and contacts. This module ensures accurate signal transmission to the control system for process monitoring and automation.
Key Features
-
الدعمs 16 channels من discrete digital input signals
-
Compatible with CENTUM VP and other Yokogawa control systems
-
High noise immوحدةy for reliable signal detection in industrial environments
-
Fast response time to accurately capture input status changes
-
LED indicators for each channel to facilitate status monitoring
-
الدعمs both sourcing and sinking input types
-
Compact design for efficient installation in control cabinets
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | ADV151-E63 |
| Module Type | Digital Input Module |
| Number من Input Channels | 16 |
| Input Signal Type | Discrete ON/OFF signals |
| Input Voltage Range | 24 VDC nominal |
| Input Current | Approx. 5 mA per channel |
| Response Time | ≤10 ms |
| Isolation | Optical isolation between input and system ground |
| LED Indicators | One per channel |
| Power Supply | 24 VDC ±5% |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 10% to 90%, non-condensing |
| Dimensions | 107.5 × 130 × 32.8 mm |
| الوزن | 0.3 kg |
Industry Applications
-
Process automation systems requiring digital signal acquisition
-
Oil & gas, chemical, and power generation industries
-
Manufacturing plants with discrete device monitoring
-
Any distributed control system (DCS) requiring reliable digital input data
Product Advantages
-
High reliability in signal acquisition ensures accurate process control
-
Optical isolation enhances noise immوحدةy and system protection
-
LED status indicators simplify troubleshooting and maintenance
-
Compact module design saves space in control cabinets
-
Designed to meet stringent industrial standards for durability and performance
الأسئلة الشائعة (FAQ)
-
How many input channels does the ADV151-E63 support?
It supports 16 discrete digital input channels. -
What input voltage does this module require?
The nominal input voltage is 24 VDC. -
Is there isolation between inputs and system ground?
Yes, the module provides optical isolation for enhanced protection. -
What is the response time من the inputs?
The response time is less than or equal to 10 milliseconds. -
Does the module have any status indicators?
Yes, each channel has an individual LED indicator. -
What is the operating temperature range?
It operates between 0°C and 55°C. -
Is the module compatible with CENTUM VP systems?
Yes, it is fully compatible. -
What are the dimensions من the module?
Dimensions are approximately 107.5mm × 130mm × 32.8 mm. -
How much current does each input channel consume?
Approximately 5 mA per channel. -
Can this module be used in harsh industrial environments?
Yes, it is designed to meet industrial standards for reliability and noise immوحدةy.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| ADV151-E62 | Digital Input Module (8 channels) |
| ADV151-E64 | Digital Input Module (32 channels) |
| ADV152-E63 | Digital Output Module (16 channels) |
Popular Yokogawa Modules
| الطراز Number | الوصف |
|---|---|
| ADV151-E10 | Analog Input Module |
| ADV152-E10 | Analog Output Module |
| ADV153-E11 | Communication Module |
| ADV154-E12 | Power Supply Module |
