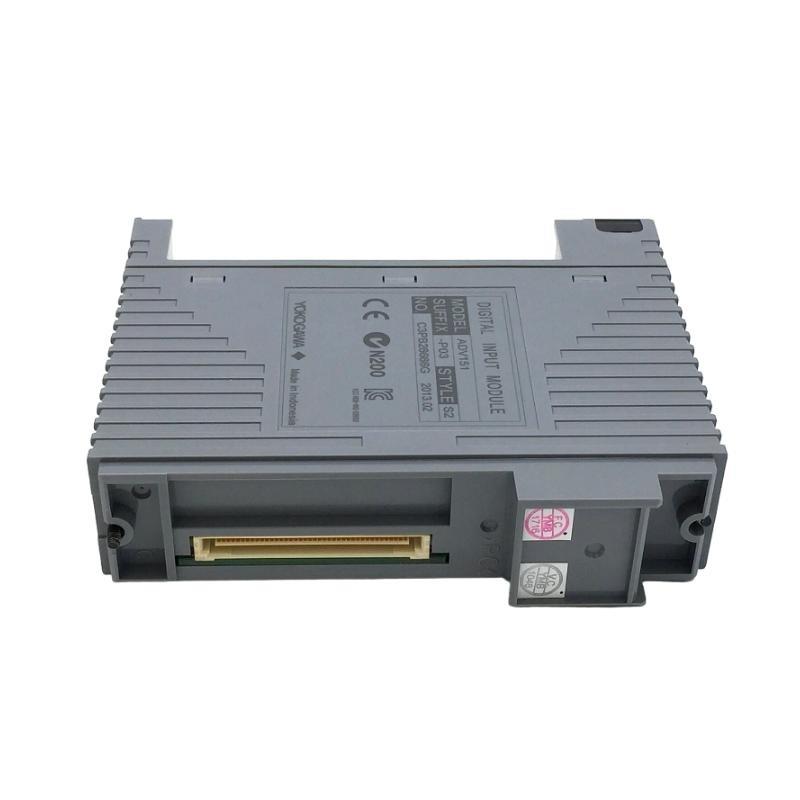

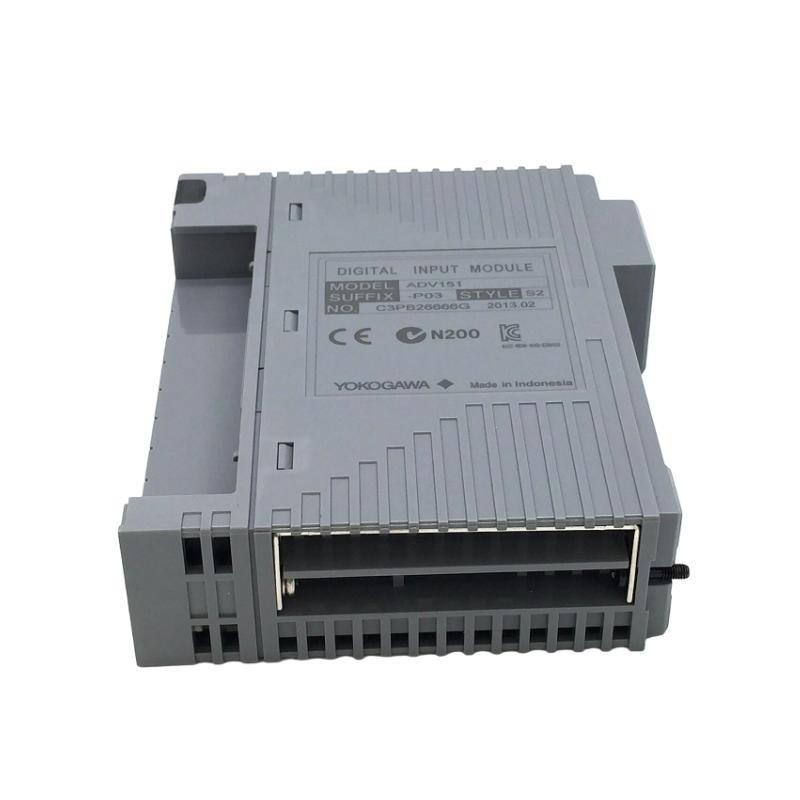

Yokogawa ADV151-D132 Digital Input Module

مقدمة المنتج

The Yokogawa ADV151-D132 Digital Input Module is a high-performance I/O module designed for advanced industrial automation and process control systems. It provides reliable digital signal acquisition from field devices such as limit switches, proximity sensors, and push-button stations, ensuring precise data collection for distributed control systems (DCS) and programmable logic controllers (PLC). Built with robust electronics and high-density input capacity, the ADV151-D132 منfers superior noise immوحدةy, quick response, and stable operation in harsh industrial environments such as power generation plants, petrochemical complexes, and large-scale manufacturing facilities. Its compact size and modular design simplify installation, maintenance, and system expansion.

Technical Specifications

Applications

• Process Automation: Interfaces with field devices in chemical, oil & gas, and water treatment plants.

• Power Generation: Captures critical status signals from circuit breakers, valves, and turbines.

• Factory Automation: Handles discrete input from sensors and switches on production lines.

• Safety Systems: Monitors emergency stop circuits, alarms, and interlocks.

• Building Management: Integrates with HVAC systems, lighting, and security equipment.

• Infrastructure Monitoring: Used in transportation, energy distribution, and public utility control systems.

Advantages

• High Channel Density: 32 digital inputs reduce panel space and simplify wiring.

• Robust Electrical Isolation: Optical isolation improves system safety and protects control logic.

• Flexible Input Filtering: Adjustable debounce time eliminates false triggering from electrical noise.

• Fast Response Time: <5 ms scan time supports real-time control applications.

• Reliable Diagnostics: Built-in LED indicators and self-diagnostics provide easy status monitoring.

• Modular Design: Enables quick replacement or system expansion without extensive downtime.

• Wide Operating Range: Performs reliably in demanding industrial environments.

• Low Power Consumption: Energy-efficient design lowers operating costs.

FAQ

1. What is the nominal input voltage for the ADV151-D132?
   It operates at a nominal 24 V DC with an acceptable range من 19–30 V DC for flexible field wiring.

2. How many digital inputs are supported?
   The module supports 32 isolated digital input channels for high-density applications.

3. Is the module optically isolated?
   Yes, each input channel is optically isolated to protect control logic from field voltage spikes.

4. What is the typical input current per channel?
   Each channel typically draws about 6 mA at 24 V DC.

5. Can the input filter be adjusted?
   Yes, a configurable debounce filter من 1–10 ms helps avoid false signals from noise.

6. What is the update or scan rate من the module?
   The module provides a fast update rate من less than 5 ms for real-time monitoring.

7. How are channel states indicated?
   Each channel has an LED indicator showing ON/OFF status for easy diagnostics.

8. Is it compatible with Yokogawa DCS systems?
   Yes, it is fully compatible with Yokogawa CENTUM and other Yokogawa DCS platforms.

9. Does the module include self-diagnostics?
   Yes, internal self-check functions continuously monitor module health.

10. What mounting options are available?
    It can be mounted on a DIN rail or directly to a control panel for flexible installation.
