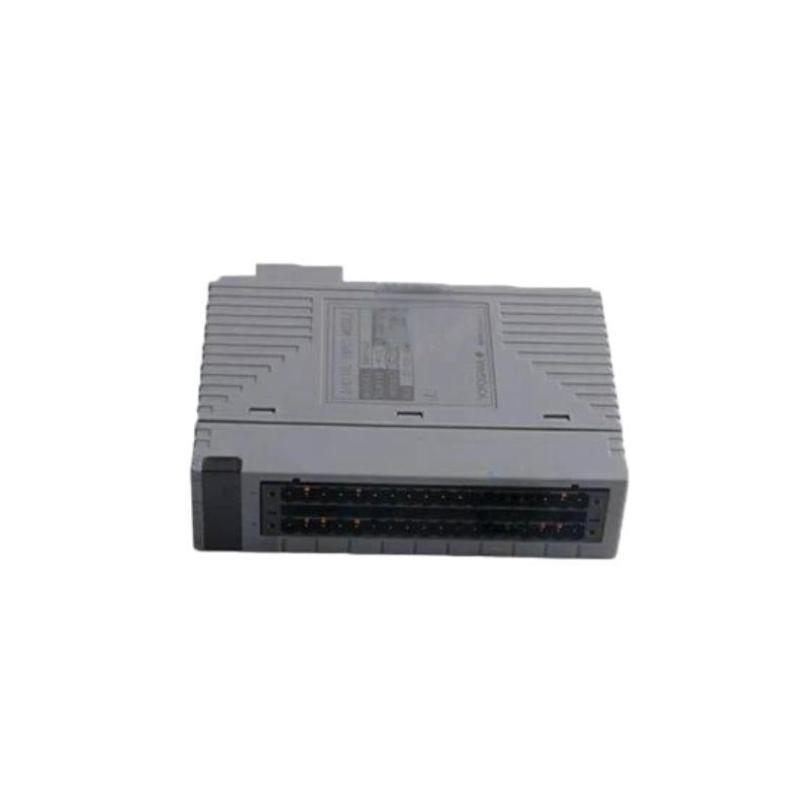

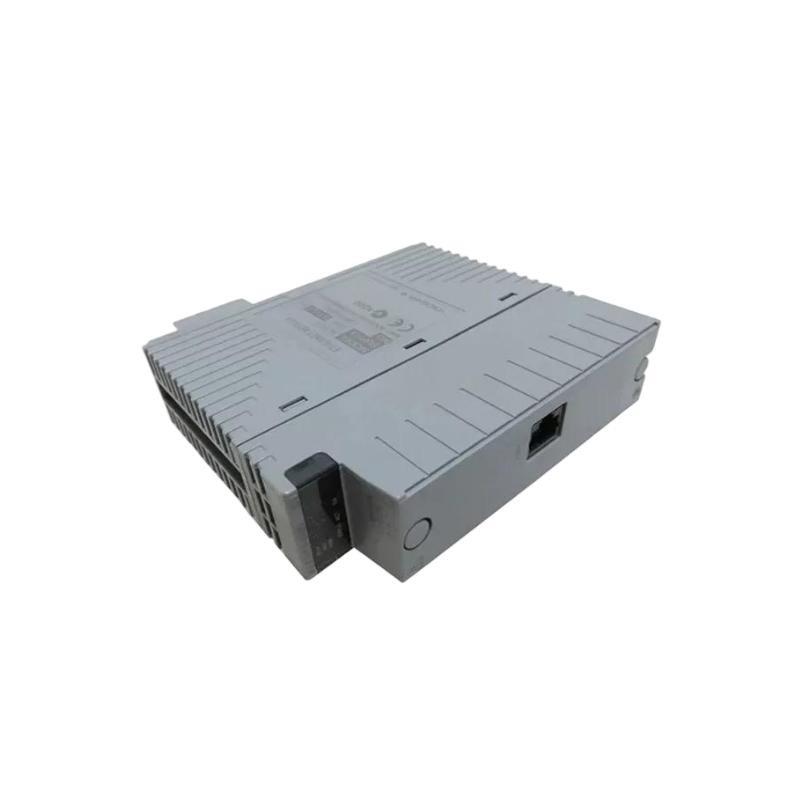

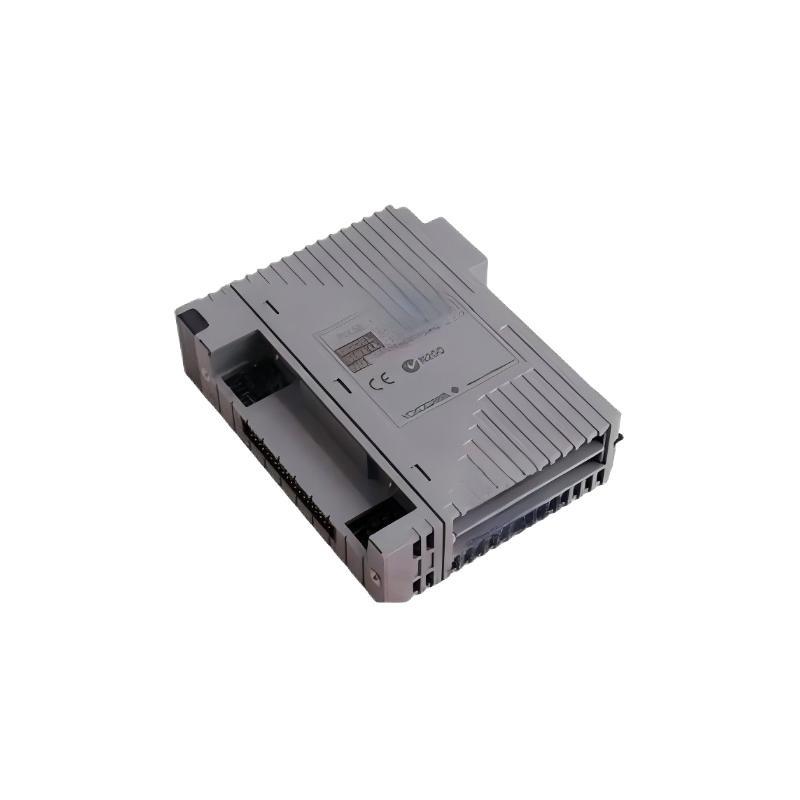

Yokogawa ADV144-S13 Digital Input Module

مقدمة المنتج

The Yokogawa ADV144-S13 is a high-performance digital input module designed to provide precise and reliable monitoring for industrial automation systems. This module is part من Yokogawa’s ADVANTIS series, which is known for its robust design and seamless integration into distributed control systems (DCS). The ADV144-S13 منfers digital input functionality for a wide range من industrial applications, where it reliably converts electrical signals into readable data for control systems.

With a compact size من 107.5 × 130 × 32.8 mm and weighing 0.3 kg, this module is ideal for installations in space-constrained environments. It is built to deliver high-speed, high-accuracy digital signal input while ensuring stable and consistent performance even under demanding conditions. The ADV144-S13 is widely used in applications that require quick and accurate digital signal transmission, such as manufacturing plants, power plants, and process control industries.

مواصفات المنتج

Product Applications

The Yokogawa ADV144-S13 digital input module is ideal for use in a wide range من industrial control applications. It is primarily used in automation systems that require digital signal input processing and data transmission to the control system. The module’s applications include, but are not limited to:

• Industrial Automation: In manufacturing plants, the ADV144-S13 module is used to monitor the status من machinery, such as switches, sensors, and other digital devices.

• Process Control: It is ideal for controlling and monitoring processes in industries such as chemical, petrochemical, and pharmaceutical.

• Energy and Power Systems: Used in power plants and energy management systems to provide digital input from various field devices such as flowmeters, pressure switches, and limit switches.

• Building Management Systems: The module can be used for controlling HVAC systems, lighting, and security systems in large buildings.

• Transportation Systems: Monitors digital signals from various transportation components like sensors and signaling systems.

• Oil and Gas: Used to interface with safety and monitoring systems in hazardous environments.

In these applications, the ADV144-S13 provides precise and dependable monitoring, ensuring that control systems can react to changes in real-time and improve system efficiency.

Product Advantages

1. Compact Design: The module’s small size (107.5 × 130 × 32.8 mm) and light weight (0.3 kg) make it ideal for installations in confined spaces.

2. High-Speed Signal Processing: With fast digital input processing, the module ensures quick and accurate responses for critical industrial applications.

3. Wide Input Voltage Range: The module operates with a nominal 24 V DC input voltage, making it compatible with a variety من field devices.

4. Versatile Signal Types: It supports both TTL and CMOS digital signals, allowing flexibility in system design.

5. Reliable Communication: The module uses Modbus/RTU and Yokogawa proprietary protocol for stable communication with control systems, ensuring reliable data transmission.

6. Temperature Tolerance: With an operating temperature range من -20°C to +60°C, the module can withstand harsh environmental conditions.

7. Easy Mounting: The module can be easily mounted on DIN rail systems, منfering quick and secure installation.

8. Energy-Efficient: It consumes only 1.8 W, making it energy-efficient for long-term use.

9. Durability: Designed with an IP20 protection rating, the module is resistant to dust ingress and is suitable for various industrial environments.

10. Cost-Effective: By providing reliable digital input functionality at a competitive price, the ADV144-S13 منfers great value for a wide range من applications.

الأسئلة الشائعة (FAQs)

1. What type من signals can the ADV144-S13 process?
   It processes TTL and CMOS digital signals.

2. What is the operating voltage من the module?
   The module operates with a 24 V DC nominal input voltage.

3. What are the dimensions من the ADV144-S13?
   The module measures 107.5 × 130 × 32.8 mm.

4. How much does the ADV144-S13 weigh?
   The module weighs 0.3 kg.

5. What is the temperature range for the ADV144-S13?
   The operating temperature range is -20°C to +60°C.

6. How is the ADV144-S13 mounted?
   The module can be mounted on a DIN rail.

7. What communication protocols are supported?
   The module supports Modbus/RTU and Yokogawa proprietary protocols.

8. What is the power consumption من the ADV144-S13?
   The module consumes 1.8 W من power.

9. Is the ADV144-S13 suitable for hazardous environments?
   While it has an IP20 rating, it is not suitable for use in highly hazardous environments, but works well in industrial settings with standard protection needs.

10. Can the ADV144-S13 be used with other Yokogawa systems?
    Yes, it can be used with any Yokogawa DCS or system that supports Modbus/RTU or the proprietary Yokogawa protocol.
