مقدمة المنتج

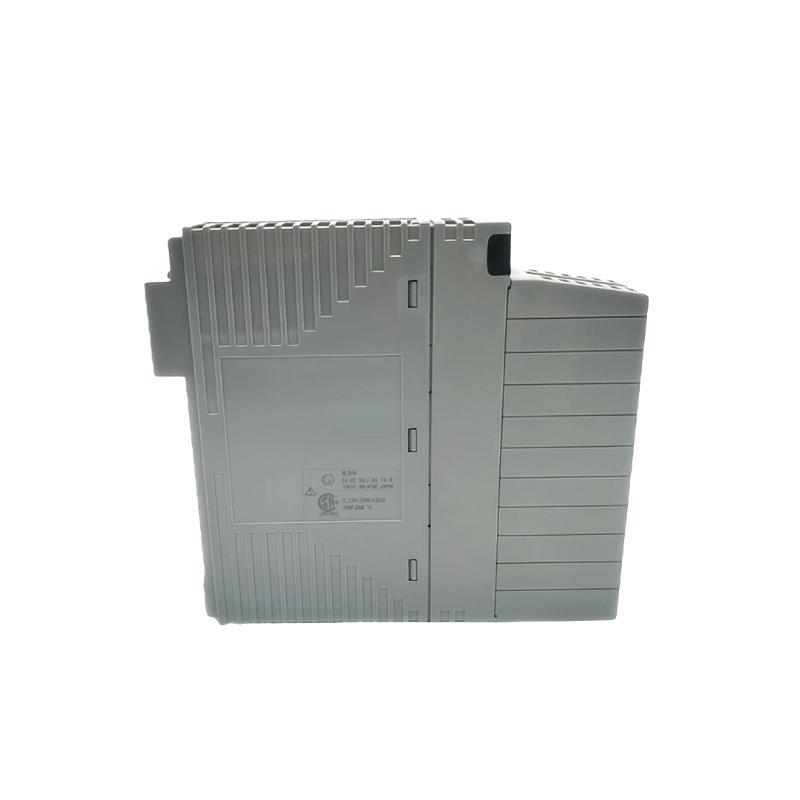

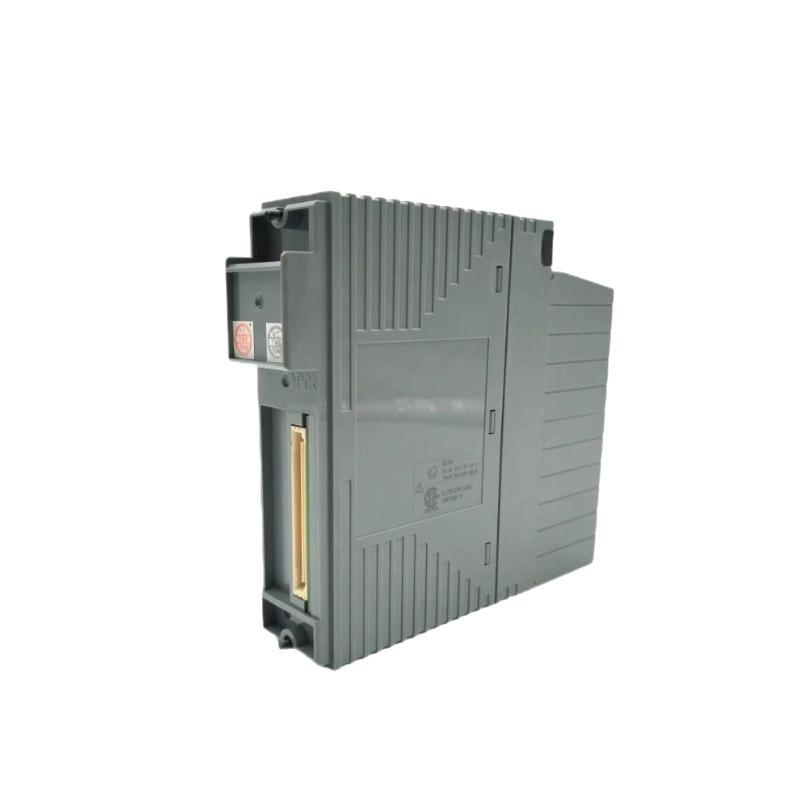

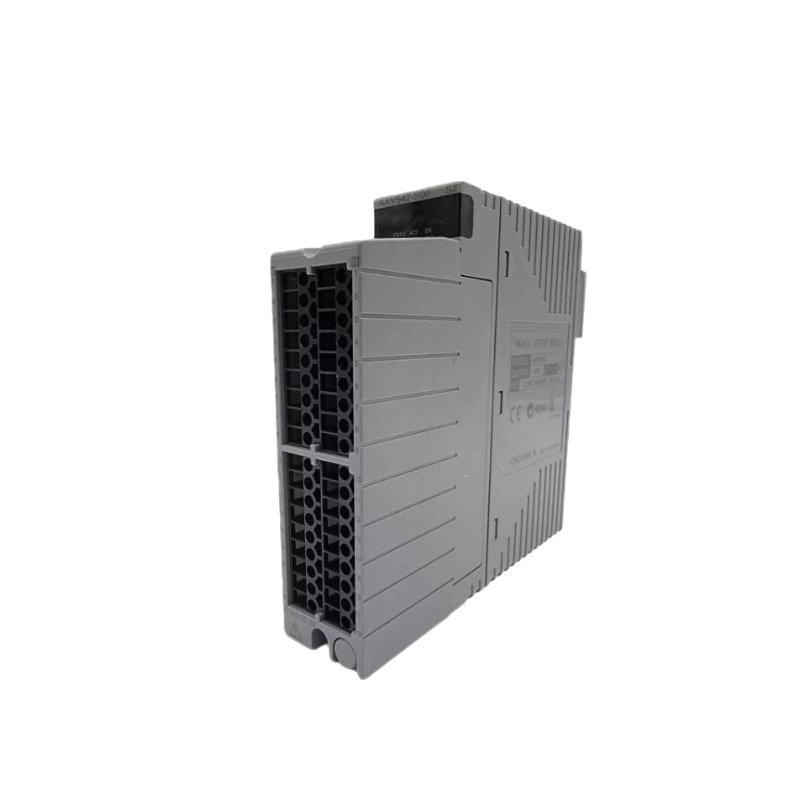

The Yokogawa AAV542-S00 is a 16-channel Voltage Output Module designed for high-precision analog signal transmission in process automation systems. As part من the CENTUM CS 3000 and CENTUM VP distributed control systems, this module plays a critical role in interfacing between the control system and field devices that require analog voltage signals for actuation, feedback, or control purposes.
Engineered with Yokogawa’s renowned commitment to reliability and performance, the AAV542-S00 provides highly accurate voltage signals for controlling final control elements such as VFDs (Variable Frequency Drives), I/P converters, control valves, or analog indicators. With excellent signal stability, optical isolation, and advanced diagnostic capabilities, it is ideal for mission-critical industrial automation.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز Number | AAV542-S00 |
| Module Type | Analog Voltage Output Module |
| Channels | 16 Independent Channels |
| Output Signal Range | 0 to 10 V DC |
| Output Impedance | ≤ 0.5 Ω |
| Load Resistance | ≥ 2 kΩ |
| Accuracy | ±0.1% من Full Scale |
| Resolution | 12-bit D/A conversion |
| Update Time | 100 ms per channel |
| Signal Isolation | Optical Isolation (Channel-to-System) |
| Diagnostics | Output loop monitoring, Self-diagnostics |
| Status Indication | LED indicators per channel |
| Power Supply | From baseplate (supplied internally) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting Type | Baseplate-mounted within control panel |
| Dimensions (W x H x D) | 107.5 × 130 × 32.8 mm |
| الوزن | 0.2 kg |
| Certifications | CE, CSA, ATEX (depending on system config) |
Product Applications
The AAV542-S00 is designed for industries requiring reliable analog voltage outputs to control or interface with voltage-driven actuators and devices. Its applications include:
-
Petrochemical Plants: For controlling VFDs or voltage-input I/P transducers that regulate valve positions or flow.
-
Chemical Process Control: Provides analog output to batch mixers, dosing pumps, or laboratory analyzers.
-
Pharmaceutical Manufacturing: Ensures precision voltage control in GMP-compliant systems, including bioreactors and environmental controls.
-
Power Generation: Interfaces with excitation systems, motor controllers, or voltage-sensitive relays.
-
Water and Wastewater Facilities: Analog output to voltage-based level control systems, UV disinfection modules, or flow systems.
-
Pulp & Paper Industry: Output to speed controllers and rotary drives used in paper mills and material handling.
Product Advantages
-
High Channel Density: 16 channels in a compact form factor reduce cabinet space and wiring complexity.
-
Stable and Accurate Output: With 0.1% full-scale accuracy and a stable 0–10 V output, it guarantees consistent control signal performance.
-
Electrical Isolation: Each channel is optically isolated, minimizing the risk من ground loops and electrical noise.
-
Fast Response Time: 100 ms per channel update ensures real-time responsiveness in process loops.
-
System Integration Ready: Fully compatible with Yokogawa CENTUM systems, allowing seamless configuration and diagnostics through the engineering workstation.
-
Built-in Diagnostics: Self-monitoring capabilities for predictive maintenance and increased system reliability.
-
Robust Design: Designed to operate in challenging industrial environments, ensuring long-term durability.
الأسئلة الشائعة (FAQ)
-
What is the voltage output range من the AAV542-S00?
The module provides a configurable output range from 0 to 10 V DC per channel. -
How many channels does it support?
It supports 16 independent voltage output channels. -
Is each output channel isolated?
Yes, each channel has optical isolation from the system to protect against interference and faults. -
Can I use this module for current output?
No, the AAV542-S00 is specifically designed for voltage output. Use a current output module like AAI543-S00 for 4–20 mA applications. -
What is the typical load resistance required?
A minimum load resistance من 2 kΩ is recommended for optimal performance. -
Does this module require external power?
No, it is powered via the baseplate module, which supplies the necessary operating voltage. -
What systems is this module compatible with?
It is compatible with Yokogawa’s CENTUM CS 3000 and CENTUM VP control systems. -
Can the module be replaced during operation?
Hot-swapping is not recommended. It should be replaced after safely shutting down the system or isolating the I/O. -
How do I know if a channel has failed?
Each channel has diagnostic features and LED indicators to show operational status or failure. -
What is the precision من the output signal?
The output resolution is 12-bit with an accuracy من ±0.1% من full scale.
Related الطرازs (Same Series or Related Functionality)
| الطراز | Function | Channels | Signal Type | Remarks |
|---|---|---|---|---|
| AAV541-S00 | Voltage Output Module | 8 Channels | 0–10 V | Lower channel version من AAV542-S00 |
| AAI543-S00 | Analog Current Output Module | 16 Channels | 4–20 mA | For current-loop controlled devices |
| AAI143-S00 | Analog Current Input Module | 16 Channels | 4–20 mA | Input module for current sensors |
| AAV144-S00 | Voltage Input Module | 16 Channels | 0–10 V | Counterpart input module |
| AAR181-S00 | RTD Temperature Input Module | 8 Channels | RTD | For precision temperature sensing |
| ADV551-P00 | Digital Output Module | 16 Channels | 24 V DC | For discrete signal actuation |
Popular Yokogawa الطرازs (Same العلامة التجارية Recommendations)
| الطراز | Type | Function | Signal Type | Typical Application |
|---|---|---|---|---|
| AAI143-S00 | Analog Input Module | 4–20 mA Input | Current | Process transmitters (flow, pressure) |
| AAI543-S00 | Analog Output Module | 4–20 mA Output | Current | Final control elements (valves, actuators) |
| ADV151-P03 | Digital Output Module | Relay/Transistor Switching | Digital | Alarms, indicator lights |
| AAR181-S00 | RTD Input Module | Temperature Input | RTD | Biotech and HVAC systems |
| ANB11D | Node Interface Module | DCS Network Interface | Vnet/IP | Communication integration |
| AMN11 | Main Controller Module | Logic and Process Control | CPU | Core system logic processing |
