Product Overview

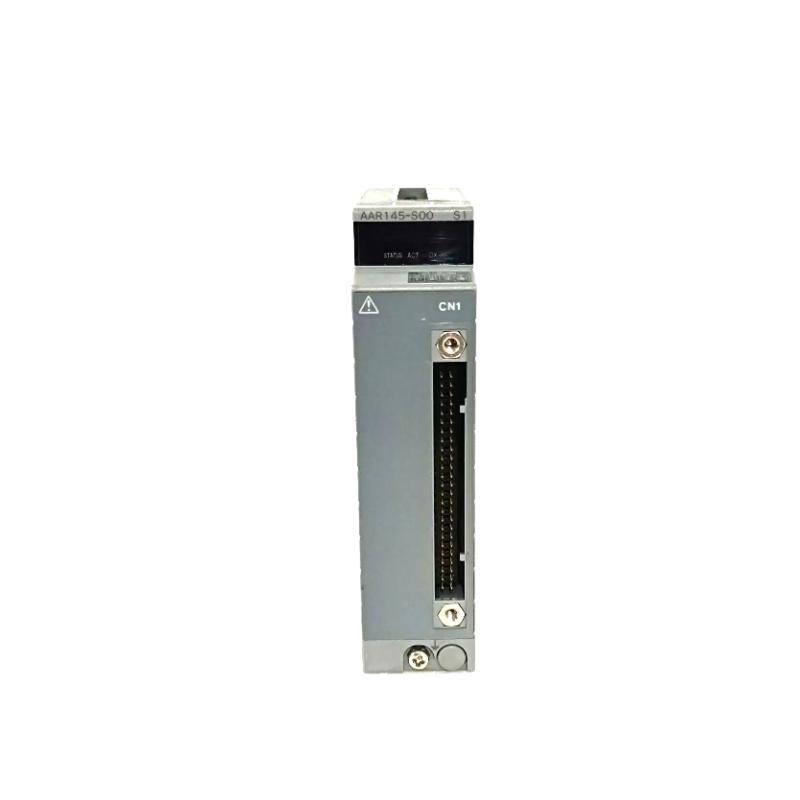

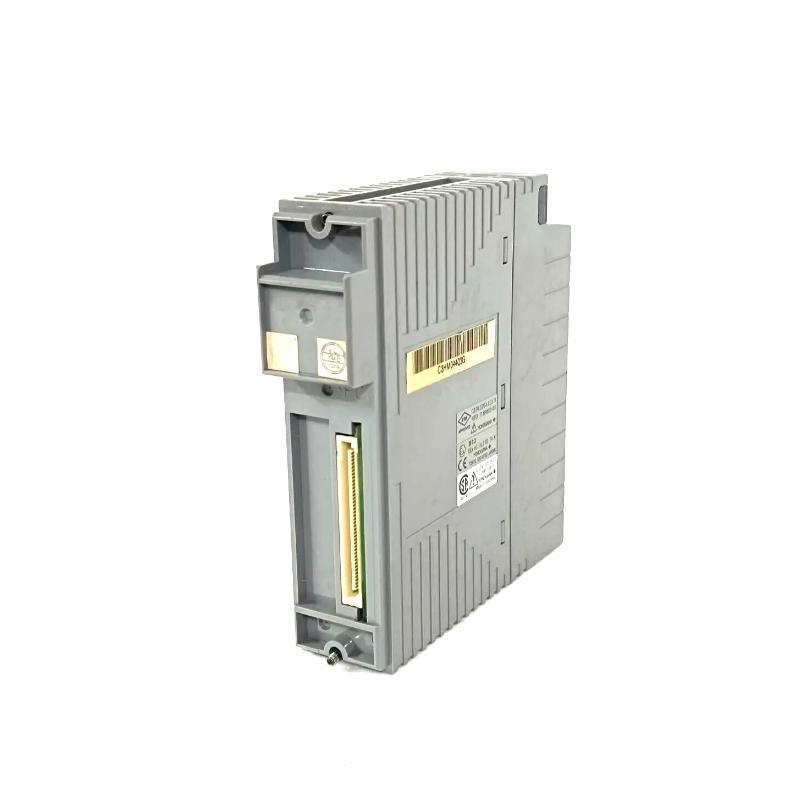

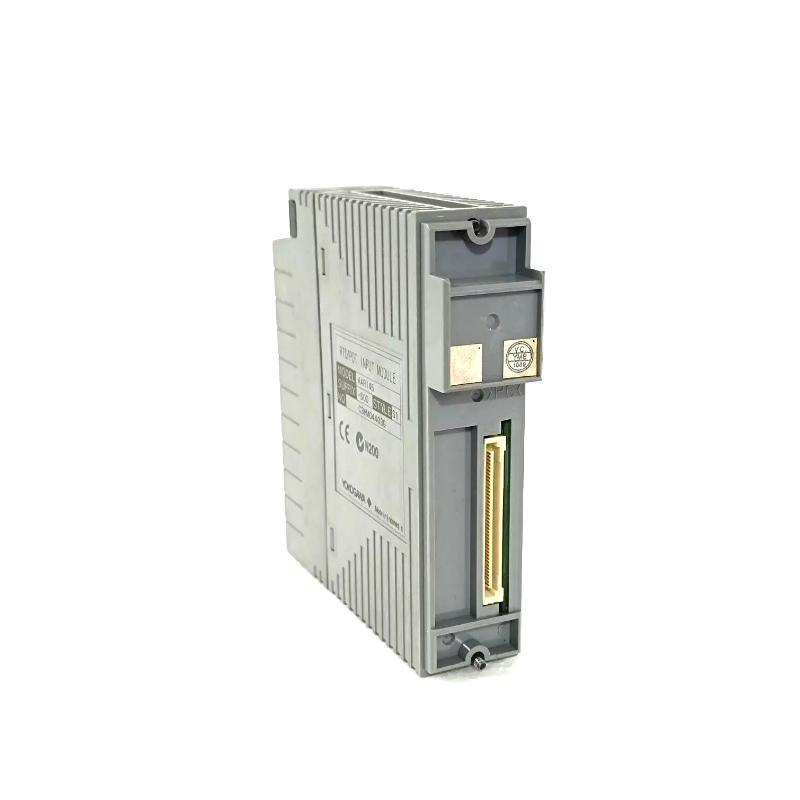

The Yokogawa AAR145-S00 S1 is a high-performance analog input module designed for industrial automation and process control applications. It efficiently acquires and processes signals from Resistance Temperature Detectors (RTDs) and potentiometers (POTs), making it ideal for use in manufacturing, energy, chemical, and other industries.
Product Features
-
High-Precision Measurement: Capable من accurately measuring RTD and POT signals.
-
16 Isolated Channels: Each channel is isolated, ensuring signal integrity and reducing interference.
-
Wide Input Range: الدعمs ±5 V input voltage, accommodating various industrial applications.
-
Compact and Lightweight: Designed for easy installation and maintenance.
-
Robust Design: Built to operate reliably in industrial environments.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | AAR145-S00 S1 |
| Input Type | RTD (Pt100, 3-wire), POT (100 Ω to 10 kΩ) |
| Number من Channels | 16 (Isolated) |
| Allowable Input Voltage | ±5 V |
| Withstanding Voltage | Input to System: 500 V AC (1 min) |
| Input to Input: 200 V AC (1 min) | |
| Accuracy | RTD: ±150 mΩ |
| POT: ±0.2% FS | |
| Input Resistance | ≥1 MΩ (Power ON/OFF) |
| Power Consumption | 350 mA (5 V DC) |
| Dimensions (W x H x D) | 130 x 127.2 x 32.8 mm |
| الوزن | 0.3 kg |
| Certification | No safety standard (UL/CSA) and CE mark |
Applications
-
Industrial Automation: Monitoring and controlling temperature and position in manufacturing processes.
-
Process Control Systems: Integrating with Yokogawa control systems for precise data acquisition.
-
Energy Sector: Monitoring temperature in power generation and distribution systems.
-
Chemical Industry: Ensuring accurate temperature measurements in chemical processing.
Advantages
-
High Accuracy: Provides precise measurements essential for critical applications.
-
Channel Isolation: Each channel is isolated, preventing cross-talk and ensuring data integrity.
-
Versatility: الدعمs both RTD and POT inputs, making it adaptable to various sensors.
-
Compact Design: Small footprint allows for easy integration into existing systems.
-
Reliability: Designed to operate in demanding industrial environments.
الأسئلة الشائعة (FAQ)
-
What types من sensors are compatible with the AAR145-S00 S1 module?
It supports RTD (Pt100, 3-wire) and potentiometer sensors with resistance ranges from 100 Ω to 10 kΩ.
-
Can this module be used in a dual-redundant configuration?
Yes, it can be configured for dual-redundant operation to enhance system reliability.
-
What is the power consumption من the module?
The module consumes 350 mA at 5 V DC.
-
Are the input channels isolated?
Yes, all 16 channels are isolated to prevent interference and ensure accurate measurements.
-
What is the accuracy من the module for RTD and POT inputs?
The accuracy is ±150 mΩ for RTD inputs and ±0.2% من full scale for POT inputs.
-
What are the dimensions and weight من the module?
The module measures 130 x 127.2 x 32.8 mm and weighs 0.3 kg.
-
Does the module have any safety certifications?
It does not have UL/CSA safety standards or a CE mark.
-
What is the allowable input voltage range?
The module allows an input voltage range من ±5 V.
-
What is the withstanding voltage between inputs and the system?
It can withstand 500 V AC between inputs and the system for 1 minute.
-
Is the module compatible with Yokogawa control systems?
Yes, it is designed to integrate seamlessly with Yokogawa’s control systems.
Related الطرازs
| الطراز | الوصف |
|---|---|
| AAR145-S00 | RTD/POT Input Module, 16-channel |
| AAR145-S00 S2 | Enhanced version with additional features |
| AAR145-S00 S3 | Advanced model with extended capabilities |
| AAR145-S00 S4 | High-precision variant |
| AAR145-S00 S5 | Industrial-grade model |
| AAR145-S00 S6 | Specialized for harsh environments |
