مقدمة المنتج

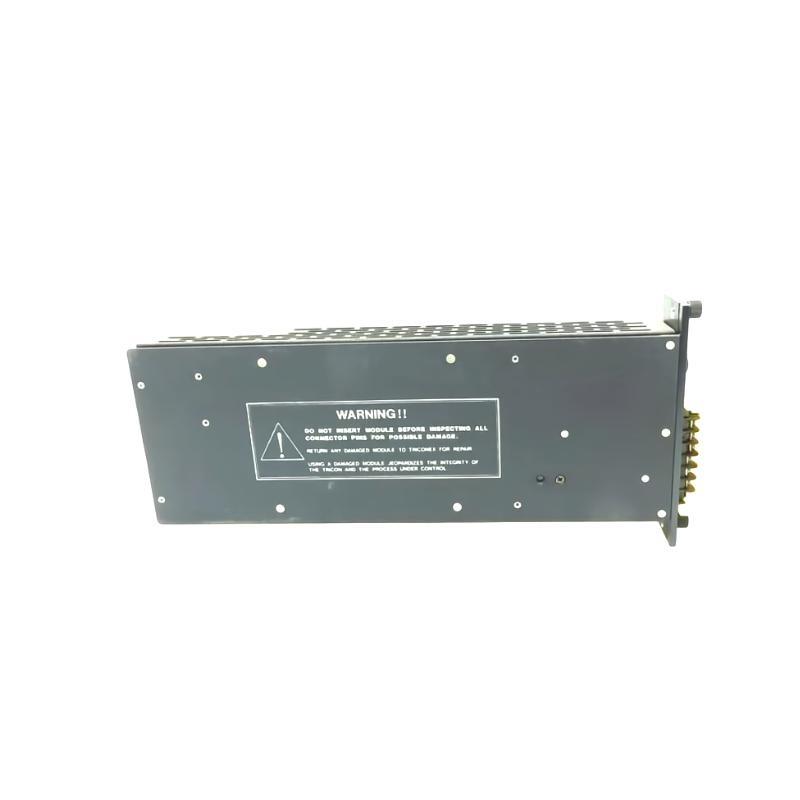

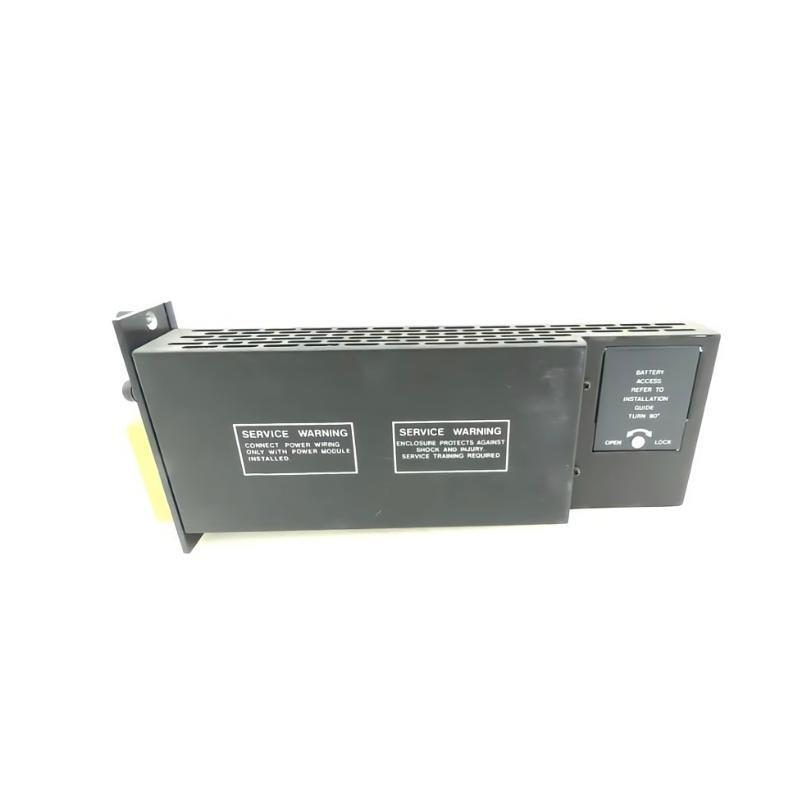

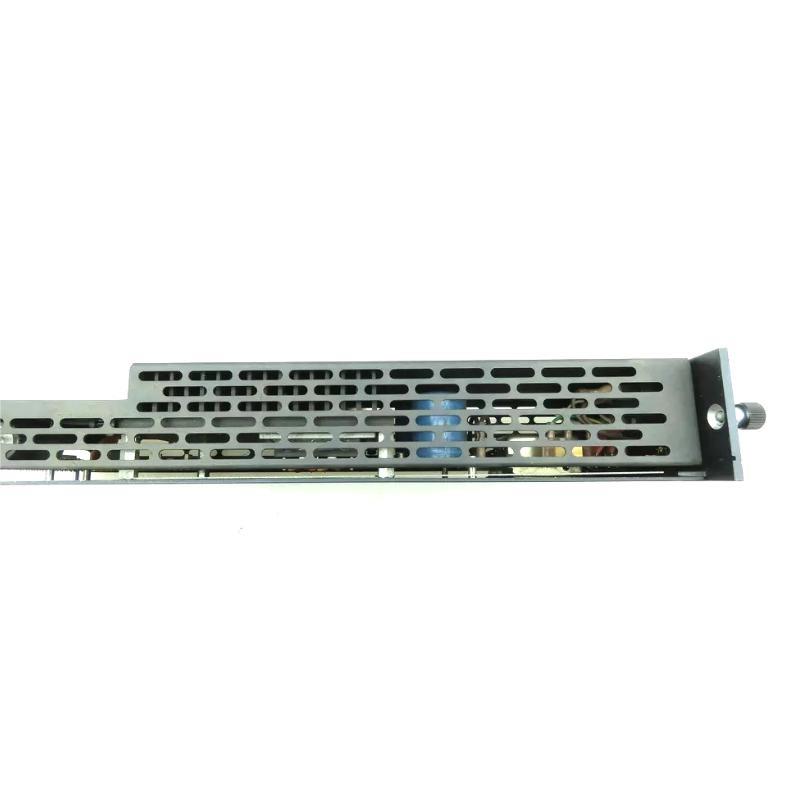

The Triconex 8305E Power Supply Module is a robust and high-performance component من the Triconex safety and control system family, widely recognized for its use in safety-critical applications across various industrial sectors. Designed to deliver reliable and regulated power to Triconex chassis, the 8305E module plays a crucial role in ensuring uninterrupted system operation even under challenging environmental conditions.
The 8305E integrates seamlessly with Triconex Tricon systems and supports redundant configurations for enhanced system availability. It is engineered with strict compliance to IEC 61508 and is a key component in systems requiring SIL3-level safety. Whether in oil and gas, power generation, chemical processing, or water treatment industries, the 8305E ensures stable operation by providing clean, isolated power with high noise immوحدةy.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | Triconex 8305E |
| Product Type | Power Supply Module |
| Input Voltage Range | 120–240 VAC (47–63 Hz) |
| Input Current | 3.0 A max at 120 VAC / 1.5 A max at 240 VAC |
| Output Voltage | +5.1 VDC, +15 VDC, -15 VDC |
| Output Power Capacity | 150 W (nominal load) |
| System Compatibility | Tricon v9 and later systems |
| Redundancy الدعم | Yes (Hot-Swap Redundant Power Modules) |
| Isolation | Galvanic isolation between input and output |
| LED Indicators | Status, Power Good, Fault |
| Protection Features | Overvoltage, Overcurrent, Thermal protection |
| Cooling Method | Natural convection (no fan) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 30 g (11 ms) |
| Vibration Resistance | 1.0 g (5–500 Hz) |
| Dimensions (H × W × D) | 63 x 178 x 394 mm |
| الوزن | 3.3 kg |
| Certification | CE, UL, CSA, TUV, SIL 3 (IEC 61508) |
Product Applications
The Triconex 8305E Power Supply Module is commonly deployed in safety-instrumented systems (SIS) and high-integrity process control environments. Its primary applications include:
-
Oil & Gas Refining – for critical control and safety shutdown systems.
-
Petrochemical Plants – powering process automation systems.
-
Power Generation Facilities – including turbine protection and boiler management.
-
Water & Wastewater Treatment – maintaining safe and reliable operation.
-
Pharmaceutical Manufacturing – ensuring compliance with safety standards.
-
Mining and Metallurgy – supporting robust and fail-safe process controls.
Product Advantages
-
High Reliability: Designed to operate continuously in mission-critical applications with high MTBF.
-
SIL3 Certification: الدعمs deployment in systems requiring the highest level من safety integrity.
-
Redundant Capability: Easily integrates with redundant power setups for zero downtime.
-
Galvanic Isolation: Prevents ground loops and ensures clean signal and power delivery.
-
Hot-Swappable Design: Enables maintenance or replacement without shutting down the system.
-
Environmental Robustness: Operates in extreme industrial conditions.
-
Comprehensive Diagnostics: Built-in LED indicators and protection features enhance monitoring.
-
Universal Input Voltage: Flexible deployment across global power systems.
الأسئلة الشائعة (FAQ)
-
Q: Is the 8305E Power Supply Module hot-swappable?
A: Yes, the 8305E can be hot-swapped during system operation, minimizing downtime. -
Q: What safety standards does the 8305E comply with?
A: It complies with IEC 61508 and is certified for SIL 3 applications. -
Q: Can the 8305E be used in redundant power configurations?
A: Absolutely. It supports redundancy for high-availability systems. -
Q: What type من cooling does the 8305E use?
A: It uses passive natural convection cooling, with no need for a fan. -
Q: What kind من fault protection is built into the 8305E?
A: It includes overvoltage, overcurrent, and thermal overload protection. -
Q: Is the 8305E compatible with earlier Tricon systems?
A: It is compatible with Tricon version 9 and later systems. -
Q: What is the maximum power output من the module?
A: The module delivers up to 150 watts under nominal load. -
Q: Can the module be installed in high-vibration environments?
A: Yes, it is tested for vibration resistance up to 1.0 g (5–500 Hz). -
Q: What kind من LED indicators does the module include?
A: It includes status, power-good, and fault indicators for diagnostics. -
Q: What is the typical service life من the Triconex 8305E?
A: With proper conditions, the module can last 10+ years in continuous operation.
Related الطرازs (Same Series)
| الطراز | الوصف | Key Feature |
|---|---|---|
| 8300A | Power Module for Tricon Systems | Basic model, non-redundant |
| 8301A | Enhanced Power Supply Module | Improved noise immوحدةy |
| 8302A | Redundant Power Supply Module | Redundancy optimized |
| 8305A | Legacy Power Module | Earlier version من 8305E |
| 8306E | Extended Temp Range Power Module | Enhanced temperature tolerance |
| 8310A | DC Input Power Supply Module | Designed for DC-only systems |
Popular Triconex الطرازs (Same العلامة التجارية)
| الطراز | الوصف | Application |
|---|---|---|
| 3008 | Main Processor Module | Central CPU for Triconex systems |
| 3625 | Analog Input Module | High-resolution analog data |
| 3700A | Digital Input Module | Safety-critical DI processing |
| 3503E | Digital Output Module | High-integrity DO applications |
| 9853-610 | Communication Module | Ethernet communication interface |
| 4351B | High-Speed Controller | Advanced logic and fast response |
