مقدمة المنتج

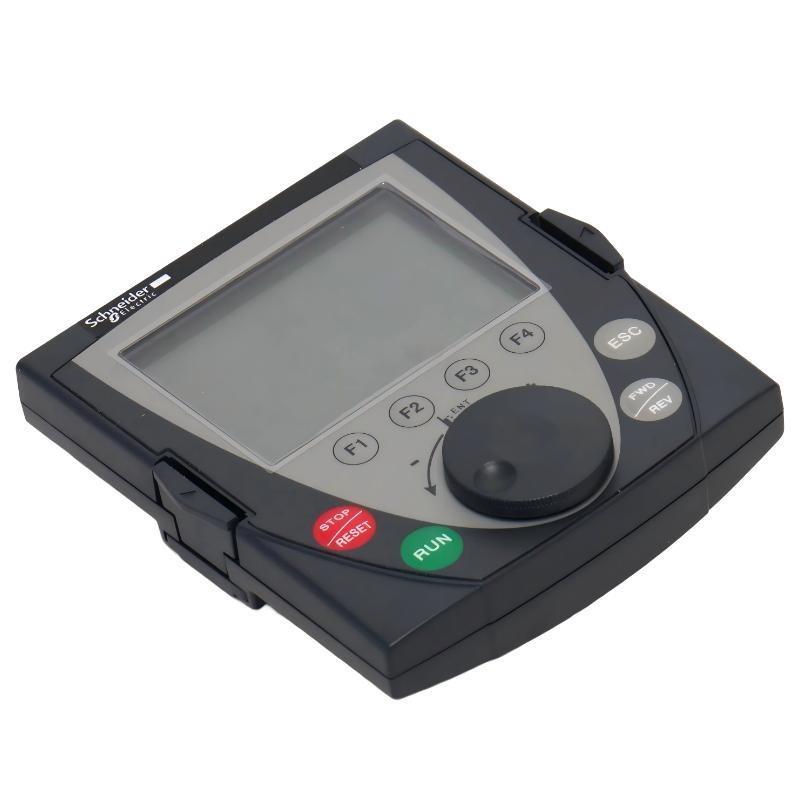

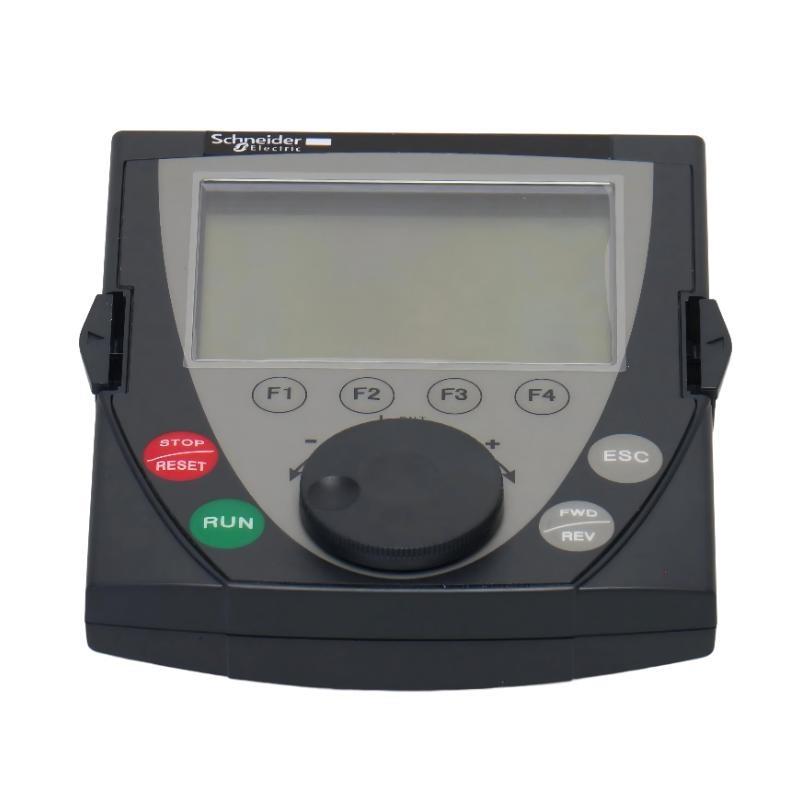

The Schneider VW3A1101 Remote Graphic Terminal is designed as an optional remote Human-Machine Interface (HMI) for Schneider Altivar variable speed drives. It allows the Altivar drive interface to be relocated remotely, such as on the door من an enclosure, providing operators with convenient access to drive control and monitoring.
This remote terminal منfers IP54 protection, ensuring reliable operation in industrial environments. With a pixel resolution من 240 × 160, it provides clear visualization من drive parameters, motor data, and I/O status. It is capable من storing up to four configuration files, enabling quick drive setup and configuration changes.

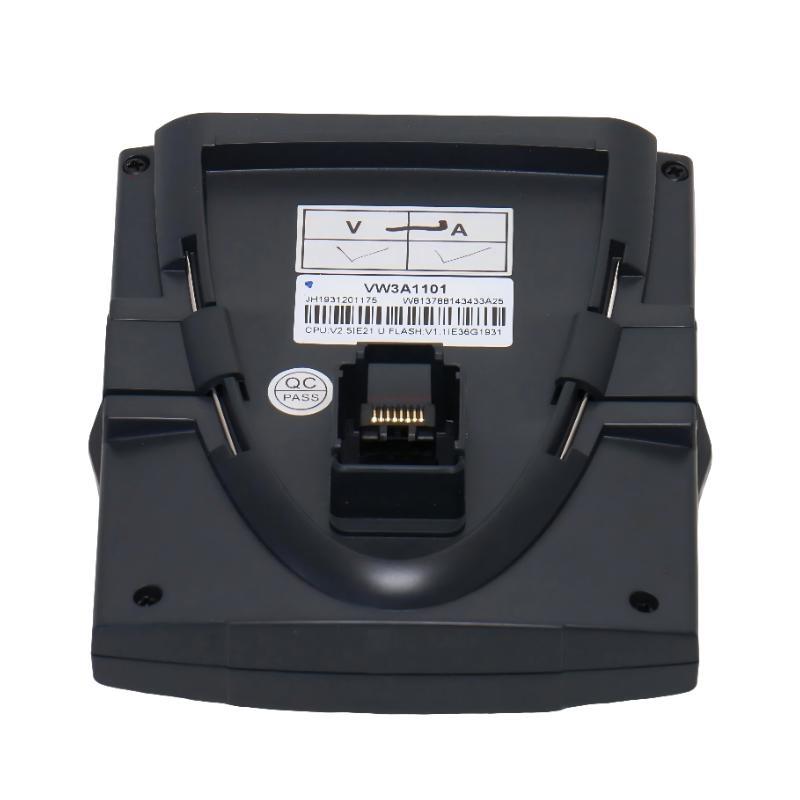

The VW3A1101 is compact, lightweight, and designed for ease من installation. It requires a remote-mounting cordset VW3A1104Rxx (sold separately) for proper connection to the Altivar drive system.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Module Type | Remote Graphic Terminal |
| Compatible Drives | Altivar Variable Speed Drives |
| Protection Index | IP54 |
| Display Resolution | 240 × 160 pixels |
| Maximum Operating Temperature | 50 °C |
| الرسالةs Display Capacity | 8 lines |
| Configuration Files | 4 |
| Mounting Requirement | Remote-mounting cordset VW3A1104Rxx |
| Dimensions | 100 × 80 × 20 mm |
| الوزن | 0.145 kg |
Applications
• Remote Drive Control: Allows the Altivar drive interface to be relocated remotely for convenient operator access.
• Drive Configuration: Provides full access to adjust, configure, and save drive parameters without being directly at the drive.
• Process Monitoring: Displays motor status, input/output values, and current operating conditions in real time.
• Industrial Enclosures: Can be mounted on control panel doors, protecting the main drive وحدة from exposure.
• Configuration Management: Enables storage and retrieval من up to 4 configuration files for rapid drive setup.
• Maintenance Assistance: Facilitates troubleshooting and maintenance by displaying detailed drive messages remotely.
Advantages
• IP54 Protection: Ensures safe operation in environments with dust and splashing water.
• High Display Resolution: 240 × 160 pixel screen delivers clear visualization من drive data.
• Compact and Lightweight: At only 0.145 kg, it is easy to install without requiring significant space.
• Remote Operation: Enables the drive HMI to be mounted away from the main drive, increasing flexibility.
• Configuration Storage: Stores up to 4 drive configuration files, simplifying setup across multiple drives.
• Ease من Use: Intuitive interface allows operators to control, monitor, and adjust drives efficiently.
• Flexible Integration: Works seamlessly with Schneider Altivar drives with the necessary remote-mounting cordset.
