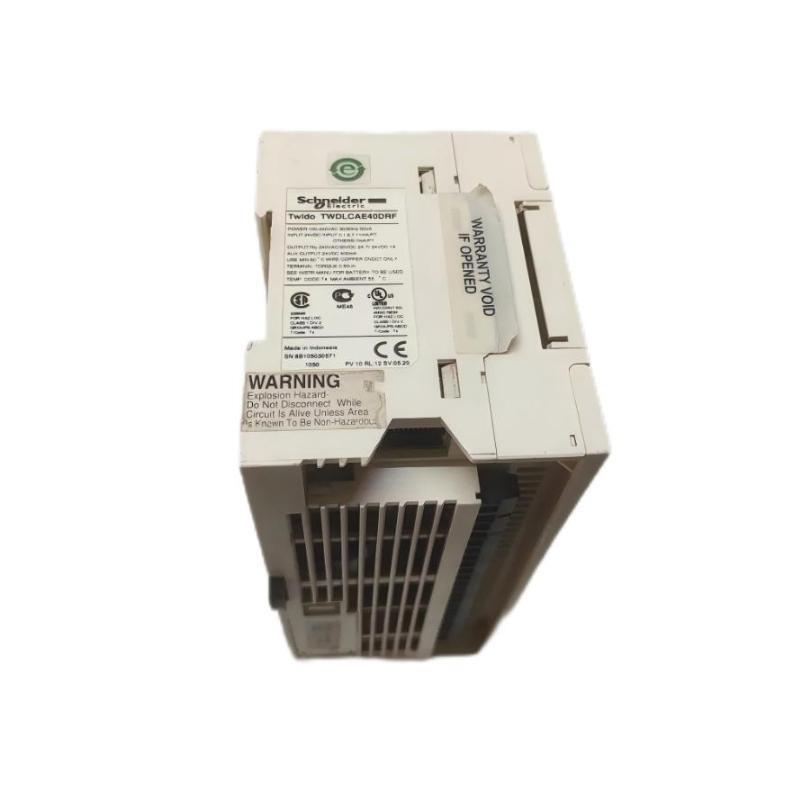

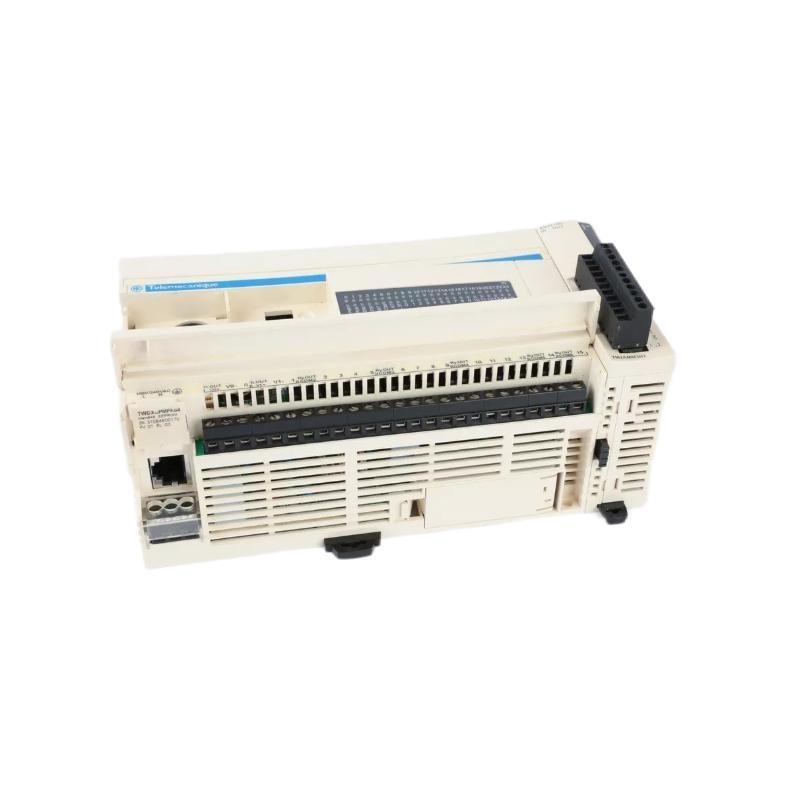

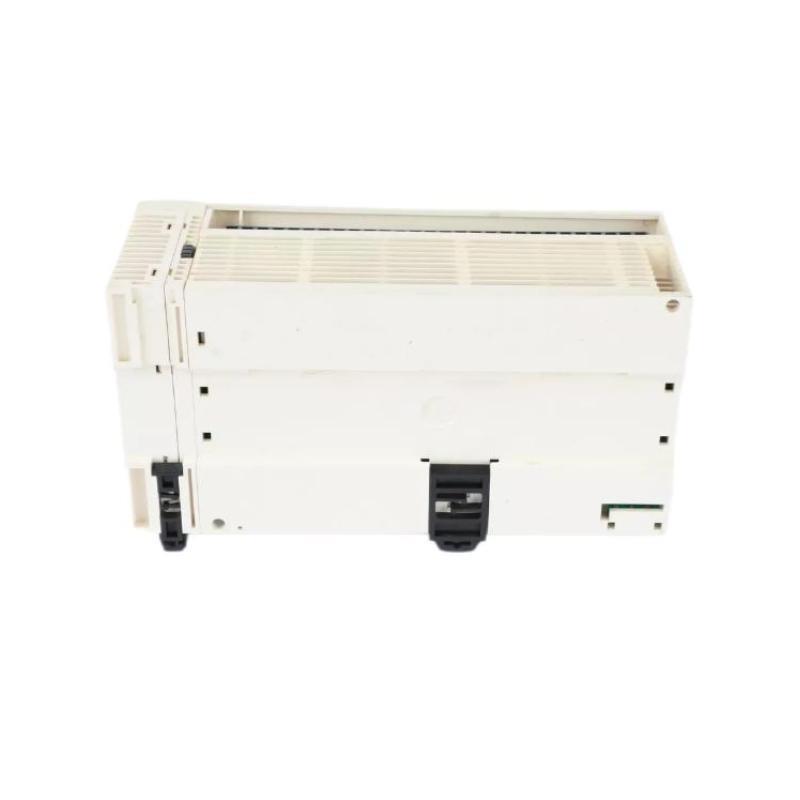

Schneider TWDLCAE40DRF مقدمة المنتج
The Schneider TWDLCAE40DRF is a high-performance programmable logic controller (PLC) from the Modicon M221 series. Designed for industrial automation, this compact and efficient PLC منfers advanced control capabilities, making it ideal for a wide range من applications. It features a user-friendly programming environment, robust communication options, and reliable performance in demanding environments. The TWDLCAE40DRF is part من Schneider Electric’s commitment to delivering innovative and scalable automation solutions.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز | TWDLCAE40DRF |
| Series | Modicon M221 |
| Input Voltage | 100-240V AC |
| Input Frequency | 50/60 Hz |
| Digital Inputs | 24 (sink/source) |
| Digital Outputs | 16 (relay) |
| Analog Inputs | Optional (with expansion modules) |
| Communication Ports | 1x Ethernet, 1x USB, 1x RS485 |
| Programming Sمنtware | SoMachine Basic |
| Memory | 16 MB (for program and data) |
| Dimensions | 157 x 70 x 90 mm |
| الوزن | 0.525 kg |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 |
| Certifications | CE, UL, cUL |
Product Applications
The TWDLCAE40DRF is widely used in industrial automation and control systems. Its versatility makes it suitable for:
-
Manufacturing Automation: Controlling conveyor systems, assembly lines, and packaging machines.
-
Building Management: HVAC control, lighting systems, and energy management.
-
Water Treatment: Pump control, valve management, and monitoring systems.
-
Food and Beverage: Process control for mixing, filling, and bottling operations.
-
Material Handling: Automated storage and retrieval systems (AS/RS).
-
Renewable Energy: Monitoring and control من solar or wind power systems.
Product Advantages
-
Compact Design: Space-saving form factor for easy integration into control panels.
-
Flexible I/O Configuration: الدعمs expansion modules for additional inputs/outputs.
-
Advanced Communication: Ethernet, USB, and RS485 ports enable seamless connectivity.
-
User-Friendly Programming: SoMachine Basic sمنtware simplifies development and debugging.
-
High Reliability: Robust construction ensures stable performance in harsh environments.
-
Energy Efficient: Low power consumption reduces operational costs.
-
Scalability: Suitable for small to medium-sized automation projects.
-
Wide Voltage Range: Compatible with 100-240V AC, adaptable to various power supplies.
Product FAQ
-
What is the programming sمنtware for TWDLCAE40DRF?
-
It uses SoMachine Basic, a dedicated sمنtware for Modicon M221 PLCs.
-
-
Can I expand the I/O capabilities من this PLC?
-
Yes, it supports expansion modules for additional digital/analog I/O.
-
-
What communication protocols are supported?
-
Modbus TCP/IP, Modbus RTU, and Ethernet/IP.
-
-
Is the TWDLCAE40DRF suitable for harsh environments?
-
Yes, it operates reliably in temperatures from -20°C to +60°C.
-
-
What is the maximum number من I/O points?
-
Up to 128 I/O points with expansion modules.
-
-
Does it support analog inputs/outputs?
-
Analog functionality requires additional expansion modules.
-
-
What is the warranty period?
-
Schneider Electric typically منfers a 1-year warranty.
-
-
Can I use this PLC for motor control?
-
Yes, it can control motors via relay outputs or communication with drives.
-
-
Is the module certified for industrial compliance?
-
Yes, it meets CE, UL, CSA, and RoHS standards.
-
-
How do I update the firmware?
-
Firmware updates can be done via the USB or Ethernet port using SoMachine Basic.
-
Recommended Similar and Related الطرازs
| الطراز | Series | Key Features |
|---|---|---|
| TWDLCAE40DRT | Modicon M221 | 24 DI/16 DO (transistor output) |
| TWDLMDA40DRT | Modicon M221 | 24 DI/16 DO (relay + transistor hybrid) |
| TWDLCAE20DRF | Modicon M221 | 12 DI/8 DO (relay output) |
| TWDLCDA20DRT | Modicon M221 | 12 DI/8 DO (transistor output) |
| TWDLCAE40DTF | Modicon M221 | 24 DI/16 DO (relay + Ethernet) |
| TWDLMDA20DRT | Modicon M221 | 12 DI/8 DO (relay + transistor hybrid) |
Popular Schneider Electric الطرازs
| الطراز | Series | Key Features |
|---|---|---|
| TM221CE40R | Modicon M221 | 24 DI/16 DO (relay), Ethernet |
| TM241CEC24R | Modicon M241 | 14 DI/10 DO (relay), CANopen, Ethernet |
| TM251MESE | Modicon M251 | 24 DI/16 DO (relay), embedded HMI |
| TM262LF42DT | Modicon M262 | 24 DI/18 DO (transistor), LTE connectivity |
| ATV312HU22N4 | Altivar 312 | 2.2 kW variable speed drive |
| Harmony XB5R | Harmony XB5 | 22.5mm push button (red) |
