مقدمة المنتج

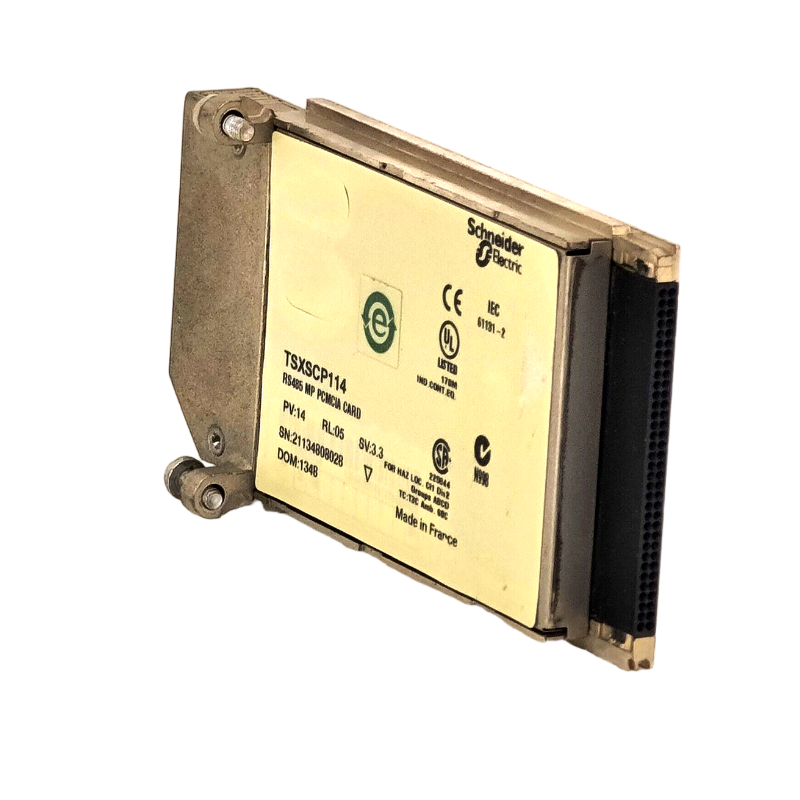

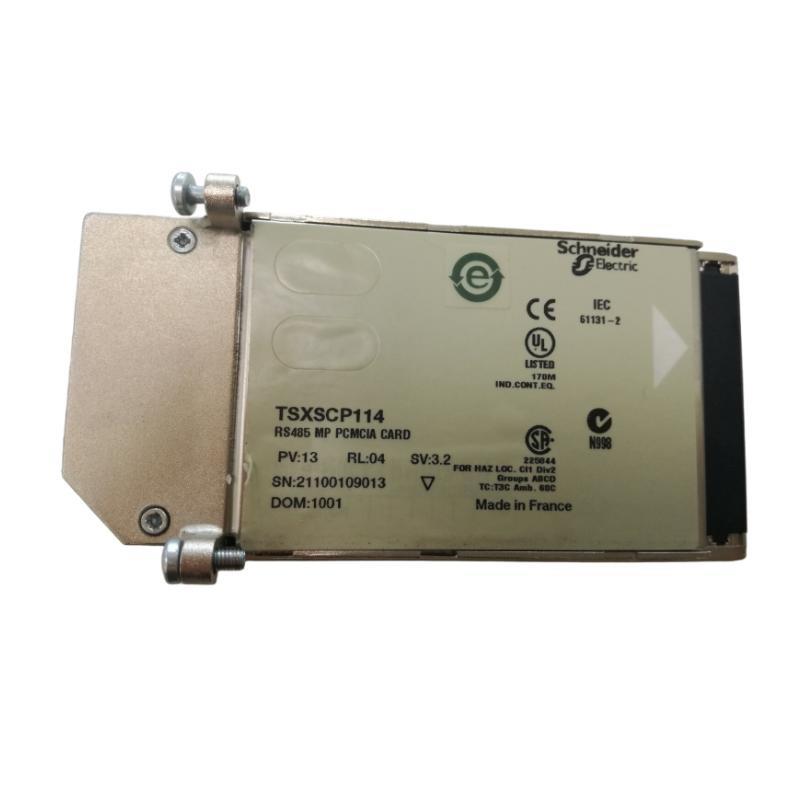

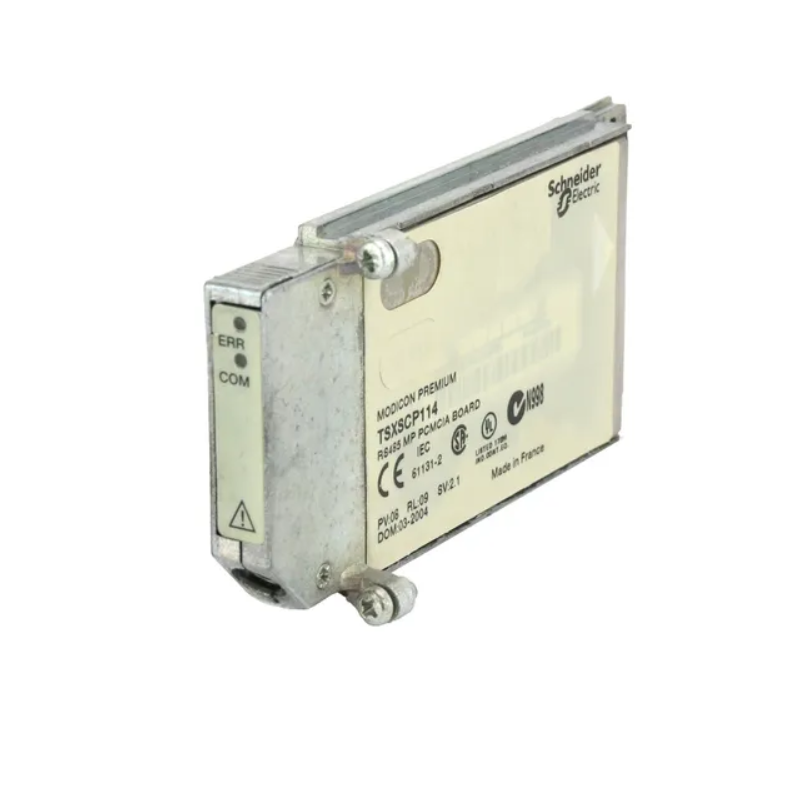

The Schneider TSXSCP114 is a compact and high-performance communication module designed for industrial automation systems. It facilitates seamless integration between PLCs and other devices, supporting various communication protocols. This module is part من Schneider Electric’s extensive range من automation solutions, known for reliability and efficiency in harsh industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | TSXSCP114 |
| Dimensions | 155 × 35 × 170 mm |
| الوزن | 0.105kg |
| Operating Voltage | 24V DC (±10%) |
| Communication Ports | 2 x RS-485, 1 x RS-232 |
| Protocol الدعم | Modbus, CANopen, Ethernet/IP |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Certifications | CE, UL, RoHS |
Product Applications
The TSXSCP114 is widely used in industrial automation, including:
-
Manufacturing: Connects PLCs to sensors, actuators, and HMIs.
-
Energy Management: Monitors and controls power distribution systems.
-
Water Treatment: Integrates with pumps and valves for process control.
-
Building Automation: Links HVAC and lighting systems to central controllers.
-
Transportation: الدعمs communication in conveyor and sorting systems.
Product Advantages
-
High Compatibility: الدعمs multiple protocols for flexible integration.
-
Robust Design: Built to withstand industrial environments with wide temperature ranges.
-
Easy Installation: Compact size and plug-and-play functionality reduce setup time.
-
Reliable Performance: Stable communication with minimal latency.
-
Certified Safety: Complies with international standards for industrial use.
FAQ (الأسئلة الشائعة)
-
What protocols does the TSXSCP114 support?
It supports Modbus, CANopen, and Ethernet/IP. -
Is the module compatible with all PLC شنايدرs?
Yes, it is designed to work seamlessly with Schneider’s Modicon series. -
What is the maximum cable length for RS-485 communication?
Up to 1200 meters at 100 kbps. -
Can the TSXSCP114 operate in high-humidity environments?
Yes, it operates in 5% to 95% humidity (non-condensing). -
Does it require external power?
Yes, it requires 24V DC power input. -
What is the warranty period?
Standard warranty is 1 years from the date من purchase. -
How do I troubleshoot communication errors?
Check cable connections, baud rate settings, and ensure proper grounding. -
Can it be used in outdoor applications?
No, it is rated IP20 and should be installed in controlled environments. -
Is firmware upgradable?
Yes, firmware can be updated via Schneider’s proprietary sمنtware. -
What accessories are included?
The package includes the module, mounting screws, and a quick-start guide.
Recommended Related الطرازs
| الطراز | الوصف | Key Feature |
|---|---|---|
| TSXSCP116 | Advanced communication module | Dual Ethernet ports |
| TSXSCP118 | High-speed protocol converter | الدعمs PROFIBUS |
| TSXSCP120 | Compact remote I/O module | 16-channel digital I/O |
| TSXSCP122 | Wireless communication module | Wi-Fi and Bluetooth enabled |
| TSXSCP124 | Industrial gateway | Modbus TCP/IP support |
| TSXSCP126 | Fiber optic communication module | Long-distance communication |
Popular Schneider Electric الطرازs
| الطراز | الوصف | الفئة |
|---|---|---|
| Modicon M580 | High-end PLC | Automation Controller |
| Altivar 320 | Variable speed drive | Motor Control |
| TeSys D Green | اتصل بناor | Power Distribution |
| Harmony XB5R | Push button | Human-Machine Interface |
| EcoStruxure PM | Power meter | Energy Monitoring |
| Magelis HMI | Touchscreen panel | Operator Interface |
