Product الوصف

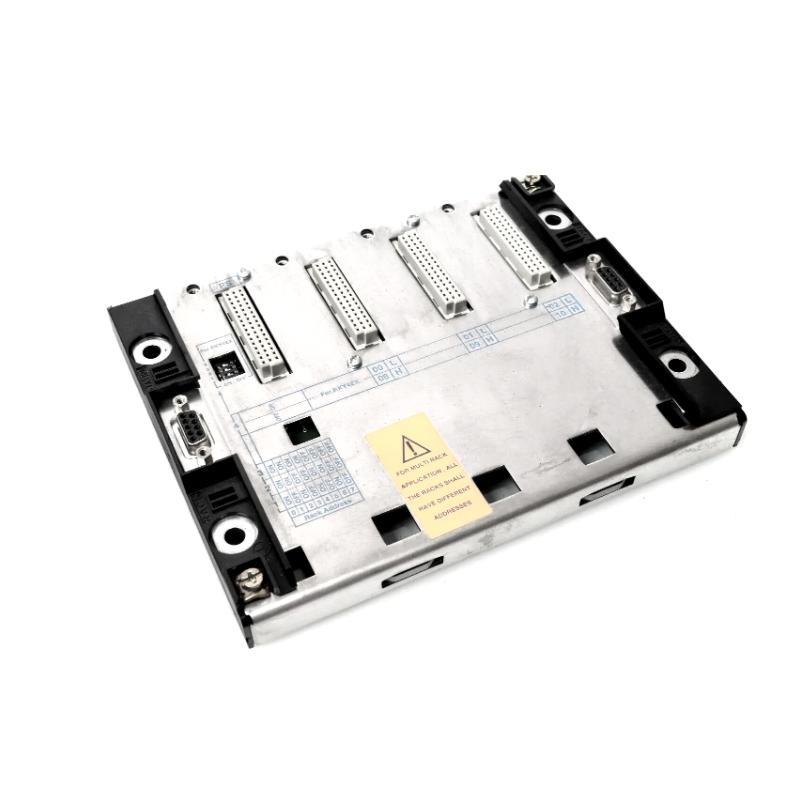

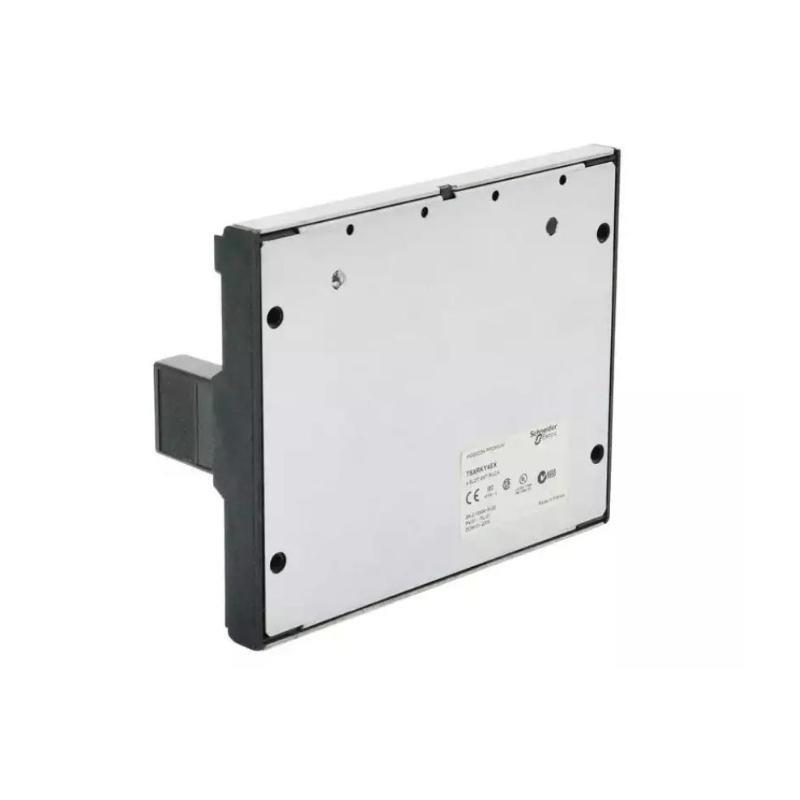

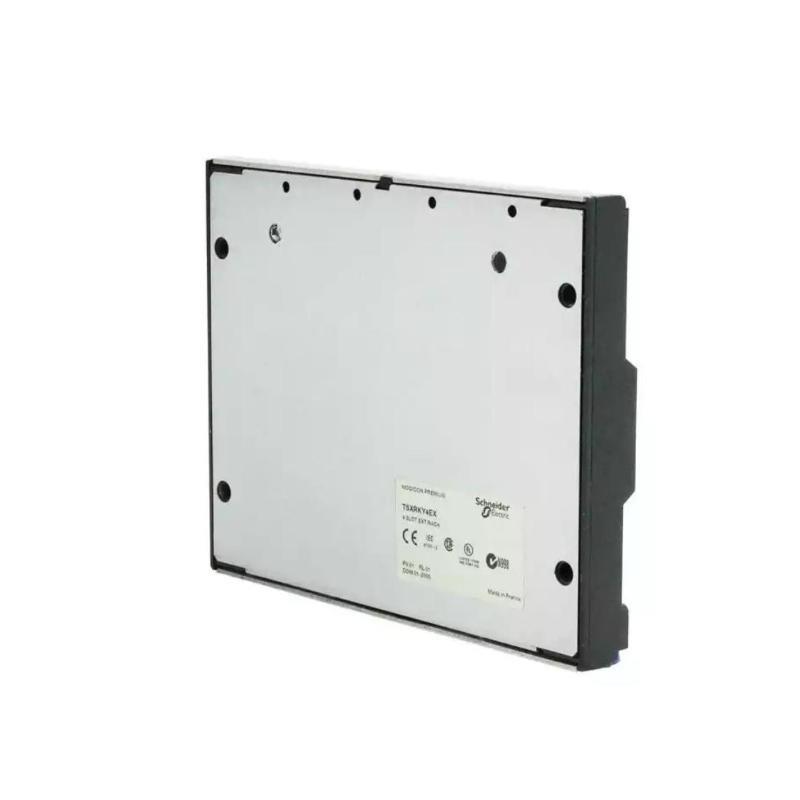

The Schneider Electric TSXRKY4EX is a robust extendable rack designed to accommodate Modicon Premium automation systems. It features four slots for housing various modules such as CPUs, power supplies, communication modules, or I/O وحدةs. This model is part من Schneider’s modular architecture approach, ensuring flexibility and scalability for industrial control solutions. It is ideal for use in medium to large control systems requiring reliable and expandable infrastructure.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز Number | TSXRKY4EX |
| Product Type | Extendable Rack |
| Number من Slots | 4 |
| Extension Capability | Yes (with extension cables) |
| Compatibility | Modicon Premium modules |
| Power Supply | Requires external power module |
| Mounting Type | Panel mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H×W×D) | 54 × 206 × 275 mm |
| الوزن | 1.16 kg |
| Material | Metal chassis with insulating rails |
Applications
-
Industrial process automation
-
Factory machinery control systems
-
Infrastructure monitoring and control
-
SCADA and PLC-based systems
-
Modular system expansions in energy and utility sectors
Product Advantages
-
Expandable Design: الدعمs future system upgrades without replacing the main rack.
-
Compact and Durable: Optimized dimensions for control panels with strong construction.
-
Compatibility: Seamlessly integrates with Modicon Premium automation components.
-
Easy Mounting: Panel mounting support simplifies installation.
-
Reliability: Designed for continuous operation in harsh industrial environments.
الأسئلة الشائعة (FAQ)
Q1: How many modules can the TSXRKY4EX hold?
A1: It supports up to four Modicon Premium modules.
Q2: Can this rack be used as an extension to another rack?
A2: Yes, it is designed for extendable configurations with compatible extension cables.
Q3: Is a power supply module included?
A3: No, the power supply module must be ordered separately.
Q4: What type من mounting does this rack support?
A4: It supports panel mounting for secure installation in control cabinets.
Q5: What series is this rack compatible with?
A5: It is compatible with Schneider Electric’s Modicon Premium series modules.
Q6: Can the rack operate in high-temperature environments?
A6: Yes, it supports operation in temperatures up to 60°C.
Q7: Does this product require a backplane cable for extension?
A7: Yes, a backplane extension cable is needed when connecting additional racks.
Q8: What is the material used for the chassis?
A8: The chassis is made من metal with insulating components.
Q9: Is it suitable for harsh industrial environments?
A9: Yes, it is built to operate reliably in rugged industrial conditions.
Q10: Can it be used in non-industrial automation applications?
A10: While primarily intended for industrial use, it can be adapted for other control system architectures.
Related الطرازs (Same Series or Functional الفئة)
| الطراز | الوصف | Slots | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| TSXRKY8EX | Extendable Rack, 8 slots | 8 | 54 × 398 × 275 | 1.85 kg |
| TSXRKY12EX | Extendable Rack, 12 slots | 12 | 54 × 590 × 275 | 2.65 kg |
| TSXRKZ02 | End cover for TSX racks | N/A | 54 × 30 × 275 | 0.25 kg |
| TSXRKZ04 | Intermediate connector for rack extension | N/A | 54 × 30 × 275 | 0.28 kg |
| TSXP57303 | Modicon Premium PLC CPU | N/A | 98 × 74 × 140 | 0.95 kg |
| TSXPSY2600 | Power supply for Premium racks | N/A | 124 × 47 × 132 | 0.90 kg |
