Product Overview

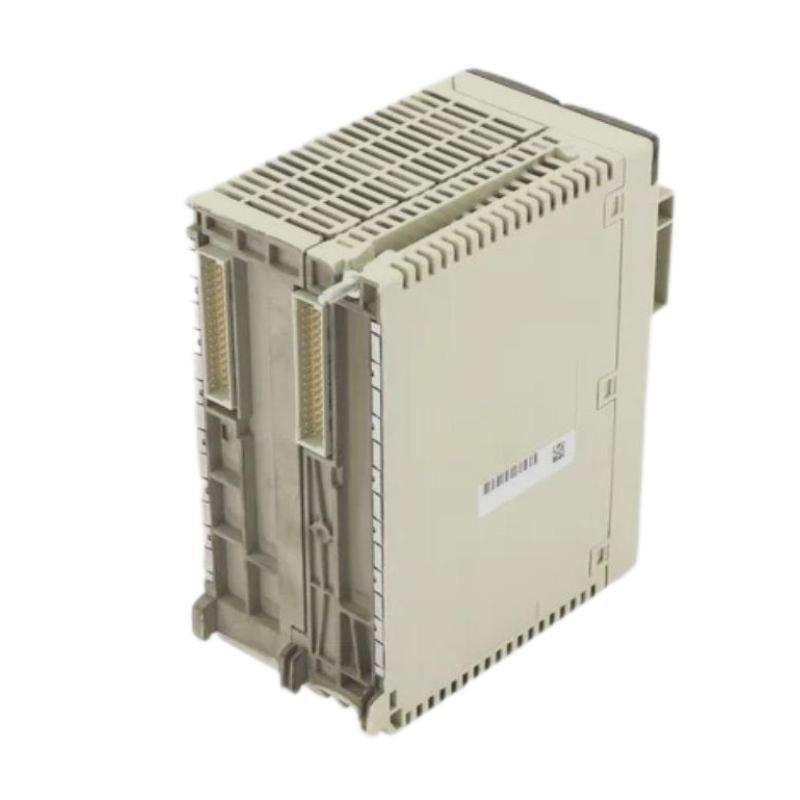

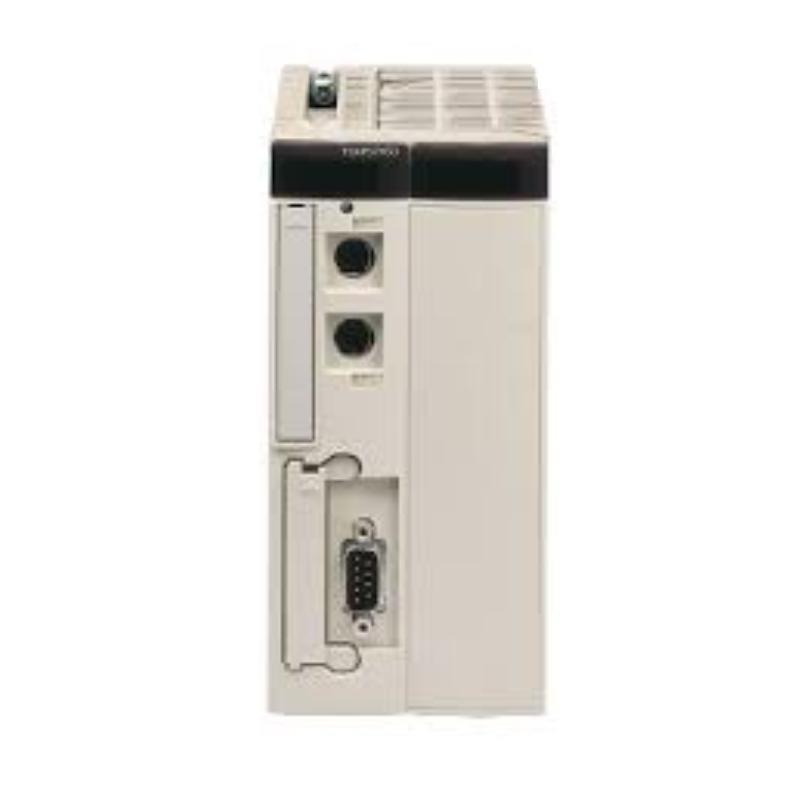

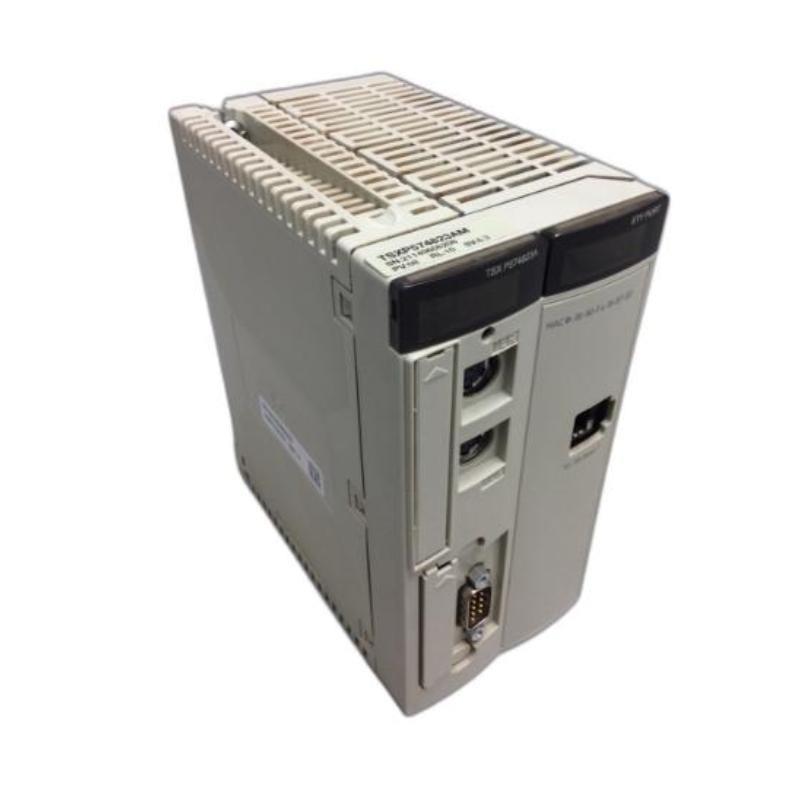

The Schneider Electric TSXP574823AM is a high-performance programmable logic controller (PLC) processor designed for use in the Modicon Premium automation platform. This processor supports both PL7 and وحدةy Pro programming environments, منfering seamless migration and flexibility in system design. With robust memory capacity, fast execution cycles, and powerful communication capabilities, the TSXP574823AM is tailored for demanding industrial automation tasks, including discrete and continuous process control.
Its dual-format compatibility makes it particularly suitable for projects involving modernization or hybrid systems, where legacy PL7 projects coexist with new وحدةy-based configurations. It delivers reliable, real-time control across complex automation networks with support for various industrial communication protocols.
Key Features
-
Dual compatibility with PL7 and وحدةy Pro (EcoStruxure Control Expert)
-
High-speed processing for real-time control
-
Large internal memory: 2 MB for program, 512 KB for data
-
Integrated Ethernet and serial ports for communication
-
الدعم for Modbus, Uni-Telway, and TCP/IP protocols
-
Up to 64 racks and 3072 I/O points
-
Integrated real-time clock and diagnostics
-
Expandable via additional I/O and communication modules
-
Hot standby and redundancy support
-
Floating-point and arithmetic function libraries
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | TSXP574823AM |
| Processor Type | PL7/وحدةy Dual Format |
| Program Memory | 2 MB |
| Data Memory | 512 KB |
| Backup Memory | SRAM with lithium battery |
| Execution Speed | Approx. 0.075 ms/K instruction |
| Max I/O Capacity | 3072 I/O points |
| Rack الدعم | Up to 64 racks |
| Programming Environments | PL7 and وحدةy Pro (EcoStruxure Control Expert) |
| Communication Ports | 1 × Ethernet TCP/IP, 1 × Modbus RS485, 1 × USB, 1 × Uni-Telway |
| الدعمed Protocols | Modbus, TCP/IP, Uni-Telway, Fipway (via expansion) |
| Floating Point الدعم | Yes |
| Real-Time Clock | Built-in |
| Watchdog Function | Yes |
| Dimensions | 95x 180x 260mm |
| الوزن | 0.766 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Power Supply | Via backplane from TSX Premium rack |
| Certifications | CE, UL, CSA, ATEX (when applicable) |
Industry Applications
-
Manufacturing Automation – Flexible production lines, robotics integration
-
Water & Wastewater – Process monitoring, pump control, data logging
-
Oil & Gas – Pipeline automation, منfshore platform control
-
Energy & Utilities – Substation automation, smart grid control systems
-
Pharmaceutical – Regulated batch control, data integrity compliance
-
Automotive – Assembly line automation, sensor-actuator interfacing
-
Material Handling – Conveyor control, warehouse automation
Product Advantages
-
Legacy Compatibility – Dual-format support ensures smooth migration from PL7 to وحدةy
-
High I/O Scalability – Up to 3072 points, ideal for large-scale applications
-
Ethernet Integration – Simplifies communication in modern network architectures
-
Powerful Processing – Fast scan times and large memory for complex applications
-
Modular Design – Easily expandable with Schneider’s range من I/O and comm modules
-
Diagnostic Capability – Real-time system health and error tracking
-
Robust & Reliable – Industrial-grade construction and certifications
الأسئلة الشائعة (FAQ)
-
Can I program TSXP574823AM with وحدةy Pro?
Yes, it supports وحدةy Pro as well as PL7 for dual-format flexibility. -
What makes it a “dual format” processor?
It allows programming with either PL7 (legacy) or وحدةy Pro (modern) without hardware change. -
Is it backward compatible with PL7 logic?
Yes, existing PL7 projects can be deployed on this processor. -
How many I/O points can it support?
Up to 3072 digital/analog I/O points. -
Does it support Ethernet communication?
Yes, it has an integrated Ethernet TCP/IP port. -
What protocols are supported?
Modbus, TCP/IP, Uni-Telway, and others via optional modules. -
Is this module hot-swappable?
No, it must be powered down before replacement, but the system supports redundancy configurations. -
Can I use this in a redundant CPU setup?
Yes, it supports hot standby configurations with compatible modules. -
Does the module include a real-time clock?
Yes, it has an internal RTC for time stamping and scheduling. -
What is the primary advantage over TSXP572634M?
TSXP574823AM provides more memory, faster processing, and dual-format flexibility.
