مقدمة المنتج

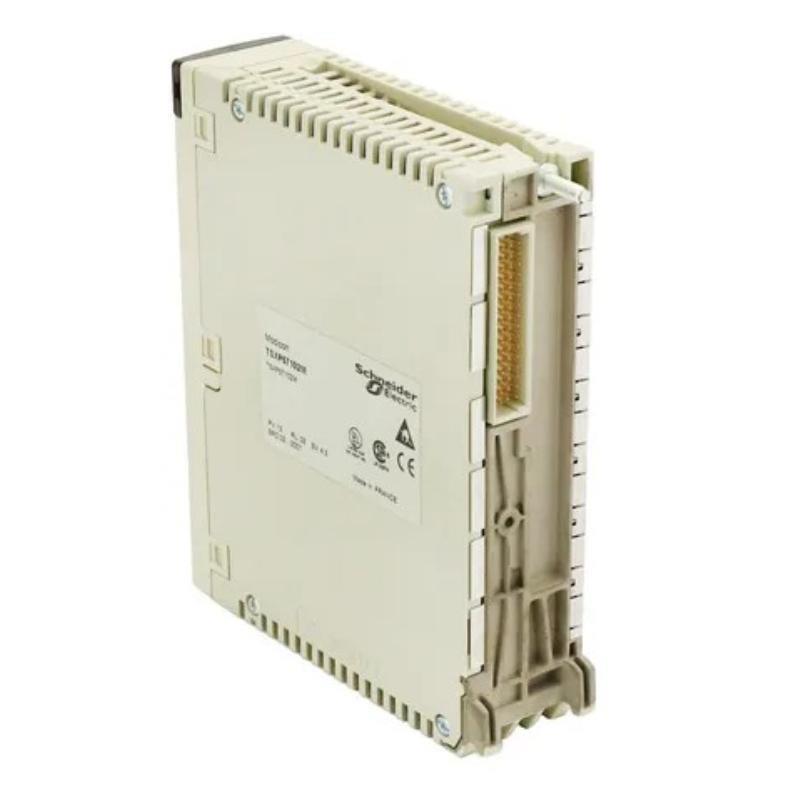

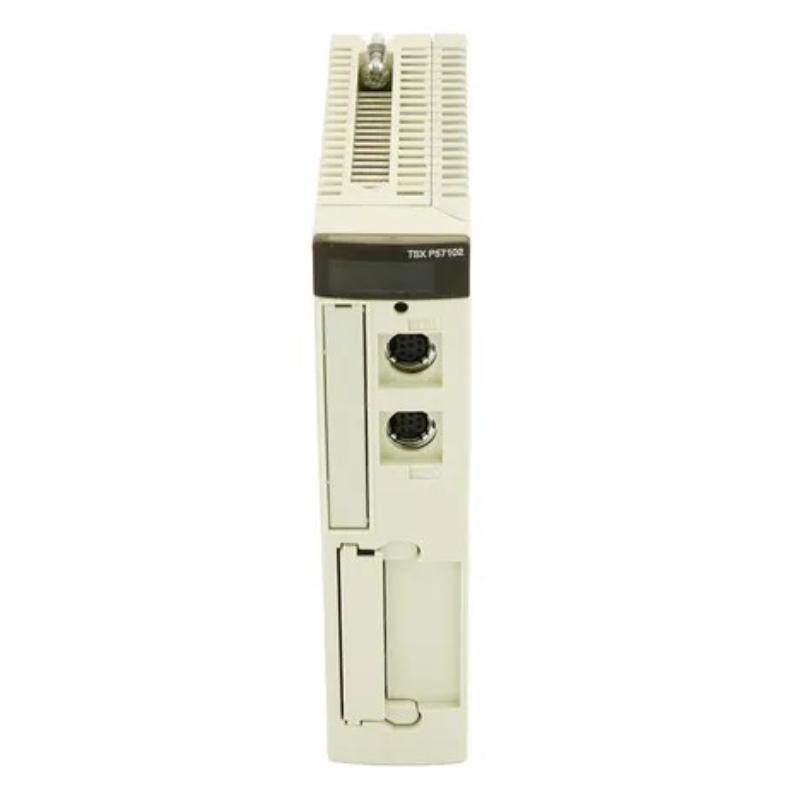

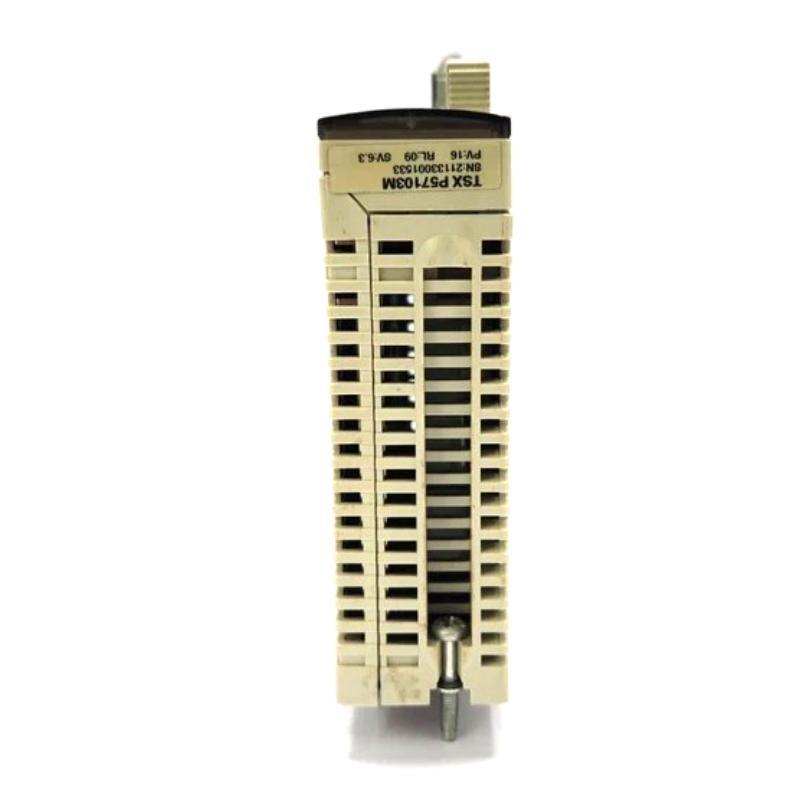

The Schneider TSXP57103M is a robust and versatile Single-Format PL7 I/O Processor designed for integration within the Modicon Premium Automation platform. It is engineered to handle demanding automation requirements in industrial environments, providing reliable control, expanded connectivity, and high processing performance. With support for the PL7 Junior/Pro sمنtware suite, this processor منfers advanced programming and diagnostic capabilities. Its flexible configuration enables it to adapt to a range من applications, from discrete and analog control to complex automation tasks requiring fast, deterministic responses. The TSXP57103M is equipped with substantial memory resources, extensive communication options, and integrated diagnostics, making it an ideal solution for modern automated processes.
Technical Specifications
| Parameter | Value |
|---|---|
| Range من Product | Modicon Premium Automation platform |
| Product or Component Type | Single-format PL7 processor |
| Sمنtware Designation | PL7 Junior/Pro |
| Number من Racks الدعمed | 2 (12 slots), 4 (4/6/8 slots) |
| Number من Slots | 16, 24, 32 |
| Discrete I/O Processor Capacity | 512 I/O |
| Analogue I/O Processor Capacity | 24 I/O |
| Number من Application Specific Channels | 8 |
| Integrated Connection Type | Non-isolated serial link, 2 female mini DIN, 19.2 kbit/s |
| Communication Module Processor Capacity | 1 network module, 2 AS-Interface, 1 CANopen |
| Memory الوصف (RAM/PCMCIA) | 32 Kwords internal RAM (data), 32 Kwords (program/data), |
| 64 Kwords (PCMCIA, program), 128 Kwords (PCMCIA, data) | |
| Maximum Object Area Size | 30.5 %MWi, 32 %KWi, 4096 %Mi |
| Application Structure | 1 master task, 1 fast task, 32 event tasks |
| Execution Time per Instruction | 0.5 μs (Boolean, w/o PCMCIA), 0.6 μs (Boolean, w/ PCMCIA) |
| 0.62 μs (arithmetic, w/o PCMCIA), 0.87 μs (w/ PCMCIA) | |
| 44 μs (floating point, w/ or w/o PCMCIA) | |
| Number من Instructions per ms | 0.85 Kinst/ms (65% Boolean + 35% arithmetic, w/ PCMCIA) |
| 1.05 Kinst/ms (65% Boolean + 35% arithmetic, w/o PCMCIA) | |
| 1.18 Kinst/ms (100% Boolean, w/ PCMCIA) | |
| 1.52 Kinst/ms (100% Boolean, w/o PCMCIA) | |
| System Overhead | 0.8 ms (fast task), 1.5 ms (master task) |
| Local Signaling | RUN (green LED), I/O Fault (red LED), ERR (red LED), |
| Terminal Activity (yellow LED) | |
| Current Consumption | 440 mA @ 5 V DC |
| Module Format | Standard |
| Net الوزن | 0.38 kg (0.84 lb US) |
| Dimensions (W x H x D) | 55 x 180 x 260 mm |
| Standards | IEC 61131-2, UL 508, CSA C22.2 No 142/213, DNV, GL, RMRS, BV, |
| ABS, LR, RINA, 89/336/EEC, 73/23/EEC, 92/31/EEC, 93/68/EEC | |
| Ambient Operating Temperature | 0…60°C (32…140°F) |
| Ambient Storage Temperature | -25…70°C (-13…158°F) |
| Relative Humidity (Operating) | 10–95% (no condensation) |
| Relative Humidity (Storage) | 5–95% (no condensation) |
| Operating Altitude | 0…2000 m (0…6561.68 ft) |
| Protective Treatment | TC |
| IP Degree من Protection | IP20 |
| Pollution Degree | 2 |
| Marking | CE |
| Certifications | DNV, GL, RMRS, BV, ABS, LR, RINA |
Applications
The TSXP57103M is extensively used across a wide range من industrial automation fields. Common application scenarios include:
-
Manufacturing Process Automation: Coordinating discrete and analog I/O for production lines, packaging, assembly, and robotics control.
-
Infrastructure and Utilities: Process control for water treatment plants, energy management systems, and HVAC systems.
-
Material Handling: Supervising conveyor systems, automated warehouses, and logistics facilities.
-
Automotive Industry: Providing high-speed control for test benches, quality control systems, and assembly stations.
-
Pharmaceutical and Food Industries: Enabling precise batch process control, recipe management, and compliance tracking.
-
Energy and Power: Automation من substations, distributed power management, and monitoring.
Product Advantages
-
High Performance Processing: The fast execution speed من Boolean and arithmetic instructions ensures reliable real-time operation for complex automation tasks.
-
Flexible Memory Options: الدعم for both internal RAM and expandable PCMCIA cards allows scalable program and data storage, facilitating large and complex projects.
-
Robust Communication: Integrated serial interfaces and compatibility with various communication modules, including network, AS-Interface, and CANopen, ensure seamless connectivity within diverse system architectures.
-
Comprehensive Diagnostics: Multi-color LEDs provide real-time status and fault indication, simplifying maintenance and minimizing downtime.
-
Industry Certification: Conforms to a wide range من international standards and certifications, ensuring suitability for deployment in regulated industries and harsh environments.
-
Modular Design: Easily integrated into various rack configurations, supporting scalability and easy system expansion for future requirements.
-
Rugged Construction: Designed to operate in challenging environments with wide temperature and humidity ranges, meeting demanding industrial reliability requirements.
الأسئلة الشائعة (FAQ)
Q1: What type من programming sمنtware is supported by the TSXP57103M?
A1: The TSXP57103M is programmed using PL7 Junior or PL7 Pro, which are comprehensive IEC 61131-3 compliant programming environments.
Q2: How many discrete and analog I/O points can the TSXP57103M manage?
A2: This processor supports up to 512 discrete I/O points and up to 24 analog I/O points.
Q3: What are the available communication interfaces on the TSXP57103M?
A3: The module provides a non-isolated serial link (2 female mini DIN connectors at 19.2 kbit/s) and supports network modules, AS-Interface, and CANopen communication modules.
Q4: Can the memory capacity be expanded for large applications?
A4: Yes, memory can be expanded using PCMCIA cards (up to 64 Kwords for program and 128 Kwords for data storage).
Q5: What are the physical dimensions and weight من the module?
A5: The module measures 55 mm x 180 mm x 260 mm and weighs 0.38 kg.
Q6: Which industry standards and certifications does the TSXP57103M comply with?
A6: It complies with IEC 61131-2, UL 508, CSA C22.2, DNV, GL, BV, ABS, LR, RINA, and multiple EU directives.
Q7: What is the recommended operating environment for this processor?
A7: It operates optimally at 0–60°C with 10–95% relative humidity (non-condensing), and up to 2000 meters altitude.
Q8: How is system status and error information provided?
A8: Four dedicated LEDs indicate processor status (RUN, I/O fault, processor/system fault, and terminal port activity).
Q9: What kind من protective features are included?
A9: The module features IP20 protection, pollution degree 2, and a TC protective treatment for enhanced environmental resilience.
Q10: What are the main benefits من using the TSXP57103M in automation projects?
A10: Its main benefits include high processing speed, modular expandability, robust diagnostics, industry certifications, and flexible memory options, making it a reliable solution for demanding industrial applications.
Recommended Related الطرازs (Same Series or Application)
| الطراز | Max I/O | Memory | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| TSXP57153M | 1024 | 64 Kwords | 55 x 180 x 260 | 0.38 |
| TSXP57203M | 2048 | 128 Kwords | 55 x 180 x 260 | 0.38 |
| TSXP57303M | 3072 | 256 Kwords | 55 x 180 x 260 | 0.38 |
| TSXP57453M | 4096 | 512 Kwords | 55 x 180 x 260 | 0.38 |
| TSX572623 | 2048 | 128 Kwords | 55 x 180 x 260 | 0.38 |
| TSX573623 | 3072 | 256 Kwords | 55 x 180 x 260 | 0.38 |
Popular Schneider الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| TSXP574634M | Premium Processor with Ethernet | 55 x 180 x 260 | 0.38 |
| TSXETY4103 | Ethernet Communication Module | 32 x 120 x 145 | 0.24 |
| TSXDMZ64DTK | Discrete Output Module | 32 x 125 x 145 | 0.24 |
| TSXDSY32T2K | Digital Output Module | 32 x 125 x 145 | 0.24 |
| TSXAEY1600 | Analog Input Module | 32 x 125 x 145 | 0.24 |
| TSXP572623M | Premium Processor | 55 x 180 x 260 | 0.38 |
