مقدمة المنتج

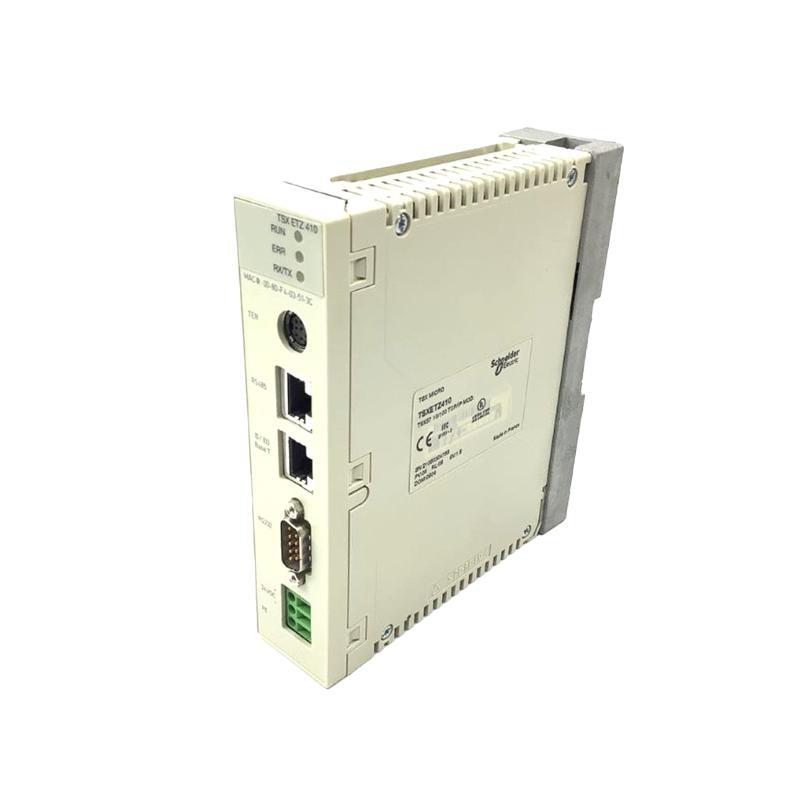

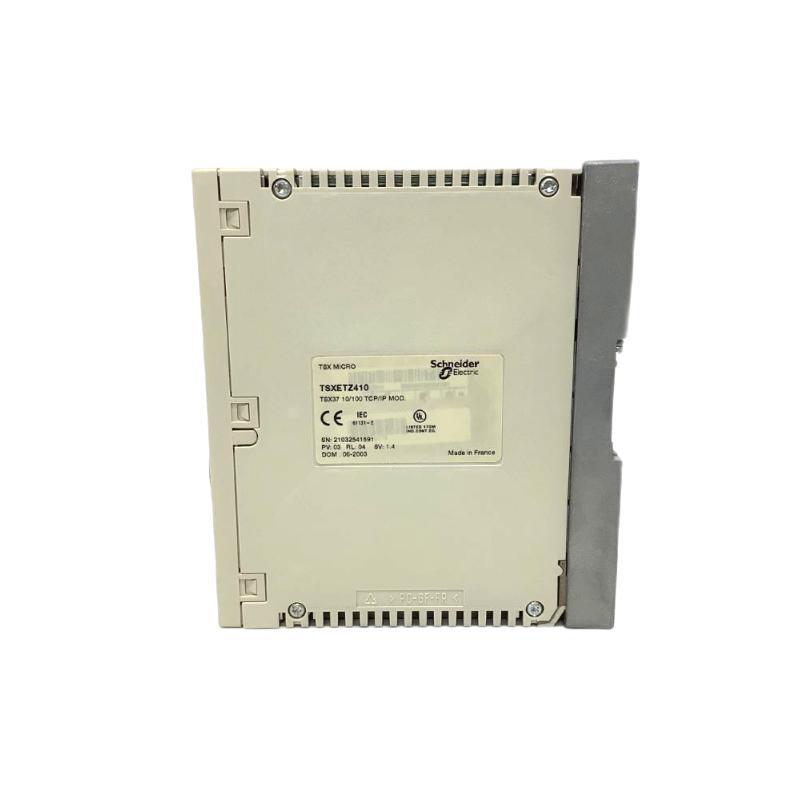

The TSXETZ410 is an Ethernet communication module designed for the Modicon Micro PLC series. It facilitates seamless integration من Modicon Micro PLCs into Ethernet networks, supporting both 10/100 Mbps Ethernet and 56 kbps serial communication via modem. With its Transparent Ready capabilities, the module enables real-time data exchange, remote diagnostics, and web-based monitoring, making it ideal for various industrial automation applications.
مواصفات المنتج
| Parameter | Details |
| Product Type | Ethernet Communication Module |
| الطراز Number | TSXETZ410 |
| Compatible PLC Series | Modicon Micro PLC |
| Ethernet Standards | IEEE 802.3 (10BASE-T/100BASE-TX) |
| Transmission Rates | Ethernet: 10/100 Mbps; Serial via Modem: up to 56 kbps |
| Network Topologies | Star, Tree |

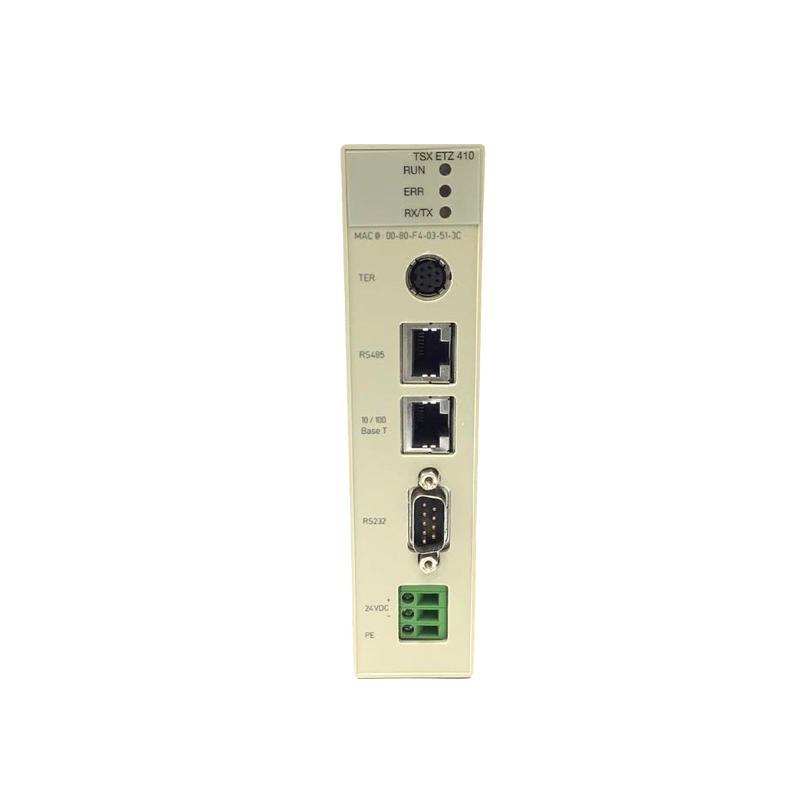

| Connectors | RJ45, 9-pin SUB-D (RS232), Mini DIN, Screw Terminal Block |
| Power Supply | 24 V DC |
| Current Consumption | 50–200 mA |
| Power Dissipation | 2.4–4 W |
| Dimensions (H x W x D) | 39.83 x 151.5 x 116.7 mm |
| الوزن | 0.28 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Mounting Type | DIN rail mountable |
| Certifications | CE, UL, CSA |
Product Applications
-
Industrial Automation: Enables Modicon Micro PLCs to communicate over Ethernet networks for process control and monitoring.
-
Remote Monitoring: الدعمs remote diagnostics and maintenance via web-based interfaces.
-
Data Acquisition: Facilitates real-time data collection from field devices to centralized systems.
-
Integration with SCADA Systems: Allows seamless integration with supervisory control and data acquisition systems.
-
Legacy System Upgrades: Provides Ethernet connectivity to existing Modicon Micro PLC installations, extending their functionality.
Product Advantages
-
Transparent Ready Functionality: Offers built-in web server capabilities for easy configuration and monitoring.
-
Flexible Communication Options: الدعمs both Ethernet and serial communication via modem.
-
Robust Design: Engineered to operate reliably in industrial environments with wide temperature and humidity ranges.
-
Easy Integration: DIN rail mountable design simplifies installation in control panels.
-
Comprehensive Diagnostics: Provides detailed status indicators and diagnostic information for troubleshooting.
Latest News Headlines
-
“Schneider Electric Enhances Modicon Micro PLC Connectivity with TSXETZ410 Module”
-
“TSXETZ410: Bridging Legacy PLCs to Modern Ethernet Networks”
-
“Improving Industrial Communication: The Role من TSXETZ410 in Automation”
-
“Schneider’s TSXETZ410 Module: A Solution for Seamless Network Integration”
-
“Optimizing Factory Operations with Schneider Electric’s TSXETZ410 Ethernet Module”
الأسئلة الشائعة (FAQ)
1. What type من network protocols does the TSXETZ410 support?
The TSXETZ410 primarily supports TCP/IP and Modbus TCP protocols, enabling seamless communication with a wide range من industrial Ethernet devices and controllers.
2. Can I use TSXETZ410 with a Modicon Premium PLC?
No, the TSXETZ410 is designed for the Modicon Micro and Compact series, not the Premium line. If you’re using Premium, consider the TSXETY4xxx series.
3. Does the TSXETZ410 support DHCP for automatic IP addressing?
No, the TSXETZ410 does not support DHCP. IP addressing must be configured manually through the programming environment or local configuration interface.
4. What’s the typical setup procedure for integrating this module into an existing network?
You’ll need to configure the IP settings in PL7 or وحدةy Pro (depending on your controller), connect it physically to your Ethernet switch/router, and test with basic ping and Modbus communication tools.
5. How many simultaneous connections can the TSXETZ410 handle?
This module is designed for light to medium-duty communication tasks and typically supports up to 4 simultaneous Modbus TCP clients, making it suitable for SCADA and HMI applications.
6. Is it possible to use the TSXETZ410 for remote programming or diagnostics?
Yes, remote programming is supported via the Ethernet link, as long as the IP settings are correctly configured and proper routing/firewall rules are in place.
7. What are some typical fault conditions or LED status indicators to watch for?
Look out for ERR or ACT LEDs blinking abnormally. A solid red LED usually indicates a hardware or communication failure, while blinking yellow typically means traffic is present.
8. Is this module suitable for use in harsh industrial environments?
While the TSXETZ410 has good industrial resilience, it’s not ruggedized for outdoor or extreme conditions. Ensure proper enclosure and environmental controls if deployed in dusty, wet, or high-vibration areas.
9. Can I use this module to connect to an OPC server?
Yes, as long as the OPC server supports Modbus TCP/IP, the TSXETZ410 can be a data source. Make sure to map your Modbus addresses correctly in the PLC.
10. What should I do if the module is not responding on the network?
First, check physical connectivity and power. Then verify IP settings and subnet configuration. Use a basic ping test from a PC to see if the module responds. If all else fails, try resetting the module and reloading the configuration.
