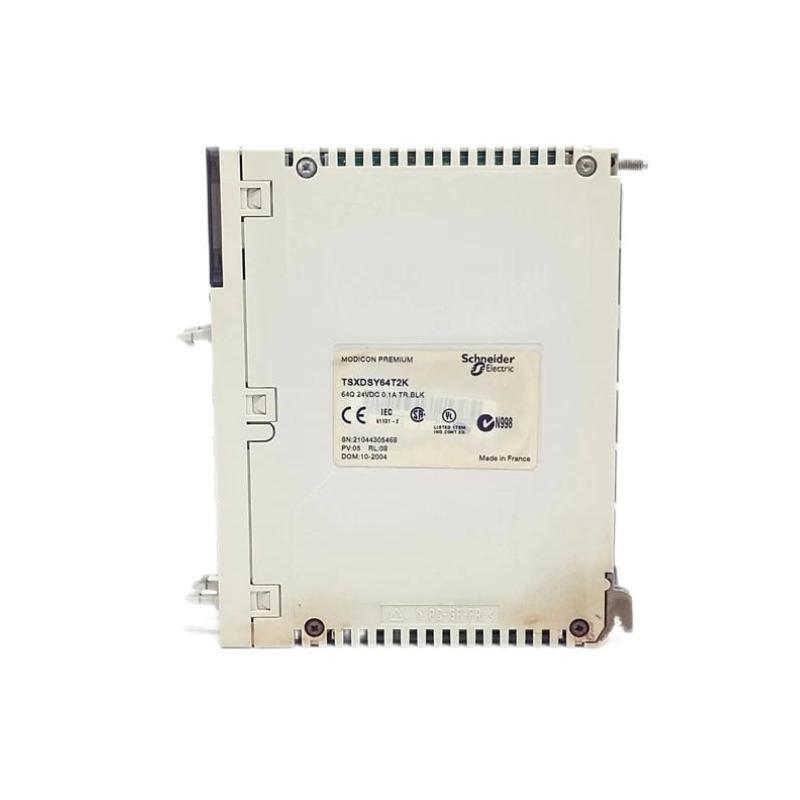

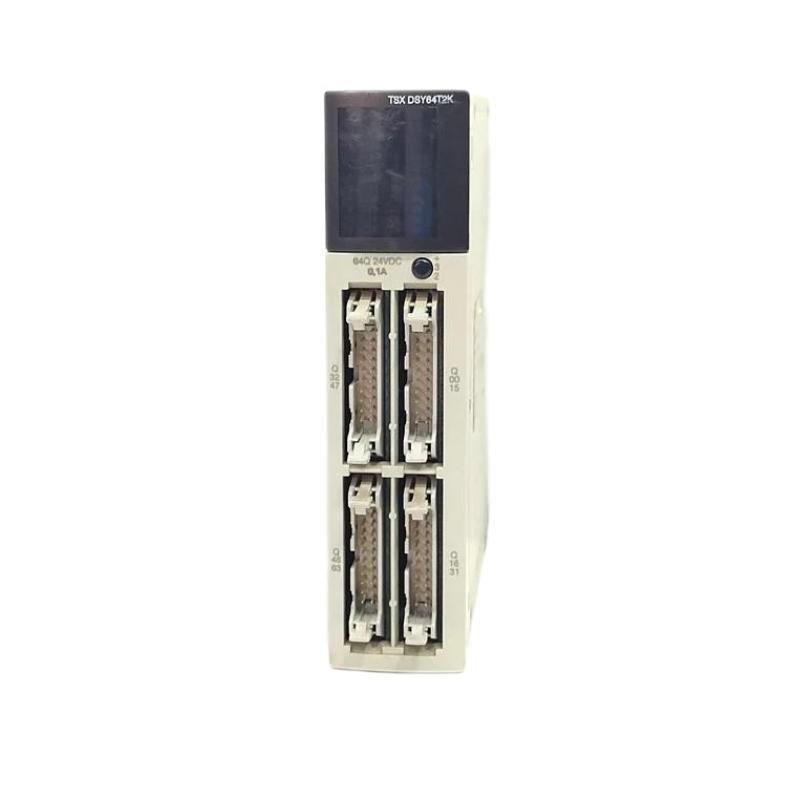

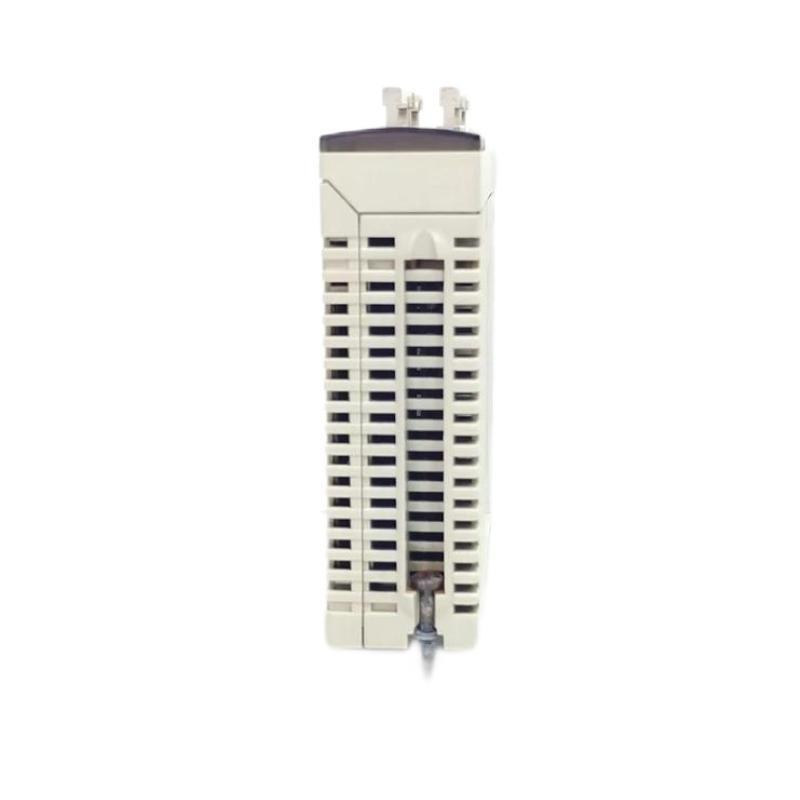

Schneider TSXDSY64T2K مقدمة المنتج
The Schneider TSXDSY64T2K is a high-performance digital output module designed for industrial automation applications. It is part من Schneider Electric’s extensive range من modular I/O solutions, known for their reliability, flexibility, and ease من integration. This module is ideal for controlling actuators, solenoids, and other digital devices in harsh industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | TSXDSY64T2K |
| Type | Digital Output Module |
| Number من Outputs | 64 |
| Output Type | Transistor (Sink/Source) |
| Voltage Range | 24V DC |
| Current per Output | 0.5A |
| Total Current | 8A (max) |
| Communication | Backplane communication (Modbus, Ethernet depending on PLC) |
| Dimensions | 55 × 180 × 260 mm |
| الوزن | 0.503 kg |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 |
| Compatibility | Schneider Modicon M340, M580 PLCs |
Product Applications
The TSXDSY64T2K is widely used in industrial automation systems where high-density digital outputs are required. Key applications include:
-
Manufacturing Lines: Controlling conveyor belts, robotic arms, and assembly machines.
-
Material Handling: Managing solenoid valves, pneumatic systems, and sorting mechanisms.
-
Packaging Systems: Actuating sealing, labeling, and filling devices.
-
Energy Management: Monitoring and controlling power distribution وحدةs.
-
Water Treatment: Operating pumps, valves, and filtration systems.
Product Advantages
-
High Density: 64 outputs in a compact form factor save space in control cabinets.
-
Robust Design: Built to withstand industrial environments with wide temperature tolerance.
-
Easy Integration: Compatible with Schneider’s Modicon PLCs for seamless system expansion.
-
Flexible Output Configuration: الدعمs both sink and source wiring.
-
Low Power Consumption: Energy-efficient design reduces operational costs.
-
Diagnostic Features: LED indicators for quick fault detection and troubleshooting.
الأسئلة الشائعة (FAQ)
-
What PLCs are compatible with the TSXDSY64T2K?
It is designed for use with Schneider Modicon M340 and M580 PLCs. -
What is the maximum load current per channel?
Each channel supports up to 0.5A, with a total module current من 8A. -
Can this module be used in high-vibration environments?
Yes, it is built to withstand industrial vibrations and shocks. -
What is the protection rating من the module?
It has an IP20 rating, suitable for panel-mounted installations. -
How do I troubleshoot a faulty output?
Use the LED indicators to identify the problematic channel and check wiring/load conditions. -
Is hot-swapping supported?
No, the module must be powered down before installation or removal. -
What is the operating voltage range?
It operates at 24V DC (±10%). -
Can I mix sink and source outputs?
No, the entire module must be configured as either sink or source. -
What is the lifespan من the module?
Typically 10+ years under normal operating conditions. -
Where can I find the wiring diagram?
Refer to the product manual or Schneider Electric’s منficial website.
Recommended Related & Popular الطرازs
| Related الطرازs (Same Series) | الوصف |
|---|---|
| TSXDSY16T2K | 16-channel digital output module |
| TSXDSY32T2K | 32-channel digital output module |
| TSXDSY64R5K | 64-channel relay output module |
| TSXDSY16R5K | 16-channel relay output module |
| TSXDSY32R5K | 32-channel relay output module |
| TSXDSY64T5K | 64-channel high-current output module |
| Popular Schneider الطرازs | الوصف |
|---|---|
| Modicon M340 PLC | Mid-range programmable logic controller |
| Modicon M580 PLC | High-end automation controller |
| Altivar ATV320 Drive | Variable frequency drive for motors |
| Telemecanique XPSAK Safety Relay | Safety relay for emergency stops |
| Harmony XB5 Push Button | Industrial push button series |
| Magelis HMI Panel | Human-machine interface for automation |
