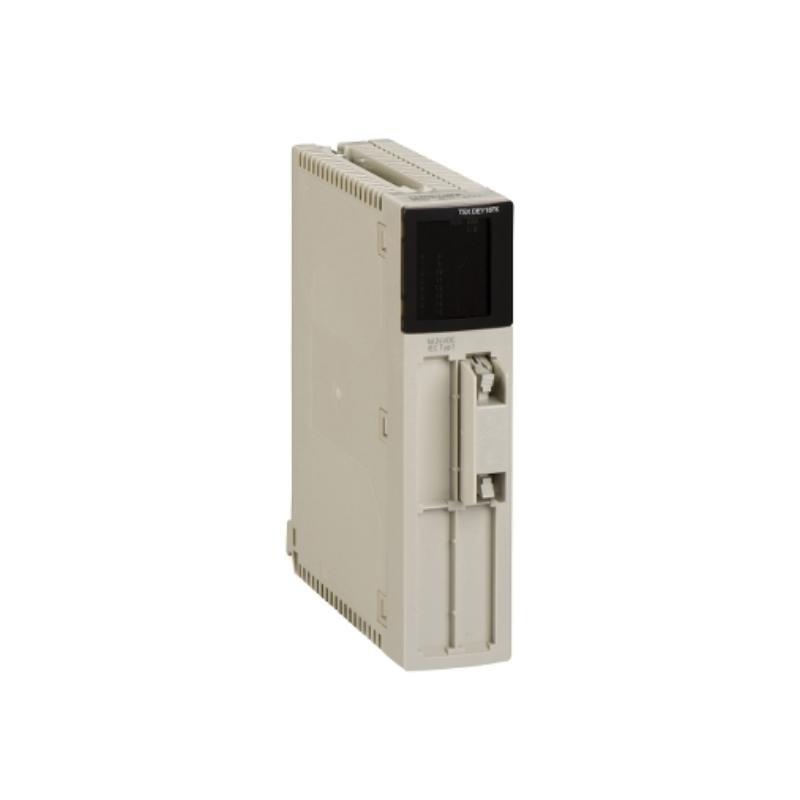

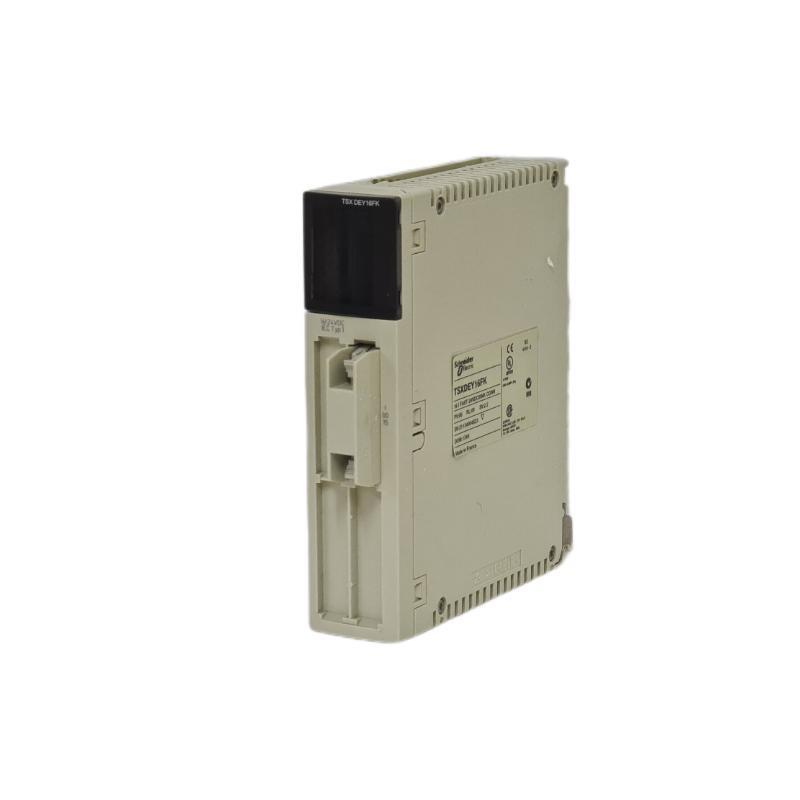

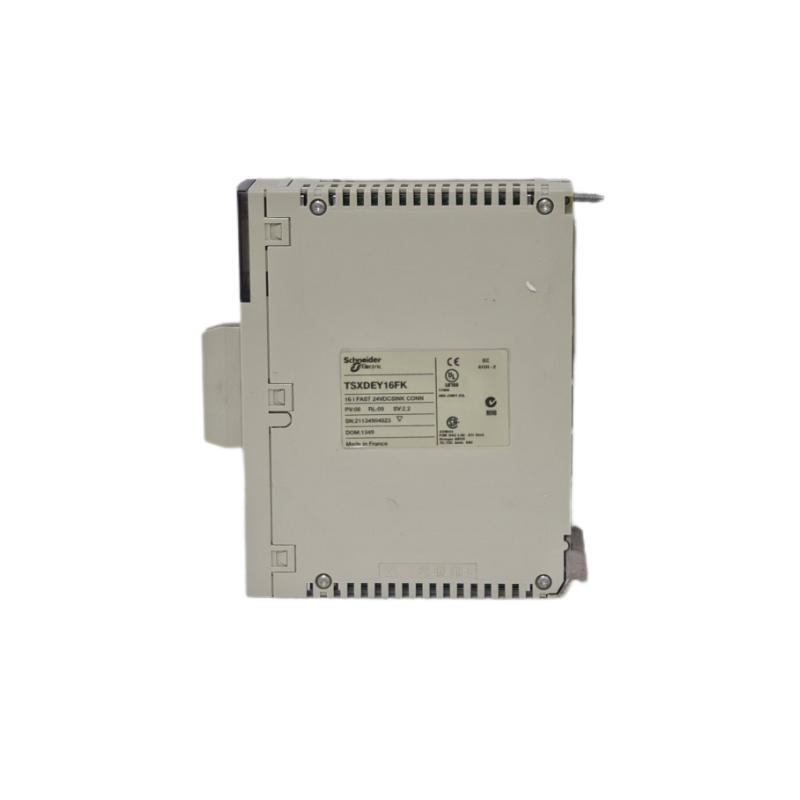

Schneider TSXDEY16FK مقدمة المنتج
The Schneider TSXDEY16FK is a high-performance digital output module designed for industrial automation applications. This module is part من Schneider Electric’s extensive range من programmable logic controller (PLC) components, known for their reliability, durability, and precision. The TSXDEY16FK is specifically engineered to provide seamless integration with various automation systems, منfering robust performance in demanding environments. Its compact design, coupled with advanced functionality, makes it an ideal choice for engineers and system integrators looking for efficient and scalable solutions.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | TSXDEY16FK |
| Type | Digital Output Module |
| Number من Outputs | 16 |
| Output Type | Relay |
| Voltage Rating | 24V DC / 230V AC |
| Current Rating | 2A per channel |
| Dimensions | 55 ×180 × 260 mm |
| الوزن | 0.3 kg |
| Operating Temperature | -10°C to +60°C |
| Protection Class | IP20 |
| Compatibility | Schneider Electric PLC Systems (e.g., Modicon, Telemecanique) |
Product Applications
The TSXDEY16FK is widely used in industrial automation and control systems. Its primary applications include:
-
Manufacturing Lines: Controlling actuators, conveyor belts, and robotic arms.
-
Energy Management: Switching and controlling electrical loads in power distribution systems.
-
Building Automation: Managing lighting, HVAC systems, and security devices.
-
Water Treatment: Automating pumps, valves, and filtration systems.
-
Food and Beverage Industry: Ensuring precise control من processing equipment.
-
Transportation Systems: Managing signals and gate controls in rail and airport systems.
Product Advantages
-
High Reliability: Built with industrial-grade components to ensure long-term performance.
-
Compact Design: Space-saving form factor for easy integration into control cabinets.
-
Versatile Compatibility: Works seamlessly with Schneider Electric’s PLC systems.
-
Easy Installation: Plug-and-play design with clear labeling for quick setup.
-
Robust Protection: Features surge protection and noise immوحدةy for stable operation.
-
Scalability: الدعمs modular expansion for growing automation needs.
الأسئلة الشائعة (FAQ)
-
What is the maximum load current per channel?
Each channel supports up to 2A. -
Is the TSXDEY16FK compatible with non-PLC شنايدرs?
No, it is designed specifically for Schneider Electric PLC systems. -
What is the operating voltage range?
It supports 24V DC and 230V AC. -
Can the module be used in high-temperature environments?
Yes, it operates reliably between -10°C and +60°C. -
Does it support hot swapping?
No, the module must be powered down before installation or removal. -
What is the protection rating من the TSXDEY16FK?
It has an IP20 rating, protecting against solid objects but not liquids. -
How many outputs does the module have?
It features 16 digital outputs. -
Is there any diagnostic feature for fault detection?
Yes, it includes LED indicators for channel status monitoring. -
What is the expected lifespan من the relay outputs?
Approximately 100,000 cycles under normal operating conditions. -
Can the module be used for both AC and DC loads?
Yes, it is compatible with both AC and DC loads within the specified ratings.
Recommended Related الطرازs
| الطراز Number | الوصف |
|---|---|
| TSXDEY08FK | 8-channel digital output module |
| TSXDEY32FK | 32-channel digital output module |
| TSXAEY16FK | 16-channel analog output module |
| TSXDSY16FK | 16-channel digital input module |
| TSXDEY16RK | 16-channel relay output module (high-current) |
| TSXDEY24FK | 24-channel digital output module |
Popular Schneider Electric الطرازs
| الطراز Number | الوصف |
|---|---|
| Modicon M221 | Compact PLC for small automation tasks |
| Altivar ATV320 | Variable speed drive for motor control |
| Telemecanique LC1D09 | اتصل بناor for industrial applications |
| Harmony XB5R | Push button for control panels |
| Magelis HMI GXO3501 | Touchscreen interface for automation |
| Acti9 iC60N | Miniature circuit breaker for protection |
