مقدمة المنتج

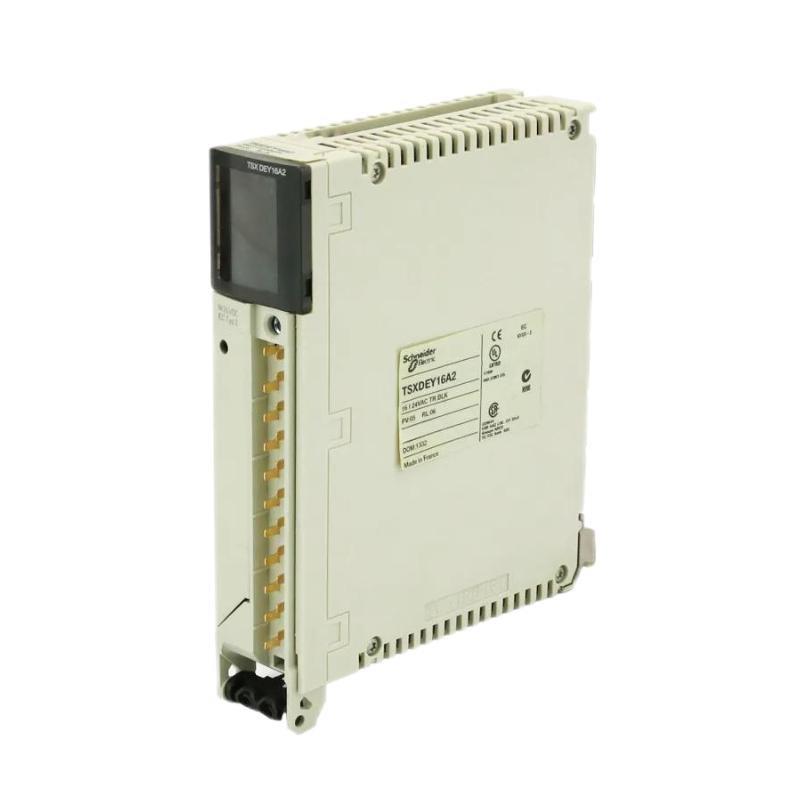

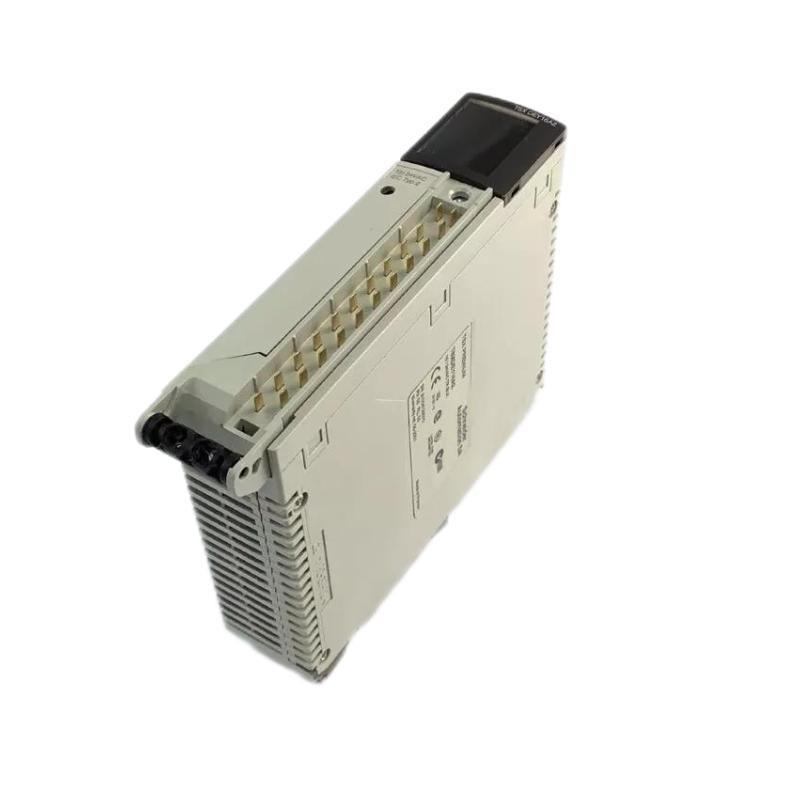

The Schneider TSXDEY16A2 is a discrete input module designed for use within Schneider Electric’s Modicon TSX Micro and Premium programmable logic controller (PLC) systems. It provides a reliable interface for receiving digital signals from various field devices such as sensors, switches, and other binary input sources.
This module supports 16 discrete inputs and is ideal for monitoring on/منf states in industrial automation processes. The TSXDEY16A2 is engineered for durability and accuracy, ensuring stable signal acquisition under demanding factory conditions. Its design facilitates straightforward integration with Modicon systems, enabling seamless data collection and control operations.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز Number | TSXDEY16A2 |
| Module Type | Discrete Input Module |
| Number من Inputs | 16 Digital Inputs |
| Input Voltage | 24 V DC nominal |
| Input Current | 6 mA per input typical |
| Response Time | ≤ 10 ms |
| Isolation | Optical isolation on inputs |
| Connection Type | Screw terminal block |
| Package Dimensions | 55 × 180 × 260 mm |
| الوزن | 0.31 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –20°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Compliance | CE, RoHS |
Product Advantages
-
Reliable Digital Signal Acquisition
Accurately detects on/منf states from multiple discrete field devices simultaneously. -
High Input Density
Provides 16 inputs in a compact module, reducing the number من required modules for complex systems. -
Robust Electrical Isolation
Optical isolation protects the controller from electrical noise and surges, improving system reliability. -
Easy Installation and Wiring
Screw terminal connections ensure secure and straightforward wiring on the factory floor. -
Compatibility with Modicon Systems
Designed to integrate seamlessly with Modicon TSX Micro and Premium PLC families. -
Durable and Industrial-Grade Design
Built to withstand harsh factory environments with reliable operation over extended periods. -
Fast Response Time
Enables real-time monitoring with response times under 10 milliseconds.
Applications
The TSXDEY16A2 discrete input module finds broad application in industrial automation and control:
-
Factory Automation Systems
Monitoring machine start/stop signals, safety interlocks, and status signals. -
Process Control
Reading digital sensor states for batching, mixing, or process sequencing. -
Building Automation
Capturing inputs from switches, alarms, and security devices. -
Material Handling
Monitoring conveyor start/stop inputs, presence sensors, and emergency stops. -
Energy Management
Integrating digital inputs from power meters or breaker status devices. -
Machine Safety Systems
الدعمing emergency stop circuits and safety interlock monitoring.
الأسئلة الشائعة (FAQs)
-
How many discrete inputs does the TSXDEY16A2 provide?
It provides 16 digital input channels. -
What is the nominal input voltage for each input?
The nominal input voltage is 24 V DC. -
Is the module compatible with both TSX Micro and TSX Premium PLC systems?
Yes, it is designed for seamless compatibility with both families. -
What kind من electrical isolation does the module منfer?
It features optical isolation on all input channels. -
What is the typical response time for input signal detection?
The response time is typically less than or equal to 10 milliseconds. -
What are the physical dimensions من the module packaging?
The package dimensions are 55 × 180 × 260 mm. -
How much does the module weigh?
The module weighs approximately 0.31 kg. -
What connection type is used for wiring inputs?
Inputs are wired via screw terminal blocks for secure connections. -
Can the module operate reliably in harsh industrial environments?
Yes, it is built for durability and reliable operation under industrial conditions. -
Does the module support any form من input diagnostics?
Diagnostic features depend on the PLC program; the module itself provides stable input signals for diagnostics.
Related Schneider Series or Compatible الطرازs
| الطراز Number | الوصف |
|---|---|
| TSXDEY08A2 | 8-channel discrete input module |
| TSXDEY32A2 | 32-channel discrete input module |
| TSXDET040 | Digital input/output combination module |
| TSXDEY16A3 | 16-channel discrete input module with higher voltage rating |
| TSXDEY16A4 | 16-channel discrete input module with different input type |
| TSXDET020 | Digital input module with 20 channels |
Popular Schneider Electric الطرازs
| الطراز Number | الوصف | Key Features |
|---|---|---|
| TSX3705128DR1 | Modicon TSX Micro PLC CPU Module | 12 KB memory, RS-232 port |
| TSXASY800 | Modicon TSX ASY Programming Cable | USB to serial communication |
| TSX3721001 | Modicon TSX Micro Expansion Module | 8 digital inputs, 8 outputs |
| TSX3742100 | Modicon TSX Analog Input Module | 8 channels, 12-bit resolution |
| TSX3726001 | Modicon TSX Digital Output Module | 16 relay outputs |
| TSX3770201 | Modicon TSX Ethernet Communication | 10/100 Mbps Ethernet port |
