مقدمة المنتج

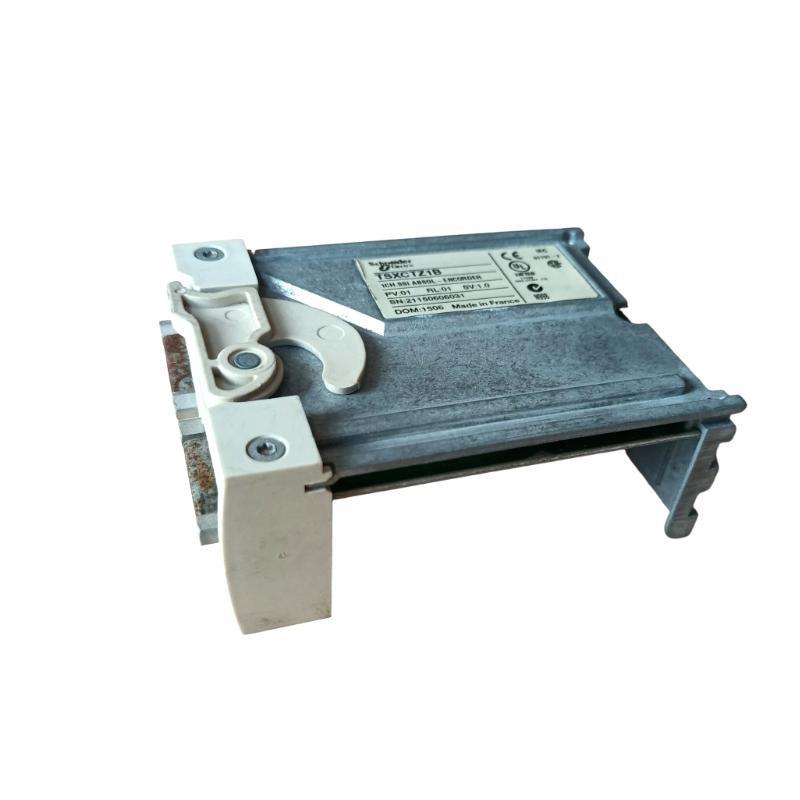

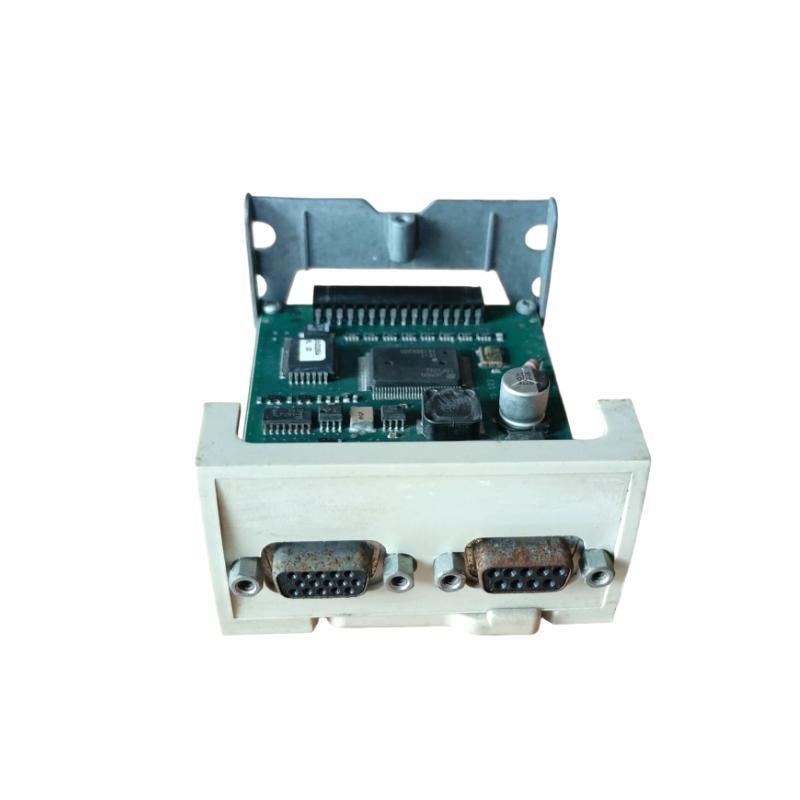

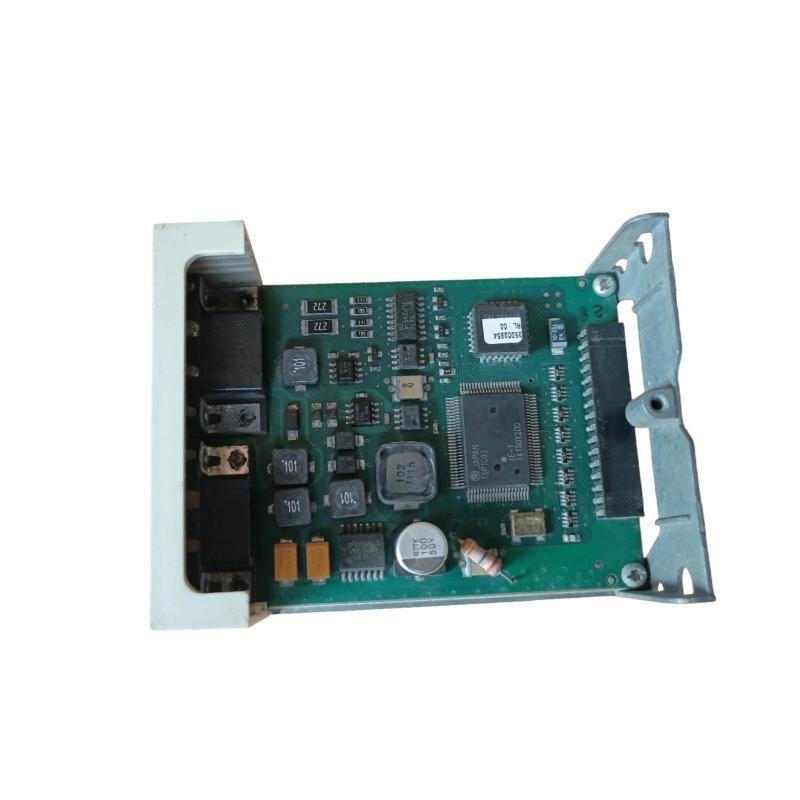

The Schneider TSXCTZ1B is a high-performance encoder interface module designed specifically for the Modicon TSX Premium PLC series. It is engineered to directly interface with incremental encoders, delivering real-time position and speed data essential for precision motion control and industrial automation.
This module supports quadrature signal inputs (A, B, and Z channels) and is widely used in applications requiring accurate rotary or linear positioning. Whether used in conveyor tracking, machine tooling, or robotics, the TSXCTZ1B ensures rapid data acquisition and minimal latency through high-speed signal processing.
By integrating seamlessly into the TSX Premium PLC system via the backplane, the TSXCTZ1B reduces wiring complexity and boosts overall system efficiency. Its rugged design and industrial-grade construction allow it to perform reliably in demanding environments.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | TSXCTZ1B |
| الشركة المصنعة | Schneider Electric |
| Product Type | Encoder Interface Module |
| Compatible Encoder Type | Incremental Encoder (A, B, Z channels) |
| Number من Inputs | 3 channels (A, B, Z) |
| Input Voltage Range | 5 VDC to 24 VDC (differential and single-ended supported) |
| Counting Frequency | Up to 200 kHz |
| Counter Resolution | Up to 32-bit |
| Input Isolation | Opto-isolated inputs |
| Signal Format | Quadrature x1, x2, x4 |
| Zero Marker (Z Channel) | الدعمed for homing/position reference |
| Sمنtware Configuration | وحدةy Pro, PL7, or Concept |
| PLC Backplane Compatibility | TSX Premium PLC series |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 (when installed in cabinet) |
| Mounting Type | DIN rail via TSX backplane rack |
| Dimensions (W × H × D) | 300 x 60 x 60 mm |
| الوزن | 0.3 kg |
| Certifications | CE, UL, CSA |
Product Applications
The TSXCTZ1B Encoder Module is ideal for applications where precise position and speed detection is required. Common usage scenarios include:
-
Conveyor and Packaging Systems
Ensures accurate product positioning, line synchronization, and movement tracking. -
Rotary Index Tables
Captures precise angular positioning data to ensure tool or part placement accuracy. -
CNC Machines and Lathes
Reads real-time position and speed feedback from the spindle or workpiece carriage. -
Robotic Arms
Monitors joint movement and end-effector positioning for repeatable tasks. -
Printing Presses
Helps in synchronizing print heads with paper movement based on encoder data. -
Textile Machinery
Controls roll feed and tension systems using feedback from rotary encoders.
Product Advantages
-
Real-Time Position Feedback
Enables high-resolution position tracking using encoder inputs. -
الدعمs Quadrature Encoding
Accepts signals in x1, x2, and x4 modes for flexible resolution requirements. -
High-Speed Signal Acquisition
With support for up to 200 kHz, it is suitable for fast-moving mechanical systems. -
Compact & Modular Design
Small form factor allows for efficient space usage in control cabinets. -
Optically Isolated Inputs
Provides excellent noise immوحدةy and electrical protection. -
Versatile Configuration
Easily programmable using وحدةy Pro, Concept, or PL7 for various applications. -
Seamless PLC Integration
Fully compatible with TSX Premium backplane—no need for external wiring. -
Z-Channel Homing الدعم
Allows for precise system resets or home position detection using the encoder’s index pulse. -
Robust Environmental Tolerance
Designed for operation in industrial temperatures and humidity levels. -
Diagnostic Indicators
Equipped with front-panel LEDs to quickly verify input signal status.
الأسئلة الشائعة (FAQ)
-
What kind من encoders can be used with the TSXCTZ1B?
Incremental encoders with quadrature outputs (A, B, Z) are supported. -
Can the module count pulses at high frequency?
Yes, it supports input frequencies up to 200 kHz. -
Is the Z-channel mandatory to use?
No, the Z-channel is optional but useful for home or reset positioning. -
Does it work with differential signal encoders?
Yes, both differential (RS422) and single-ended encoders are supported. -
Which PLCs are compatible with the TSXCTZ1B?
It is designed to work with Schneider’s TSX Premium PLC series. -
How is the module configured?
Configuration is done using وحدةy Pro, PL7, or Concept sمنtware. -
Can multiple encoder modules be installed in one system?
Yes, multiple modules can be installed for multi-axis control. -
Does it support absolute encoders?
No, it only supports incremental encoders. -
Is any external power supply required?
No, the module receives power from the TSX backplane. -
How do I verify if encoder signals are being received?
Use the built-in diagnostic LEDs for each input channel.
Related or Compatible الطرازs (Same Series or Function)
| الطراز | الوصف | Function | System Series |
|---|---|---|---|
| TSXCTY4A | 4-Channel High-Speed Counter Module | Pulse Counting | TSX Premium |
| TSXCTZ2B | Dual Encoder Interface Module | Encoder Input | TSX Premium |
| TSXAEY1600 | 8-Channel Analog Input Module | Analog Input | TSX Premium |
| TSXDMZ64DTK | 64-Point Digital Input/Output Module | Digital I/O | TSX Premium |
| TSXP573623M | PLC Processor Module | CPU | TSX Premium |
| TSXETY4103 | Ethernet Communication Module | Network Interface | TSX Premium |
Popular Schneider الطرازs (Same العلامة التجارية)
| الطراز | الوصف | Function | Series |
|---|---|---|---|
| BMXP342020 | PLC Processor Module for M340 | CPU Control | Modicon M340 |
| BMENOC0301 | Ethernet/IP Communication Module | Network Interface | Modicon M340 |
| TM221ME16R | Compact Controller with Ethernet & Relay Outputs | Basic PLC Control | Modicon TM221 |
| ATV630U55N4 | Variable Speed Drive (5.5 kW) | Motor Control | Altivar Process |
| STBACO1220 | 2-Channel Analog Output Module | Analog Output | Advantys STB |
| LXM32AD18N4 | Servo Drive (1.8 kW) | Motion Control | Lexium 32 |
