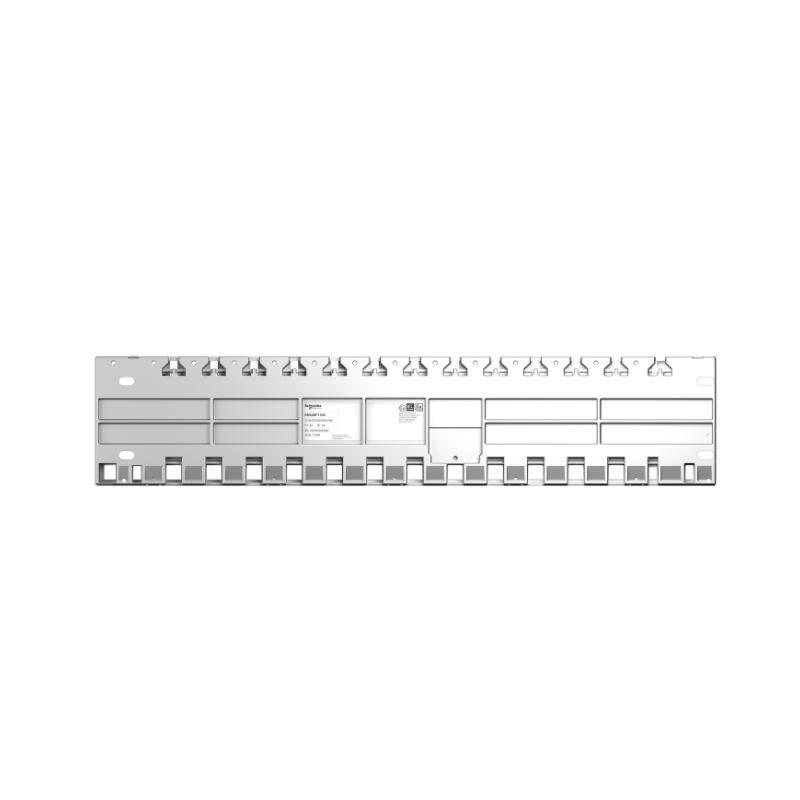

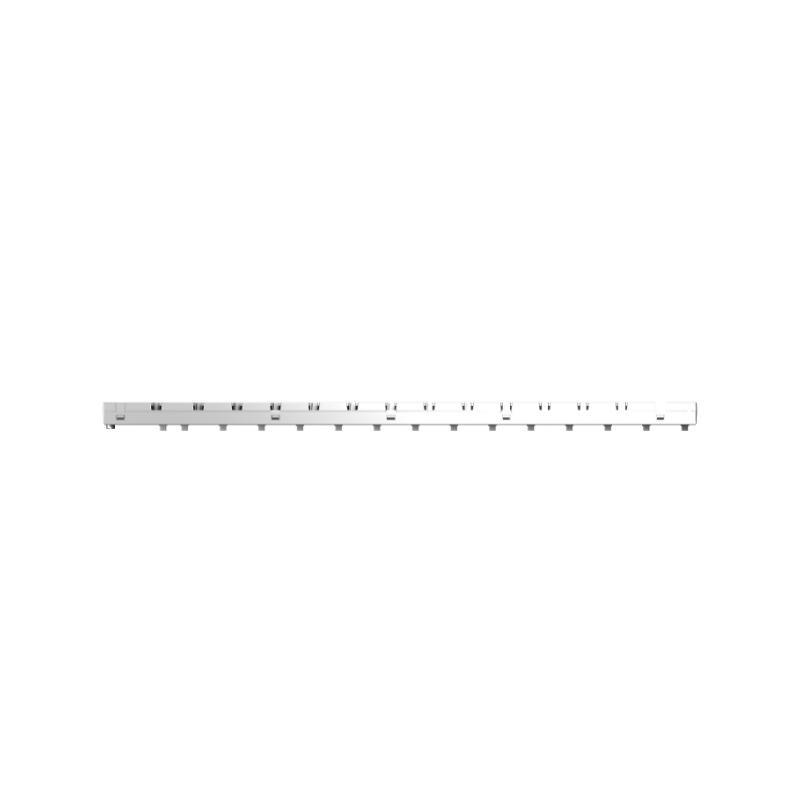

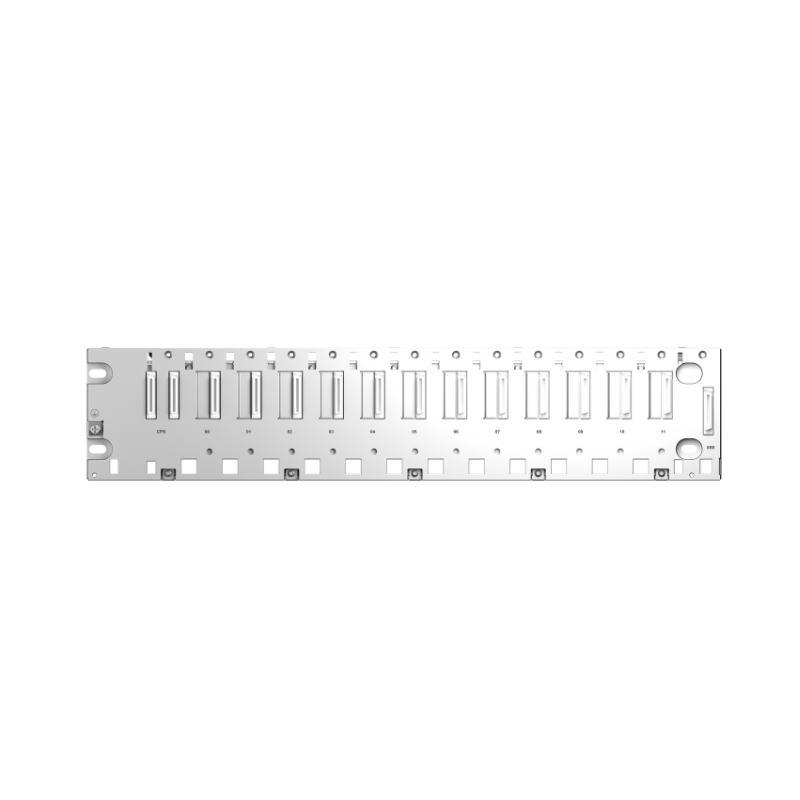

Schneider BMXXBP1200 12-Slot X-Bus Rack

مقدمة المنتج:

The Schneider Electric BMXXBP1200 is a 12-slot passive backplane rack designed for the Modicon M340 automation platform, منfering extended expansion capability for large-scale automation systems. This backplane serves as the physical and electrical backbone من the system, accommodating a wide range من modules, including CPUs, power supplies, communication modules, and I/O modules.

Its primary function is to establish a high-speed X-bus communication path between modules, ensuring real-time data exchange and synchronization across the control system. Engineered with industrial-grade materials, the BMXXBP1200 is ideal for installations that require high channel density and modular flexibility, such as manufacturing plants, water treatment systems, and energy facilities.

مواصفات المنتج:

Applications:

The BMXXBP1200 is ideally suited for use in high-end control systems where extensive modularity and data processing power are required. It finds application in a wide range من industries, including:

• Industrial Manufacturing: Controls large production lines with high I/O demand.

• Energy & Utilities: Powers automation systems in electrical substations and power generation facilities.

• Oil & Gas: الدعمs hazardous area control systems when paired with certified modules.

• Water and Wastewater Management: Controls multi-pump systems, tank levels, and treatment cycles.

• Transportation & Infrastructure: Integrated in tunnel systems, traffic management, and rail automation.

• Food & Beverage Processing: Provides process automation, quality control, and batching system integration.

Product Advantages:

• High Module Capacity: 12-slot configuration enables maximum expansion within a single rack.

• Modular Integration: Fully compatible with all Modicon M340 modules for flexible system design.

• High-Speed Data Exchange: Optimized with X-bus architecture for low-latency, high-integrity communication.

• Easy Maintenance: Hot-swappable module support minimizes downtime and simplifies servicing.

• Versatile Mounting: Compatible with both DIN rail and direct panel mounting installations.

• Industrial Grade Reliability: Designed for demanding environmental conditions and continuous operation.

• Seamless Scalability: Suitable for both system upgrades and new installations requiring multiple modules.

• Reduced Wiring Complexity: Centralized backplane reduces cabling efforts and potential wiring errors.

الأسئلة الشائعة (FAQ):

1. What is the primary function من the BMXXBP1200 rack?
   It serves as a passive backplane that houses and connects up to 12 M340-compatible modules, providing high-speed communication across them.

2. Can the BMXXBP1200 support CPU and power modules simultaneously?
   Yes, it is designed to hold various module types including CPU, power supply, I/O, and communication modules.

3. Does this backplane require external programming or firmware?
   رقم As a passive component, it doesn’t require any programming or firmware updates.

4. Is the BMXXBP1200 hot-swappable?
   Yes, when used with compatible hot-swappable modules, it allows insertion or removal without powering down the system.

5. What type من mounting is recommended for this rack?
   The rack supports both DIN rail and panel mounting, منfering flexibility based on installation needs.

6. Is it compatible with smaller systems?
   It is more suitable for larger installations; for smaller systems, 4-slot or 6-slot variants are recommended.

7. What kind من communication does it support?
   It supports X-bus communication, which is Schneider’s high-speed backplane bus system for M340 platforms.

8. What safety certifications are associated with this product?
   It is compliant with CE, UL, CSA, and can be used in ATEX-certified configurations with suitable modules.

9. Can I use mixed I/O modules on the same rack?
   Yes, the rack supports a combination من analog and digital I/O modules in any slot configuration.

10. How do I know if the rack is overloaded?
    The system should be monitored through the power supply and CPU diagnostics. The rack itself doesn’t منfer direct overload indication.
