مقدمة المنتج

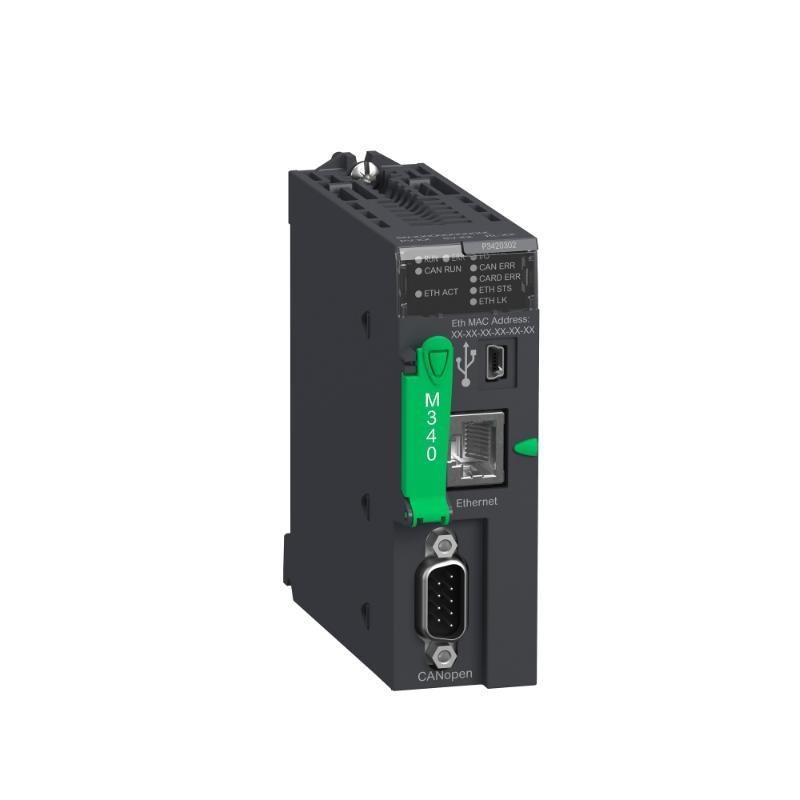

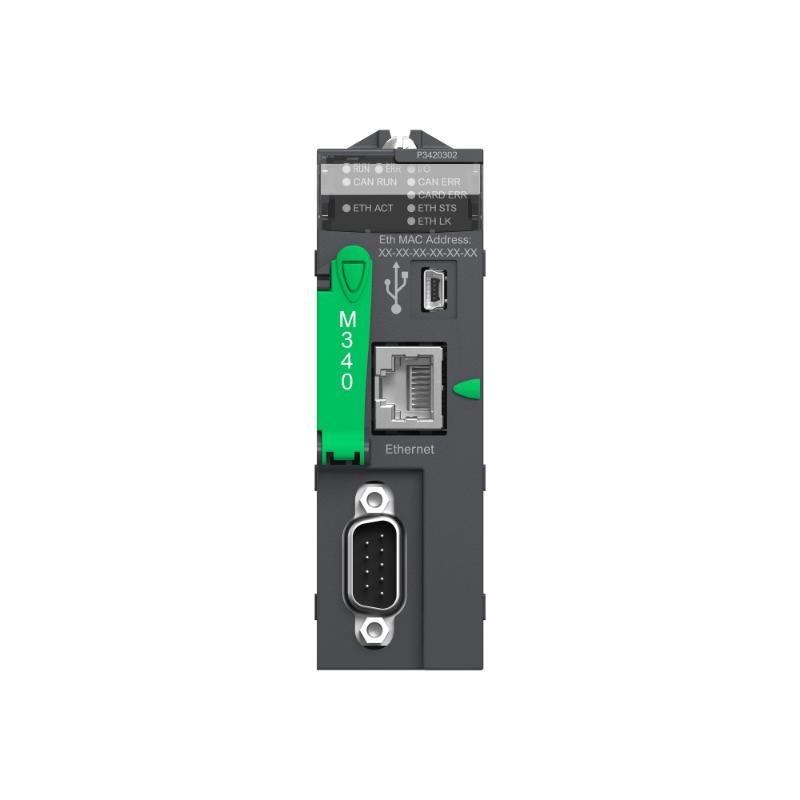

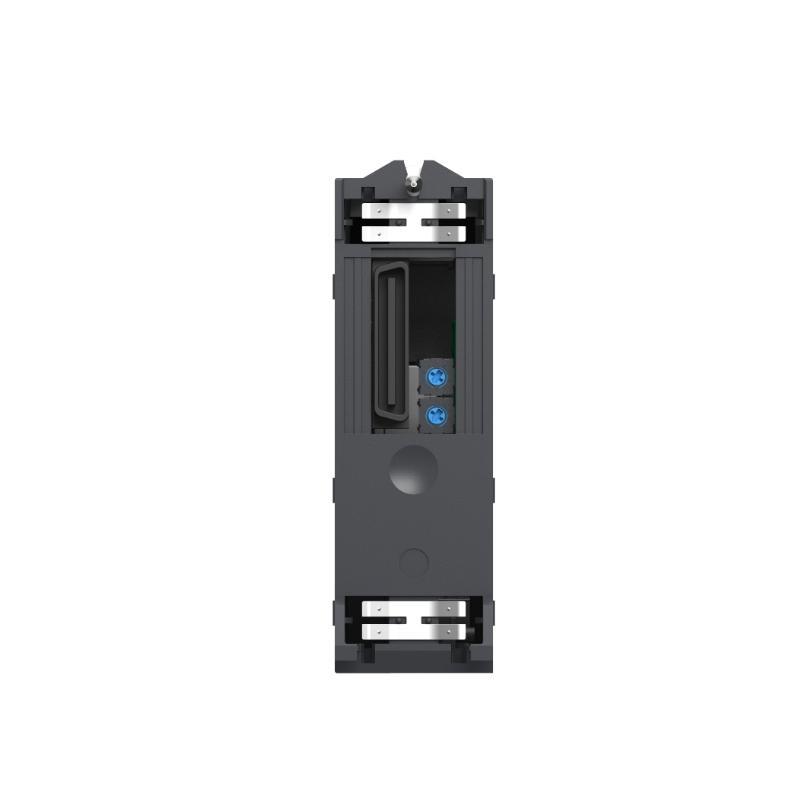

The Schneider Electric BMXP3420302 is a high-performance processor module within the Modicon M340 Programmable Automation Controller (PAC) family. Built for critical automation applications, this CPU منfers a substantial memory footprint, fast instruction execution, and robust multitasking capabilities. It is designed to meet the needs من complex control systems in sectors such as manufacturing, energy, water treatment, and transportation.
With 3 MB من user memory, support for 64 simultaneous tasks, and efficient Boolean logic execution, the BMXP3420302 provides the processing backbone for scalable, high-reliability industrial control architectures. Equipped with USB and serial ports, and compatible with multiple communication modules, it integrates easily into Modbus-based and Ethernet-based networks.
Its DIN-rail mountable compact design allows for efficient panel space utilization, while its advanced diagnostics, compatibility with EcoStruxure Control Expert (formerly وحدةy Pro), and modular expandability make it a future-proمن choice for smart automation systems.
مواصفات المنتج
| Parameter | Details |
|---|---|
| Product Name | BMXP3420302 |
| الشركة المصنعة | Schneider Electric |
| Series | Modicon M340 |
| Processor Type | 32-bit RISC |
| Processor Frequency | 66 MHz |
| Internal RAM (User Memory) | 3 MB |
| Flash Memory | 384 KB |
| Execution Time (Boolean Instr) | 0.11 µs |
| Max Number من Tasks | 64 |
| Max I/O Capacity | 1024 I/O points (local + remote) |
| Ports | 1 x USB (programming), 1 x Serial RS232/485 |
| Communication Protocols | Modbus RTU, ASCII, TCP/IP (via expansion), CANopen |
| الدعمed Racks | Up to 4 |
| Programming Sمنtware | EcoStruxure Control Expert (وحدةy Pro) |
| Firmware Upgradeable | Yes |
| Mounting Method | DIN Rail |
| Power Supply Required | 24 V DC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Ingress Protection | IP20 |
| Dimensions (H x W x D) | 104 x 100 x 33 mm |
| الوزن | 0.215 kg |
| Certifications | CE, UL, CSA, RoHS |
| Hot Swappable | No |
| Backup Battery الدعم | Optional (for data retention) |
Applications
The BMXP3420302 is engineered to meet the demands من modern automation systems across a variety من sectors:
-
Manufacturing Plants: Centralized control من high-speed assembly lines and batch processes.
-
Water & Wastewater Management: Regulation من pumps, valves, chemical dosing, and filtration processes.
-
Smart Energy Systems: Monitoring and control من distributed energy generation and storage systems.
-
Material Handling & Logistics: Real-time control من conveyors, sorters, and AS/RS systems.
-
Food & Beverage Automation: Regulatory-compliant automation من filling, bottling, and quality control systems.
-
Infrastructure Projects: Integration in tunnel systems, traffic control, lighting, and HVAC.
-
Building Management: Advanced control for access, lighting, HVAC, and energy metering systems.
-
OEM Equipment: Integration in machine control systems for packaging, textile, or CNC machines.
Product Advantages
High-Capacity Memory: 3 MB من application memory accommodates complex and scalable control strategies.
Fast Execution Speed: 0.11 µs Boolean execution enables swift logic handling and short cycle times.
Multi-Tasking Performance: الدعمs up to 64 tasks simultaneously with deterministic performance.
Modular Integration: Fully compatible with a wide range من I/O, communication, and specialty modules.
Communication Flexibility: Native serial and USB ports, expandable to Ethernet, CANopen, Prمنibus, etc.
Compact Footprint: Space-efficient design for dense control cabinets.
Diagnostic Functions: Built-in fault detection and remote diagnostics support preventive maintenance.
Future-Ready Platform: الدعمs firmware updates, SCADA connectivity, and IIoT readiness via EcoStruxure.
Latest News Headlines
-
“Schneider Expands M340 Series Capabilities with BMXP3420302”
-
“Energy Efficiency Projects Favor M340 CPUs in Smart Grid Deployment”
-
“Modicon Controllers Now Integrate Seamlessly with AVEVA Edge SCADA”
-
“Industrial Cybersecurity Enhancements in Latest M340 Firmware Release”
-
“BMXP3420302 Deployed in European Food Processing Giant’s Automation Upgrade”
-
“Schneider Launches New EcoStruxure Features for PLC Performance Monitoring”
-
“M340 Series Powers Tunnel Ventilation Controls in Southeast Asia”
-
“Smart OEM Machines Choose BMXP3420302 for Control and Connectivity”
الأسئلة الشائعة (FAQ)
-
Q: What programming environment is used for BMXP3420302?
A: It is programmed using EcoStruxure Control Expert, formerly known as وحدةy Pro. -
Q: Can I use Modbus TCP with this CPU?
A: Yes, but an additional Ethernet module such as BMXNOE0100 is required. -
Q: Does it support CANopen communication?
A: Yes, via optional modules like BMXNOC0401. -
Q: Is the CPU module hot-swappable?
A: No, it must be removed and replaced when the power is منf. -
Q: How many local racks can be used with this CPU?
A: Up to 4 local racks including the base rack can be supported. -
Q: What is the backup strategy for power failure?
A: Optional battery modules or supercapacitors can retain data during power loss. -
Q: Does the module support web diagnostics?
A: With Ethernet modules installed, you can access diagnostics via web interface. -
Q: Can it be used in marine or hazardous areas?
A: It’s certified for industrial use. For marine/hazardous areas, proper enclosures and approvals are necessary. -
Q: What is the execution speed for typical instructions?
A: Boolean instructions are executed at 0.11 µs. -
Q: What is the lifecycle status من this model?
A: As من now, the BMXP3420302 is fully active and supported under Schneider’s roadmap.
Related الطرازs (Same Series or Functionality)
| الطراز | الوصف | User Memory | Ports |
|---|---|---|---|
| BMXP342020 | High-speed CPU, 2 MB RAM | 2 MB | USB, Serial |
| BMXP342030 | Standard version من 3420302 | 3 MB | USB, Serial |
| BMXP342050 | Premium CPU with extended features | 4 MB | USB, Serial |
| BMXP341030 | Entry CPU with 768 KB memory | 768 KB | USB, Modbus |
| BMXP340000 | Basic CPU for low-end applications | 128 KB | None |
| BMXP341020 | Basic with Modbus and USB support | 512 KB | USB |
| BMXP341000 | Cost-effective processor for OEMs | 256 KB | USB, Serial |
| BMXP342020H | Harsh-environment version من 342020 | 2 MB | USB, Serial |
Popular Schneider Electric الطرازs
| الطراز | الوصف | الفئة | Key Feature |
|---|---|---|---|
| TM241CE40U | Modicon M221 Controller | Compact PLC | 40 I/O, Ethernet |
| TM251MESE | Modicon M251 Controller with Ethernet Switch | Performance PLC | Dual Ethernet, CANopen |
| BMXNOE0100 | M340 Ethernet Comm. Module | Communication Module | Modbus TCP, diagnostics |
| TM3DI32K | 32-channel Digital Input Module | I/O Module | Sink/source input |
| LXM32AU90M2 | Lexium 32 Servo Drive | Motion Control | 0.9 kW power, EtherCAT support |
| HMISTU855 | HMI with 5.7” touchscreen | Operator Interface | USB, Serial, Modbus |
| BMXCPS2010 | M340 Power Supply Module | Power Supply | 24V input, 5A output |
| TSXETG100 | Ethernet Gateway Module | Network Interface | Transparent to serial devices |
