مقدمة المنتج

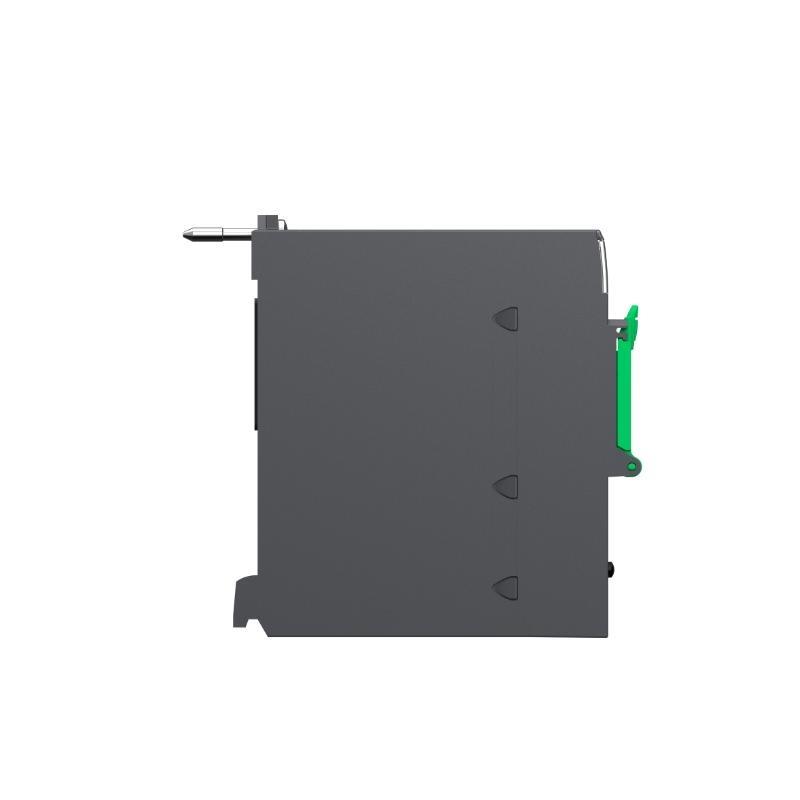

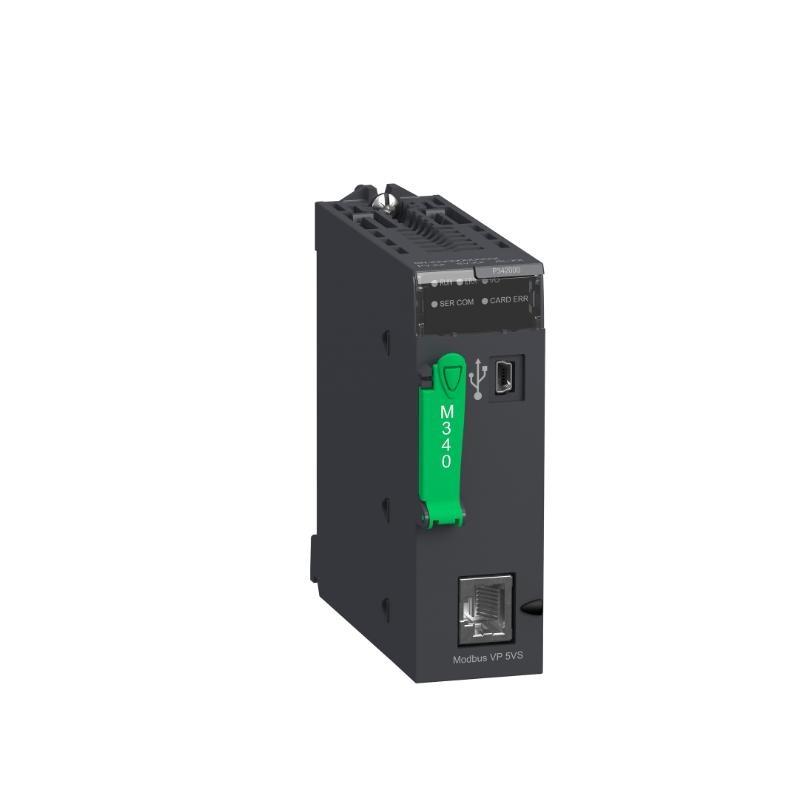

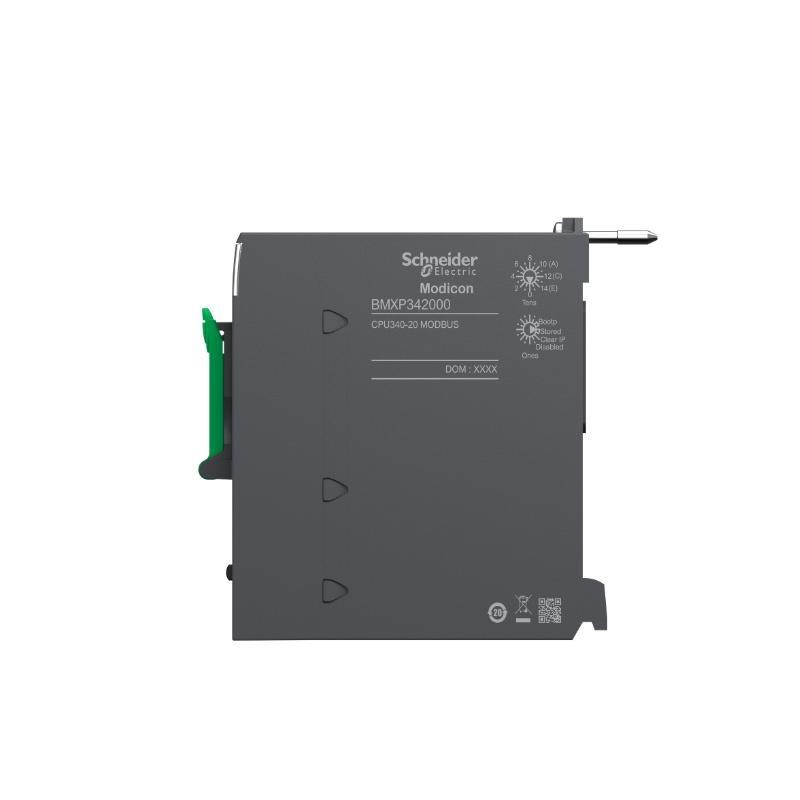

The Schneider BMXP342000 processor is a high-performance central processing وحدة designed for the Modicon M340 programmable logic controller (PLC) family. This processor enhances automation systems by providing faster computation speed, greater memory capacity, and improved communication capabilities compared to its predecessors. Built to meet the rigorous demands من industrial environments, the BMXP342000 supports complex control tasks across diverse industries, delivering reliable and precise performance.
Engineered with scalability in mind, the BMXP342000 fits seamlessly into existing M340 architectures, supporting a modular approach to system design. Its robust connectivity options and high processing power make it a versatile choice for applications requiring real-time data processing, advanced diagnostics, and integration with various field devices and network protocols.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Processor Module |
| الطراز Number | BMXP342000 |
| CPU Speed | 400 MHz |
| RAM Memory | 16 MB |
| Program Memory | 4 MB flash |
| Communication Interfaces | Ethernet 10/100 Mbps, Serial Link, USB |
| الدعمed Protocols | Modbus TCP/IP, Modbus RTU, Ethernet/IP, Prمنibus (via modules) |
| Input Voltage | 24 V DC |
| Power Consumption | Approximately 10 W |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 409 x 130 x 394 mm |
| الوزن | 0.2 kg |
| Mounting | DIN rail or panel mounting within Modicon M340 chassis |
| Certifications | CE, UL, CSA, RoHS, EAC |
Applications
The BMXP342000 processor module is suited for a wide variety من industrial control scenarios where high-speed processing and reliable operation are essential:
-
Manufacturing Lines: Controls and synchronizes assembly lines, robotic cells, and automated production equipment.
-
Process Industries: Manages chemical, pharmaceutical, and food processing plants with stringent process control demands.
-
Energy Sector: Supervises power distribution, renewable energy plants, and substation automation.
-
Water and Wastewater Treatment: Ensures accurate control and monitoring من treatment processes.
-
Material Handling and Logistics: Operates conveyors, sorting systems, and warehouse automation.
-
Building Automation: Oversees HVAC, lighting, and security systems in commercial and industrial facilities.
-
Transportation Systems: Used in railway signaling, traffic control, and automated toll systems.
Advantages
-
Enhanced Processing Speed: The 400 MHz CPU boosts execution speed for complex programs and rapid data processing.
-
Expanded Memory Capacity: 16 MB RAM and 4 MB flash memory allow large, sophisticated programs and data storage.
-
Versatile Communication Interfaces: Multiple options including Ethernet, serial link, and USB enhance system integration.
-
Advanced Diagnostics and Monitoring: Built-in tools help detect faults quickly, reducing downtime.
-
Scalable and Modular Design: Easily expands within the Modicon M340 family to meet evolving automation needs.
-
Wide Environmental Tolerance: Operates reliably across a broad temperature and humidity range.
-
Energy Efficient: Optimized for low power consumption relative to processing capability.
-
Reliable and Durable Construction: Meets stringent industrial standards for vibration, shock, and EMC immوحدةy.
-
Seamless Integration: Fully compatible with Schneider Electric’s ecosystem, supporting advanced automation sمنtware.
-
Comprehensive Safety and Security Features: الدعمs secure access and robust control integrity.
الأسئلة الشائعة (FAQ)
-
Q: What is the main function من the BMXP342000 processor?
A: It serves as the central processing وحدة for the Modicon M340 PLC, executing control logic and managing communication. -
Q: How much memory does the BMXP342000 provide?
A: It includes 16 MB من RAM and 4 MB من flash memory for program and data storage. -
Q: What communication protocols are supported?
A: The processor supports Ethernet/IP, Modbus TCP/IP, Modbus RTU, and can interface with Prمنibus through expansion modules. -
Q: Is the BMXP342000 suitable for use in harsh industrial environments?
A: Yes, it operates between 0°C and +60°C and is designed to withstand vibration and shock typical من industrial settings. -
Q: What are the power supply requirements?
A: It requires a 24 V DC power supply with an approximate consumption من 10 watts. -
Q: Can the BMXP342000 be used with other Modicon M340 modules?
A: Yes, it is fully compatible with the M340 series I/O and communication modules. -
Q: Does the processor support hot swapping?
A: No, the system should be powered down before installation or removal من the processor. -
Q: What are the dimensions and weight من the processor?
A: Dimensions are 409 x 130 x 394 mm; weight is about 0.2 kg. -
Q: Which sمنtware is recommended for programming the BMXP342000?
A: Schneider Electric’s وحدةy Pro sمنtware is used for programming and configuration. -
Q: What certifications does this processor hold?
A: The BMXP342000 is CE, UL, CSA, RoHS, and EAC certified.
Related or Similar Modules (Same Series/Function)
| الطراز Number | الوصف | Type |
|---|---|---|
| BMXP341000 | Modicon M340 CPU, 200 MHz | Processor Module |
| BMXP343040 | Modicon M340 CPU, 600 MHz | High-speed Processor |
| BMXP341010 | M340 CPU with extended memory | Processor Module |
| BMXNOC0401 | Ethernet Communication Module | Network Module |
| BMXDDA0400 | Analog Input Module | I/O Module |
| BMXDDO1602 | Digital Output Module | I/O Module |
Popular Schneider Electric Modules (Same العلامة التجارية)
| الطراز Number | الوصف | Type |
|---|---|---|
| BMXCPU31110 | Modicon M340 CPU | Processor Module |
| BMXAMO0410 | Analog Output Module | Analog Output |
| BMXDDI3202K | Digital Input Module | Digital Input |
| BMXDRA1605 | Relay Output Module | Digital Output |
| BMXCPS2010 | Power Supply Module | Power Supply |
| BMXART0414 | Analog Input Module | Analog Input |
