مقدمة المنتج

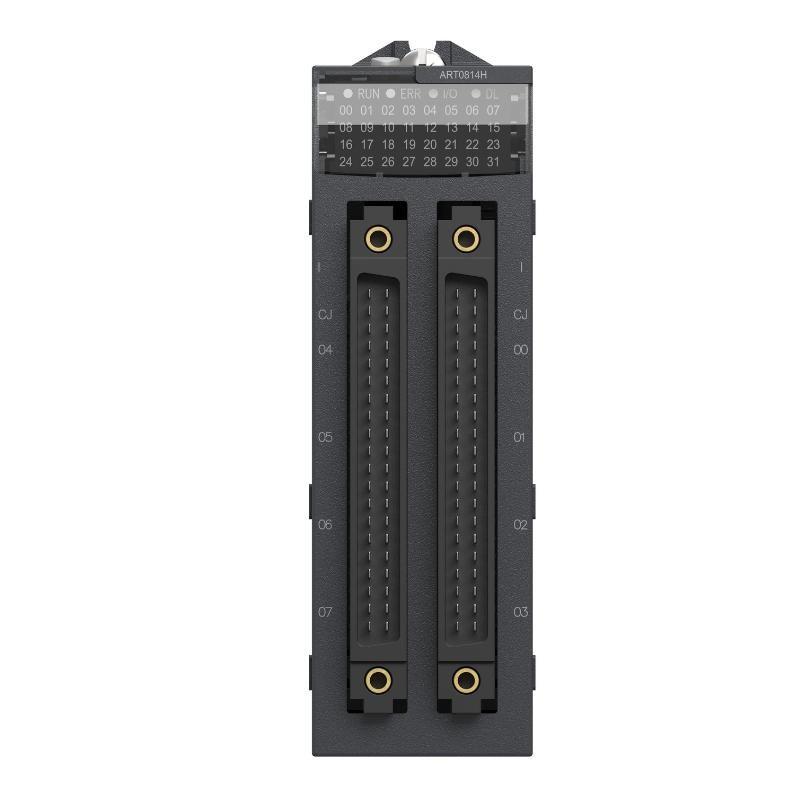

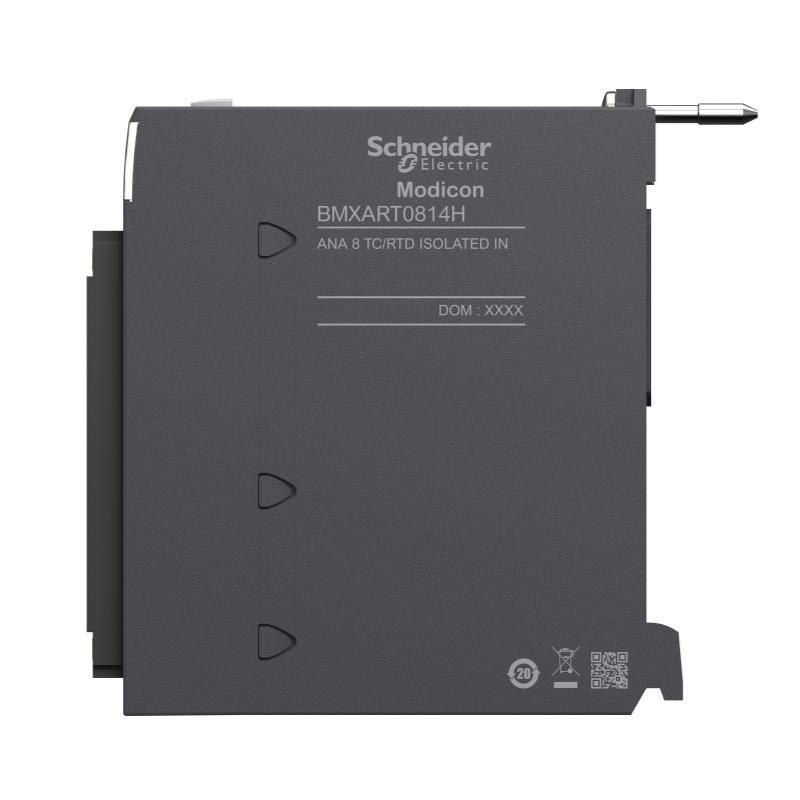

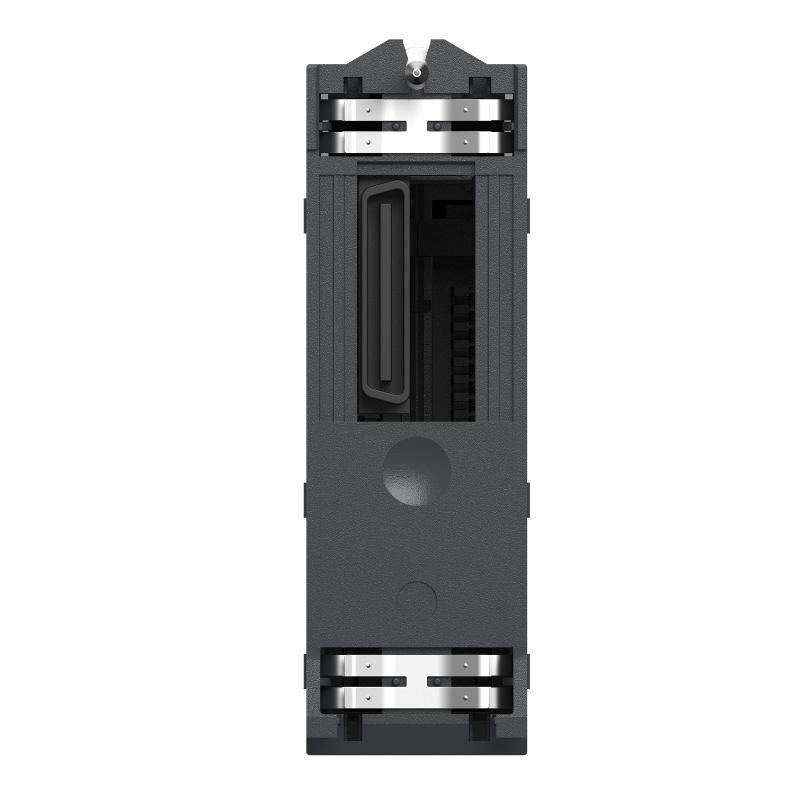

The Schneider BMXART0814H Analog Input Module is a ruggedized analog input module from the Modicon X80 platform, designed for use with Modicon M340 and Modicon M580 Programmable Automation Controllers (PACs). The module provides high-accuracy analog signal acquisition for industrial automation systems, enabling controllers to monitor and process critical process variables from field instruments and sensors.
Featuring 8 analog input channels, the BMXART0814H is capable من collecting data from a wide variety من industrial devices, including pressure transmitters, temperature sensors, flow transmitters, level measurement instruments, and other process monitoring equipment. The module incorporates a 15-bit plus sign input resolution, ensuring precise measurement and reliable signal conversion for demanding control applications.
A key feature من the BMXART0814H is channel-to-channel isolation. This isolation improves measurement accuracy while protecting the automation system from electrical interference, ground loops, and signal disturbances commonly encountered in industrial environments. As a result, the module is particularly well suited for critical process applications requiring stable and accurate analog data acquisition.
The BMXART0814H is specifically designed for harsh industrial environments. Its ruggedized construction allows operation across an extended temperature range من -25°C to +70°C, making it suitable for outdoor installations, utility infrastructure, mining facilities, chemical plants, and other challenging environments.
As part من the Modicon X80 family, the module benefits from a common automation platform shared by Modicon M340 and Modicon M580 systems. This architecture simplifies system engineering, maintenance, spare parts management, and future expansion while delivering the reliability required for modern industrial automation projects.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز | Schneider BMXART0814H |
| Product Type | Analog Input Module |
| Series | Modicon X80 |
| Compatible Platforms | Modicon M340, Modicon M580 |
| Number من Input Channels | 8 |
| Input Resolution | 15-bit + Sign |
| Signal Type | Analog Input |
| Channel Isolation | Yes |
| Current Consumption | 150 mA at 3.3 VDC |
| Electrical Connection | 40-Way Connector |
| Operating Temperature | -25°C to +70°C |
| Protection Rating | IP20 |
| Application Type | Process Measurement and Monitoring |
| Certifications | CE, UL, CSA, ATEX, IECEx, RCM, EAC, Merchant Navy |
| Compliance Standards | IEC 61131-2, CSA C22.2 رقم 142, CSA C22.2 رقم 213, UL 508 |
| Environmental Rating | Ruggedized Industrial Design |
| Dimensions | 100 × 32 × 86 mm |
| الوزن | 0.165 kg |
Applications
• Water and Wastewater Treatment Plants – Monitors flow rates, tank levels, pressure values, and chemical dosing processes.
• Power Generation Facilities – Acquires critical operating data from turbines, generators, and auxiliary equipment.
• Chemical Processing Plants – Collects process measurements for temperature, pressure, flow, and level control systems.
• Mining Operations – الدعمs monitoring من processing equipment and environmental control systems.
• Oil and Gas Facilities – Interfaces with field transmitters used in production and processing applications.
• Energy and Utility Infrastructure – Provides accurate process monitoring for distribution and generation systems.
• Industrial Manufacturing Plants – Acquires process variables used in machine and production control.
• Transportation Infrastructure – الدعمs monitoring applications in tunnels, rail systems, and infrastructure facilities.
• Remote Industrial Installations – Suitable for outdoor and environmentally demanding locations.
• Process Automation Systems – Enables precise measurement and feedback control in continuous and batch processes.
Advantages
• 8 High-Accuracy Analog Inputs – الدعمs simultaneous monitoring من multiple process variables.
• 15-Bit Plus Sign Resolution – Provides precise signal acquisition and improved measurement accuracy.
• Channel-to-Channel Isolation – Minimizes electrical interference and enhances signal integrity.
• Ruggedized Construction – Designed for operation in severe industrial environments.
• Extended Temperature Range – Operates reliably from -25°C to +70°C.
• High Measurement Stability – Suitable for critical process monitoring applications.
• ممتاز Noise Immوحدةy – Isolation helps protect against ground loops and electrical disturbances.
• Modicon M340 and M580 Compatibility – Integrates seamlessly into Schneider automation architectures.
• Reduced Lifecycle Costs – Common X80 platform simplifies maintenance and spare parts management.
• Certified for Demanding Industries – Meets requirements for hazardous and industrial environments.
