مقدمة المنتج

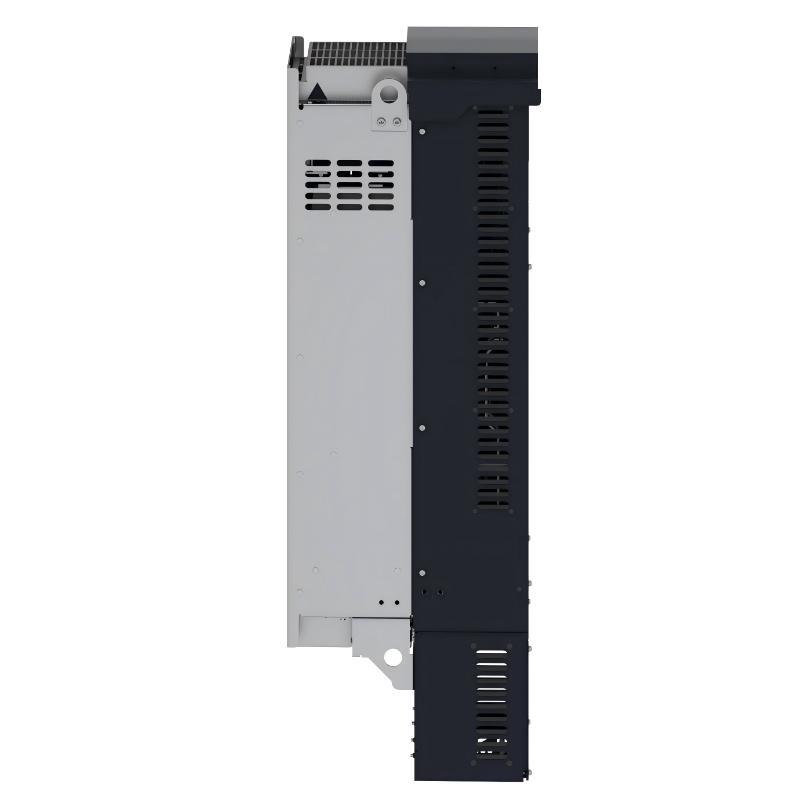

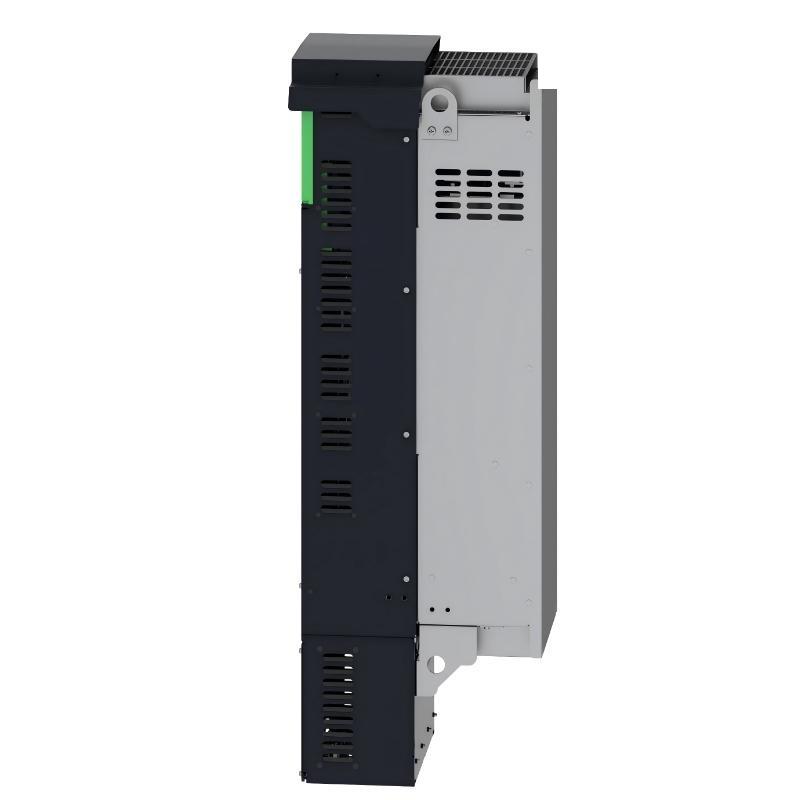

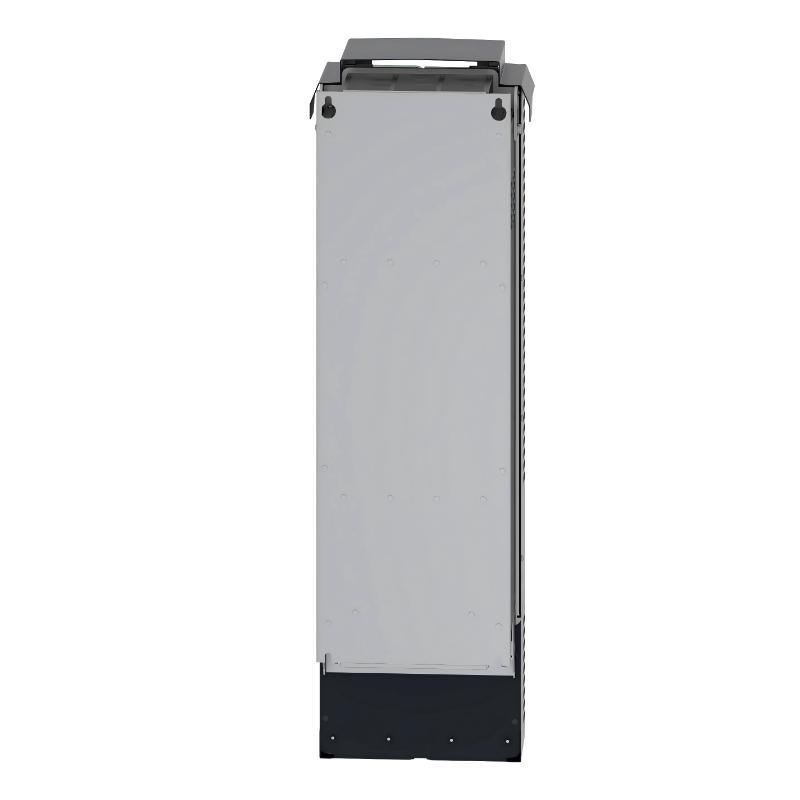

The Schneider Electric ATV630D55N4 Variable Speed Drive is a high-power model within the Altivar Process ATV600 series, engineered to supply three-phase synchronous and asynchronous motors in demanding industrial process environments. It is designed to support energy optimization, asset management, and overall process performance, addressing the critical needs من process and utility applications.
Operating with a rated supply voltage من 380–480 V AC, this drive supports motors up to 55 kW / 75 HP for normal-duty applications and 45 kW / 60 HP for heavy-duty applications. Its innovative Start/Stop energy-saving function enables energy savings من up to 30% during standby operation, without requiring additional hardware or added cost.
The ATV630D55N4 is equipped with three integrated RJ45 communication ports, one Ethernet port, and two serial ports, allowing seamless integration into automation, monitoring, and energy management systems. Optimized for fluid management and energy efficiency, it منfers high flexibility across a wide range من industrial sectors, including utilities and heavy process industries.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | ATV630D55N4 |
| Product Series | Altivar Process ATV600 |
| Drive Type | Variable Speed Drive (VFD) |
| Motor Type الدعمed | Three-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Normal Duty Power Rating | Up to 55 kW / 75 HP |
| Heavy Duty Power Rating | Up to 45 kW / 60 HP |
| Overload Capability (Normal Duty) | Up to 120% |
| Overload Capability (Heavy Duty) | Up to 150% |
| Integrated Communication | 3 × RJ45 ports, Ethernet, 2 × serial ports |
| Installation Type | Vertical wall mounting (±10°) |
| Energy Saving Function | Start/Stop energy optimization |
| Accessories متاح | Fan kits, graphic terminal |
| Optional Modules | I/O expansion modules, communication modules, EMC input filters |
| Dimensions | 922 × 290 × 323 mm |
| الوزن | 56.5 kg |
Applications
• Water Treatment Facilities: Efficient control من large pumps to reduce energy consumption and optimize flow.
• Wastewater Treatment Plants: Reliable operation for high-power motors under continuous and variable loads.
• Mining Operations: الدعمs heavy-duty motor control for conveyors, crushers, and processing equipment.
• Minerals and Metals Processing: Designed for demanding applications requiring high torque and overload capacity.
• Oil and Gas Industry: Ensures stable motor operation in energy-intensive upstream and downstream processes.
• Food and Beverage Processing: Provides precise control for large-scale production and fluid handling systems.
Advantages
• Exceptional Energy Efficiency: Start/Stop function reduces standby energy consumption by up to 30%.
• High Power Capability: الدعمs large motors in both normal-duty and heavy-duty operating modes.
• Advanced Communication Integration: Built-in Ethernet and multiple RJ45 ports simplify system connectivity.
• Process-Focused Architecture: Optimized for fluid management, energy monitoring, and process optimization.
• Scalable and Flexible Design: الدعمs a wide range من accessories and optional expansion modules.
• Reduced Total Cost من Ownership: Improves equipment efficiency while lowering energy and maintenance costs.
