مقدمة المنتج

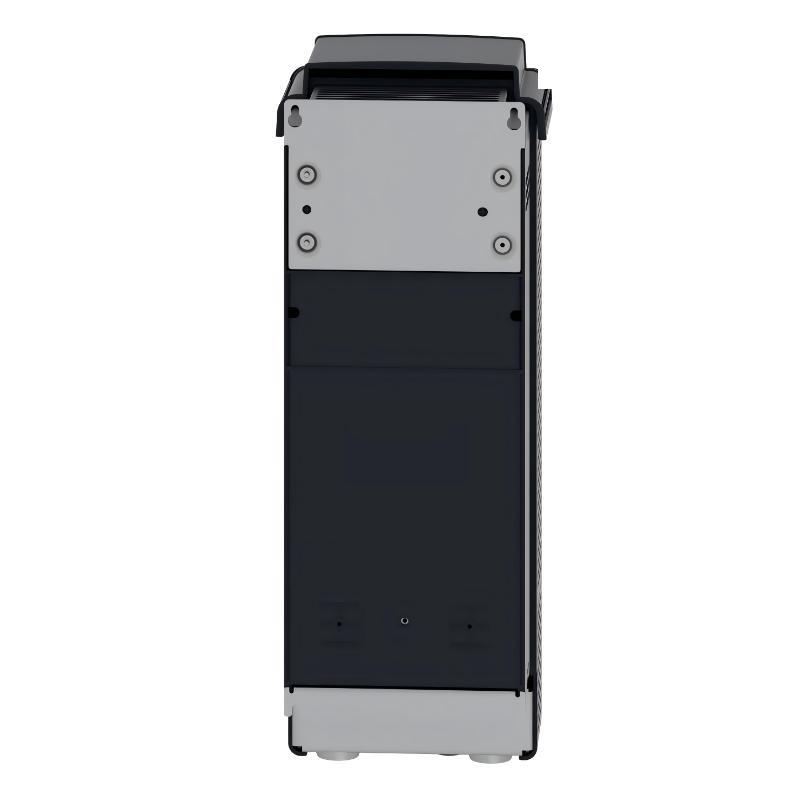

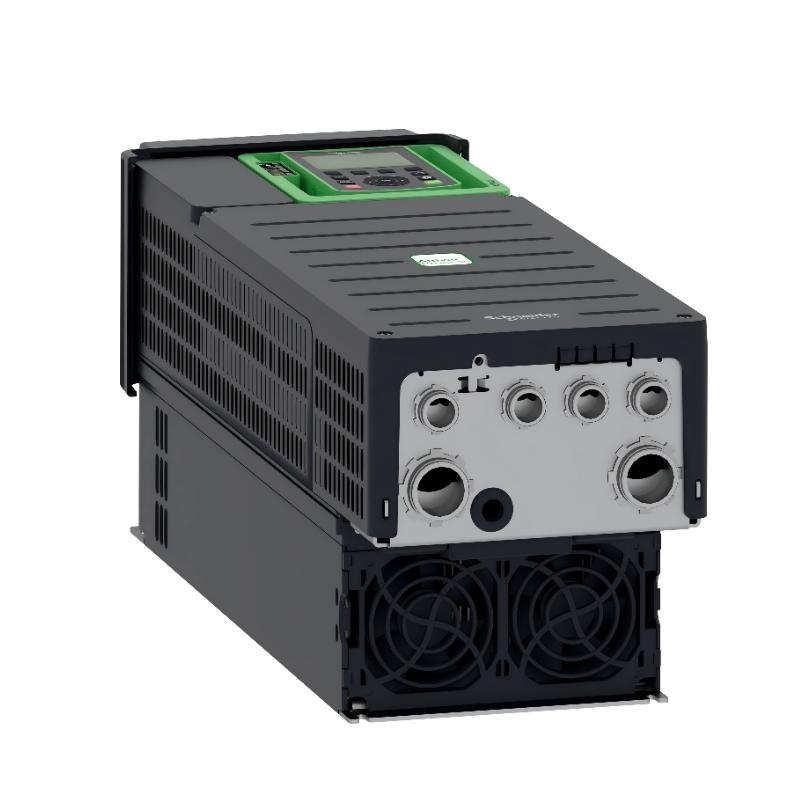

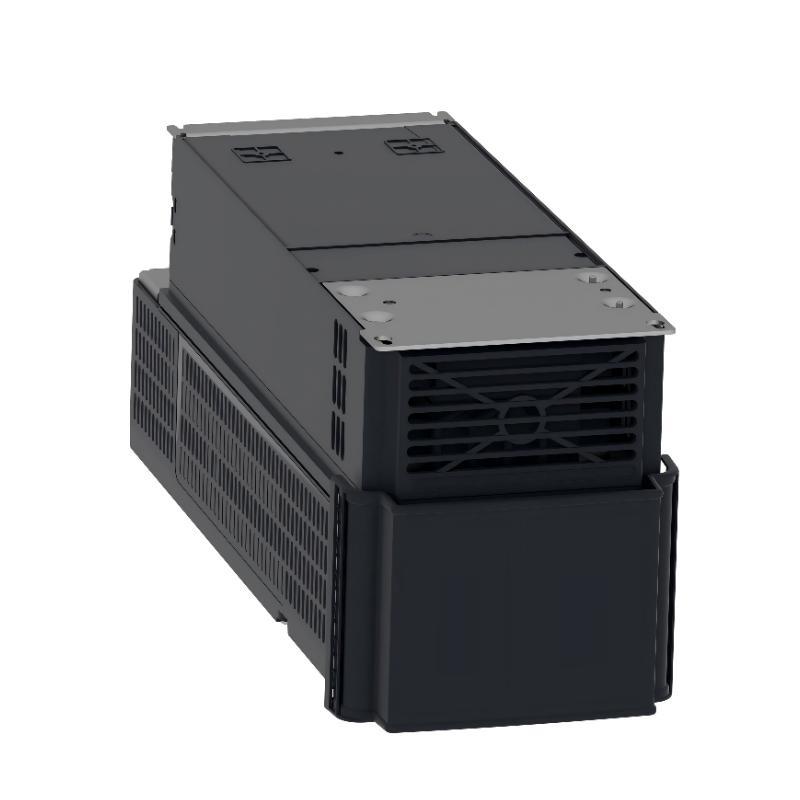

The Schneider Electric ATV630D22N4 Variable Speed Drive is a member من the Altivar Process ATV600 series, designed to supply power to three-phase synchronous and asynchronous motors. It is engineered to enhance energy efficiency, process reliability, and asset performance in industrial environments with demanding operational requirements.
Operating within a rated supply voltage من 380–480 V AC, this drive supports motors up to 22 kW / 30 HP for normal-duty applications and 18.5 kW / 25 HP for heavy-duty applications. Its innovative Start/Stop energy-saving function enables up to 30% energy savings during standby operation, without additional hardware or configuration costs.
The ATV630D22N4 integrates three built-in RJ45 communication ports, one Ethernet port, and two serial communication ports, allowing seamless integration into modern automation and monitoring systems. It is optimized for fluid management and energy-efficient process control, منfering high flexibility across a wide range من industries.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | ATV630D22N4 |
| Product Series | Altivar Process ATV600 |
| Drive Type | Variable Speed Drive (VFD) |
| Motor Type الدعمed | Three-phase synchronous and asynchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Normal Duty Power Rating | Up to 22 kW / 30 HP |
| Heavy Duty Power Rating | Up to 18.5 kW / 25 HP |
| Overload Capability (Normal Duty) | Up to 120% |
| Overload Capability (Heavy Duty) | Up to 150% |
| Integrated Communication | 3 × RJ45 ports, Ethernet, 2 × serial ports |
| Installation Type | Vertical wall mounting (±10°) |
| Energy Saving Function | Start/Stop energy optimization |
| Accessories متاح | Fan kits, graphic terminal |
| Optional Modules | I/O expansion modules, communication modules, EMC input filters |
| Dimensions | 546 × 211 × 232 mm |
| الوزن | 14.3 kg |
Applications
• Water Treatment Facilities: Efficient control من pumps to optimize flow and reduce energy consumption.
• Wastewater Treatment Plants: Reliable operation under continuous and variable load conditions.
• Mining Operations: Stable motor control for conveyors, crushers, and processing equipment.
• Minerals and Metals Processing: الدعمs energy-efficient operation من heavy industrial machinery.
• Oil and Gas Industry: Provides precise motor control in energy-intensive process systems.
• Food and Beverage Production: Enables accurate speed and flow regulation for process consistency.
Advantages
• Significant Energy Savings: Start/Stop function reduces standby energy usage by up to 30%.
• Advanced Communication Capability: Built-in Ethernet and multiple RJ45 ports simplify system integration.
• Wide Power Range: الدعمs both normal-duty and heavy-duty motor applications.
• Process-Focused Design: Optimized for fluid handling and energy management applications.
• Expandable Architecture: الدعمs a wide range من accessories and optional modules.
• Lower Total Cost من Ownership: Improves efficiency, reduces downtime, and simplifies maintenance.
