مقدمة المنتج

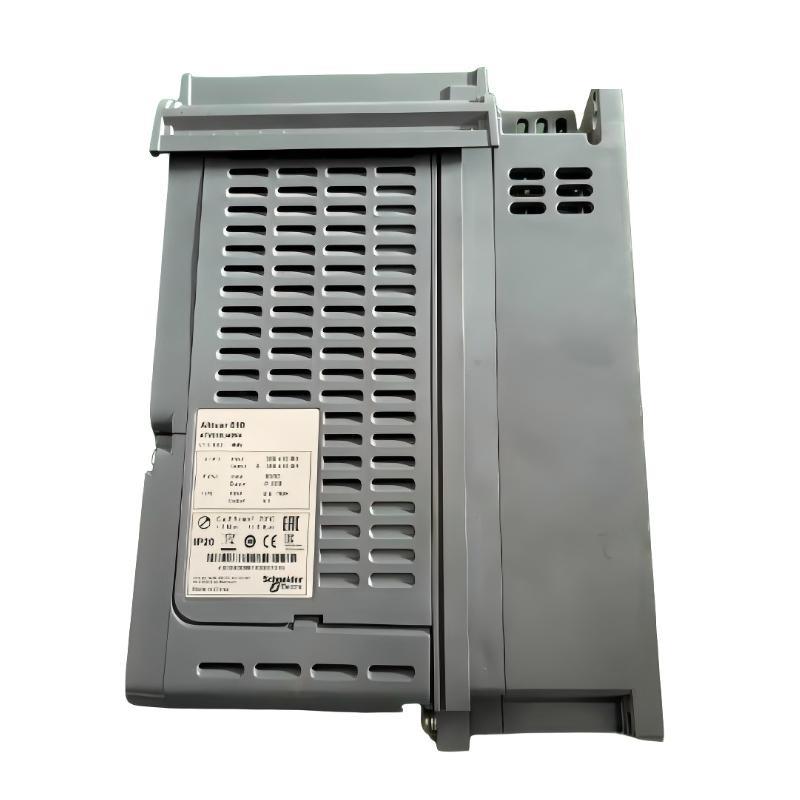

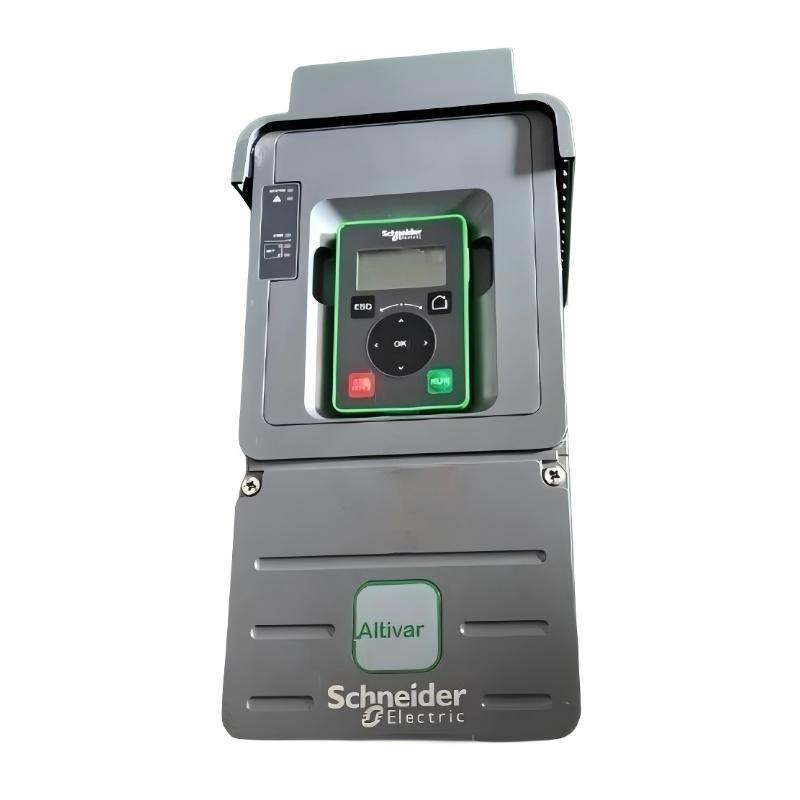

The Schneider Electric ATV610U40N4 is a standard-version Easy Altivar 610 variable speed drive, engineered for reliable speed control من three-phase asynchronous and synchronous motors. It is designed to operate within a rated supply voltage range من 380 to 460 VAC and supports industrial power networks with 50/60 Hz frequency.
This drive is optimized for common industrial applications such as fans, pumps, compressors, and conveyors, where stable motor control, smooth operation, and energy efficiency are required. The ATV610U40N4 delivers 4 kW motor power in normal duty applications and 3 kW in heavy-duty operation, making it suitable for both continuous loads and demanding start-stop conditions.
With cabinet-mounted installation, forced convection cooling, and an integrated EMC filter compliant with IEC 61800-3 الفئة C3, the drive simplifies system design while ensuring reliable electromagnetic compatibility. Its plug-and-play philosophy allows fast commissioning with minimal parameter adjustment, helping reduce installation and startup time.
مواصفات المنتج
| Parameter | الوصف |
|---|---|

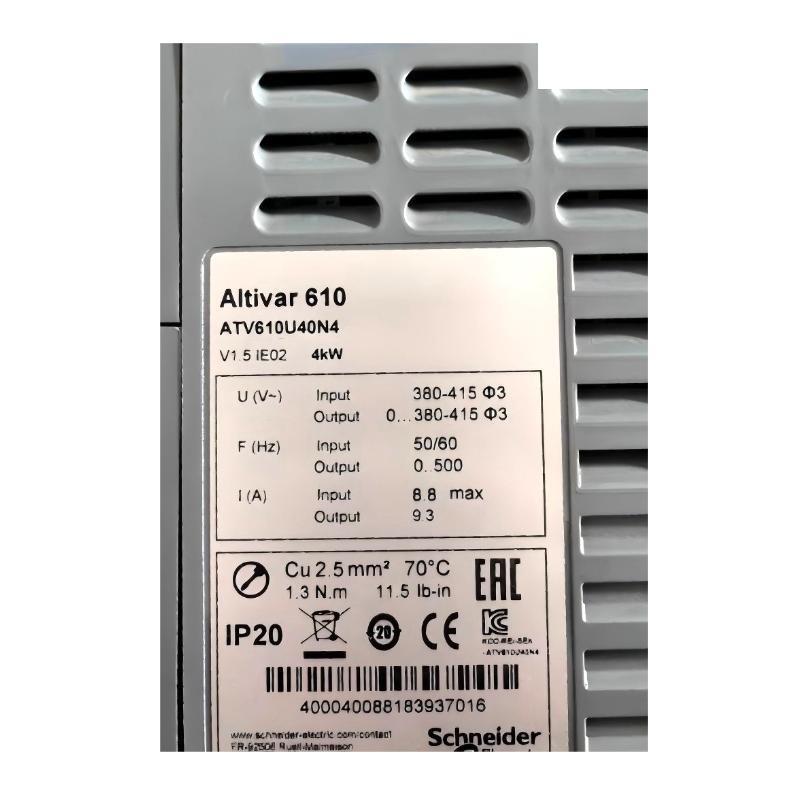

| Product Name | Schneider Electric ATV610U40N4 |
| Range من Product | Easy Altivar 610 |
| Product Type | Variable Speed Drive |
| Device Short Name | ATV610 |
| Variant | Standard version |
| Product Destination | Asynchronous motors, Synchronous motors |
| Product-Specific Applications | Fan, pump, compressor, conveyor |
| Mounting Mode | Cabinet mount |
| Network Number من Phases | 3 phases |
| Supply Frequency | 50 / 60 Hz ±5% |
| Rated Supply Voltage | 380 – 460 V (−15% / +10%) |
| Motor Power (Normal Duty) | 4 kW / 5 hp |
| Motor Power (Heavy Duty) | 3 kW |
| EMC Filter | Integrated, IEC 61800-3 الفئة C3 |
| Degree من Protection | IP20 |
| Cooling Method | Forced convection |
| Dimensions | 297 × 145 × 203 mm |
| الوزن | 4.045 kg |
Applications
• Fan systems, providing smooth airflow control and reduced energy consumption.
• Pump applications, especially in water and wastewater treatment processes.
• Compressors, supporting stable speed regulation and controlled startup behavior.
• Conveyor systems, enabling consistent material handling and process stability.
• General-purpose industrial drives, where simplicity and reliability are essential.
Advantages
• Wide application coverage, supporting fans, pumps, compressors, and conveyors.
• Integrated EMC filter, reducing external components and simplifying cabinet wiring.
• Flexible duty capability, suitable for both normal-duty and heavy-duty operation.
• Compact cabinet-mounted design, ideal for space-constrained control panels.
• Stable thermal management, ensured by forced convection cooling.
