مقدمة المنتج

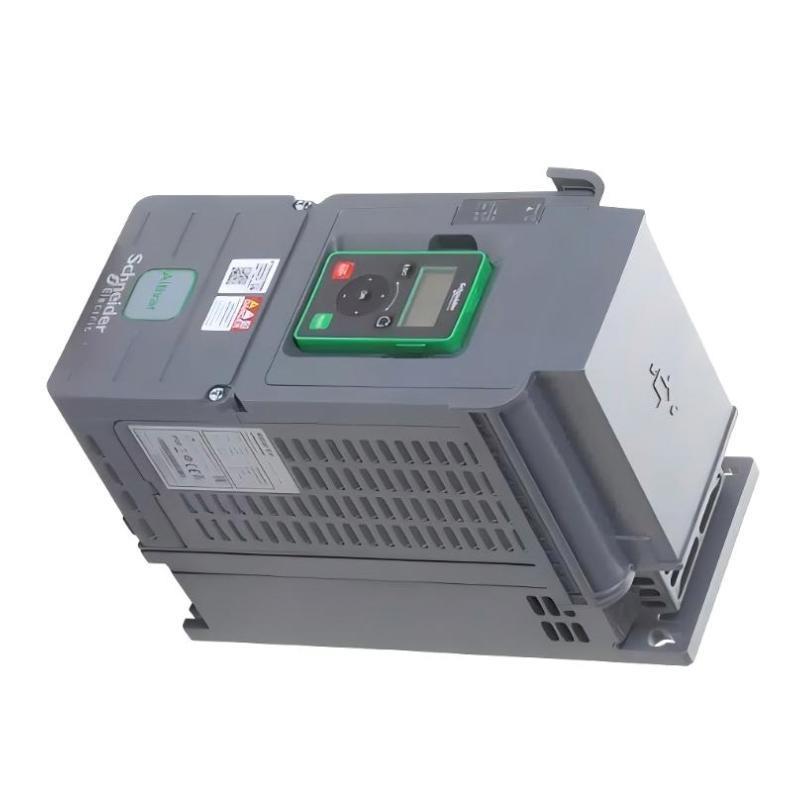

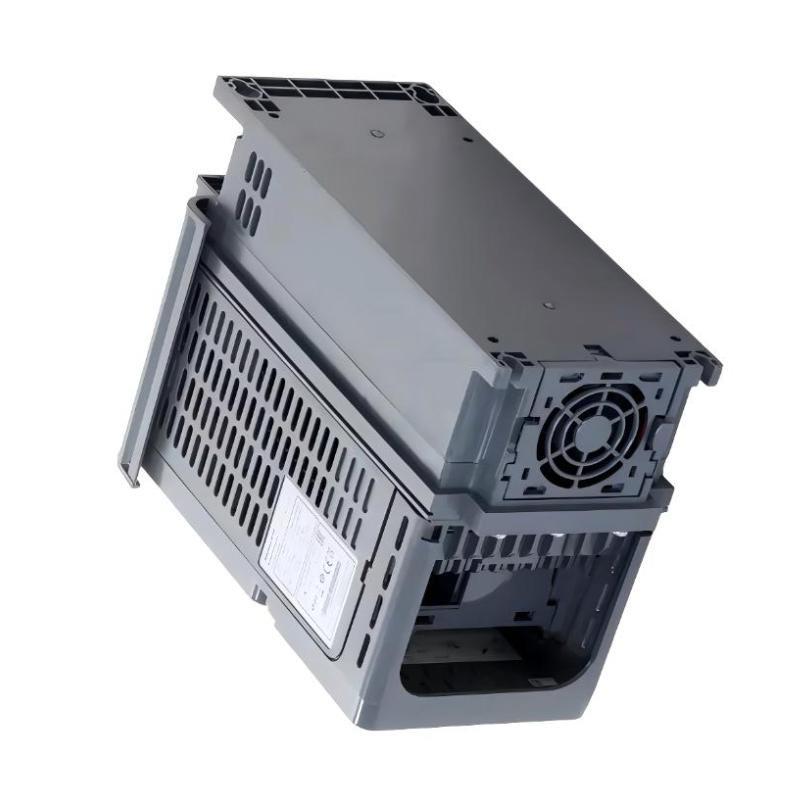

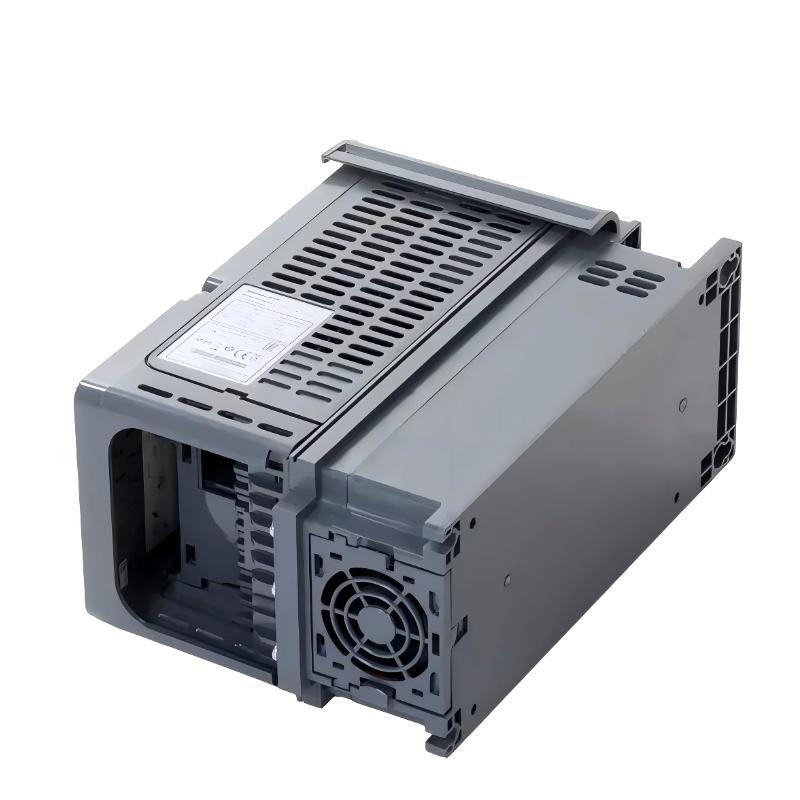

The Schneider Electric ATV610U30N4 is an Easy Altivar 610 Variable Speed Drive (VSD) designed for speed control من three-phase asynchronous and synchronous motors. It operates with a rated supply voltage range من 380 to 460 VAC, making it suitable for standard low-voltage industrial power systems.
This drive supports motors with a rated power من up to 3 kW in light overload applications and up to 2.2 kW (3 hp) in severe overload conditions. It is optimized for applications that require stable motor control, moderate overload capability, and straightforward commissioning.
The ATV610U30N4 provides a plug-and-play solution, with factory-preset parameters that reduce commissioning effort and save process setup time. An integrated input EMC filter ensures compliance with IEC/EN 61800-3 (Edition 2), الفئة C3, for both first and second environments.
This model is specifically designed for water and wastewater treatment, oil and gas, as well as standard applications in process management, equipment management, and building management systems, where reliability and simplicity are key requirements.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product Name | Schneider Electric ATV610U30N4 |
| Product Series | Easy Altivar 610 |
| Product Type | Variable Speed Drive (VSD) |
| Motor Type الدعمed | Three-phase asynchronous and synchronous motors |
| Rated Supply Voltage | 380 – 460 VAC |
| Rated Motor Power (Light Overload) | Up to 3 kW (≤120% overload) |
| Rated Motor Power (Heavy Overload) | Up to 2.2 kW / 3 hp (≤150% overload) |
| Control Method | Scalar (V/f) control |
| Integrated EMC Filter | Yes |
| EMC Compliance | IEC/EN 61800-3, الفئة C3 |
| Application الفئة | Standard industrial applications |
| Cooling Method | Forced air cooling |
| Dimensions | 297 × 145 × 203 mm |
| الوزن | 3.135 kg |
Applications
• Water and wastewater treatment, including pumps, blowers, and circulation systems.
• Oil and gas auxiliary systems, where stable motor speed control is required.
• Process management systems, supporting consistent and repeatable motor operation.
• Equipment management, such as conveyors, mixers, agitators, and fans.
• Building management systems, enabling energy-efficient motor control for HVAC and utilities.
Advantages
• Factory-preset parameters, enabling fast commissioning and reduced setup time.
• Integrated EMC filter, minimizing external components and simplifying cabinet design.
• Flexible overload capability, covering both light-duty and demanding applications.
• Compact and standardized dimensions, consistent across the ATV610 series.
• Reliable performance, tailored for continuous industrial operation.
