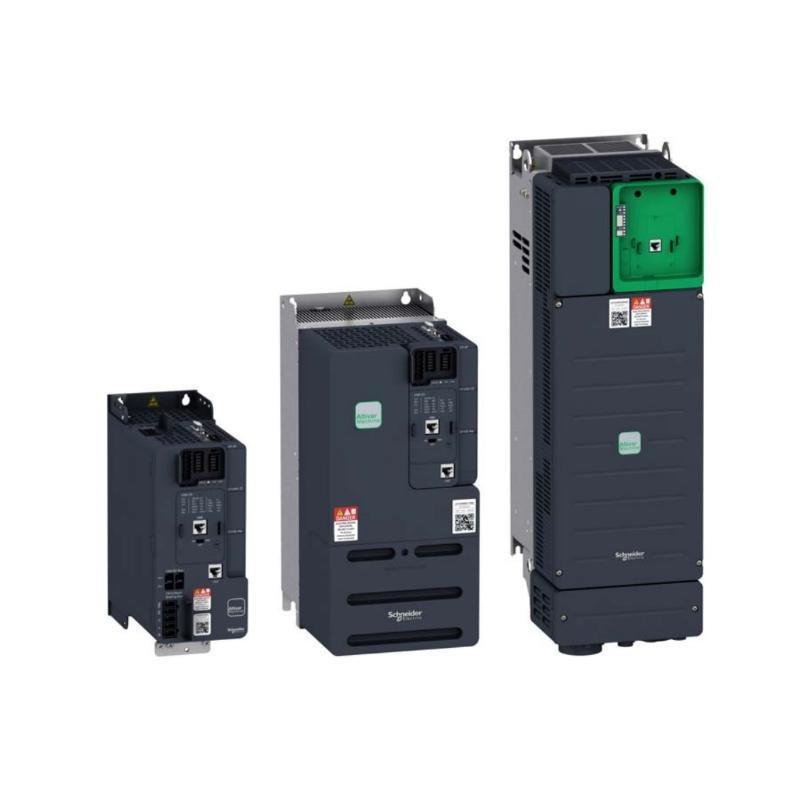

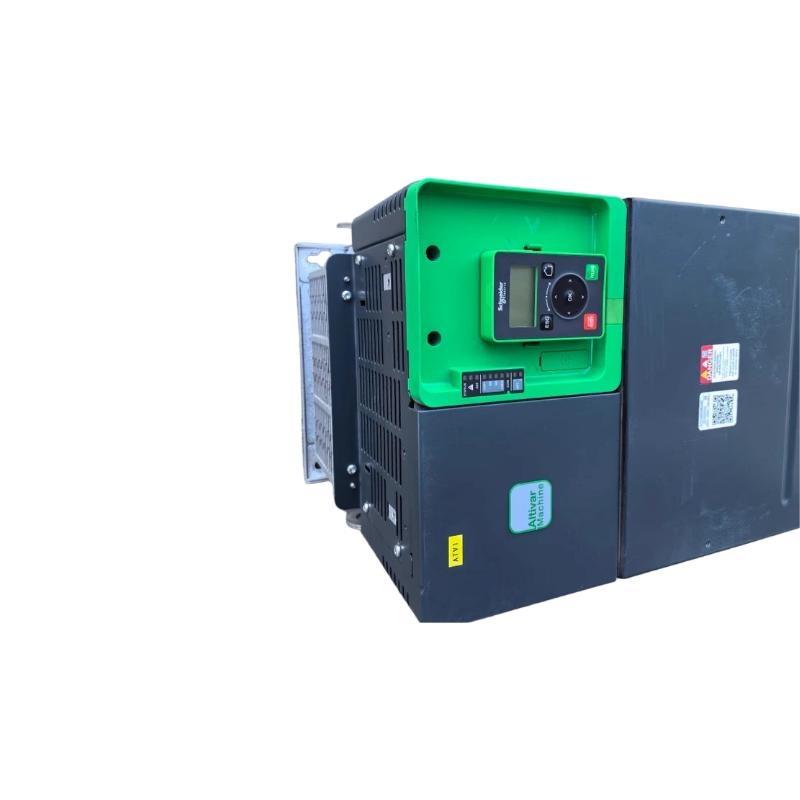

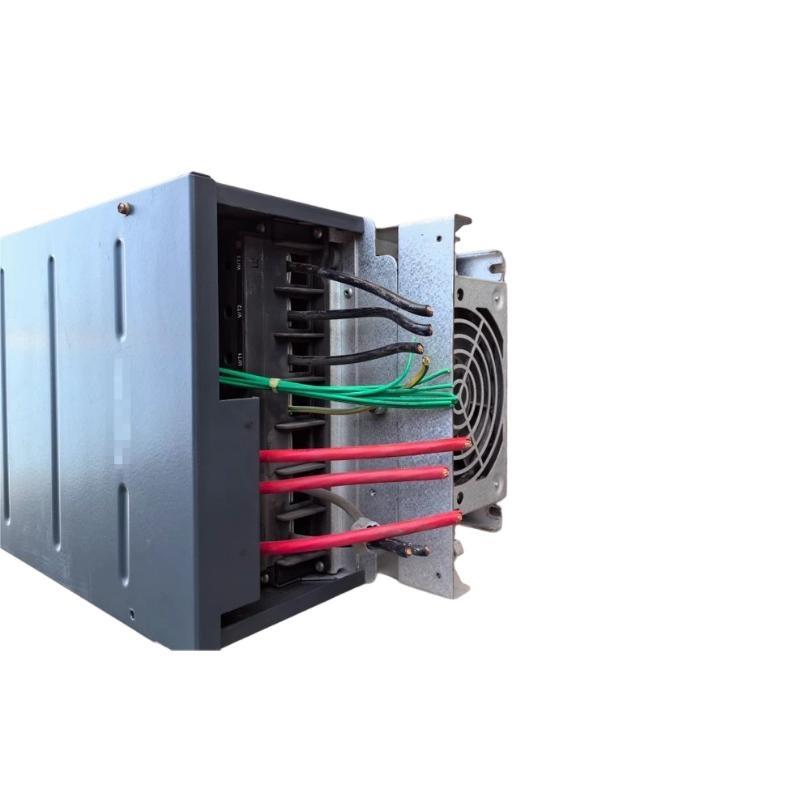

Schneider ATV340D45N4E Variable Speed Drive
The Schneider ATV340D45N4E is a high-performance variable speed drive designed for demanding industrial applications. It منfers precise motor control, high overload capacity, and robust design, making it ideal for heavy-duty environments.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | ATV340D45N4E |
| Power Supply | 380–480 V, 3-phase |
| Rated Motor Power | 45 kW |
| Rated Output Current | 87 A |
| Frequency Range | 0.1–599 Hz |
| Control Method | Sensorless Vector, V/F, Closed-loop |
| Protection Rating | IP21 |
| Operating Temperature | -10°C to +50°C |
| Dimensions (W × H × D) | 271 × 908 × 309 mm |
| الوزن | 56.4 kg |
Applications
The ATV340D45N4E is suitable for a variety من industrial and process control applications, including:
-
Conveyors and material handling systems
-
Packaging and textile machinery
-
Woodworking and metalworking equipment
-
Pumps, compressors, and fans
Advantages
-
High dynamic performance and fast response
-
Integrated safety features (STO function)
-
Simple commissioning and configuration
-
Compatible with a wide range من industrial networks
-
High overload capacity for heavy-duty use
-
Long service life and robust design
FAQ
Q1: What is the rated motor power من the ATV340D45N4E?
A1: The rated motor power is 45 kW.
Q2: Can this drive operate in closed-loop control mode?
A2: Yes, it supports closed-loop control as well as sensorless vector and V/F modes.
Q3: What is the protection rating من this model?
A3: It has an IP21 protection rating.
Q4: What is the frequency output range من the ATV340D45N4E?
A4: The frequency range is from 0.1 Hz to 599 Hz.
Q5: How heavy is the ATV340D45N4E?
A5: The drive weighs 56.4 kg.
Q6: Does this model support safety functions?
A6: Yes, it includes an integrated Safe Torque Off (STO) function.
Q7: What environments is this drive suitable for?
A7: It is suitable for heavy-duty industrial environments with ambient temperatures up to 50°C.
Q8: What are its typical industrial applications?
A8: Conveyors, packaging machines, pumps, compressors, fans, and more.
Q9: What is the supply voltage for this model?
A9: It operates on a 380–480 V, 3-phase power supply.
Q10: Can it be integrated into industrial networks?
A10: Yes, it is compatible with multiple industrial communication protocols.
Recommended Related or Same Series الطرازs
| الطراز | Power | Voltage | Frequency Range | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| ATV340D22N4E | 22 kW | 380–480 V 3PH | 0.1–599 Hz | 271 × 708 × 309 | 34.2 |
| ATV340D30N4E | 30 kW | 380–480 V 3PH | 0.1–599 Hz | 271 × 808 × 309 | 42.1 |
| ATV340D37N4E | 37 kW | 380–480 V 3PH | 0.1–599 Hz | 271 × 858 × 309 | 48.7 |
| ATV340D55N4E | 55 kW | 380–480 V 3PH | 0.1–599 Hz | 271 × 1058 × 309 | 62.3 |
| ATV340D75N4E | 75 kW | 380–480 V 3PH | 0.1–599 Hz | 271 × 1158 × 309 | 75.6 |
| ATV340D90N4E | 90 kW | 380–480 V 3PH | 0.1–599 Hz | 271 × 1258 × 309 | 83.4 |
أخرى Popular Schneider الطرازs
| الطراز | Power | Voltage | Frequency Range | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| ATV630D45N4 | 45 kW | 380–480 V 3PH | 0.1–500 Hz | 330 × 950 × 320 | 59.2 |
| ATV930D45N4 | 45 kW | 380–480 V 3PH | 0.1–599 Hz | 360 × 970 × 340 | 60.5 |
| ATV71HD45N4 | 45 kW | 380–480 V 3PH | 0.1–500 Hz | 300 × 900 × 310 | 58.7 |
| Altivar Process 660 | 45 kW | 380–480 V 3PH | 0.1–500 Hz | 350 × 960 × 330 | 61.0 |
| Altivar 12 ATV12H075M2 | 0.75 kW | 200–240 V 1PH | 0.5–400 Hz | 142 × 184 × 150 | 2.2 |
| Altivar 320 ATV320U55N4C | 5.5 kW | 380–480 V 3PH | 0.1–599 Hz | 150 × 260 × 180 | 4.5 |
