مقدمة المنتج

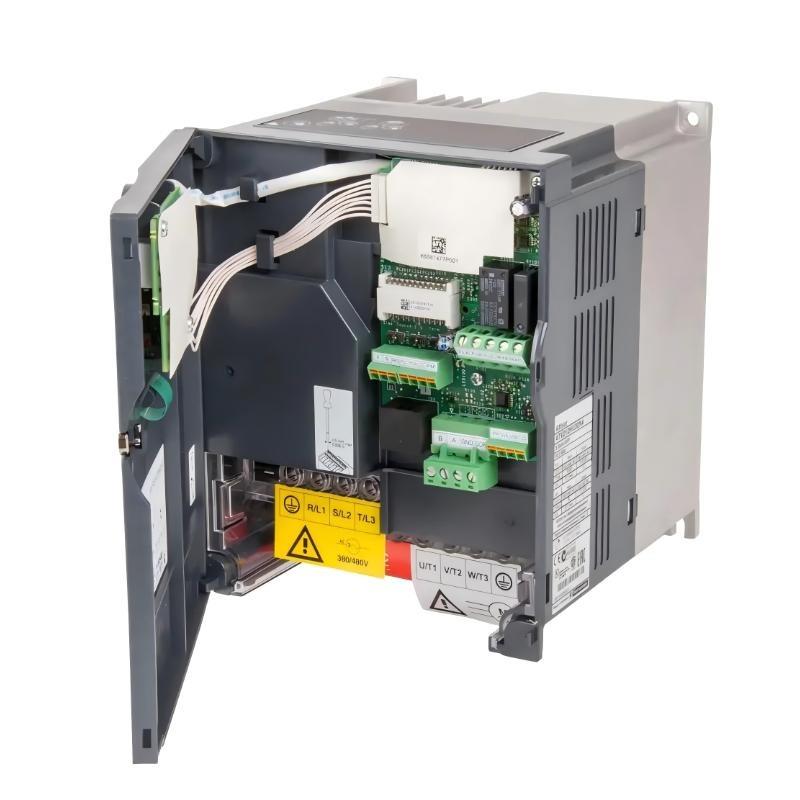

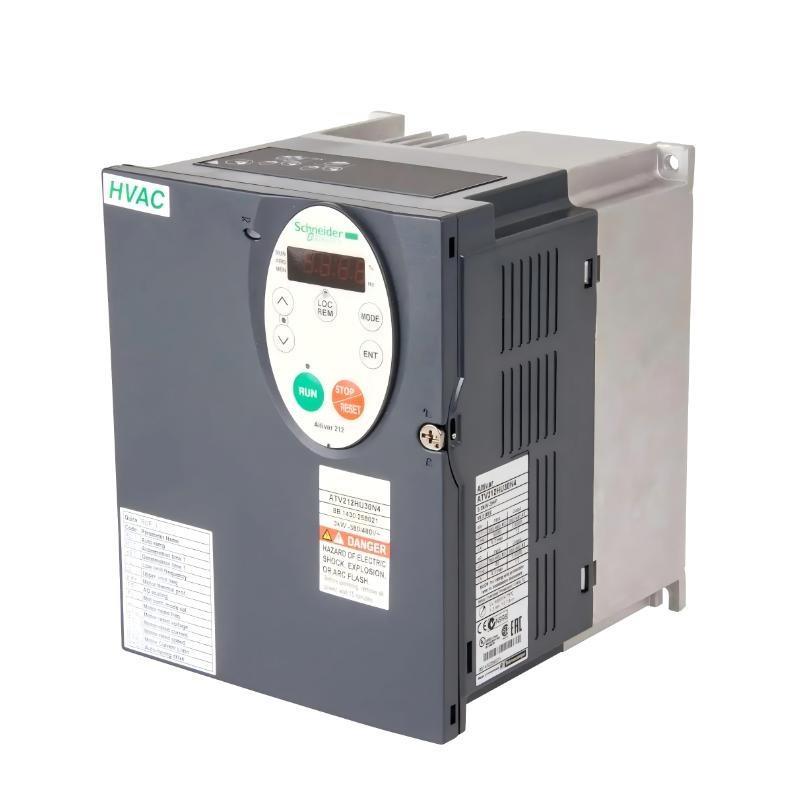

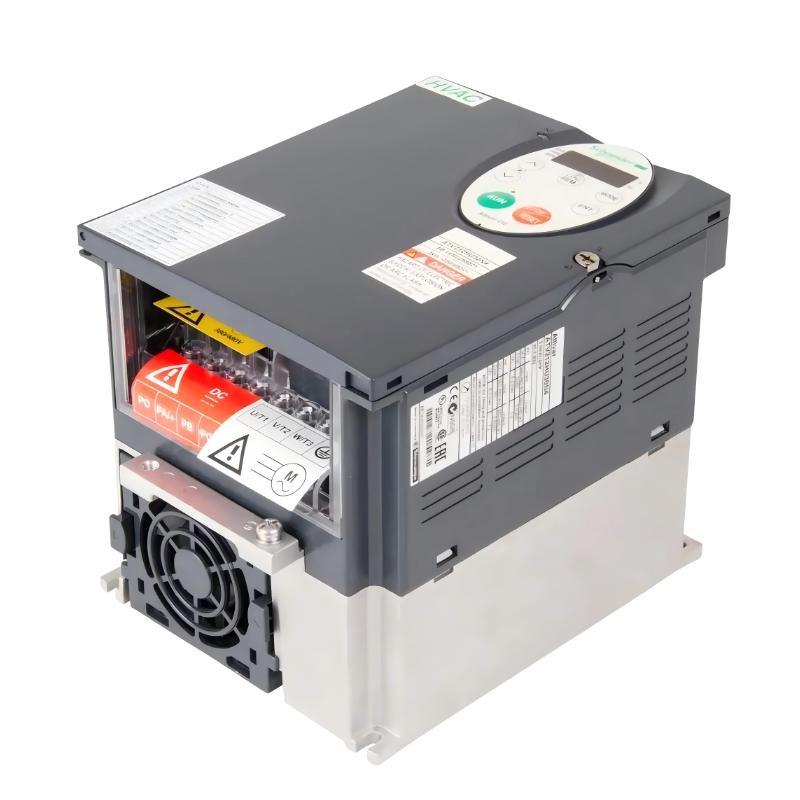

The Schneider ATV212HU30N4 Variable Speed Drive is a compact and high-performance AC drive engineered for robust speed and torque control من three-phase asynchronous motors. Designed for industrial automation environments, this drive supports precise motor control across a range من applications including conveyors, pumps, fans, mixers and HVAC systems.
Built with Schneider Electric’s Altivar 212 series architecture, the ATV212HU30N4 emphasizes reliability, ease من integration, and programming flexibility. It features advanced motor control algorithms that optimize energy efficiency while maintaining smooth acceleration and deceleration. The وحدة can handle harsh electrical environments and provide extended control capabilities through optional communication modules.
مواصفات المنتج
| Parameter الفئة | Specification Detail |
|---|---|
| الطراز Name | Schneider ATV212HU30N4 |
| Series | Altivar 212 |
| Function | Variable Frequency Drive (VFD) |
| Input Power | Three-phase AC |
| Rated Input Voltage | 380–480 V AC |
| Rated Output Current | 30 A |
| Output Power Rating | Approx. 18.5 kW (25 HP) |
| Control Type | V/Hz control, Sensorless Vector Control |
| Protections Included | Overcurrent, overload, overvoltage, undervoltage, short-circuit protection |
| Environmental Protection | IP20 |
| Operating Temperature | -10 °C to +50 °C |
| Cooling Method | Forced air cooling with integrated fan |
| Communication Interfaces | Optional Modbus RTU, CANopen, EtherNet/IP |
| User Interface | Integrated keypad with LCD display |
| Compliance | CE, UL, cUL, RoHS |
| Dimensions | 184 × 142 × 150 mm |
| الوزن | 3.35 kg |
| Mounting Method | Panel mounting or DIN rail mounting |
| Control Terminals | Digital inputs, analog inputs, relay outputs |
Applications
The ATV212HU30N4 Variable Speed Drive is suited for industrial and commercial motor control where variable speed, energy efficiency and precise torque are necessary. Typical application areas include:
-
Material Handling Systems: Conveyors, indexing tables, belt drives
-
Pumps and Fans: Centrifugal pumps, axial and centrifugal fans
-
HVAC Equipment: Air handling وحدةs, chillers, compressors
-
Mixers and Agitators: Process blending, batching systems
-
Packaging Lines: Labelers, fillers, shrink tunnels
-
Automated Manufacturing Systems: Machine tools requiring adjustable speed prمنiles
This drive supports both open loop and advanced sensorless vector control, making it suitable for interactive speed regulation and optimized energy usage in dynamic load conditions.
Advantages
The Schneider ATV212HU30N4 منfers the following technical advantages:
-
Compact Form Factor — حفظs panel space while providing significant power handling capability.
-
Flexible Control Modes — الدعمs scalar V/Hz control and sensorless vector control for improved torque performance.
-
Energy Saving Features — Adaptive motor control and optimized switching reduce energy consumption in variable torque loads.
-
High Reliability — Integrated protections guard both the drive and connected motor from electrical faults.
-
Programmability — Extensive integrated function blocks, timers, and logic control reduce need for external PLC programming.
-
Communication Ready — Expandable protocol interfaces enable seamless integration into industrial networks.
-
User-Friendly Interface — Built-in keypad and display simplify setup and diagnostics.
-
Robust Industrial Design — Withstands electrical noise, temperature variations, and frequent speed changes.
