Product Overview

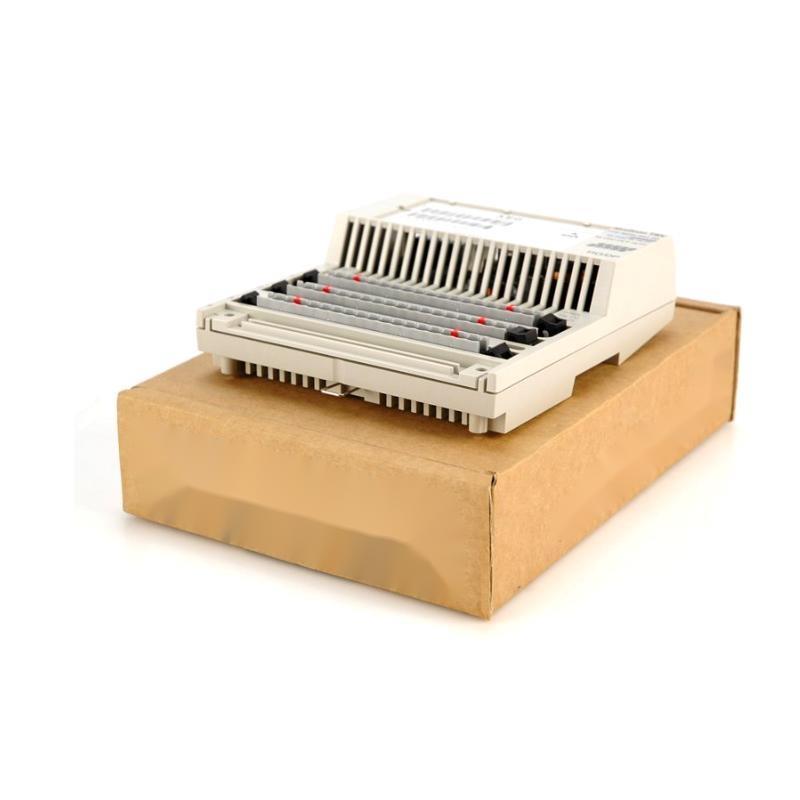

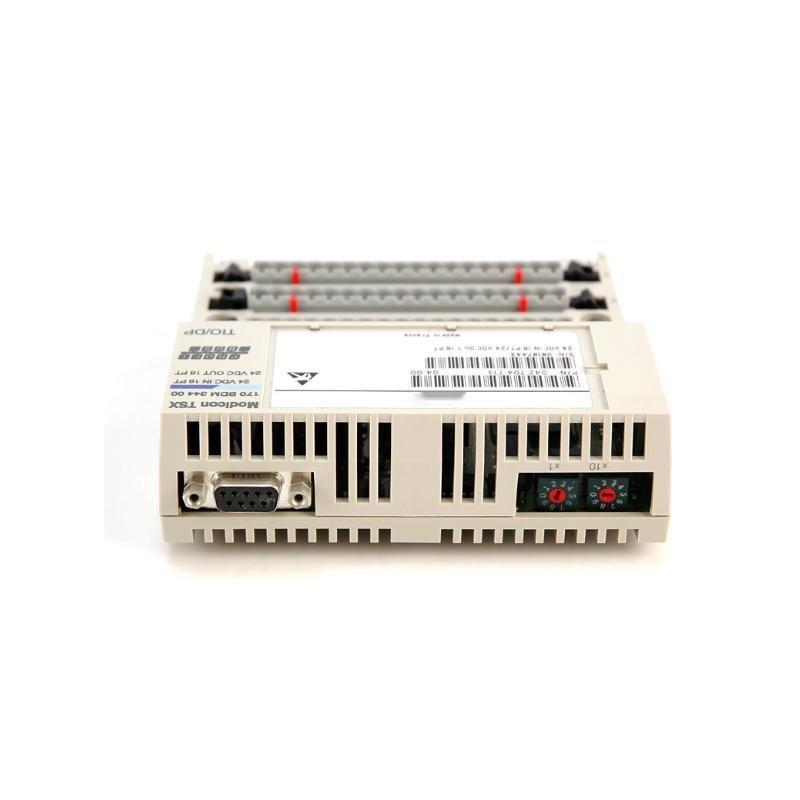

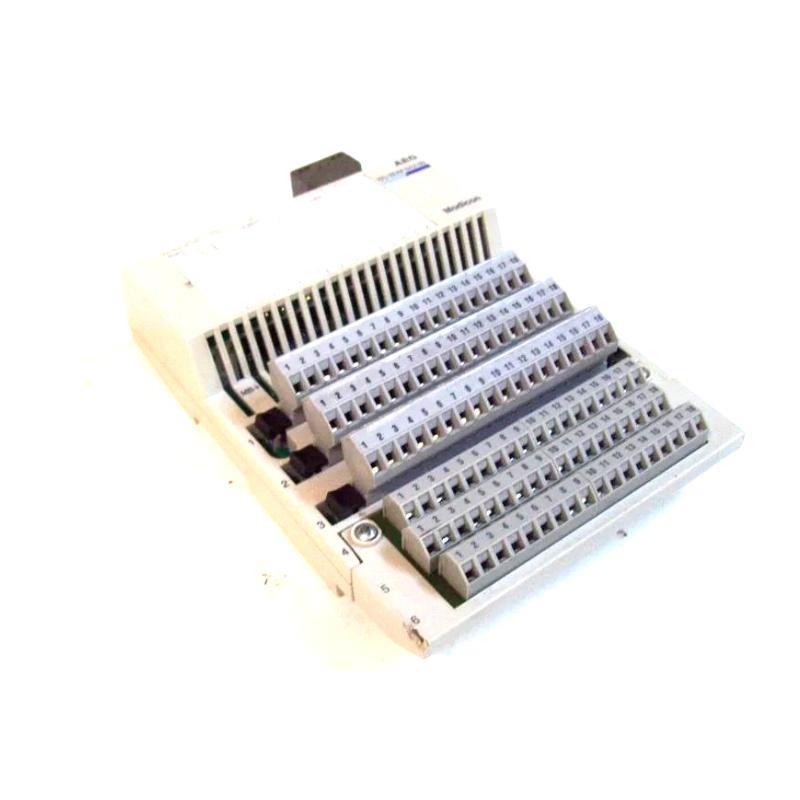

The Schneider 170BDM34400 is a Modbus Plus TIO (Terminal Input/Output) communication module designed for use in Modicon Momentum automation systems. It enables efficient, high-speed data exchange between field devices and controllers over the Modbus Plus network.
Technical Specifications
| Parameter | الوصف |
|---|---|
| Product Type | Modbus Plus TIO Communication Module |
| Communication Protocol | Modbus Plus |
| Mounting | DIN rail or panel |
| Power Supply | Supplied through Momentum base |
| Interface | One Modbus Plus port |
| Data Rate | 1 Mbps (Modbus Plus) |
| Dimensions (W×H×D) | 125 × 141.5 × 47.5 mm |
| الوزن | 0.31 kg |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
Applications
-
Factory automation systems
-
Process control environments
-
Packaging and bottling lines
-
Remote I/O data acquisition
-
Distributed control system integration
Advantages
-
Seamless integration with Momentum I/O bases
-
High-speed Modbus Plus communication
-
Compact design for space-saving installations
-
Reliable performance in industrial conditions
-
Plug-and-play setup with minimal configuration
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من the 170BDM34400 module?
A1: It serves as a communication interface between Modicon Momentum I/O systems and the Modbus Plus network.
Q2: Is this module compatible with all Momentum bases?
A2: Yes, it is designed to work with standard Momentum I/O bases.
Q3: What is the communication speed من Modbus Plus?
A3: It operates at 1 Mbps for high-speed data transfer.
Q4: Does the module require external power?
A4: No, it receives power from the Momentum I/O base.
Q5: Can this module be hot-swapped?
A5: No, the system must be powered down before replacing the module.
Q6: What type من connector does the Modbus Plus port use?
A6: It uses a DB9 connector for Modbus Plus network connection.
Q7: Is the 170BDM34400 suitable for harsh environments?
A7: Yes, it supports industrial temperature ranges and robust operation.
Q8: Does this module support redundancy?
A8: Modbus Plus network can support redundant configurations, but the module itself does not منfer built-in redundancy.
Q9: What diagnostic tools are available for this module?
A9: Diagnostic LEDs and Schneider’s configuration tools can be used for monitoring.
Q10: Can this module be used in safety applications?
A10: It is not certified for safety-critical applications like SIL or PL compliance.
Related or Similar Schneider الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 170ADM35010 | Modbus Plus Adapter for I/O base | 125 × 141.5 × 47.5 | 0.32 kg |
| 170ENT11002 | Ethernet TCP/IP Communication Module | 125 × 141.5 × 47.5 | 0.30 kg |
| 170AAI52000 | Analog Input Module (4 ch, 0–10V) | 125 × 141.5 × 47.5 | 0.28 kg |
| 170AAO52000 | Analog Output Module (2 ch, 0–10V) | 125 × 141.5 × 47.5 | 0.29 kg |
| 170BDM34000 | Modbus Plus Communication Adapter | 125 × 141.5 × 47.5 | 0.31 kg |
| 170ANR12091 | Counter Input Module | 125 × 141.5 × 47.5 | 0.30 kg |
Popular Schneider الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| BMXP342020 | Modicon M340 CPU, 1MB Program Memory | 100 × 150 × 90 | 0.55 kg |
| BMEP582040 | Modicon M580 High-Performance CPU | 100 × 200 × 100 | 0.60 kg |
| TM221CE16R | Modicon M221 PLC, Ethernet, Relay | 90 × 100 × 70 | 0.25 kg |
| ATV630D75N4 | Altivar 630 Drive, 75kW, 400V | 295 × 730 × 280 | 31 kg |
| LXM32MD30N4 | Lexium 32 Servo Drive, 3kW | 220 × 185 × 80 | 2.8 kg |
| TSXP572634M | Modicon Premium PLC CPU | 132 × 125 × 75 | 0.50 kg |
