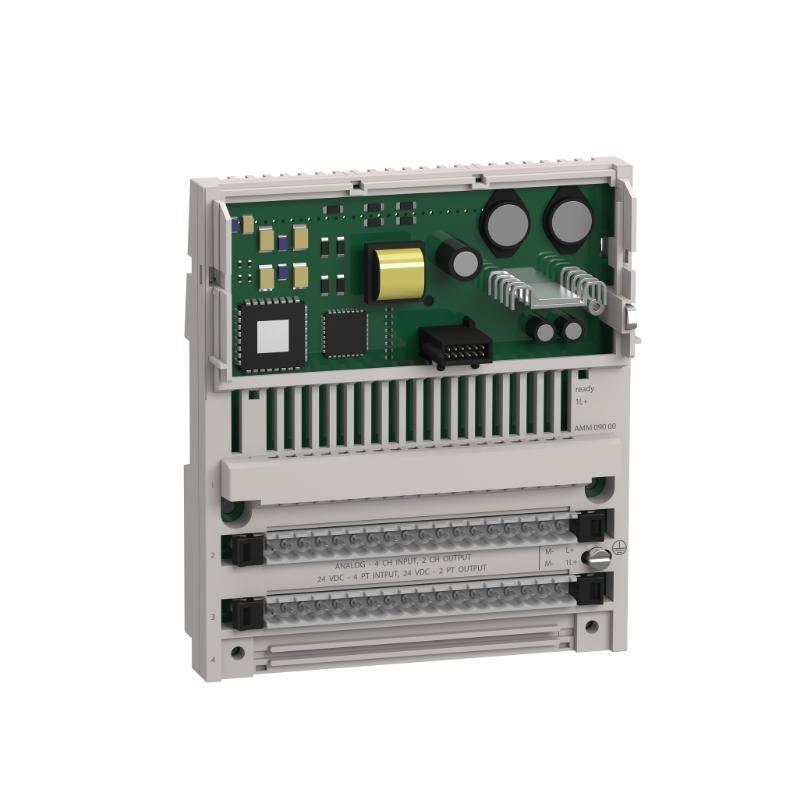

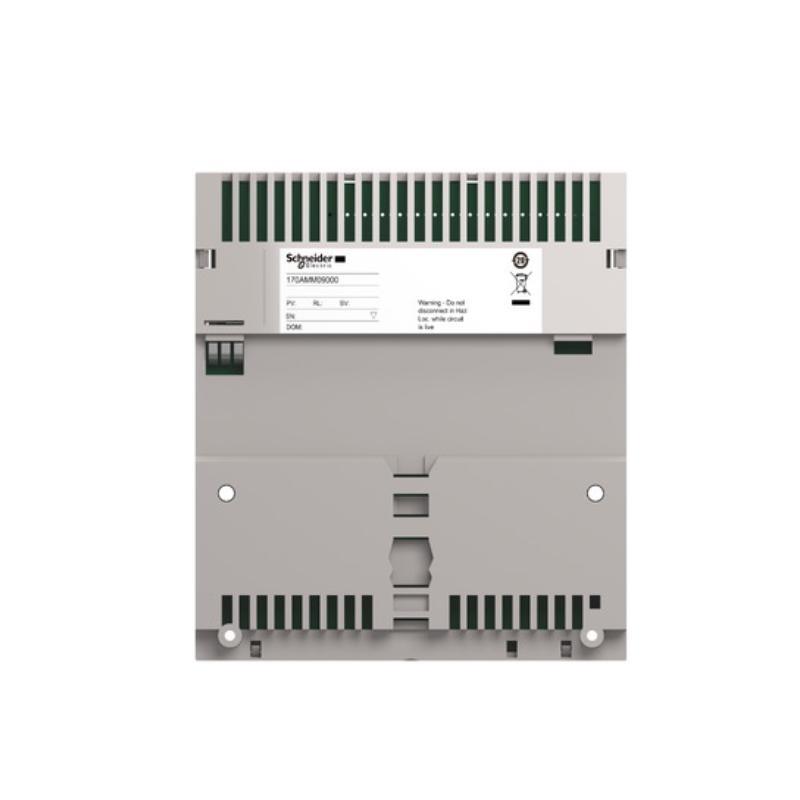

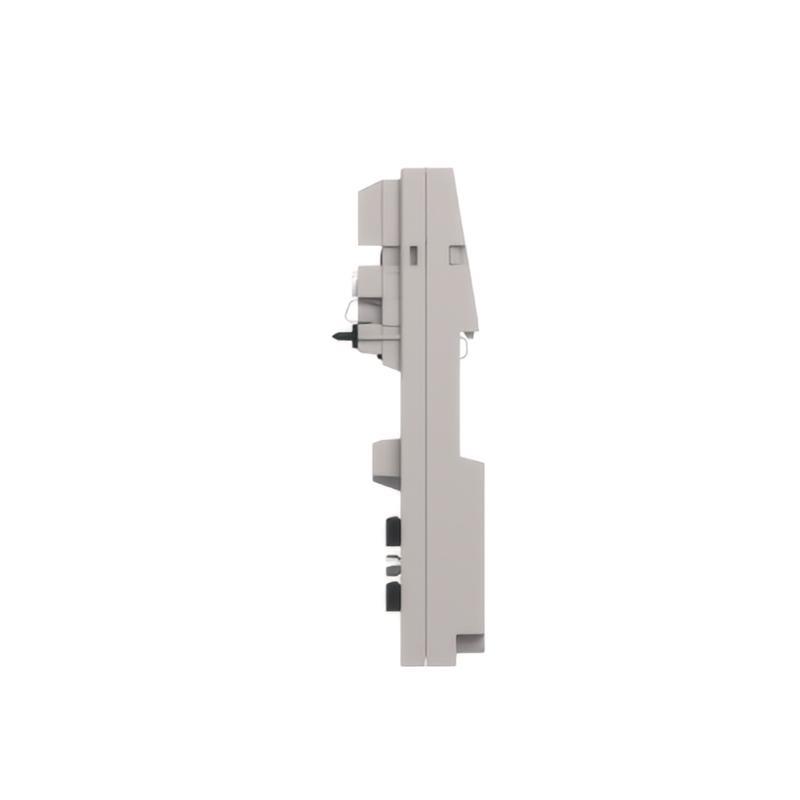

The Schneider Electric 170AMM09000 is a Distributed Analog/Discrete I/O Module belonging to the Modicon Momentum I/O architecture, designed to meet the demanding requirements من distributed automation systems. It combines both analog and discrete I/O capabilities in one compact module, significantly simplifying system architecture and reducing hardware footprint.
Engineered for applications requiring high flexibility, the 170AMM09000 module منfers a practical solution for controlling mixed-signal environments where both analog process variables and digital states must be monitored or controlled simultaneously. This module integrates seamlessly with Modicon Momentum processors or communication adapters, making it ideal for remote and decentralized installations in industrial automation environments.
مواصفات المنتج
| Parameter | Details |
|---|---|
| Product Name | Schneider Electric 170AMM09000 |
| Product Type | Distributed Analog/Discrete I/O Module |
| Series | Modicon Momentum |
| Analog Inputs | 4 Channels (Voltage or Current configurable) |
| Analog Outputs | 2 Channels (Voltage or Current configurable) |
| Discrete Inputs | 6 Channels |
| Discrete Outputs | 2 Channels (Relay or transistor, model dependent) |
| Analog Input Range | 0–10 V, 4–20 mA |
| Analog Output Range | 0–10 V, 4–20 mA |
| Resolution (Analog) | 12-bit |
| Digital Input Voltage | 24 VDC (nominal) |
| Digital Output Voltage | 24 VDC or 250 VAC (relay), depending on type |
| Update Time | < 10 ms (typical for I/O scan) |
| Communication Interface | Via Momentum Base and processor or communication adapter |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W x H x D) | 47.5 x 125 x 141.5 mm |
| الوزن | 0.24 kg |
| Certifications | CE, UL, CSA, RoHS |
| Power Supply | Supplied through base, 5 VDC internally regulated |
| Hot Swapping | الدعمed within a configured system |
Product Applications
The Schneider 170AMM09000 module is especially suited for hybrid control applications where analog and digital inputs/outputs are handled together in compact form factors. Common use cases include:
-
Water and Wastewater Treatment – Monitoring flow rates, tank levels, and operating valve control.
-
Building Automation – HVAC control, lighting management, and environmental condition monitoring.
-
Food and Beverage Industry – Blending processes, temperature, and valve control in bottling lines.
-
Pharmaceutical Manufacturing – Process control for batching, mixing, and environmental compliance.
-
Energy Management Systems – Monitoring energy consumption and controlling auxiliary equipment.
-
Remote Monitoring Stations – Collecting field data and issuing control signals in distributed systems.
Product Advantages
-
All-in-One I/O: Combines analog and discrete I/O in a single module, reducing cabinet space and simplifying wiring.
-
Flexible Signal Handling: الدعمs both voltage and current signals, suitable for various sensor types and actuators.
-
Seamless Integration: Natively connects with the Modicon Momentum platform for scalable distributed control.
-
Compact Form Factor: Ideal for decentralized control panels and limited-space installations.
-
Robust Design: Operates reliably in harsh industrial environments with wide temperature tolerance.
-
Energy Efficient: Low power consumption supports sustainability in control system design.
-
Fast Response Time: Real-time signal acquisition ensures process stability in critical control loops.
-
Hot Swappable: Enables quick field maintenance without halting operations, improving system availability.
-
Simplified Maintenance: Diagnostic capabilities allow quick troubleshooting من I/O channels.
-
Standards Compliance: Certified for use in global industrial environments (CE, UL, CSA).
الأسئلة الشائعة (FAQ)
-
What is the total I/O channel count من the 170AMM09000 module?
It provides 4 analog inputs, 2 analog outputs, 6 digital inputs, and 2 digital outputs. -
Can the analog channels handle both voltage and current signals?
Yes, the analog channels are configurable for either voltage (0–10V) or current (4–20 mA). -
Is this module compatible with Modicon Momentum CPUs?
Absolutely. It is specifically designed to integrate with Momentum processors or communication adapters. -
Does it support signal scaling or conversion?
Yes, analog signals can be scaled within the programming environment to engineering وحدةs. -
What is the input signal resolution من analog channels?
The module features 12-bit resolution for analog inputs and outputs. -
Can it be hot-swapped during system operation?
Yes, if the Momentum platform is properly configured, modules can be replaced without system shutdown. -
Are the digital outputs relay or transistor-based?
This depends on the internal configuration, but typically, outputs are relay-type to support higher voltage levels. -
What is the maximum voltage for digital inputs?
The digital inputs are rated for 24 VDC. -
Is sمنtware configuration required before use?
Yes, it needs to be configured via Schneider’s وحدةy Pro or EcoStruxure Control Expert sمنtware. -
Is the module suitable for remote I/O expansion?
Yes, it is designed to operate as a remote I/O وحدة in distributed control applications.
Related الطرازs (Same Series or Functionality)
| الطراز Number | Function | الوصف |
|---|---|---|
| 170ANR12091 | Analog Input Module | 8-channel analog input (voltage or current) |
| 170AAI03000 | Analog Input Module | 3-channel analog input module |
| 170AAI52000 | Analog Output Module | 2-channel analog output (current/voltage) |
| 170ADM35010 | Digital Input Module | 32-point 24V DC input module |
| 170ADA35000 | Digital Output Module | 32-point digital output module, 24 VDC |
| 170AMM09010 | Analog/Discrete I/O Module | Similar to 170AMM09000 with slight variation in specs |
Popular الطرازs from Schneider Electric
| الطراز Number | Function | الوصف |
|---|---|---|
| BMXP342020 | PLC Processor | M340 CPU, Ethernet, USB, CANopen |
| TM241CE40T | Logic Controller | M241 series, 40 I/O, Ethernet, USB, CANopen |
| ATV320U15M2B | Variable Speed Drive | Altivar 320, 1.5kW, single-phase, 200–240V |
| HMISTU655 | HMI Touchscreen Panel | 5.7” STN screen, Ethernet, RS232/485 |
| LXM32MD18N4 | Servo Drive | Lexium 32, 1.8 kW, multi-protocol |
| TSXPSY2600 | Power Supply وحدة | TSX series 24VDC power supply for automation systems |
