مقدمة المنتج

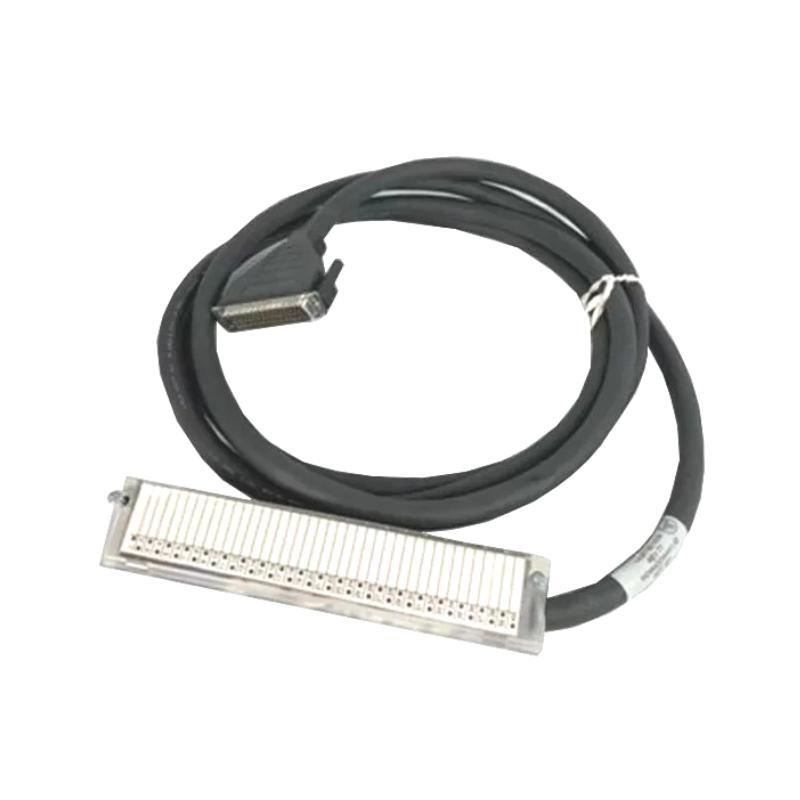

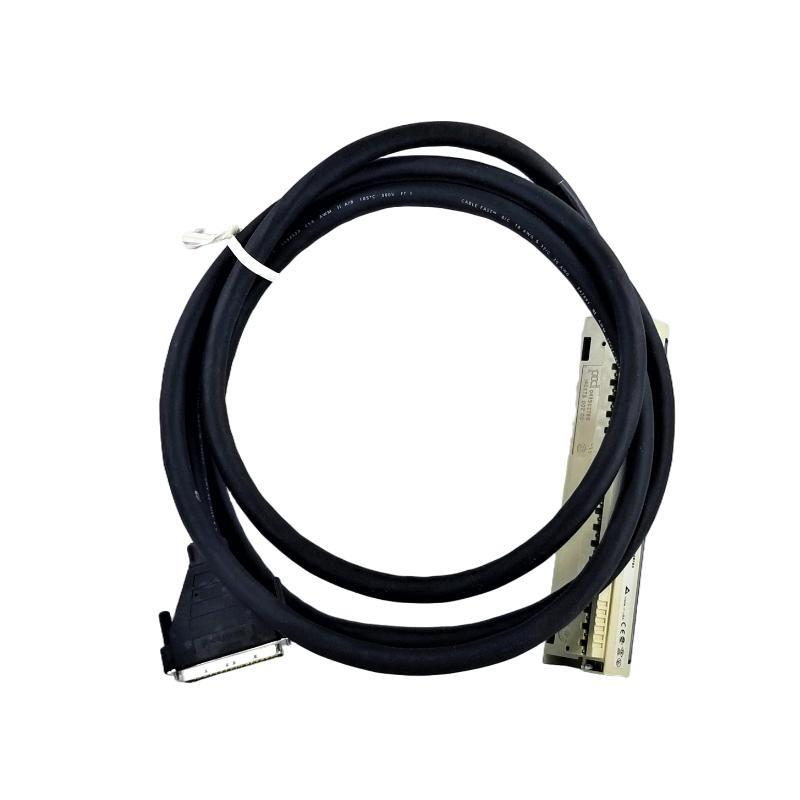

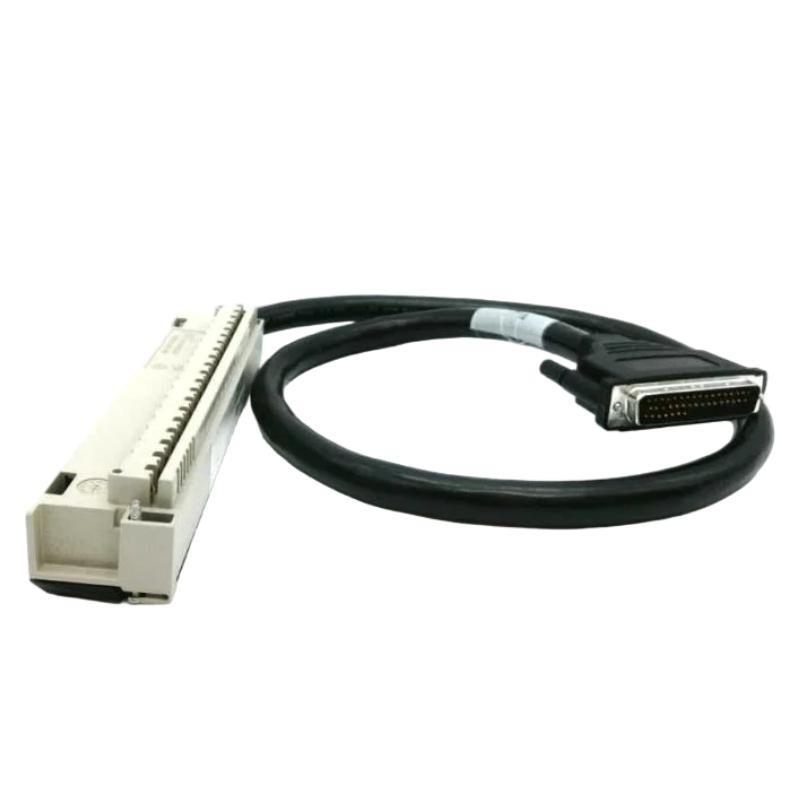

The Schneider 140XTS01209 CableFast System Cable is a high-performance industrial-grade communication cable tailored specifically for Schneider Electric’s Modicon Quantum I/O system. With a 2.7-meter pre-terminated cable length, this product is part من the CableFast wiring system — a modular cabling solution designed to drastically reduce panel wiring time, improve connectivity reliability, and maintain clean, organized control system layouts.
The 140XTS01209 model integrates seamlessly with I/O base modules and remote interface connectors, منfering robust signal transmission, electromagnetic shielding, and a plug-and-play design ideal for complex automation architectures. It is engineered for environments where high-speed and dependable communication between I/O modules is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز | 140XTS01209 |
| الشركة المصنعة | Schneider Electric |
| Product الفئة | CableFast System Cable |
| Series Compatibility | Modicon Quantum |
| Cable Length | 2.7 meters (8.9 feet) |
| Connector Type | Pre-terminated CableFast connectors |
| Construction | Shielded multi-core industrial-grade cable |
| Voltage Rating | 30V DC nominal |
| Current Capacity | Up to 1 A per line |
| Temperature Range (Operation) | -10°C to +60°C |
| Temperature Range (Storage) | -25°C to +85°C |
| Shielding | Dual-layer EMI shielding (foil and braided) |
| Color | Black |
| Flame Resistance | IEC 60332-1 compliant |
| Cable Diameter | 12 mm |
| الوزن | 0.159 kg |
| Certifications | CE, RoHS, UL Recognized, IEC Compliant |
Applications
The 140XTS01209 CableFast cable is designed for mission-critical industrial applications requiring clean, fast, and reliable system wiring. Its applications include:
-
Manufacturing Plants
Enables quick installation and wiring integrity for modular PLC-based control systems. -
Oil & Gas Processing
Withstands industrial environments with high electrical interference. -
Water and Wastewater Facilities
Used for modular control cabinet installations and remote I/O communication. -
Power Generation
Connects automation modules in turbine control, switchgear, and auxiliary equipment. -
Pharmaceutical & Food Industries
الدعمs GMP-compliant control system installations with minimal wiring clutter. -
Automotive Assembly Lines
Enhances efficiency in rapidly changing, scalable production environments.
Advantages
-
Pre-terminated Convenience
Reduces on-site wiring effort, improves consistency, and shortens commissioning time. -
High Signal Integrity
EMI shielding ensures interference-free signal transmission in harsh industrial settings. -
Robust and Durable
Engineered with durable materials to resist mechanical wear, vibration, and chemicals. -
Reduced Downtime
Fast replacement and modular connection improve maintenance cycles and reduce shutdowns. -
Standardized Length
The 2.7m length is ideal for most cabinet-to-I/O module routing, eliminating excess cabling. -
Certified Quality
Complies with international electrical and safety standards for industrial environments.
الأسئلة الشائعة (FAQ)
1. What is the 140XTS01209 cable used for?
It is used for connecting Modicon Quantum I/O modules via the CableFast system in a plug-and-play manner.
2. Can this cable transmit both analog and digital signals?
Yes, the cable supports both analog and digital signals depending on the module configuration.
3. How long is the cable?
This specific model is 2.7 meters (8.9 feet) in length.
4. Is the cable shielded against interference?
Yes, it features dual EMI shielding (foil and braid) for robust signal protection.
5. Is this cable reusable for different configurations?
It is pre-terminated and factory-tested, so reuse is not recommended unless using it with the same configuration.
6. Does it require any specific installation tools?
No, the cable is plug-and-play with factory-installed connectors.
7. Can it be used in high-vibration environments?
Yes, it is built with durable shielding and industrial-grade construction for harsh environments.
8. What kind من connectors are used at the ends?
The cable comes with pre-fitted CableFast system connectors designed for Quantum I/O modules.
9. Does the cable comply with global safety standards?
Yes, it meets CE, RoHS, and UL standards for electrical safety and environmental compliance.
10. What is the minimum bending radius من the cable?
It is recommended to maintain a bend radius من at least 5x the cable diameter (~60 mm).
Related or Same-Series الطرازs
| الطراز Number | الوصف | Cable Length | Compatible System |
|---|---|---|---|
| 140XTS01200 | CableFast System Cable | 2.0 meters | Modicon Quantum |
| 140XTS01203 | CableFast System Cable | 2.7 meters | Modicon Quantum |
| 140XTS01206 | CableFast System Cable | 2.7 meters | Modicon Quantum |
| 140XTS01210 | CableFast System Cable | 5.0 meters | Modicon Quantum |
| 140XTS00203 | Digital I/O CableFast Cable | 2.7 meters | Quantum Digital Interface |
| 140XTS00500 | I/O Expansion Cable | 5.0 meters | Quantum Remote I/O Systems |
